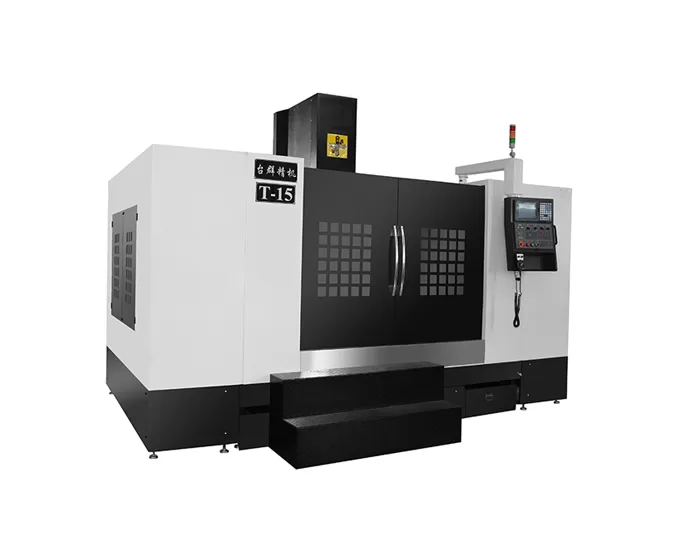

Name: HT-15 Boxway Vertical Machining Center
Brand: Taikan Machine
Availability: InStock

Characteristic of HT-15 Boxway Vertical Machining Center

Machine Structure

Fixed column cross-slide structure with an oversized stable base to ensure high load-bearing capacity.

Made of high-strength cast iron, providing excellent rigidity and stable precision.

Three-Axis Box Guideway

Spindle

Z-axis Counterweight

Application of HT-15 Boxway Vertical Machining Center

Mainly used in the mold manufacturing industry, it is also widely applicable in aerospace, energy equipment, automotive manufacturing, medical devices, and other industries.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of HT-15 Boxway Vertical Machining Center

Item			Unit	HT-15	Remarks
Travel	Table Travel (X-axis)		mm	1500
	Saddle Travel (Y-axis)		mm	800
	Headstock Travel (Z-axis)		mm	700
	Spindle Nose to Table		mm	170～870
	Spindle Center to Column		mm	810
Table	Table Size		mm	1700×800
	Table Loading Capacity		kg	1500
	T-Slots (Qty-Width×Pitch)		mm	5-22×135
Spindle	Motor Power (Cont./30min)		kW	15/18.5
	Speed Range		rpm	50～8000(Belt-driven)
	Spindle Diameter		mm	φ155
	Tool Holder Type		–	BT50
	Pull Stud Type		–	P50T-I（MAS403）
Speed	Feed Rate Range		mm/min	1-10000
Speed	Rapid Traverse Speed(X/Y/Z)		m/min	41255
Accuracy	Positioning Accuracy(X/Y/Z)		mm	0.02	GB/T18400.4 (Full Travel)
Accuracy	Repeatability(X/Y/Z)		mm	0.01
Other	CNC System		–	Mitsubishi M80VA
	Air Supply	Flow	L/min	≥280 (ANR)
	Air Supply	Pressure	MPa	0.6~0.8
	Power Requirement		kVA	35
	Coolant Tank Capacity		L	350
	Machine Dimensions		mm	437032003500	X/Y/Z axis directions
	Machine Weight(approx.)		kg	11300

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
