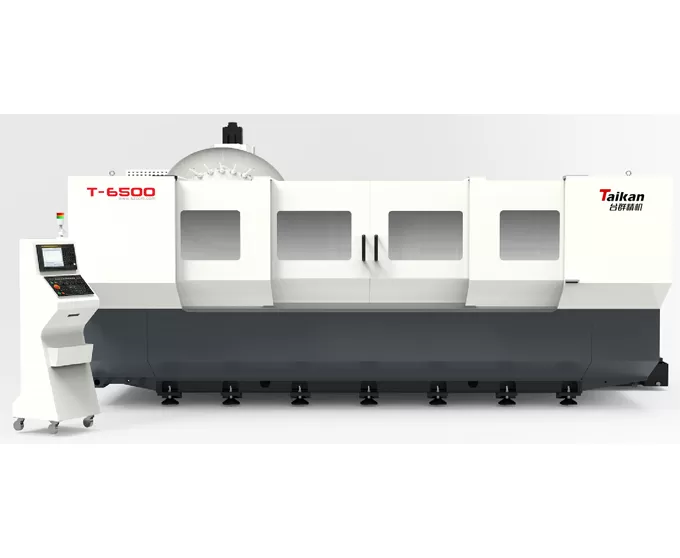

T-6500 Moving Column Profile Machining Center

Travel

Table travel (X axis)

mm

6500

Saddle travel (Y axis)

mm

400

Headstock travel (Z axis)

mm

350

Distance from spindle nose to table

mm

200-550

Table

Table size

mm

6500*400

Max. load

kg

1000

T-slot (number-width*spacing)

mm

4-14*100

Spindle

Motor power (rated/short time)

kW

3.7/5.5

Motor torque (rated/short time)

N.m

23.6/35

Spindle speed

rpm

20-12000

Spindle diameter

mm

Ф100

Spindle taper

/

BT30

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

50/30/36

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.1/0.01/0.01

GB/T 18400.4

Repeatability (X/Y/Z)

mm

0.06/0.006/0.006

(Full travel)

Tool magazine

Tool magazine capacity

T

21

Max. tool weight

kg

3

Max. tool length

mm

200

Max. tool diameter (full /adjacent empty)

mm

Ф60/Ф80

Others

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥200（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

20

Coolant tank capacity

L

550

Machine size

mm

9800*2500*2400

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

13000
