Taikan Machine's Precision Machining Solutions for Core Robot Components

I. The Rise of the Global Robotics Industry

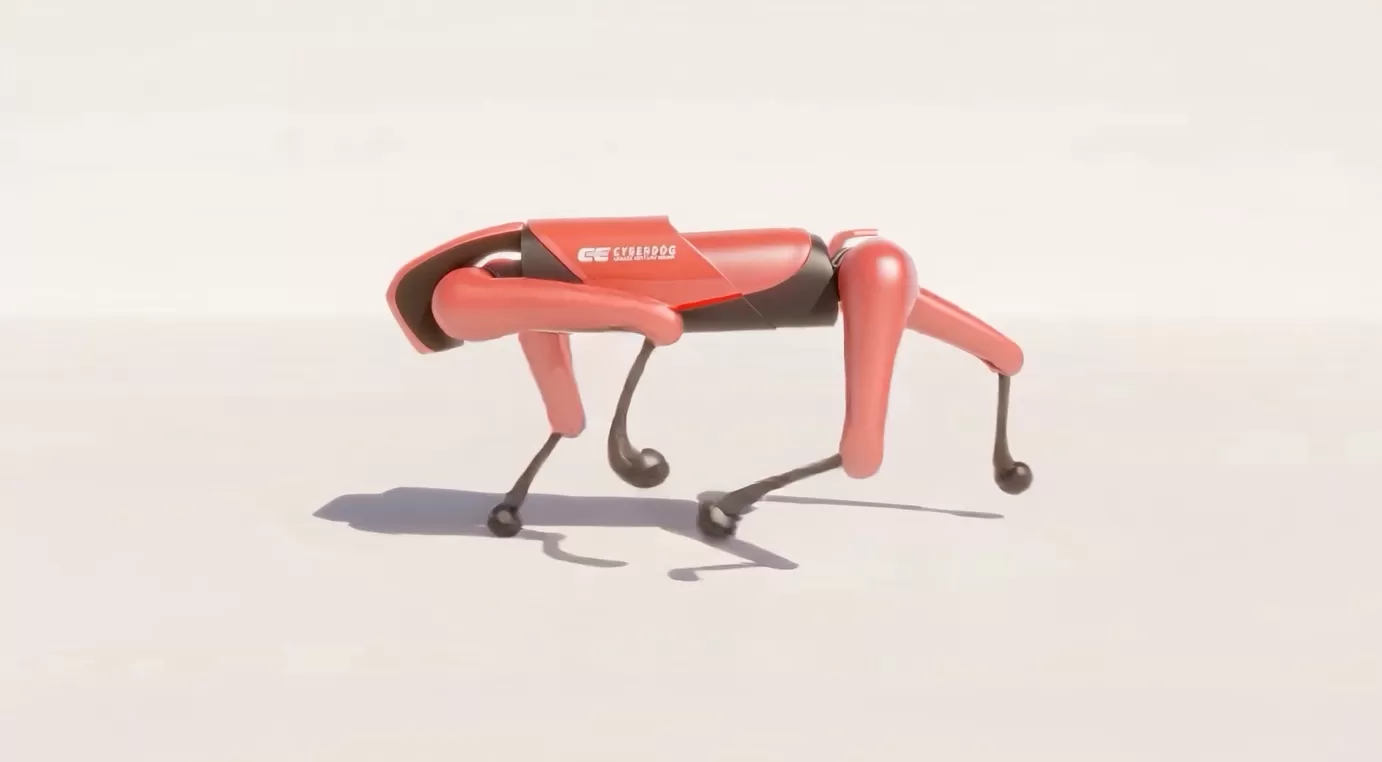

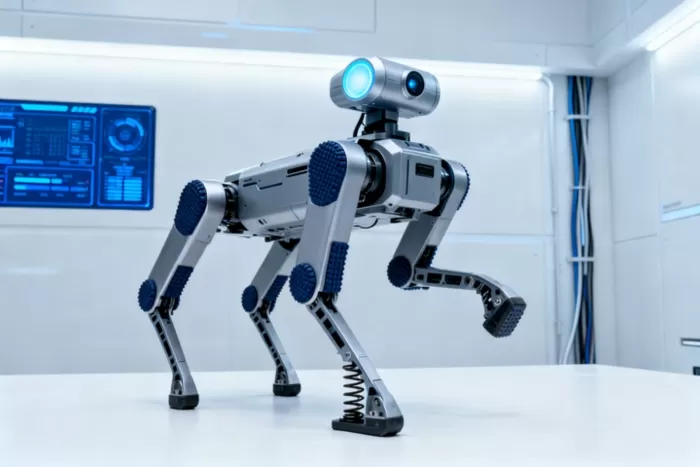

In the rapid evolution of global industrial automation and artificial intelligence, smart robots—particularly quadruped robots, bionic robot dogs, and humanoid robots—are accelerating their transition from laboratories to commercial and consumer applications. According to industry think tanks, the core technological barriers to highly dynamic and agile robots lie not only in algorithms and microchips, but also in the precision of their mechanical structures and the kinematic smoothness of their joints.

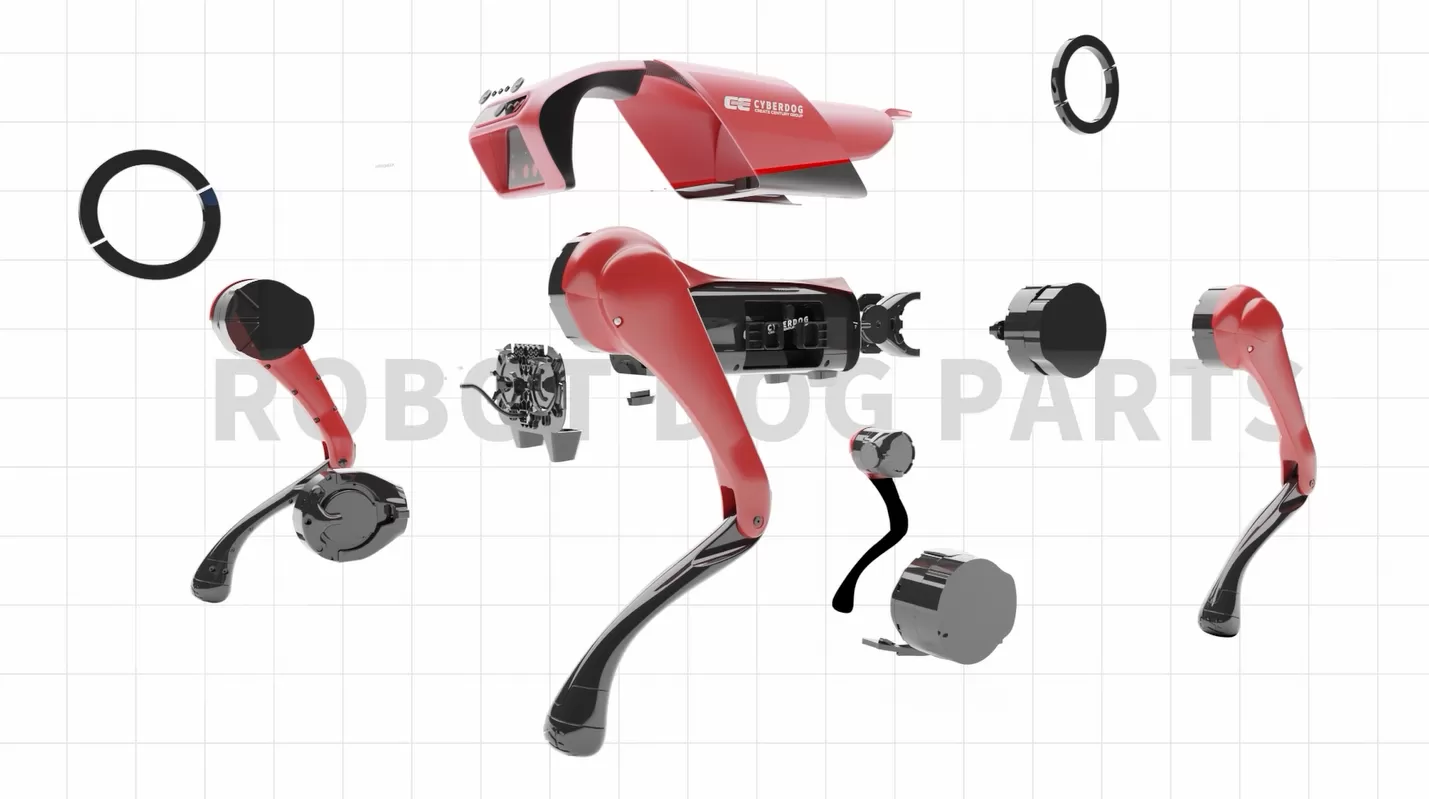

Excellent products originate from excellent equipment. As the physical carrier for a robot's motion output and structural support, the manufacturing quality of robot core components directly determines the overall kinematic performance, service life, and reliability of the machine. Facing this global demand for high-end manufacturing, Taikan Machine leverages its profound expertise in CNC machine tool R&D to provide a comprehensive, one-stop precision machining solution for critical structural parts such as brace components, housing modules, thigh assemblies, and precision gears of quadruped robots.

II. Needs Overview: Pain Points in Robot Core Component Machining and Taikan Machine's Breakthroughs

During the manufacturing of high-end intelligent equipment like quadruped robots, component machining faces multidimensional technical challenges:

1. Stringent Precision Requirements for Die-Casting Post-Processing: The metal leg components of quadruped robots are mostly formed through die-casting. However, post-casting parts often have flash, and the connecting datum surfaces are rough. Direct assembly without precision finishing leads to joint stiffness and jamming.

2. Complex Spatial Hole Systems and Cumbersome Threading: Brace and housing components contain numerous standard threaded holes necessary for compatible assembly, demanding extremely high precision and efficiency in tapping operations.

3. Vulnerability to Errors in Multi-Faceted and Curved Surface Machining: Precision gears and complex joint parts with inclined holes are highly susceptible to cumulative errors if subjected to multiple clamping setups, directly compromising the final surface finish and geometric accuracy.

By building a full-matrix equipment ecosystem—ranging from high-precision drilling and tapping centers to 5-axis simultaneous machining centers—Taikan Machine provides full-process support for robot manufacturing. We not only excel in precise face finishing and high-speed tapping of die-cast connection points to ensure joint compatibility and structural neatness, but we also utilize 5-axis simultaneous technology to achieve single-setup forming of complex curved surfaces. This guarantees that quadruped robot joints fit perfectly, enabling flawlessly smooth motion and significantly enhancing joint durability.

III. Core Solutions: Taikan Machine's High-End CNC Machining Equipment and Application Scenarios

To meet the distinct process characteristics of different components, Taikan Machine offers two core-level machining solutions: an efficient finishing machining solution using vertical and tapping centers, and a complex curved-surface and high-precision machining solution using 5-axis simultaneous machining centers.

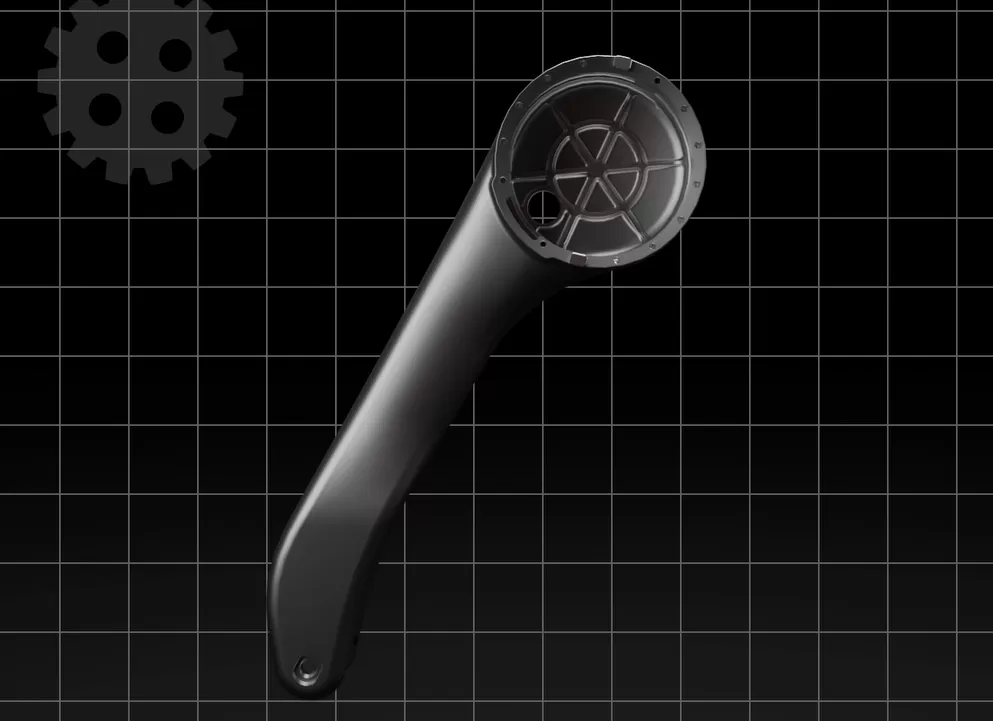

Solution 1: Efficient Finishing and Hole System Machining for Die-Cast Structural Parts (Housings / Thighs / Braces)

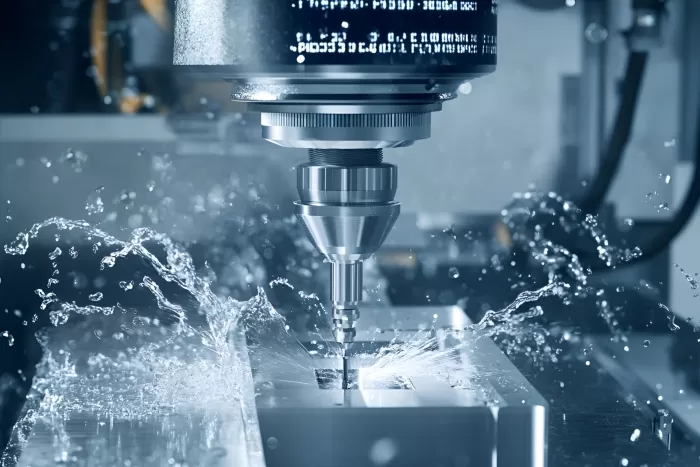

For metal leg components formed by die-casting, Taikan Machine recommends our high-performance vertical machining centers and tapping centers. Featuring exceptionally high rapid traverse speeds and spindle responsiveness, these machines efficiently remove die-casting flash, accurately calibrate connecting datum surfaces, and perform high-speed tapping for pre-cast standard threaded holes.

Core Process Workflow:

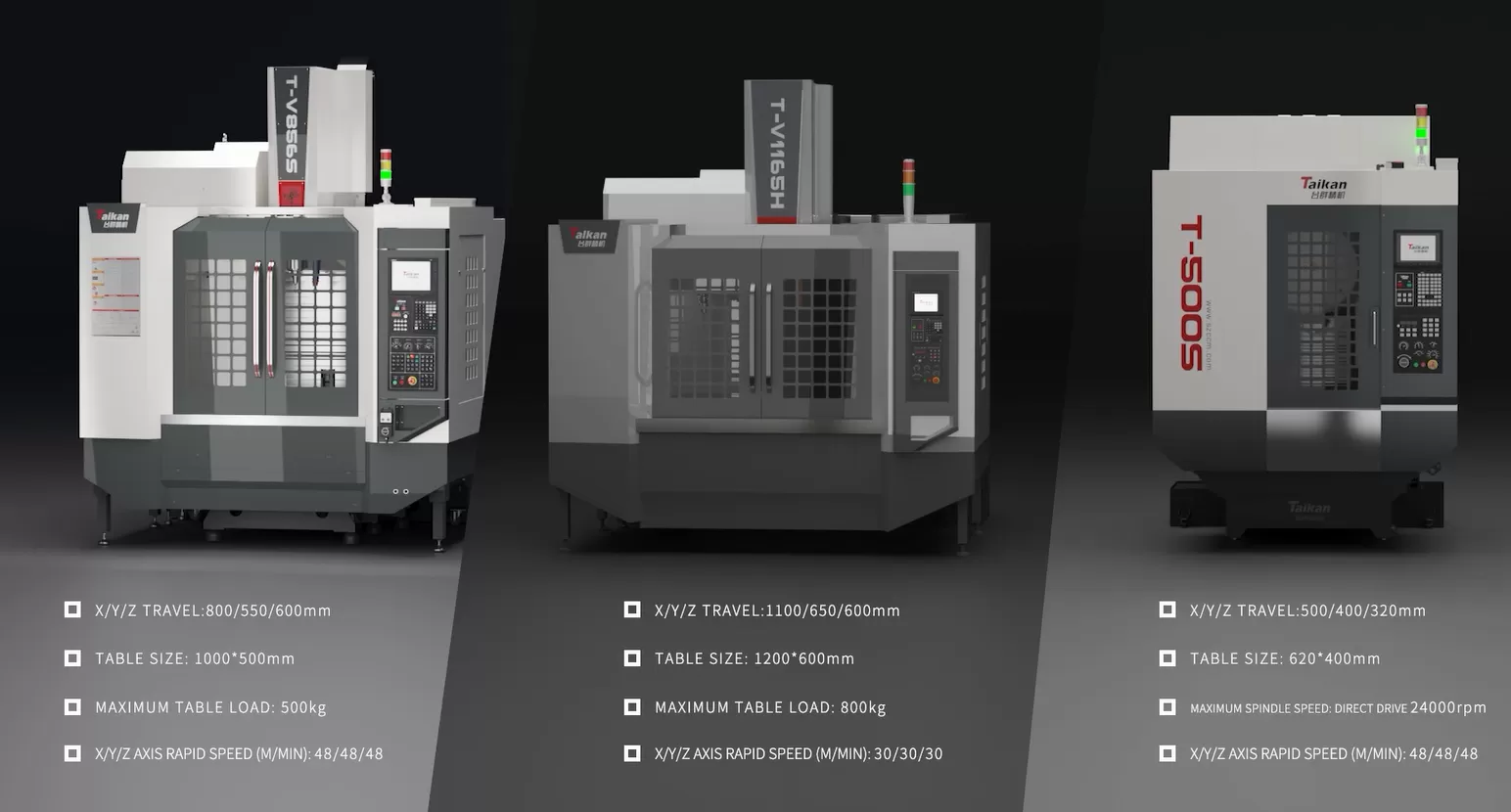

Recommended Equipment Specifications:

Solution 2: High-Precision Machining of Complex Polyhedra and Inclined Holes (Precision Gears / Complex Joints)

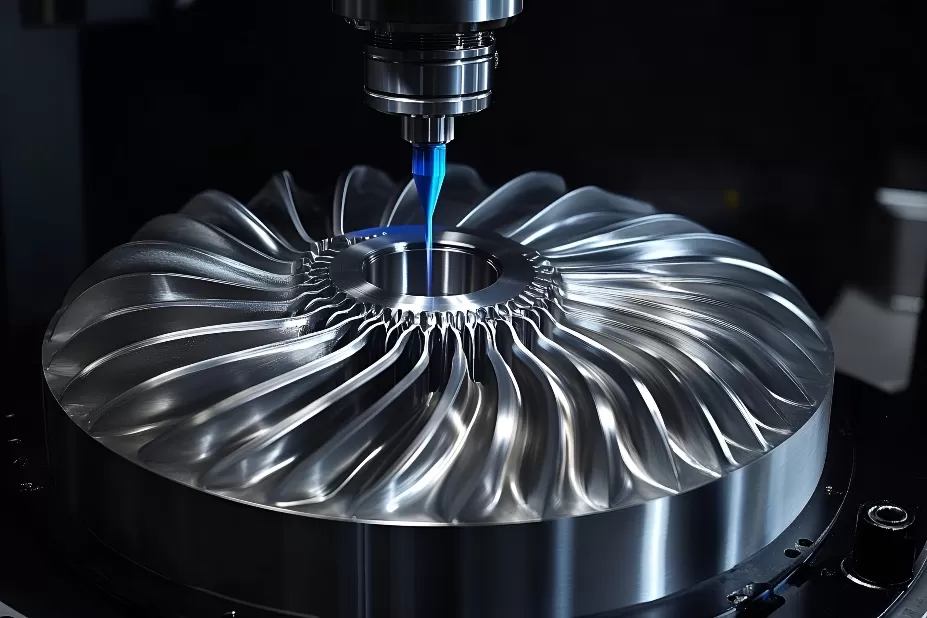

The transmission systems of quadruped robots (such as precision gears) and components featuring inclined holes and complex spatial curved surfaces are extremely difficult to machine using traditional 3-axis methods. Taikan Machine highly recommends utilizing our 5-axis simultaneous machining centers to achieve "single setup, multi-face forming." This fundamentally eliminates the positioning errors caused by multiple clampings, ensuring strict control over workpiece accuracy and surface finish.

Core Technological Highlights:

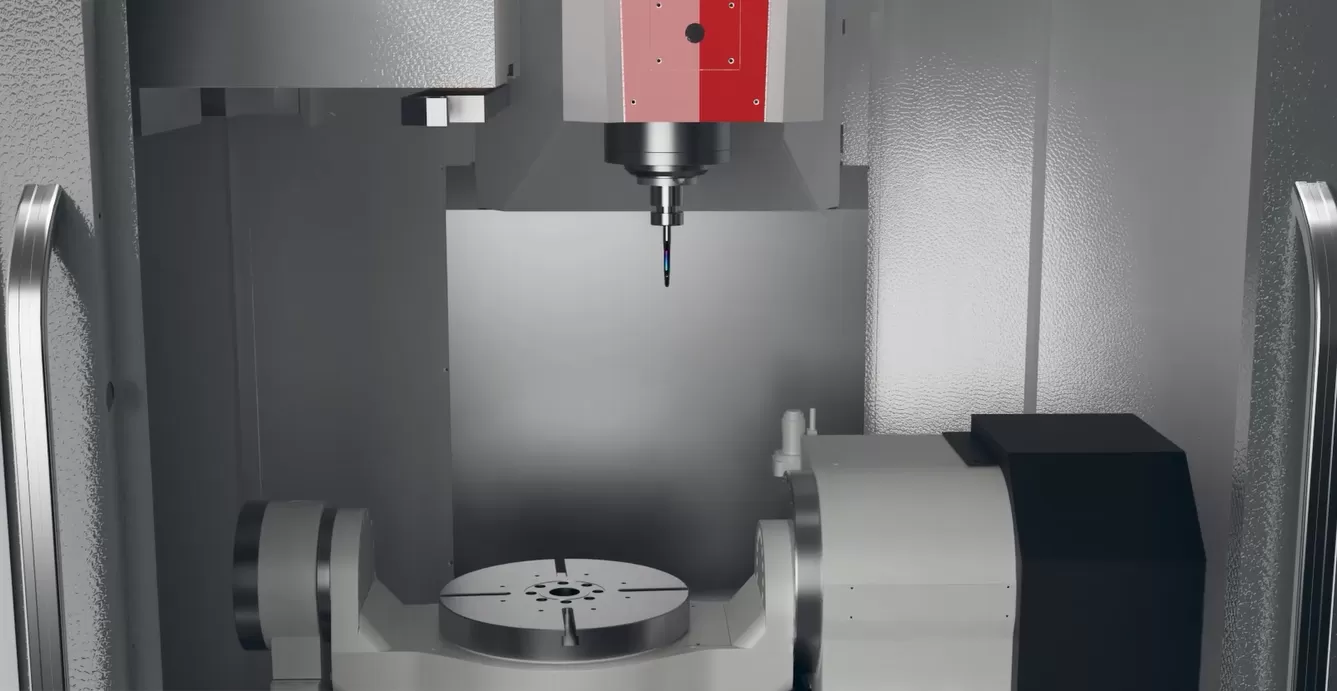

• Dual Direct-Drive 5-Axis Rotary Table: Delivers lightning-fast positioning speeds and exceptionally high simultaneous efficiency.

• RTCP (Rotation Tool Center Point) Functionality: Equipped with advanced CNC systems and RTCP functions, ensuring the tool trajectory is controlled with micron-level precision during rotational or tilting movements, achieving genuine high-precision 5-axis simultaneous machining.

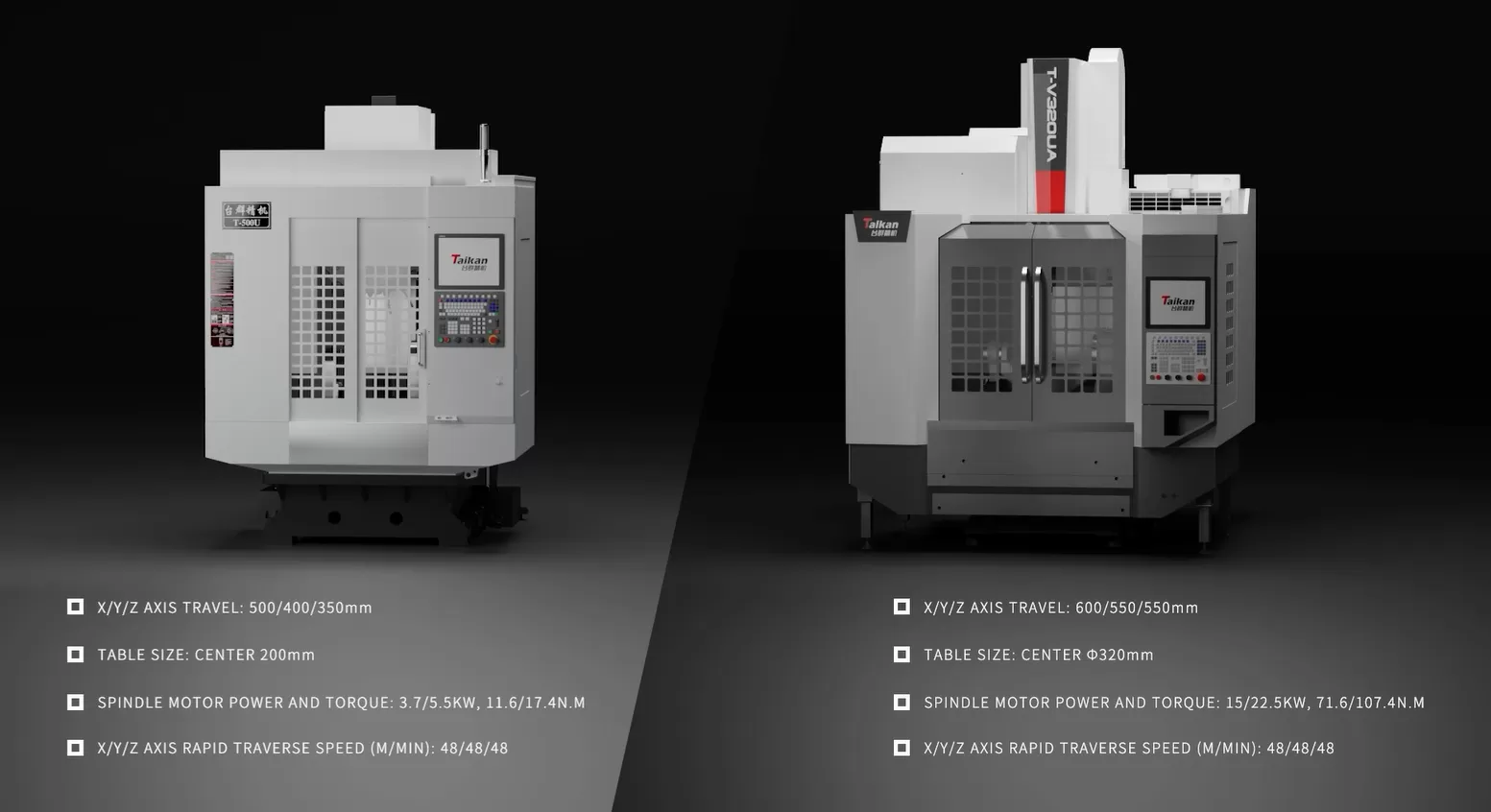

Recommended Equipment Specifications:

IV. Conclusion: Partnering with Taikan Machine to Empower the High-End Upgrade of the Robotics Industry

As robot dogs and humanoid robots evolve toward higher degrees of freedom and greater payload capacities, the demands placed on the manufacturing tolerances and surface quality of their core components will become increasingly stringent. Taikan Machine is not only a manufacturer of advanced equipment but also a solid pillar supporting the intelligent manufacturing of robotics.

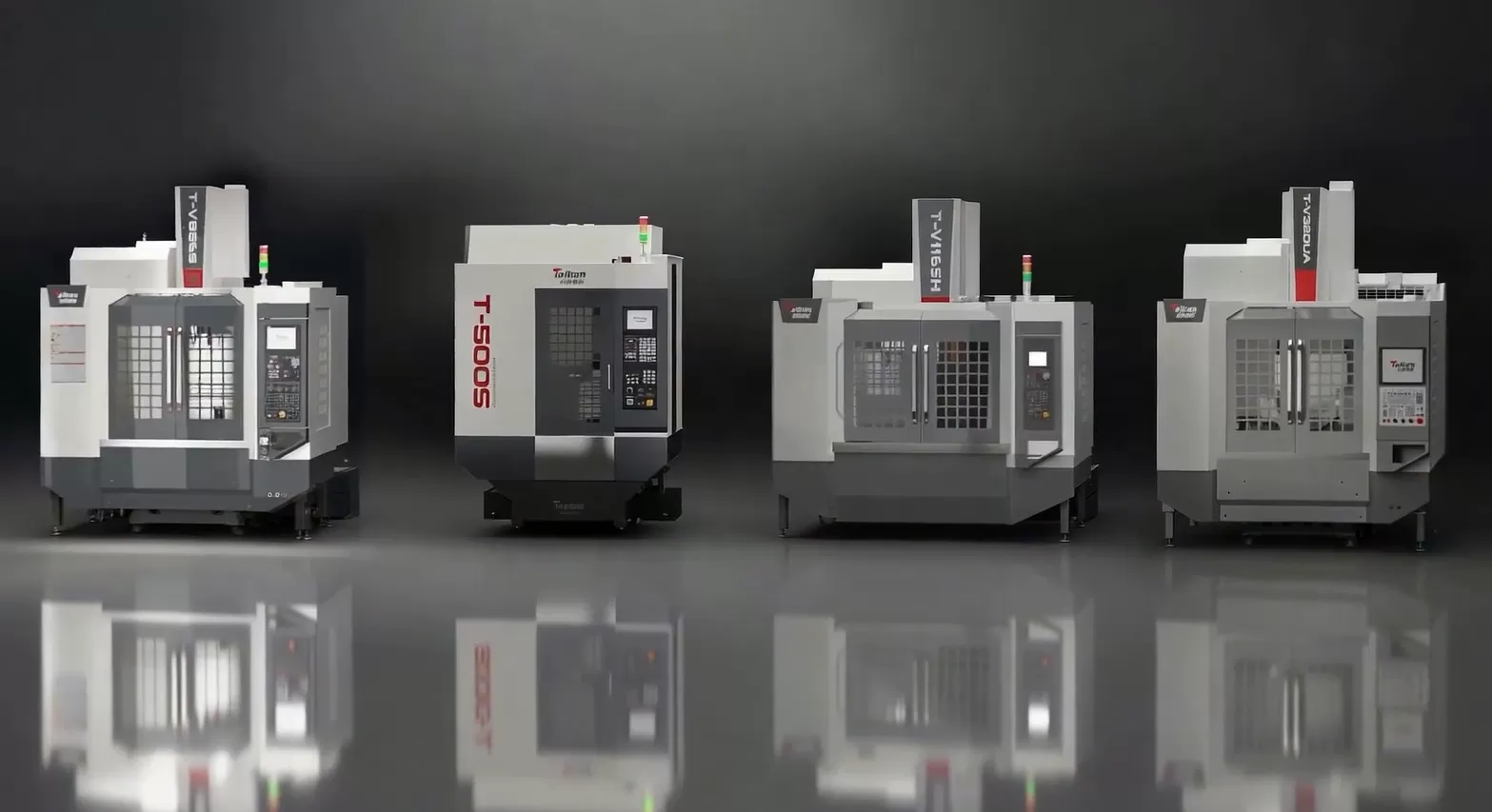

Adhering to the philosophy that "Excellent products originate from excellent equipment," Taikan Machine is actively providing superior precision machining solutions for core robot components to global quadruped robot and smart automation enterprises through our high-end CNC machining centers, represented by models like the T-V856S and T-500U. Looking to the future, Taikan Machine will continue to drive technological iteration through innovation, partnering with robotics R&D and manufacturing enterprises worldwide to propel the global smart robotics industry into a new era of high-end, precision-driven upgrades.
