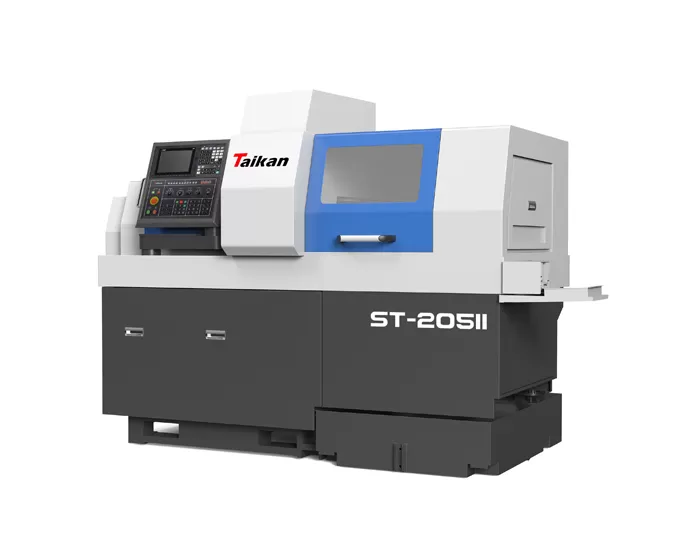

Name: ST-205Ⅱ High-precision CNC Swiss-Type Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

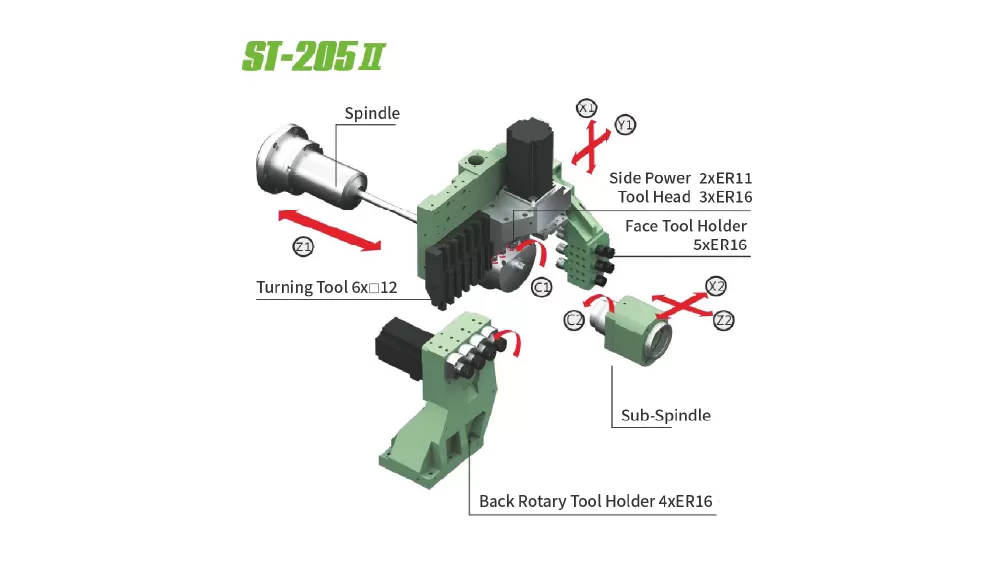

Characteristic of ST-205Ⅱ High-precision CNC Slitting Lathe

Double Spindle, Double System
5 Linear Feed Axes, 32m/min Rapid Traverse Speed
5 Power Tools, 5 End-Face Hole Tools
Spindle With Side Milling Driven Tool Option

Built-in motorized spindle

Interchangeable with and without guide sleeve
Mitsubishi system secondary development. cold and hot machine compensation

Application of ST-205Ⅱ High-precision CNC Slitting Lathe

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4

Workpiece Example 5

Specifications of ST-205Ⅱ High-precision CNC Slitting Lathe

Specification	ST-205Ⅱ
Max. Machining Diameter	Ø20 mm
Max. Machining Length	240 mm
Front Drilling Diameter	Max. Ø10 mm
Front Threading Capacity	Max. M8
Spindle Through-Hole Diameter	23 mm
Control System	Mitsubishi M80LA System
Spindle Speed	Max. 8,000 r/min
Side Milling Max. Drilling	Max. Ø10 mm
Side Milling Max. Tapping	Max. M8 (Copper)
Side Milling Max. Speed	Max. 5,000 r/min
Back Spindle Max. Clamping Diameter	20 mm
Back Spindle Max. Extension	60 mm
Back Spindle Max. Drilling	Max. Ø10 mm (Copper)
Back Spindle Threading	Max. M8 (Copper)
Back Spindle Speed	Max. 8,000 r/min
Back Tool Drilling Diameter	Max. Ø10 mm
Turning Tools	5×□12 + 1×□16
Side Milling Power Tool Holders	2×ER11 + 3×ER16 (2 Quick-Change Units)
Front Fixed Tool Holders	5×ER16
Back Spindle Face Power Tool Holders	2×ER16 Fixed + 2×ER16 Rotating (Expandable with 2×ER16 Fixed, Optional)
Rapid Traverse Speed	32 m/min (Y1/X2), 20 m/min (X1), 24 m/min (Z1/Z2)
Spindle Motor Power	3.7 kW / 5.5 kW
Sub-Spindle Motor Power	3.7 kW / 5.5 kW
Back Spindle Face Milling Motor Power	1.0 kW
Power Head Motor Power	1.0 kW (Side Milling)
Feed Motor Power	1.0 kW (X1/Y1/Z1/X2/Z2)
Total Machine Power	12 kW
Machine Weight	2,600 kg

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
