Drilling & Milling Machining Center vs Vertical Machining Center: Which CNC Solution Is Best for Your Production Needs?
Views: 0 Author: Site Editor Publish Time: 2026-06-23 Origin: Site
- 1. What Is a Drilling & Milling Machining Center?
- 1.1 Why Drilling & Milling Machining Centers Are Designed for High-Efficiency Manufacturing
- 1.2 Typical Industries and Components Processed on Drilling & Milling Machines
- 2. What Is a Vertical Machining Center?
- 2.1 Why Vertical Machining Centers Remain the Backbone of Modern Manufacturing
- 2.2 Industries That Commonly Depend on Vertical Machining Centers
- 3. Drilling & Milling Machining Center vs Vertical Machining Center: Key Differences
- 3.1 How Machine Design Influences Production Performance
- 3.2 Choosing Between Production Efficiency and Machining Versatility
- 4. Which Machine Is Better for Different Manufacturing Applications?
- 4.1 Electronics Manufacturing Prioritizes Speed and Repeatability
- 4.2 Automotive Suppliers Need a Balance of Efficiency and Flexibility
- 4.3 Mold Manufacturing Often Benefits from Vertical Machining Centers
- 4.4 Medical Device Production Demands Accuracy and Stability
- 5. How to Choose the Right CNC Machine for Your Factory
- 5.1 Evaluate Your Typical Workpiece Dimensions and Complexity
- 5.2 Consider Current and Future Production Volumes
- 5.3 Analyze Material Types and Tolerance Requirements
- 5.4 Focus on Total Cost of Ownership Rather Than Purchase Price
- 6. Future Trends in CNC Machining Centers
- 6.1 Smart Manufacturing and Digital Connectivity
- 6.2 Higher-Speed Machining Technologies
- 6.3 Increased Automation Integration
- 6.4 Greater Demand for Flexible Manufacturing Systems
- 7. FAQ
- 7.1 What is the main difference between a Drilling & Milling Machining Center and a Vertical Machining Center?
- 7.2 Which machine is better for mass production?
- 7.3 Can a drilling & milling machining center perform milling operations?
- 7.4 Why do mold manufacturers often choose vertical machining centers?
- 7.5 Which machine provides better accuracy?
- 7.6 How should manufacturers choose between the two machines?
- 8. Conclusion
As manufacturers pursue greater efficiency, precision, and production flexibility, selecting the right CNC machine has become more important than ever. Among the most commonly compared machine types are Drilling & Milling Machining Centers and Vertical Machining Centers (VMCs). While both are capable of drilling, milling, tapping, and precision machining, they are designed to address different manufacturing priorities.
For production managers, engineers, and equipment buyers, understanding the differences between these two machine categories can help improve productivity, reduce operational costs, and ensure the best return on investment.

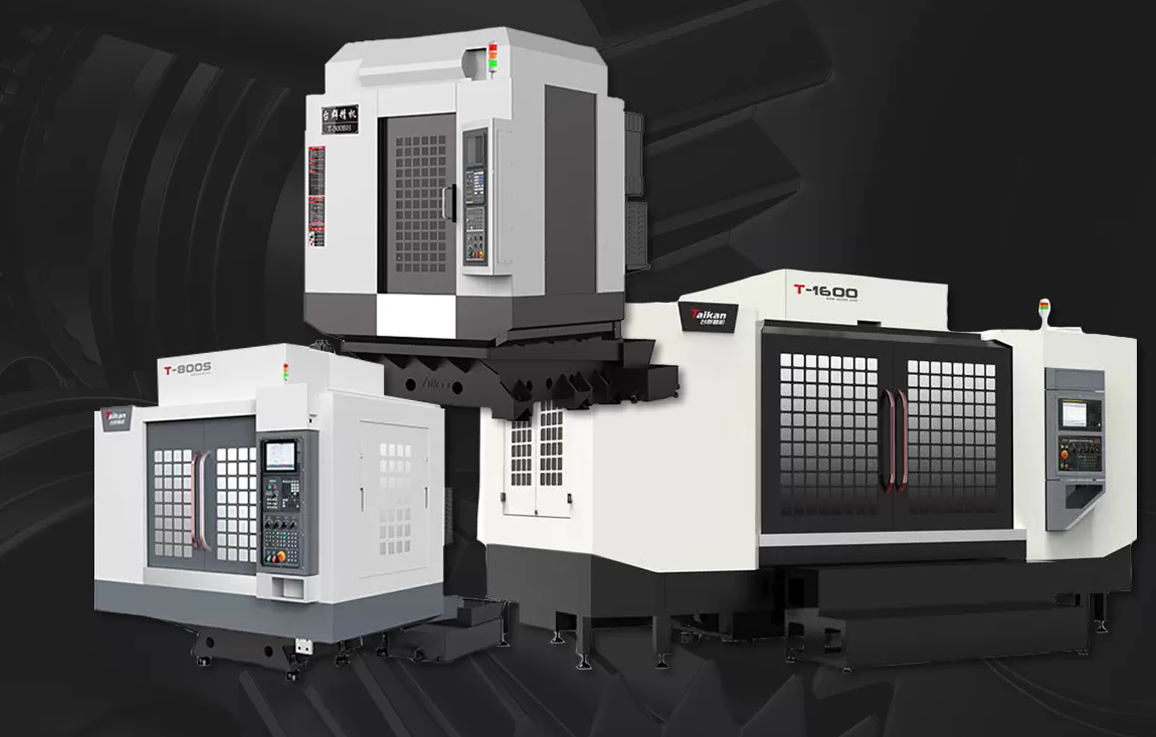

What Is a Drilling & Milling Machining Center?
A Drilling & Milling Machining Center is a high-speed, high-precision, and high-rigidity CNC machine that integrates drilling, tapping, milling, and related machining operations into a single platform for efficient production of precision components.
Unlike traditional machine tools designed primarily for heavy material removal, drilling & milling machining centers are optimized for rapid machining cycles, high positioning accuracy, and stable mass production.
According to Taikan's product design philosophy, these machines combine high spindle speeds, fast feed rates, and excellent structural rigidity to support modern manufacturing requirements across electronics, automotive, medical, and new energy industries.
Why Drilling & Milling Machining Centers Are Designed for High-Efficiency Manufacturing
The primary objective of a drilling & milling machining center is to maximize production efficiency without compromising precision.
Modern models feature:
High-speed spindle systems up to 24,000 rpm
Rapid traverse speeds up to 48 m/min
Fast tool-changing mechanisms
Compact machine structures
Excellent dynamic response
These features help reduce non-cutting time and improve overall productivity, particularly in high-volume production environments.

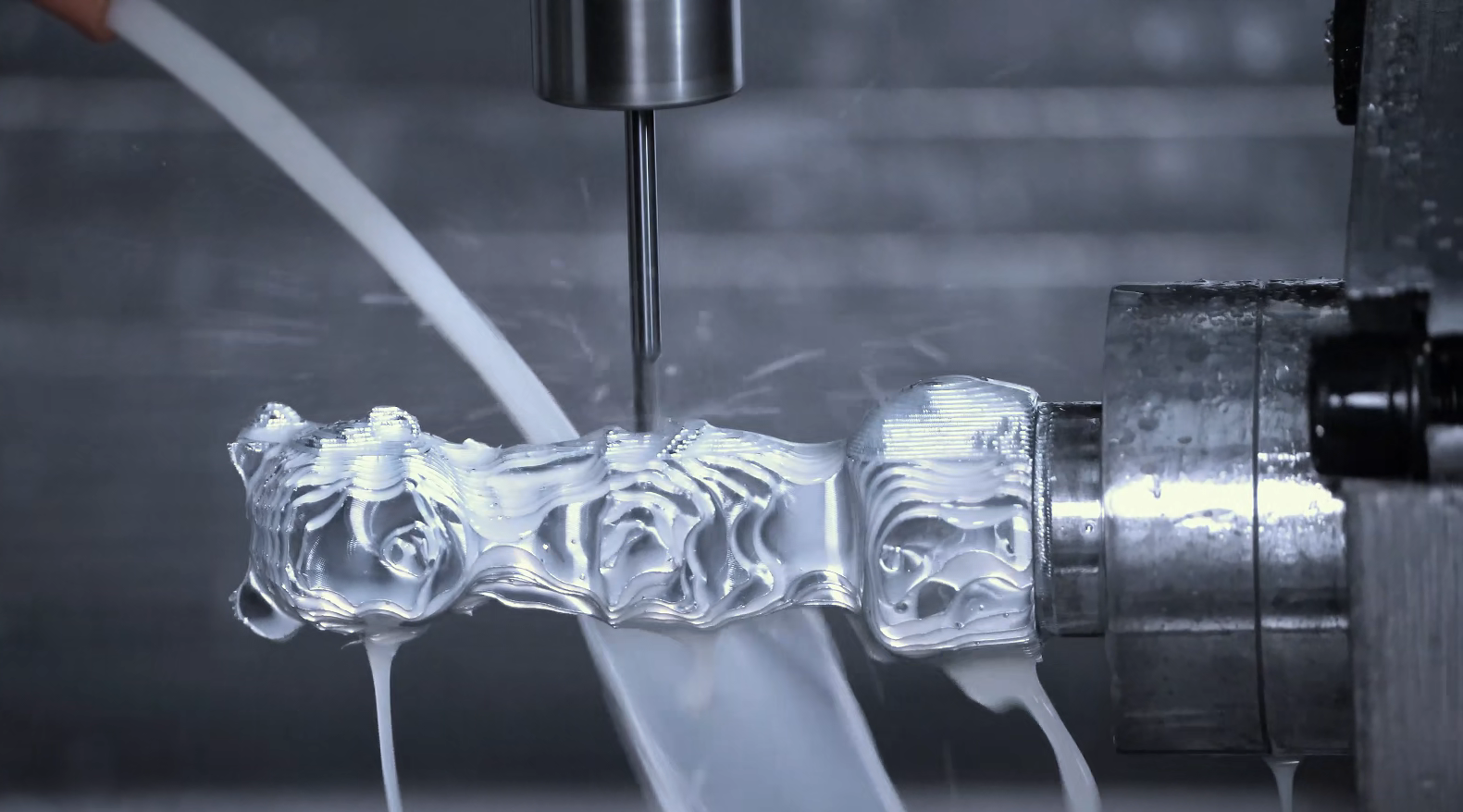

Typical Industries and Components Processed on Drilling & Milling Machines
Drilling & milling machining centers are widely used across industries that require high productivity and precision. In many manufacturing sectors, a modern drilling and milling center serves as an efficient solution for combining drilling, tapping, and milling operations within a single machine platform.
Consumer electronics components
Smartphone and tablet frames
Precision communication equipment parts
Automotive precision components
Medical device housings
New energy industry components
Small and medium-sized mold manufacturing
Their strength lies in producing small-to-medium-sized precision parts with excellent consistency and cycle efficiency.

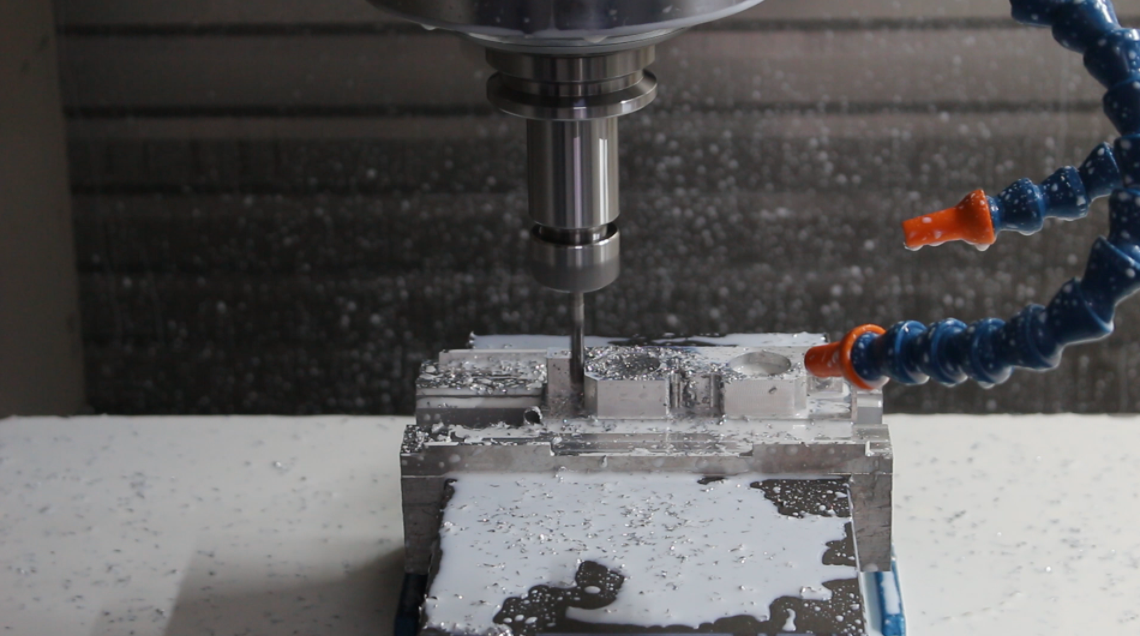

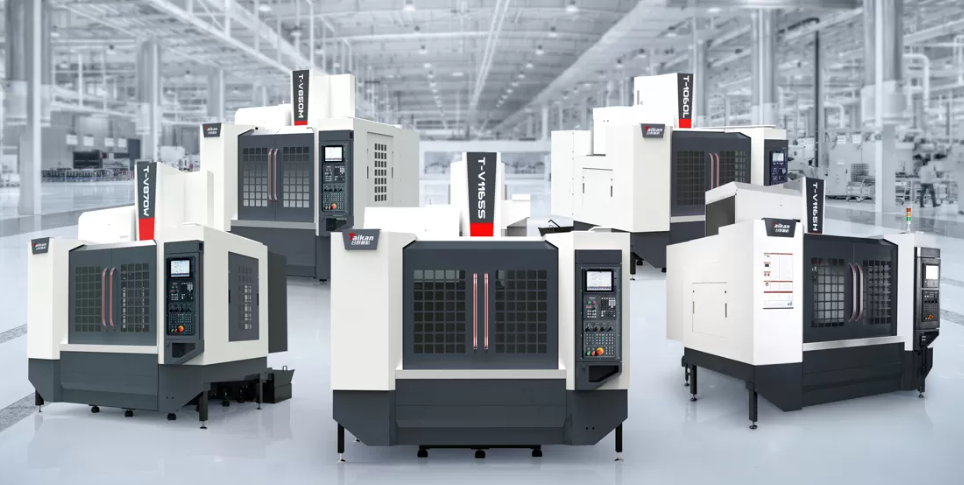

What Is a Vertical Machining Center?
A Vertical Machining Center (VMC) is a versatile CNC machine equipped with a vertically oriented spindle that performs milling, drilling, boring, tapping, and contour machining across a wide variety of materials and workpiece sizes. As one of the most widely used CNC machine categories worldwide, VMCs offer an excellent balance between machining capability, rigidity, flexibility, and production efficiency. Taikan's Vertical Machining Center series includes high-speed, high-precision, and high-rigidity configurations designed for industries ranging from mold manufacturing to general precision machining.
Why Vertical Machining Centers Remain the Backbone of Modern Manufacturing
The biggest advantage of a vertical machining center is versatility. Unlike specialized production machines, VMCs can accommodate a broader range of machining tasks, including:
Complex contour milling
Deep cavity machining
Mold manufacturing
Heavy-duty cutting
Prototype development
Multi-material processing
This flexibility makes them a popular choice for job shops and manufacturers producing diverse product portfolios.
Industries That Commonly Depend on Vertical Machining Centers
Vertical machining centers are frequently used in mold manufacturing, aerospace machining, industrial equipment production, and general precision engineering. As global buyers continue to evaluate machining solutions, the demand for a reliable china cnc vertical machining center has increased significantly due to its balance of versatility, accuracy, and cost-effectiveness.
Mold and die manufacturing
Aerospace component production
Automotive parts machining
Industrial equipment manufacturing
Energy equipment production
General precision machining
Their ability to process different materials and workpiece sizes makes them one of the most adaptable machine tools available.
Drilling & Milling Machining Center vs Vertical Machining Center: Key Differences
Although both machine types share similar machining functions, their design priorities and production strengths are different.
| Feature | Drilling & Milling Machining Center | Vertical Machining Center |
| Primary Focus | High-efficiency precision production | Versatile machining capability |
| Typical Spindle Type | BT30 | BT40 / BT50 |
| Spindle Speed | Higher | Moderate to High |
| Tool Change Speed | Faster | Standard |
| Best Part Size | Small to Medium | Medium to Large |
| Production Volume | High Volume | Flexible Volume |
| Mold Machining | Small and Medium Molds | Medium and Large Molds |
| Typical Industries | 3C Electronics, Medical, Automotive | Mold, Aerospace, Machinery |
How Machine Design Influences Production Performance
The structural design of a machine tool directly impacts its performance characteristics.
Drilling & milling machining centers typically feature lighter moving components and optimized dynamic response, allowing faster acceleration and shorter cycle times.
Vertical machining centers, on the other hand, are generally configured to provide greater machining flexibility and accommodate a wider variety of workpiece sizes and cutting conditions.
Neither design is inherently superior; each is optimized for different manufacturing objectives.
Choosing Between Production Efficiency and Machining Versatility
For manufacturers producing large quantities of similar precision parts, efficiency often becomes the top priority. In these scenarios, drilling & milling machining centers can significantly reduce machining time through faster spindle speeds, rapid positioning, and efficient tool changes.
However, manufacturers processing diverse workpieces, varying materials, or complex geometries often benefit from the broader capabilities of a vertical machining center. The decision ultimately depends on production strategy rather than machine specifications alone.
Which Machine Is Better for Different Manufacturing Applications?
The ideal machine depends largely on the characteristics of the workpiece and the production environment.Electronics Manufacturing Prioritizes Speed and Repeatability
Consumer electronics manufacturers typically require extremely high production volumes with consistent dimensional accuracy. Components such as smartphone frames, communication modules, and precision housings are often produced more efficiently on drilling & milling machining centers due to their high-speed capabilities.Automotive Suppliers Need a Balance of Efficiency and Flexibility
Automotive manufacturing includes both mass-produced precision parts and larger structural components. For smaller precision components, drilling & milling machines can deliver excellent productivity. For larger parts, fixtures, and tooling applications, vertical machining centers often provide greater flexibility.Mold Manufacturing Often Benefits from Vertical Machining Centers
Mold and die production frequently involves complex geometries, deep cavities, and extensive contour machining. Because of these requirements, many mold manufacturers prefer vertical machining centers, particularly for medium-to-large mold applications.Medical Device Production Demands Accuracy and Stability
Medical components often require tight tolerances, excellent surface finishes, and reliable process control. Depending on part size and production volume, either machine category may be suitable. Manufacturers should evaluate both productivity and machining requirements before making a final decision.
How to Choose the Right CNC Machine for Your Factory
Selecting the right machine requires balancing production goals, part requirements, and long-term business growth plans.Evaluate Your Typical Workpiece Dimensions and Complexity
The size, geometry, and machining requirements of your products should be the starting point of any machine selection process. Smaller precision parts often favor drilling & milling machines, while larger or more complex workpieces may justify a VMC.Consider Current and Future Production Volumes
Machine investments should support both current production needs and future business growth. Purchasing equipment solely for immediate requirements can create capacity limitations later.Analyze Material Types and Tolerance Requirements
Different materials impose different machining demands. Aluminum, stainless steel, cast iron, and engineering plastics each require specific machining characteristics that may influence machine selection.Focus on Total Cost of Ownership Rather Than Purchase Price
The most economical machine is not always the cheapest machine.
Manufacturers should evaluate:
Production efficiency
Maintenance requirements
Tool life
Energy consumption
Machine reliability
Long-term productivity
These factors have a much greater impact on profitability than initial equipment cost alone.
Future Trends in CNC Machining Centers
The distinction between drilling & milling machining centers and vertical machining centers is gradually evolving as manufacturers demand greater performance and automation.
Several trends are shaping the future of CNC machining:
Smart Manufacturing and Digital Connectivity
Machine monitoring, predictive maintenance, and production analytics are becoming standard features in modern factories.Higher-Speed Machining Technologies
Manufacturers continue seeking faster spindle speeds, improved acceleration, and shorter cycle times to increase productivity.Increased Automation Integration
Automated loading systems, pallet changers, and robotic handling solutions are helping manufacturers improve efficiency and reduce labor dependence.Greater Demand for Flexible Manufacturing Systems
Future machine tools will increasingly combine productivity, flexibility, and intelligent control technologies within a single platform.
FAQ
What is the main difference between a Drilling & Milling Machining Center and a Vertical Machining Center?
A drilling & milling machining center focuses on high-speed, high-efficiency production of precision parts, while a vertical machining center offers broader machining versatility for a wider range of applications.Which machine is better for mass production?
For high-volume production of small-to-medium precision components, drilling & milling machining centers are often the preferred solution due to their higher productivity.Can a drilling & milling machining center perform milling operations?
Yes. Modern drilling & milling machining centers integrate drilling, tapping, milling, and other machining functions into a single machine platform.Why do mold manufacturers often choose vertical machining centers?
Vertical machining centers offer greater flexibility for contour machining, cavity machining, and processing larger mold components.Which machine provides better accuracy?
Both machine types can achieve excellent accuracy when properly configured and maintained. The best choice depends on the application and production requirements.How should manufacturers choose between the two machines?
The decision should be based on workpiece size, production volume, machining complexity, material type, and long-term manufacturing goals.
Conclusion
Drilling & Milling Machining Centers and Vertical Machining Centers each serve important roles in modern manufacturing. Drilling & milling machines excel in high-speed, high-efficiency production environments where precision and throughput are critical. Vertical machining centers offer greater flexibility for diverse machining tasks, larger workpieces, and complex applications. By carefully evaluating production requirements, part characteristics, and future growth plans, manufacturers can select the CNC solution that delivers the best combination of performance, efficiency, and return on investment.
