[Egypt MACTECH Show] L-35Y CNC Horizontal Turning (Milling) Lathe: Precision, Power & Performance for Complex Machining

In today's competitive manufacturing landscape, achieving high precision, exceptional stability, and maximum productivity in complex part processing is paramount. As a leading CNC lathe manufacturer, we are proud to introduce the L-35Y—a sophisticated CNC lathe machine engineered to excel in demanding applications. This horizontal turning center redefines standards with its robust construction, advanced features, and unwavering reliability, making it an ideal solution for industries ranging from automotive components to valve and marine engineering.

Uncompromising Structural Integrity & Design

The foundation of any high-performance CNC turning machine lies in its rigidity and stability. The L-35Y features a 30° integrally cast slant bed design, optimized through finite element analysis (FEA) for superior stiffness and minimal vibration. This design provides an incredibly stable platform while maintaining a compact footprint. To ensure long-term precision, all castings undergo prolonged natural aging followed by secondary vibration stress relief before final machining, effectively eliminating internal stresses. For high-load operations, the X/Z axes are equipped with imported P-grade 35mm heavy-duty roller linear guides arranged in a wide-span configuration, delivering outstanding load-bearing capacity and durability.

High-Torque Spindle with C-Axis Functionality

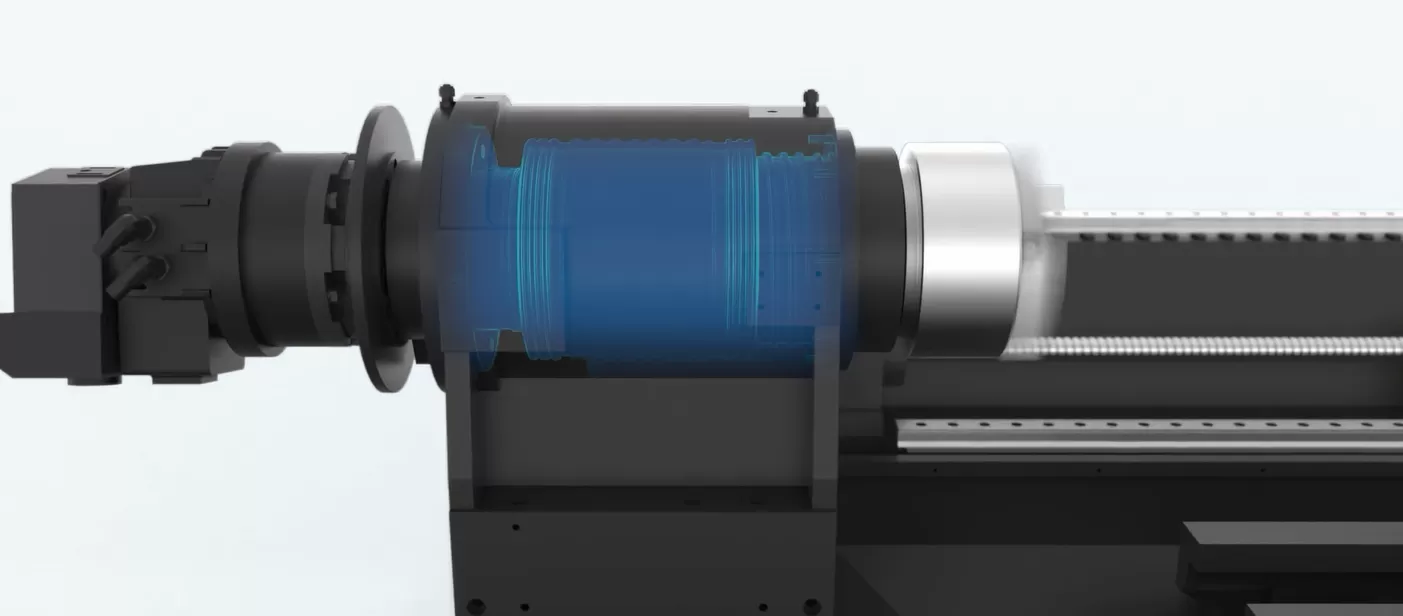

At the heart of this CNC lathe is a powerful, high-torque mechanically driven spindle system with a maximum speed of 4000 rpm. It is supported by a combination of double-row cylindrical roller bearings and high-precision angular contact ball bearings at the front, along with double-row cylindrical roller bearings at the rear, ensuring robust handling of both axial and radial cutting forces. The spindle is equipped with a C-axis indexing function and a hydraulic brake assist system. A high-resolution magnetic encoder offers exceptional accuracy, durability, and resistance to shock and contamination, guaranteeing reliable positioning.

Versatile BMT55 Powered Turret with Y-Axis

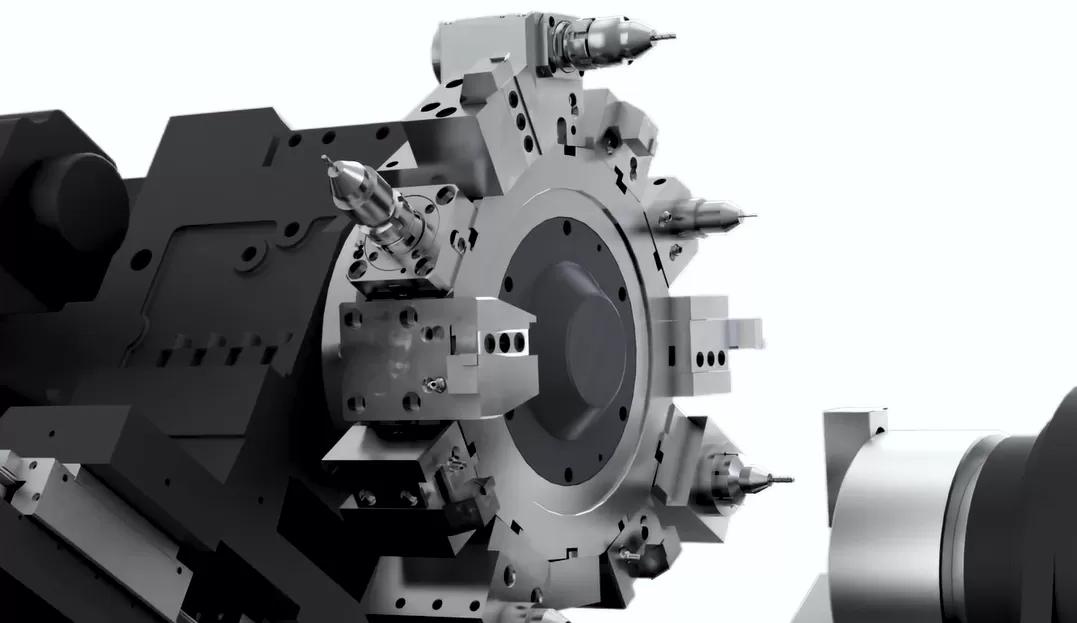

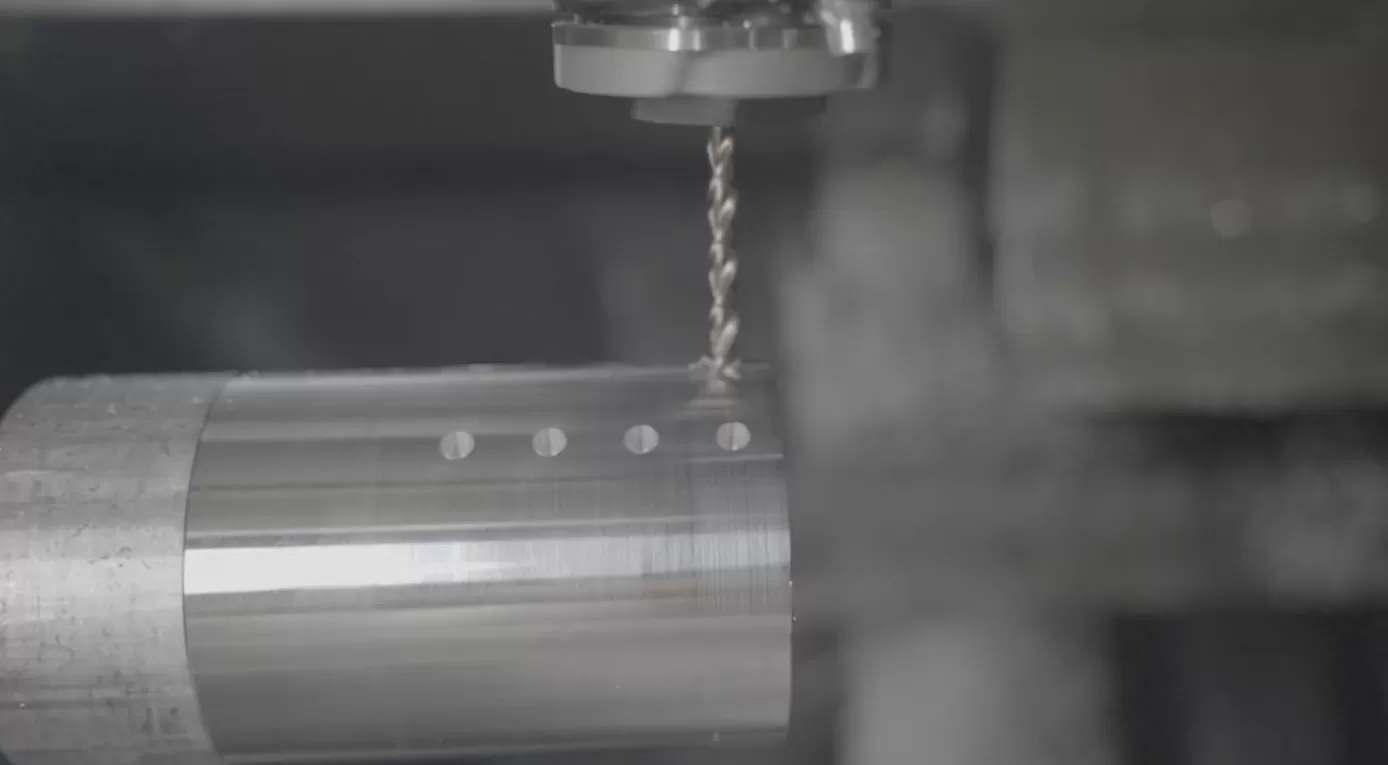

Flexibility is key for complex parts. The L-35Y incorporates a fast and reliable BMT55-powered tool turret with an integrated Y-axis. Combined with axial and radial live tooling options, and synchronized with the spindle's C-axis and hydraulic brake, it enables powerful 3-axis interpolation milling, drilling, and tapping operations. This allows for complete machining of complex components in a single setup, dramatically boosting efficiency, accuracy, and consistency.

Enhanced Stability & Control

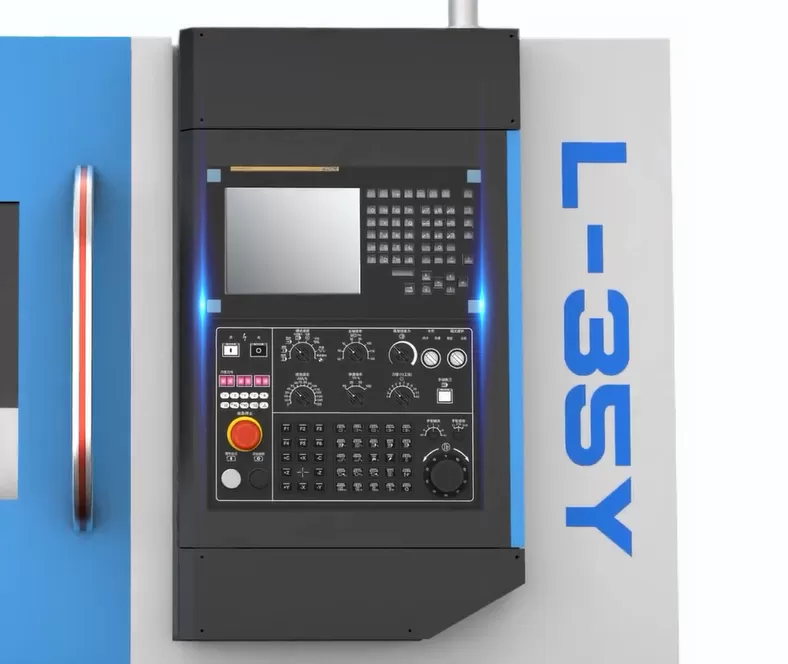

Supporting the machining process is a hydraulic quill-type tailstock with a live center, offering high rigidity and precision for extended workpiece support. The entire machine is powered by a high-performance FANUC CNC system, ensuring stable, reliable control and seamless execution of all required machining and auxiliary functions.

Engineered for Demanding Applications

The L-35Y horizontal turning center is built to meet the challenges of intricate part manufacturing. It is particularly favored by automotive parts producers and is widely adopted in the valve, shipbuilding, and general engineering machinery sectors. Its combination of speed, precision, and multi-function capability makes it a standout choice among modern CNC turning machines.

A Commitment to Excellence

Choosing the right machine tool partner is critical. As a publicly listed company and a trusted name among global CNC lathe manufacturers, we stand behind the L-35Y with a commitment to quality, innovation, and total customer support. This machine embodies our dedication to providing manufacturing solutions that drive productivity and profitability.

Discover the power of precision and efficiency. The L-35Y CNC Horizontal Turning Center is ready to transform your production floor.
