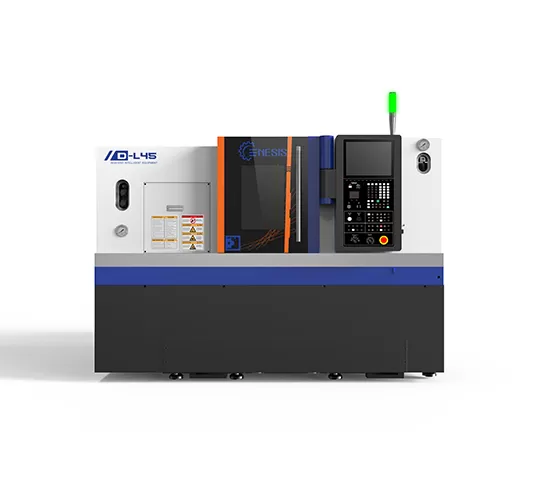

Name: D-L45 CNC horizontal lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of D-L45 CNC horizontal lathe

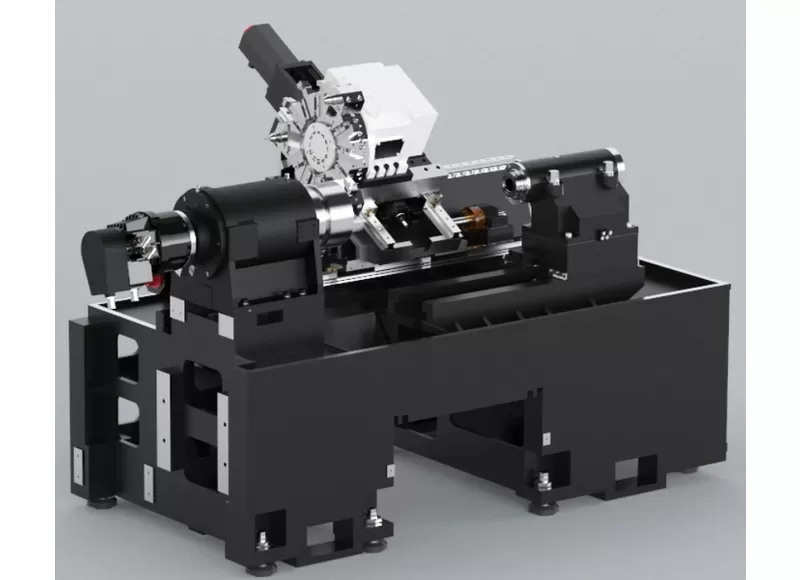

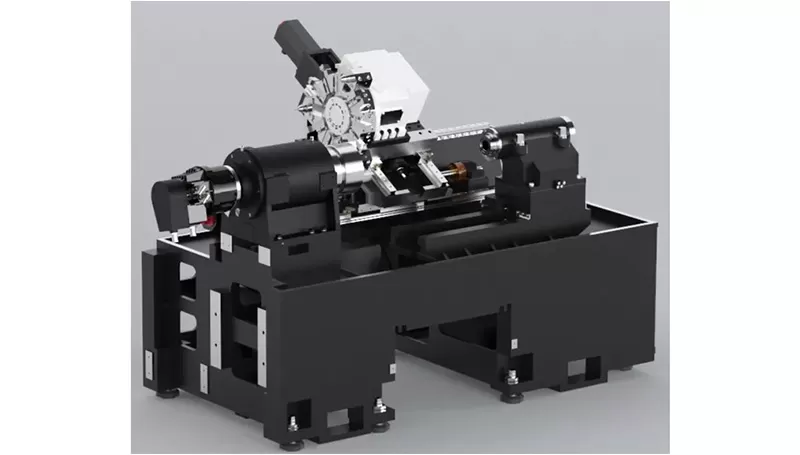

Overall Structure

The machine tool features an integrated mechanical, electrical, and hydraulic layout with a 30° integral high-low rail bed, offering advantages such as compact structure, high rigidity, smooth chip removal, and convenient operation.

The guideways are rolling guideways, and the drive components utilize high-speed, silent ball screws, providing advantages such as high speed, low heat generation, and high positioning accuracy. The machine tool is fully enclosed, with manual chip removal, automatic lubrication, and automatic cooling. All major basic components are cast from high-quality resin sand molding and high-strength cast iron materials, ensuring high rigidity and stable precision.

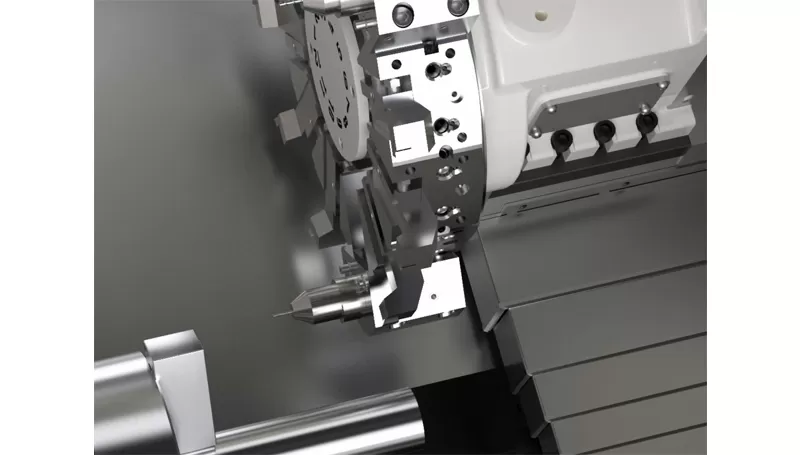

Motorized spindle

The main drive system of this machine tool adopts a high-performance servo motor drive, which drives the spindle to rotate via a belt. The spindle speed range is 0-2800 r/min. The front support of the spindle uses double-row cylindrical roller bearings and two sets of high-precision angular contact ball bearings, while the rear support uses double-row cylindrical roller bearings, meeting the requirements for bearing axial and radial cutting forces.

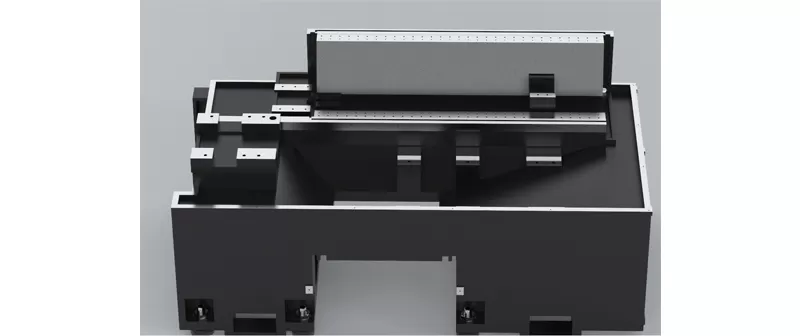

Drive

The longitudinal and lateral drives utilize high-performance SIEMENS/Fanuc servo motors, ensuring high positioning accuracy and flexible, reliable operation.

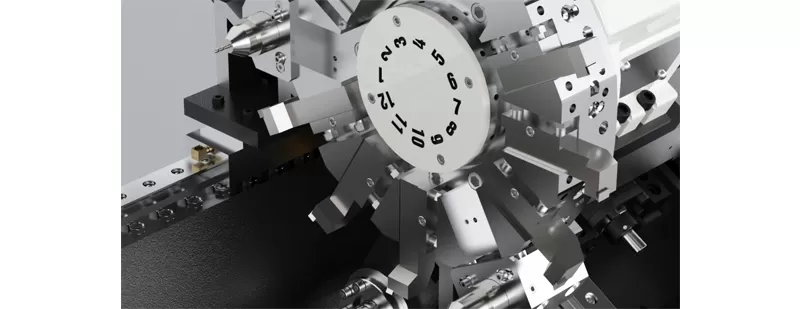

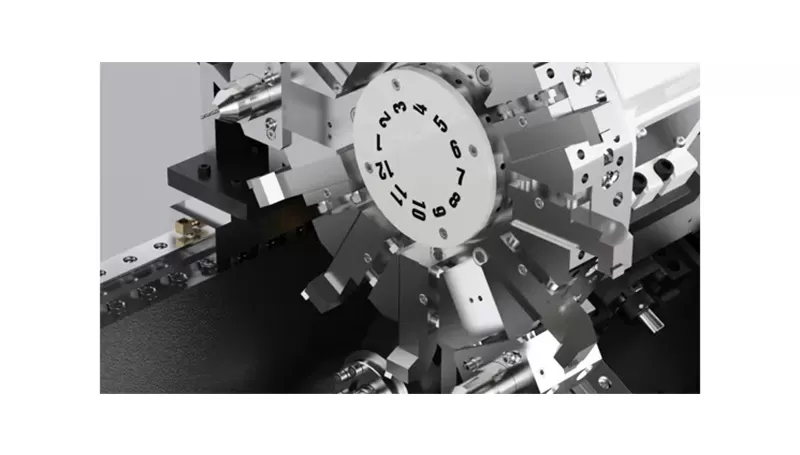

Tool magazine

This machine tool uses a servo turret, which features fast tool changing speed and high reliability.

Application of D-L45 CNC horizontal lathe

Widely used in the machining of rotary parts such as small and medium-sized discs and shafts, featuring strong processing performance and high positioning accuracy. It boasts professional machining advantages, especially in metalworking sectors including gears, bearings, small wheel hub units, new energy, the petroleum industry, and automotive parts.

Processing advantages

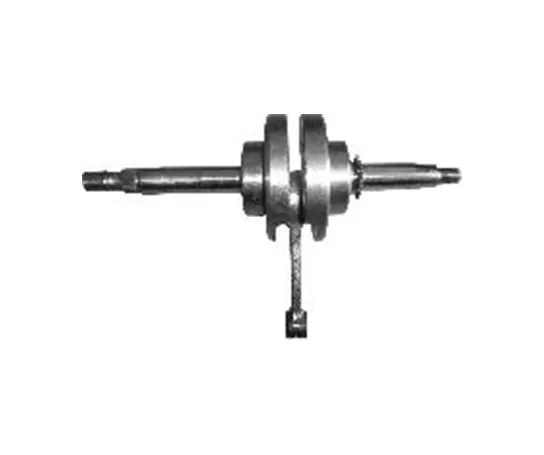

Workpiece Example 1

Workpiece Example 2

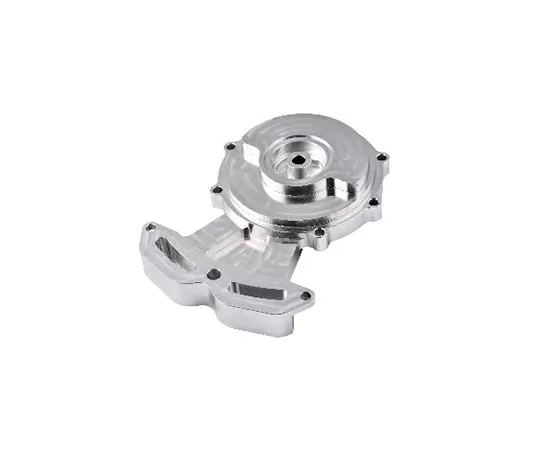

Workpiece Example 3

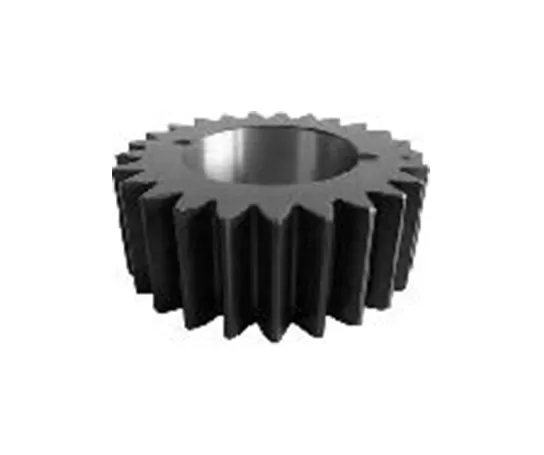

Workpiece Example 4

Specifications of D-L45 Horizontal Lathe

Name		Unit	Spec.	Notes
Processing range	Maximum turning diameter on the bed	mm	φ650
	Maximum machining diameter (spindle/disc)	mm	φ380/φ450
	Maximum machining length	mm	560
	Maximum bar stock diameter	mm	φ75
Travel	X-axis travel	mm	240
	X-axis motor power/stall torque	kw/Nm	2.2/38
	Z-axis travel	mm	580
	Z-axis motor power/stall torque	kw/Nm	2.2/38
Spindle	Output power (S1/S6)	kw	11/22
	Spindle end type		A2-8
	Spindle speed	r/min	0-2800
	Spindle bore diameter	mm	φ87
Rapid Speed	Rapid traverse speed (X axis)	m/min	30
	Rapid traverse speed (Z axis)	m/min	30
	Cutting feed speed	mm/min	1~8000
Tool	Tool capacity	T	12
	Tool indexing time	Seconds/bit	0.5
	Lather Tool body size	mm	25×25
	Max. boring tool diameter	mm	40
Accuracy	Positioning accuracy (X axis)	mm	0.006
	Positioning accuracy (Z axis)	mm	0.006
	Repeatability (X axis)	mm	0.004
	Repeatability (Z axis)	mm	0.004
Other	Power supply capacity	kVA	20
	Fluoride coolant tank volume	L	150
	Machine tool dimensions	mm	2480×1840×2120	Manual chip removal water tank
	Machine tool net weight (approx.)	kg	3800

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
