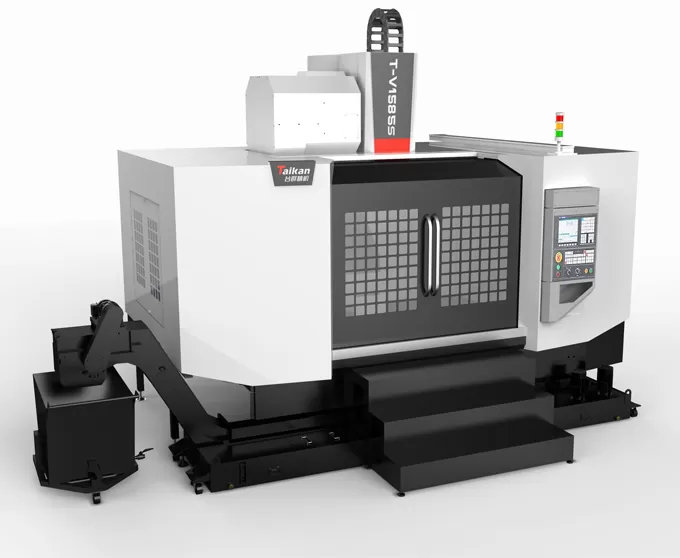

T-V1585S High-speed and High-efficiency Vertical Machining Center

Travel

Table travel (X axis)

mm

1550

Saddle travel (Y axis)

mm

850

Headstock travel (Z axis)

mm

850

Distance from spindle nose to table surface

mm

120～970

Distance from spindle center to column guide surface

mm

921

Worktable

Table size

mm

1700*850

Max. load (even load-bearing)

kg

1500

T-slot (number of slots - slot width * spacing)

mm

5-18*125+2-18*100

Spindle

Motor power (rated/short time)

kW

15/18.5

Motor torque (rated/short time)

N.m

143/191

Speed range

r/min

50～6000(belt)

Spindle diameter

mm

Φ190

Spindle taper

/

BT50

Rivet specifications

/

P50T-I（MAS403）

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

24/24/20

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.015

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.008

Tool magazine

Tool capacity

pcs

24

Max. tool weight

kg

15

Max. tool length

mm

300

Max. tool diameter (full /adjacent empty)

mm

Φ105/Φ210

Others

Z-axis counterweight

Nitrogen balance

CNC system

/

FANUC 0i-MF Plus(5)

Air source

Flow

L/min

280（ANR）

Air pressure

MPa

0.6~0.8

Equipment capacity

KVA

35

Coolant tank capacity

L

400

Machine size

mm

5240*4054*3662

With chip conveyor pedal

Weight (approx.)

Kg

11700
