Double-Spindle CNC Machine for High-Volume Precision Parts: When Does it Improve Production Efficiency?

For manufacturers producing precision turned parts in medium or high volumes, reducing cycle time is not only about increasing spindle speed or cutting feed. A significant amount of production time can be consumed by part transfer, re-clamping, secondary machining, and manual handling between operations.

A double-spindle CNC machine addresses this problem by allowing machining operations to be divided between a main spindle and a sub-spindle. Instead of removing a partially completed component and moving it to another machine, the workpiece can often be transferred automatically to the second spindle for back-side machining. For suitable parts, this approach can reduce handling, improve consistency, and support more continuous production.

Why Secondary Operations Become a Production Bottleneck

Many turned parts cannot be completed from only one end. A typical component may require front turning, drilling, grooving, threading, cutoff, and then additional machining on the back side.

With a conventional single-spindle process, the first operation may finish one side of the workpiece before the component is removed. The operator then needs to load it into another fixture or machine for the second operation.

This creates several sources of non-cutting time:

• Removing the semi-finished component

• Transporting it to another station

• Re-clamping and locating the workpiece

• Checking orientation and runout

• Waiting between production stages

• Performing additional dimensional inspection

For a low-volume part, these steps may be acceptable. For thousands of repeated components, however, even a small amount of additional handling time can significantly affect total production cost.

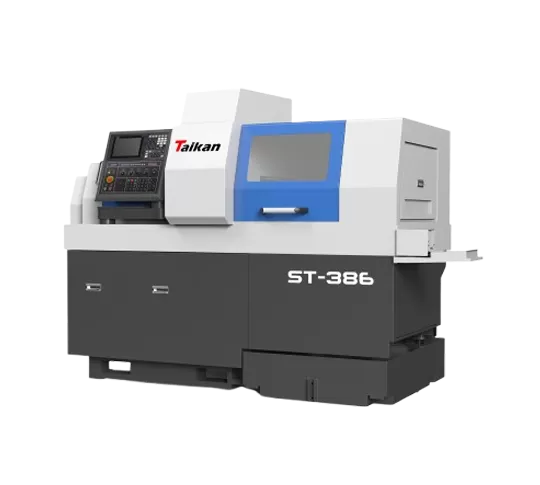

This is one reason manufacturers evaluating a cnc auto lathe should consider the entire machining sequence rather than only the specifications of the main spindle.

How a Double-Spindle CNC Machine Changes the Process

A double-spindle configuration generally uses a main spindle for the initial machining operations and a sub-spindle for secondary or back-side processing.

After the first side is machined, the sub-spindle can grip the component before cutoff or transfer. The workpiece is then separated from the bar and repositioned for additional operations without requiring manual re-clamping.

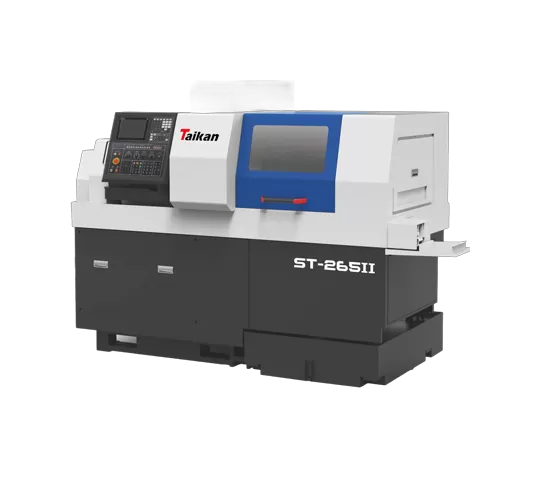

For an appropriately designed part, a double spindle cnc machine can combine operations that might otherwise require two separate setups.

This can provide several production advantages:

• Reduced manual part handling

• Lower work-in-process between machines

• Fewer independent fixtures

• More consistent relationship between front and rear features

• Shorter total lead time per completed component

• Greater potential for unattended production

The important point is that the benefit comes from process integration. Two spindles are valuable when the second spindle eliminates meaningful downstream work rather than simply adding another machine feature.

Which Parts Benefit Most From Double-Spindle Machining?

Double-spindle machines are particularly useful for parts produced from bar stock that require machining on both ends.

Common examples include:

• Precision shafts

• Threaded connectors

• Sleeves and bushings

• Hydraulic and pneumatic fittings

• Medical instrument components

• Electronic connectors

• Automotive precision components

• Small valve components

• Fastener-related parts

The best candidates usually have relatively repetitive geometries and sufficiently high production volumes to justify automated transfer between operations.

Before selecting the machine, manufacturers should map every machining feature on the component drawing. Features should be divided into main-spindle operations, sub-spindle operations, and any cross or driven-tool operations that may be required.

Five-Axis and Six-Axis Configurations Support Different Part Complexity

The number of controlled axes also affects how much machining can be completed without moving the part to another machine.

A double-spindle machine with additional linear axes and driven tooling may combine turning, drilling, tapping, milling, cross-hole machining, and back-side operations within one production cycle.

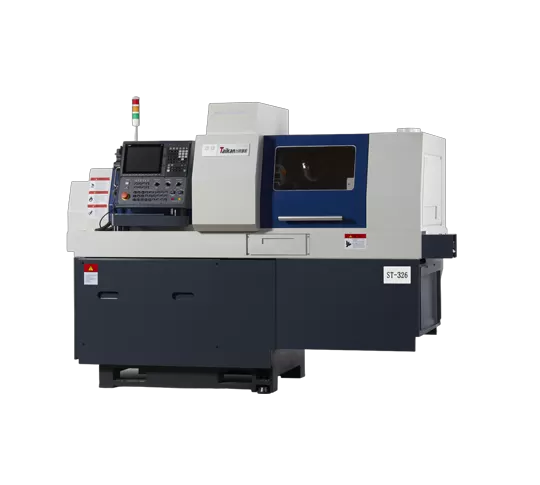

When components require more complex tool movement or simultaneous processing strategies, a 6 axis swiss lathe configuration can provide additional process flexibility.

However, more axes do not automatically mean higher productivity. Additional capability should be justified by actual component requirements.

Manufacturers should ask:

• How many machining directions are required?

• Are there cross holes, flats, slots, or eccentric features?

• Can driven tools replace secondary milling operations?

• Does the back side require only simple turning or multiple operations?

• Will simultaneous machining reduce cycle time?

If the majority of parts require straightforward turning and cutoff, a simpler machine may remain more economical. If several secondary operations can be eliminated, additional axes can create substantially greater value.

Part Transfer Accuracy Must Be Considered

Although automated transfer reduces manual re-clamping, manufacturers still need to consider how accurately the workpiece is transferred between the two spindles.

Important factors include spindle synchronization, clamping repeatability, bar straightness, workpiece rigidity, cutting forces, tool condition, and thermal stability.

Dimensions that are generated entirely during the first operation are generally easier to control independently. Features that must maintain close concentricity or positional relationships between the first and second operation require careful process planning.

The clamping area should also be considered during component design. If the sub-spindle must grip a very short or delicate surface, insufficient holding force may affect stability during back-side cutting.

Cycle Time Should Be Evaluated as a Complete Sequence

When comparing machines, buyers often focus on spindle speed, rapid traverse, or maximum feed rate. These specifications matter, but they do not tell the entire cycle-time story.

A better evaluation includes:

• Bar feeding time

• Main-spindle machining time

• Tool-to-tool movement

• Sub-spindle approach and synchronization

• Part transfer time

• Cutoff operation

• Back-side machining

• Finished-part discharge

Some operations may also overlap. For example, depending on machine configuration and process design, the sub-spindle may machine one component while the main spindle begins work on the next. This type of process overlap can have a greater influence on output than simply increasing cutting speed.

Automation Is Most Valuable When the Entire Cell Is Stable

Double-spindle machining is often associated with unattended production, but unattended operation depends on much more than automatic workpiece transfer.

The production system also needs reliable bar feeding, chip evacuation, coolant management, tool-life control, lubrication, part collection, and dimensional stability.

If chips accumulate around the tool or workpiece, or if cutting tools fail unpredictably, the productivity advantage of automatic operation quickly disappears.

Manufacturers planning long production runs should therefore evaluate machine reliability and process stability together with cycle time.

When Is a Single-Spindle Machine Still the Better Choice?

A double-spindle machine is not necessary for every turned component.

A single-spindle configuration may remain more suitable when:

• The back side requires no machining

• Production quantities are relatively small

• Parts change frequently

• Workpieces are too large for the intended automatic-lathe platform

• Secondary machining is simple and already efficiently automated

• The required tool layout is relatively straightforward

Machine selection should therefore be based on cost per finished part rather than the number of machine functions.

FAQ

What is a double-spindle CNC machine?

A double-spindle CNC machine uses a main spindle and a secondary spindle. The main spindle typically performs the first machining operations, while the sub-spindle receives the workpiece and completes back-side or secondary operations.

Does a double-spindle machine always reduce cycle time?

No. The benefit depends on the component. It is most effective when the second spindle eliminates manual re-clamping, separate machining operations, or significant waiting time between production stages.

Can both spindles work at the same time?

Depending on machine architecture and programming capability, some processes can overlap operations between the main and sub-spindle. This can improve machine utilization and reduce effective cycle time.

What parts are suitable for double-spindle machining?

Precision bar-stock components requiring machining on both ends are common candidates. These include shafts, connectors, fittings, bushings, pins, medical components, automotive parts, and small precision hardware.

Should I choose five-axis or six-axis automatic turning equipment?

The decision should be based on the required machining directions and operations. If additional axes eliminate secondary milling, drilling, or re-clamping operations, they may improve total process efficiency. A simpler configuration may be more economical for straightforward components.

Conclusion

A double-spindle CNC machine can create significant production advantages when a component requires both front-side and back-side machining. By transferring the workpiece directly between spindles, manufacturers can reduce manual handling, minimize re-clamping, improve process consistency, and combine multiple operations within one machining cycle.

The strongest business case appears in repetitive precision production where secondary operations currently create significant time and labor costs. Before investing, manufacturers should analyze representative part drawings, tooling requirements, annual production volumes, transfer accuracy, automation requirements, and complete cycle time. The goal is not simply to purchase a machine with more axes or spindles, but to create a more efficient route from raw bar material to a finished component.
