Taikan Precision CNC Machining Solutions for Intelligent Robot Components

The numbers don't lie. At the 2026 Beijing Humanoid Robot Half-Marathon, the domestically developed “Lightning” robot crossed the finish line in 50 minutes and 26 seconds — nearly doubling the pace of last year's field. Close to forty percent of the competing machines ran with gaits that looked unmistakably human. That kind of speed, fluidity, and durability doesn't come from software alone. It's forged in metal — shaped by the machine tools that cut, mill, and finish every joint housing, every harmonic drive component, every miniature gear that makes a bipedal stride possible.

At Taikan Machine, we call this what it is: we're the skeleton builders for the intelligent robotics industry. And we've built a machining ecosystem purpose-engineered for the challenge.

The Opportunity No One Can Ignore

Humanoid robotics has crossed the threshold from R&D curiosity to industrial-scale ambition. Industry analysts point to 2026 as a potential inflection year — a leap from tens of thousands to potentially hundreds of thousands of units. When production scales like that, the supply chain doesn't just need “more machines.” It needs fundamentally different machines: faster, smarter, and relentlessly precise.

Here's the reality: over half the hardware cost of a high-performance humanoid robot sits in its actuator joints — the rotary and linear modules that convert motor torque into human-like motion. Another ten to seventeen percent lives in the dexterous hand assemblies. Every single one of those components demands micron-level accuracy. A deviation of a few microns in a wrist joint propagates through the entire kinematic chain, resulting in end-effector positioning errors, uneven bearing loads, accelerated wear, and a robot that simply cannot perform.

These aren't conventional prismatic parts. We’re talking about complex spatial contours, angled bores, deep thin-walled pockets, and materials that fight back — 7075 aluminum, titanium alloys, and high-strength specialty steels. Machining them profitably at scale requires more than a capable machine. It demands a coherent, battle-tested system.

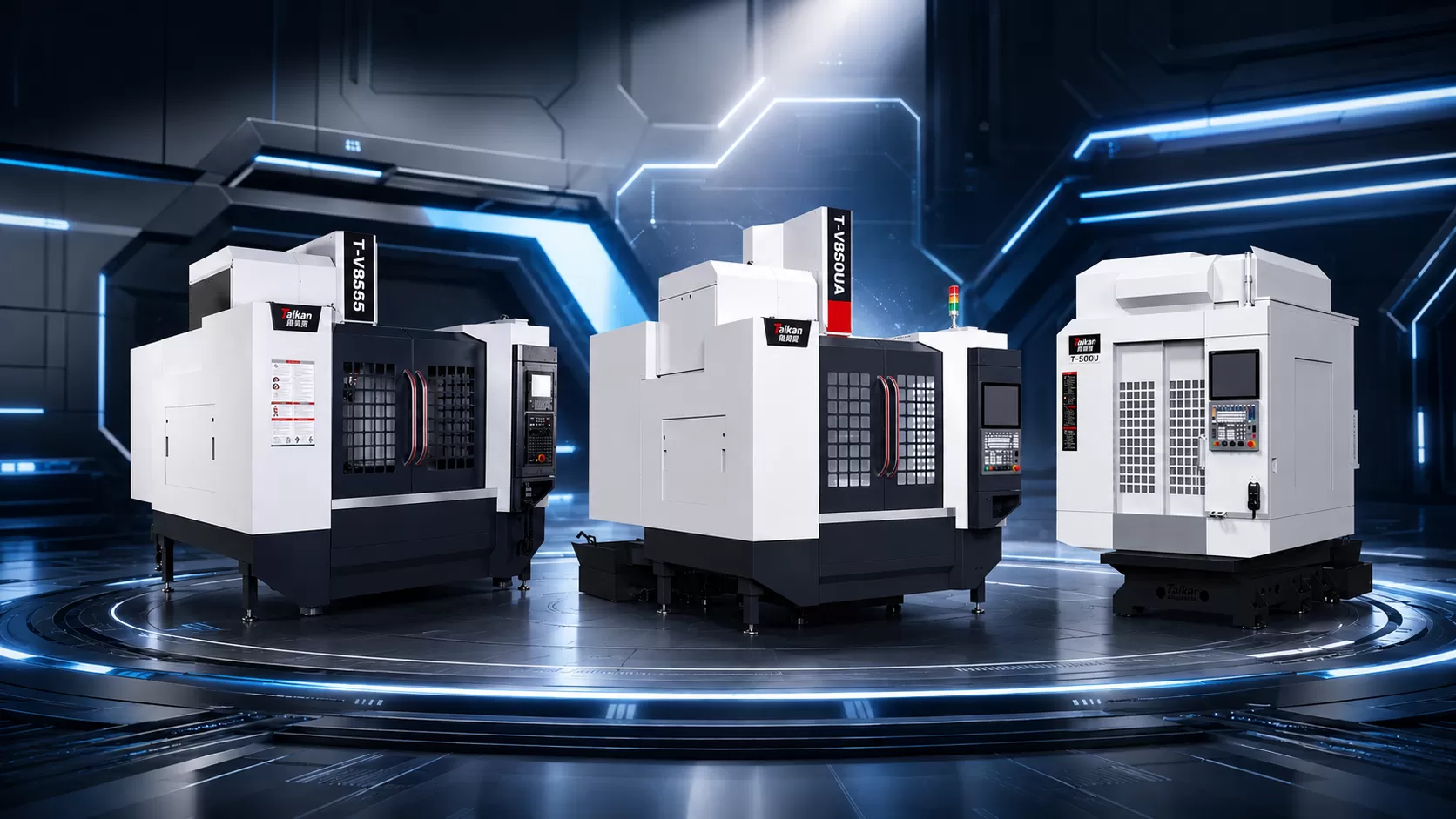

Three Machine Platforms, One Philosophy

We don't believe in forcing a single machine architecture to do everything. That's how you end up with mediocre cycle times, compromised surface finishes, and scrap rates that erode your margins. Instead, Taikan has built a layered, application-specific machine portfolio. Three series. Each one is optimized for a distinct category of robot component.

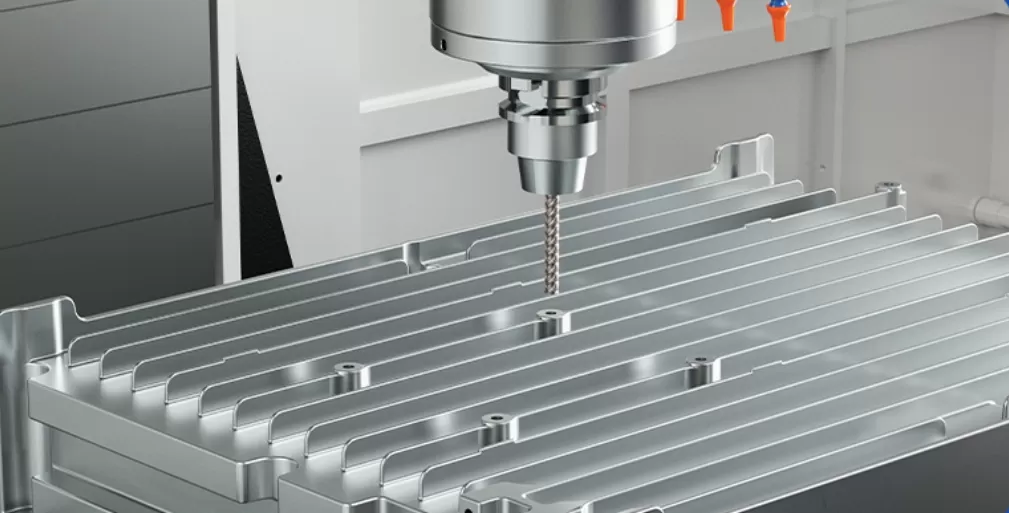

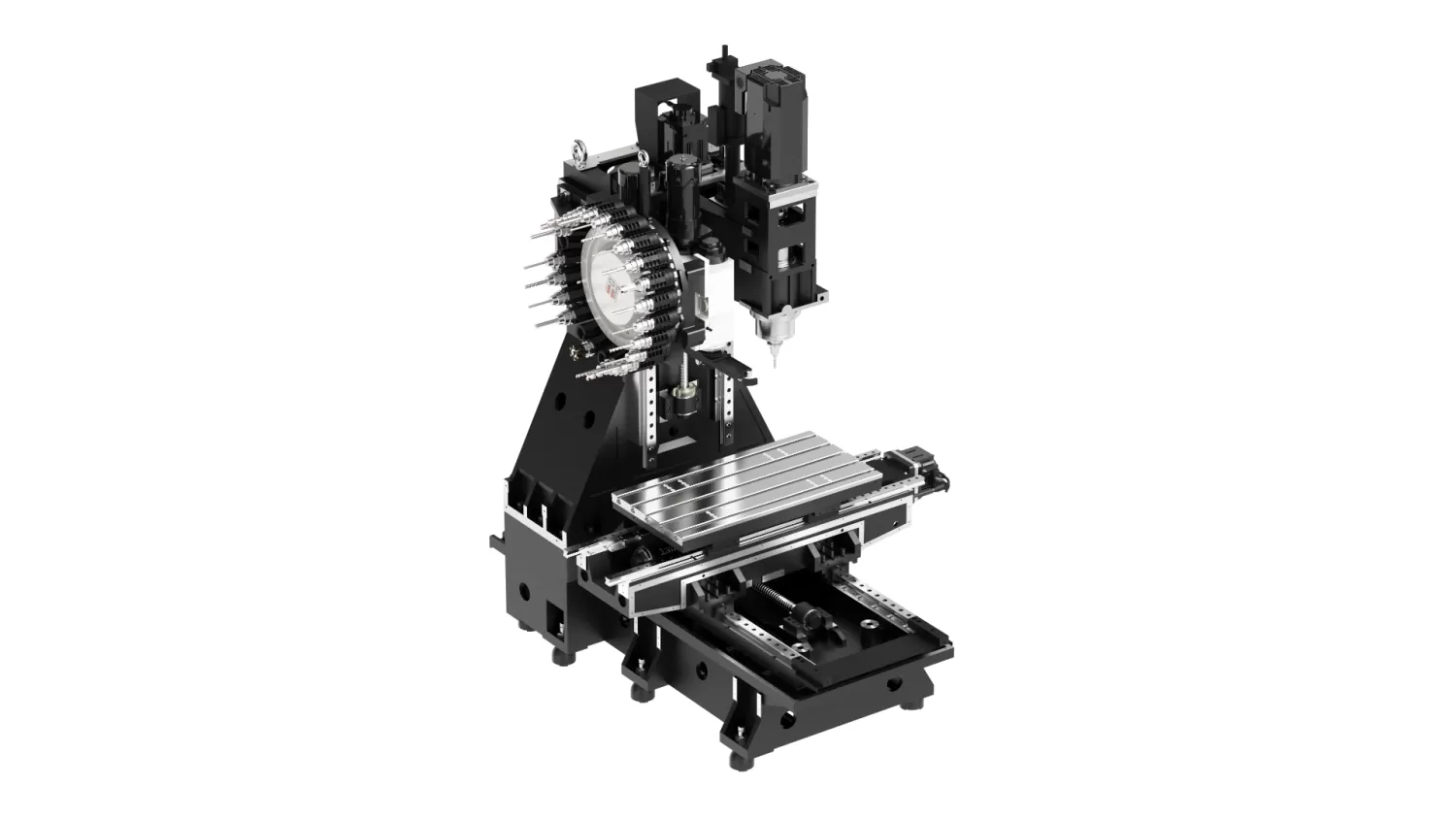

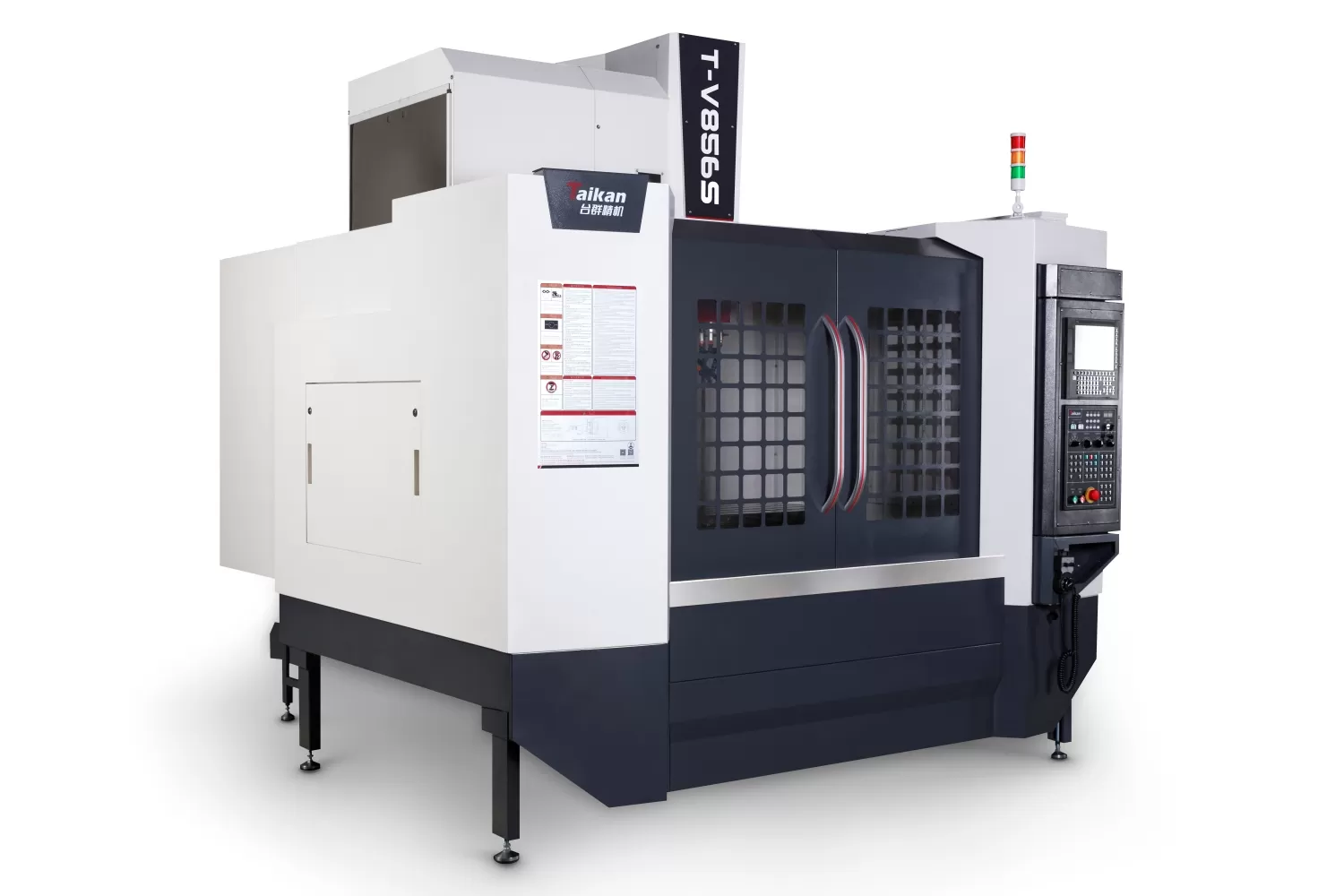

1) General Structural Components — T-V856S Vertical Machining Center

For robot torso frames, motor housings, support brackets, and mid-complexity structural parts, the T-V856S is the workhorse that keeps production lines running. This is our fifth-generation platform, backed by an installed base that recently surpassed 50,000 units across the vertical machining center series — a number that speaks to the reliability you can bank on.

The machine is built around a BT40 high-speed direct-drive spindle spinning at 12,000 RPM, paired with a high-efficiency through-coolant system. If you've ever machined 6061 or 7075 aluminum at volume, you know the enemy: built-up edge. Our cooling strategy eliminates that problem before it starts, preserving surface quality across thousands of cycles.

The motion system tells the real story. C3-class precision ballscrews. Roller-type linear guideways. Positioning accuracy of ±0.008 mm. Repeatability of ±0.005 mm. These aren't marketing numbers — they're the difference between a batch of housings that all fit and a batch where half need rework. When you're running 7075 structural brackets or titanium mounting plates, the T-V856S delivers the rare combination of speed, rigidity, and cost-efficiency that production managers actually care about.

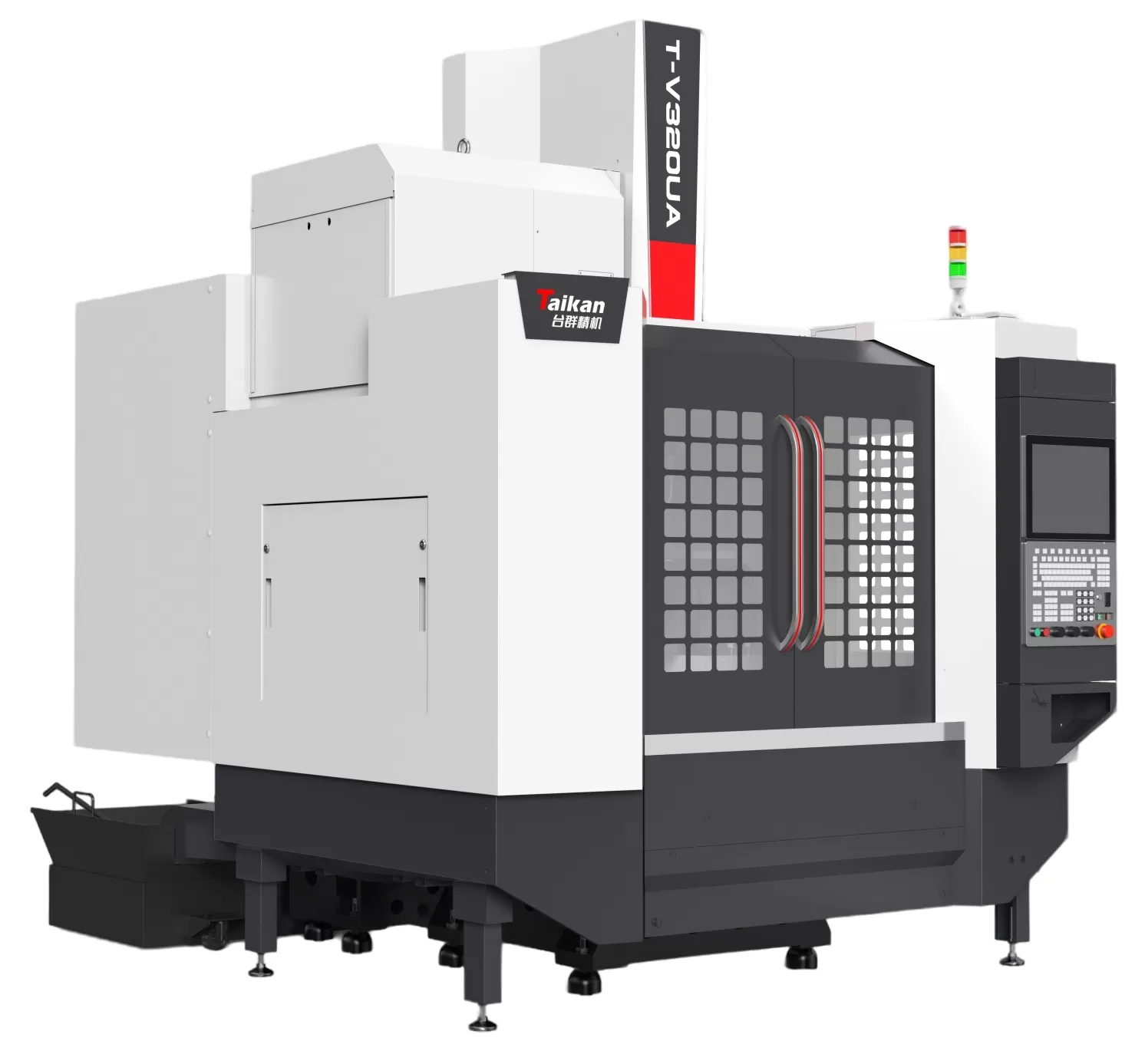

2) Complex Contour Components — T-V320UA 5-Axis Machining Center

Now we enter the territory where most shops start sweating. Robot joint housings, torso transition brackets, actuator enclosures — these parts have compound curves, angled interfaces, and tolerance stacks that compound with every feature. You simply cannot fixture your way through them with a 3 axis cnc machine. You'd need three, four, five setups, and every re-clamping event introduces positioning error.

The T-V320UA five axis machining center solves this elegantly. Single-setup, five-face access. All the critical geometric relationships — concentricity between bearing bores, perpendicularity of mounting faces, true position of fastener patterns — are machined in one clamping, referenced to a single datum structure. The result is inherent accuracy, not inspected-in accuracy.

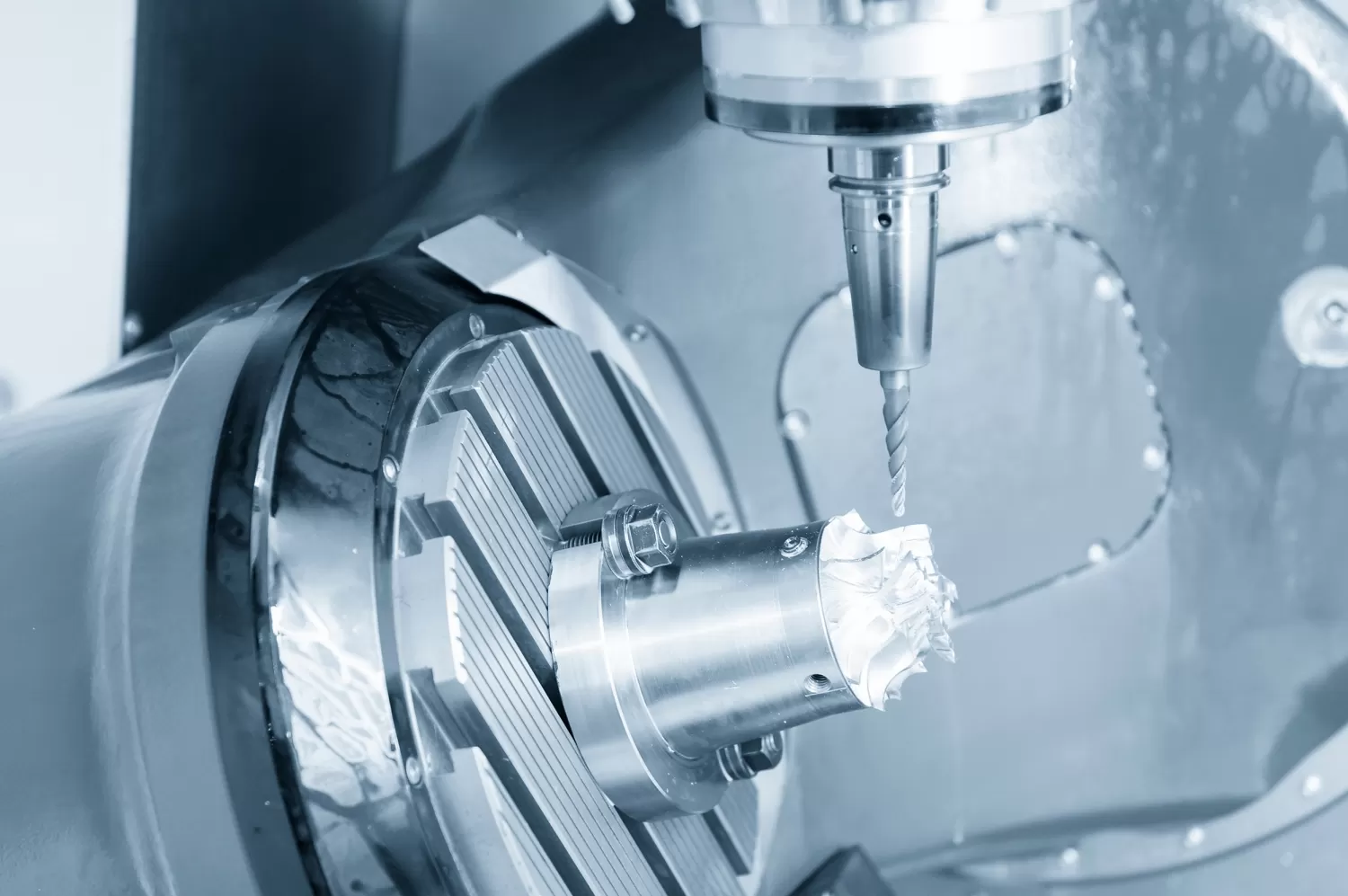

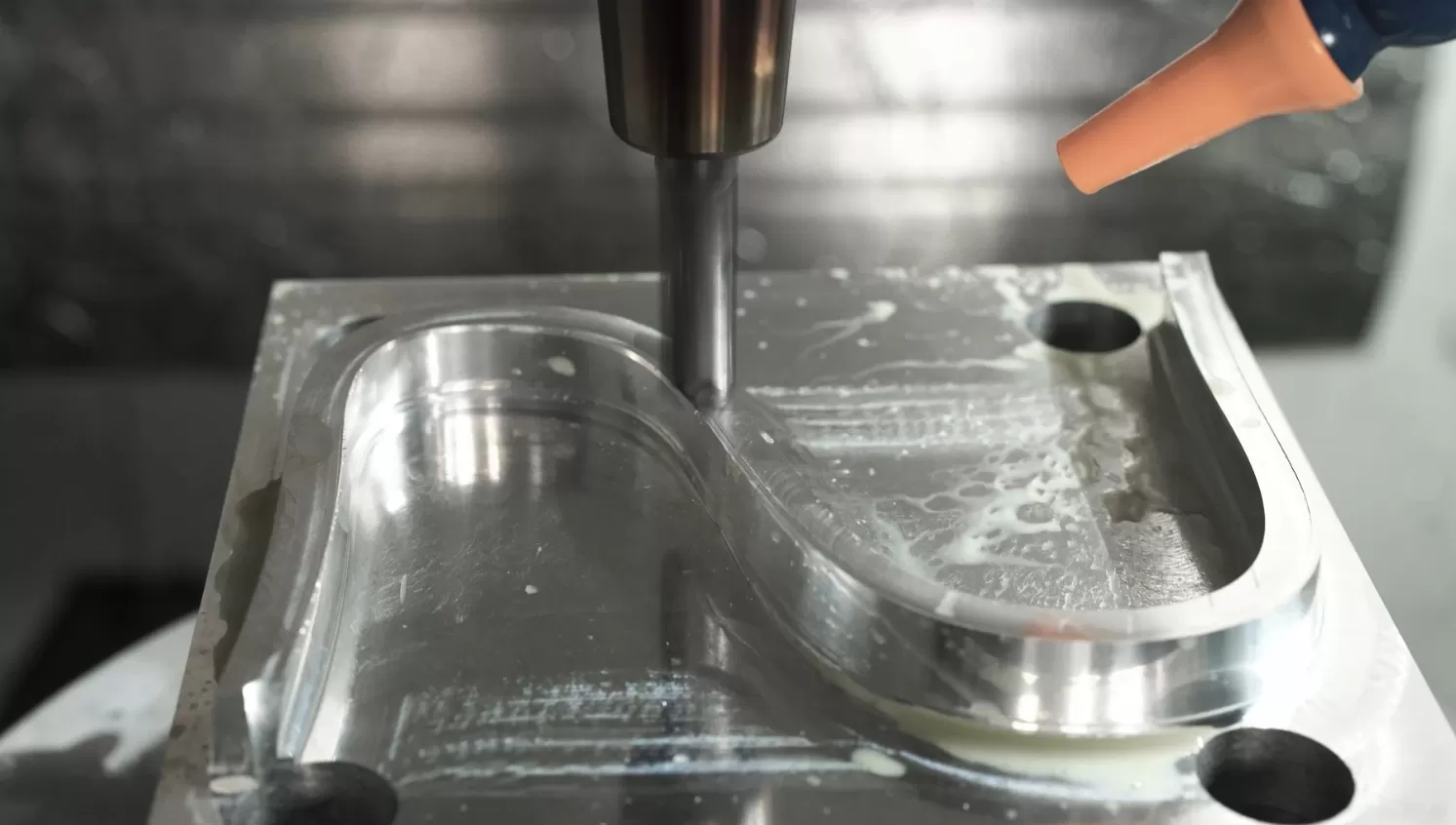

Five-axis simultaneous contouring gives you smooth, continuous toolpaths across complex freeform surfaces. No dwell marks. No blend lines. No hand-finishing. For robot joint housings where surface finish directly impacts seal performance and fatigue life, that matters. The machine is built on the same thermal-stability design principles that run through our entire portfolio, because we know that micron-level precision means nothing if your machine grows by ten microns over a shift.

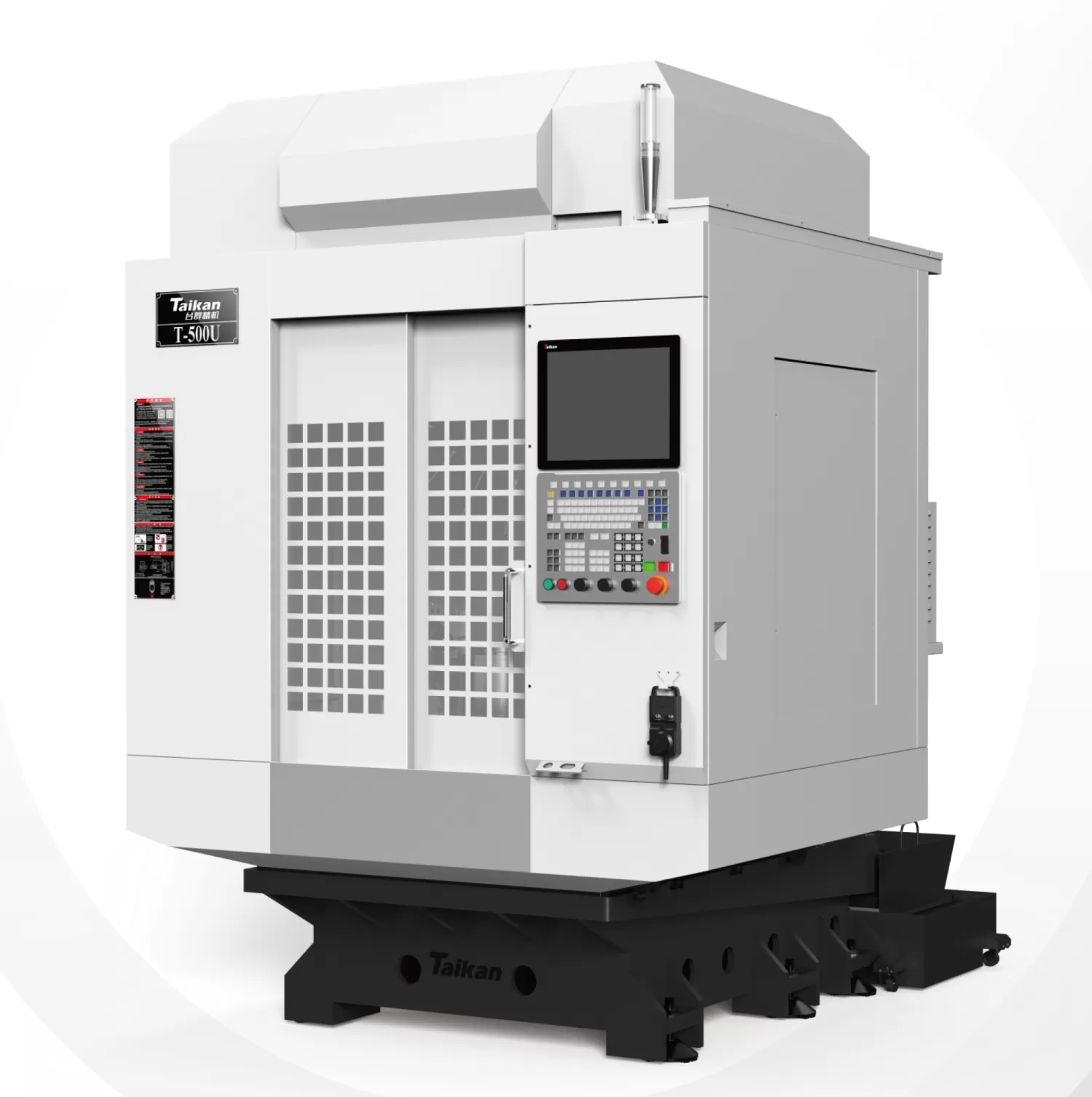

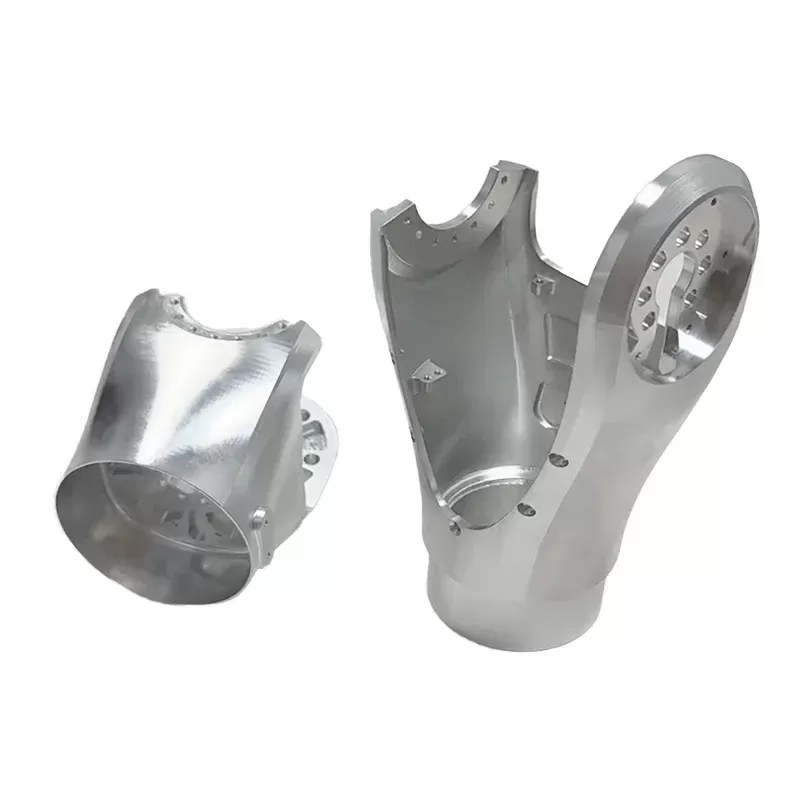

3) Micro-Precision Components — T-500U High-Speed 5-Axis Drilling and Tapping Center

Dexterous hands are where robotics gets genuinely hard. Sensor brackets. Micro spur gears. Joint bearing seats. Miniature transmission components that fit in the palm of your hand but carry tolerance callouts measured in single-digit microns. These aren't parts you can rough out on a general-purpose machine and finish-grind into submission. They demand a platform purpose-built for micro-scale, high-speed material removal.

The T-500U cnc vertical machining center answers that demand. 24,000 RPM spindle. That's the kind of rotational speed you need when you're running sub-millimeter end mills and drills through thin-walled, highly featured workpieces. At these spindle speeds, cutting forces drop dramatically, which means thin-walled features stay stable, chatter is suppressed, and surface integrity is preserved.

The machine's compact structural design delivers the motion agility that micro-machining demands. Rapid traverse, quick tool changes, and responsive five-axis positioning mean you're not waiting on the machine — the machine is waiting on you. Angled holes, irregular pockets, small complex features that would be impossible to fixture conventionally — the T-500U handles them with the confidence that comes from a machine designed specifically for this class of work.

The Process: Six Steps from Raw Stock to Certified Part

A great machine is necessary but not sufficient. Without a disciplined process, even the best equipment underperforms. Here's the Taikan machining workflow that transforms raw material into qualified robot components:

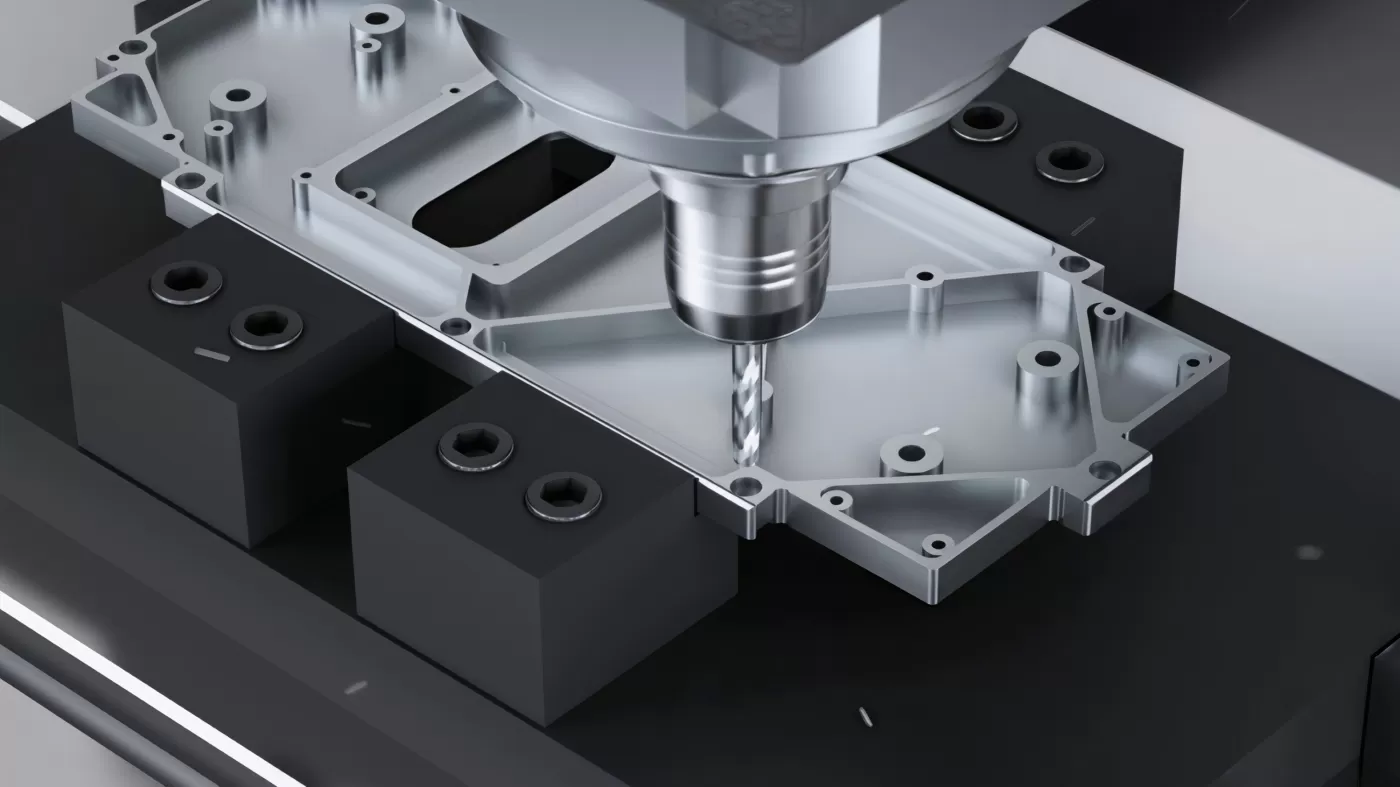

Step 1 — Blank Conditioning. Every aluminum blank undergoes stress-relief aging before it ever touches a spindle. Internal stresses trapped in raw stock are the silent killer of precision — you machine a part to spec, unclamp it, and watch it spring into a shape you didn't plan for. We eliminate that variable upstream. Fixturing strategy is designed concurrently with process planning, using purpose-built workholding that ensures stable, repeatable clamping across production volumes.

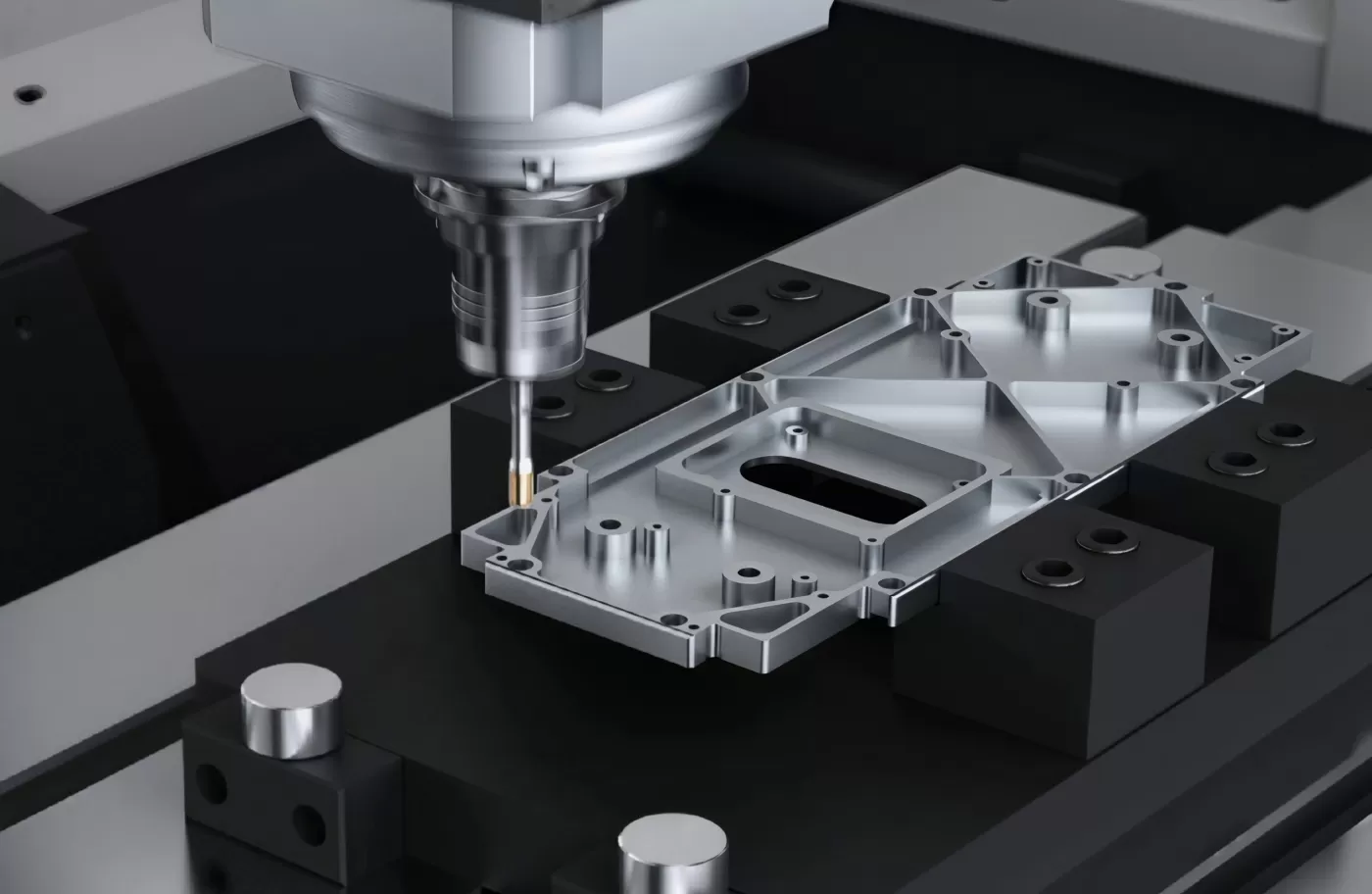

Step 2 — Roughing: Aggressive Stock Removal. Large-diameter tooling. High material removal rates. We take the bulk of the material off fast, leaving a uniform stock allowance of 0.2 to 0.3 mm on all critical surfaces. Chip management isn't an afterthought — high-volume coolant flow and robust chip evacuation keep the cutting zone clear, protecting both tool life and dimensional stability.

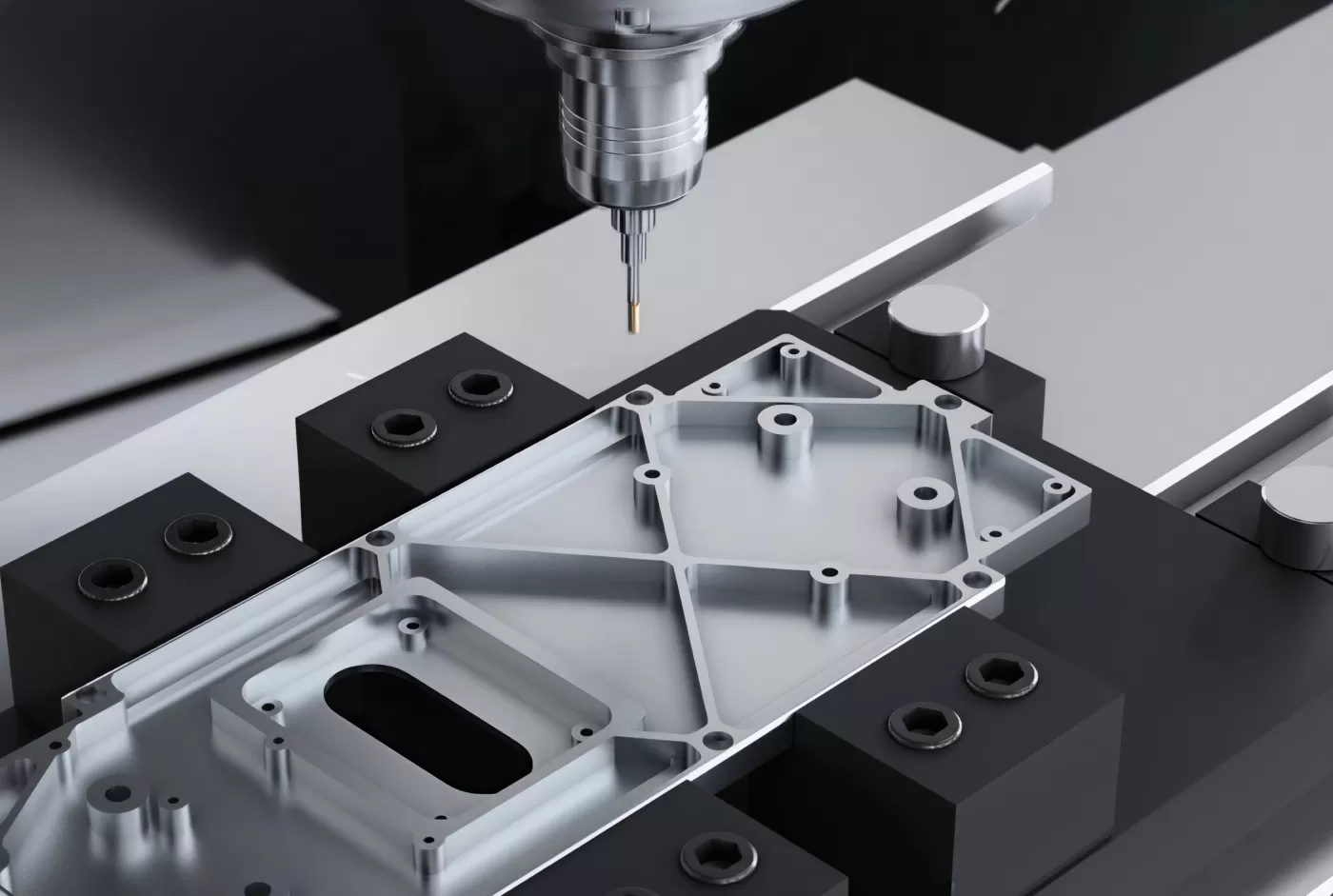

Step 3 — Semi-Finishing: Geometry Takes Shape. This is where contours get defined. On complex features, we leverage five-axis simultaneous toolpaths to profile surfaces and establish feature relationships, reducing the remaining stock to 0.05–0.1 mm. The goal isn't just stock reduction — it's positional accuracy. Getting every feature located correctly at this stage means the finishing pass can focus purely on achieving tolerance and surface finish, without fighting geometry errors.

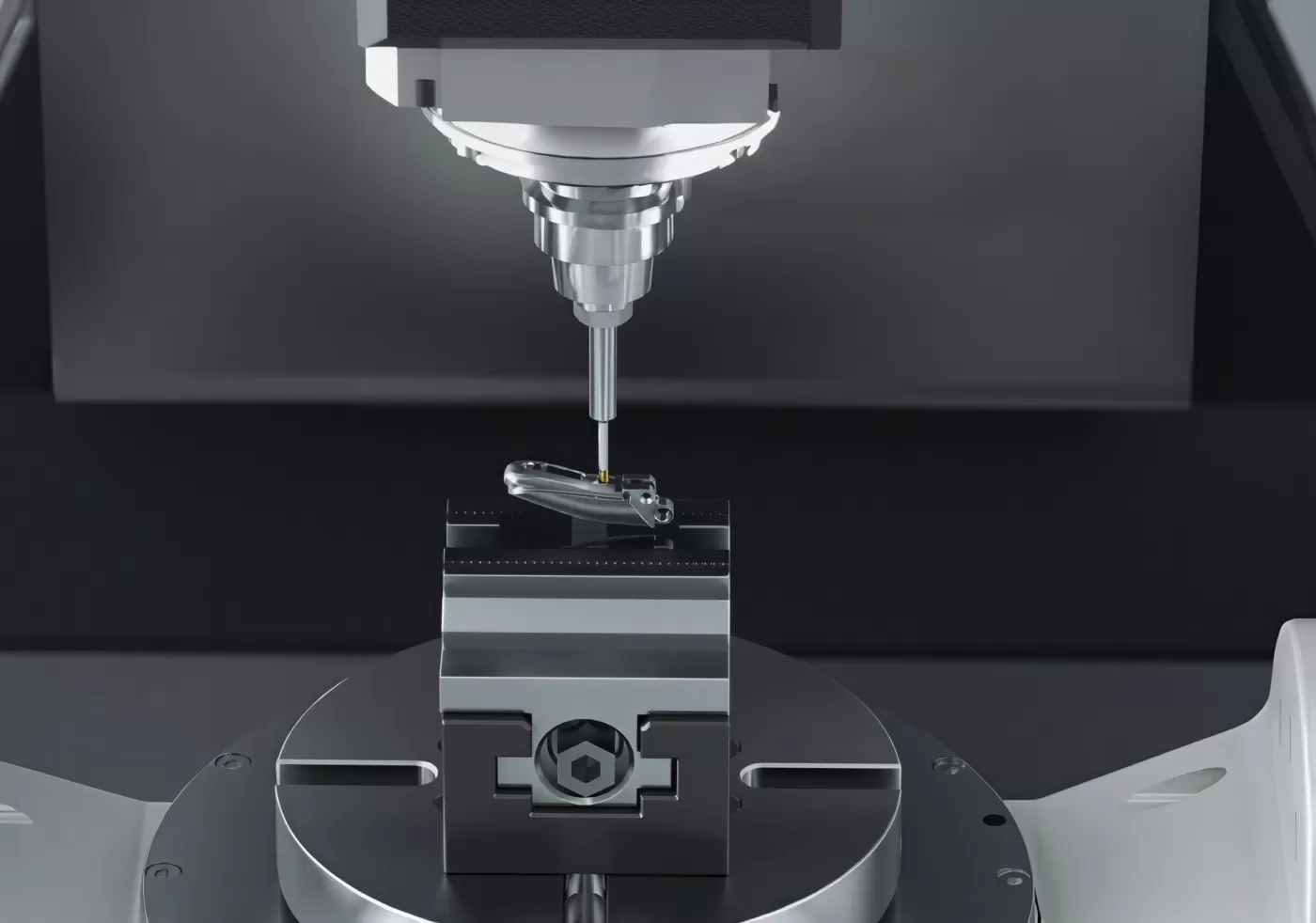

Step 4 — Finishing: Micron-Level Execution. Here, the machine's thermal stability design earns its keep. By suppressing thermally induced dimensional drift, we maintain consistent cutting conditions from the first part to the last in a production run. Dimensional tolerance, profile accuracy, and surface roughness all come together in this step. No drama. No surprises. Just repeatable precision.

Step 5 — Inspection: Verifying What Matters. Every critical dimension and geometric tolerance is verified on a CMM (coordinate measuring machine). We don't sample. We don't guess. If a callout matters to the function of the robot, it gets measured.

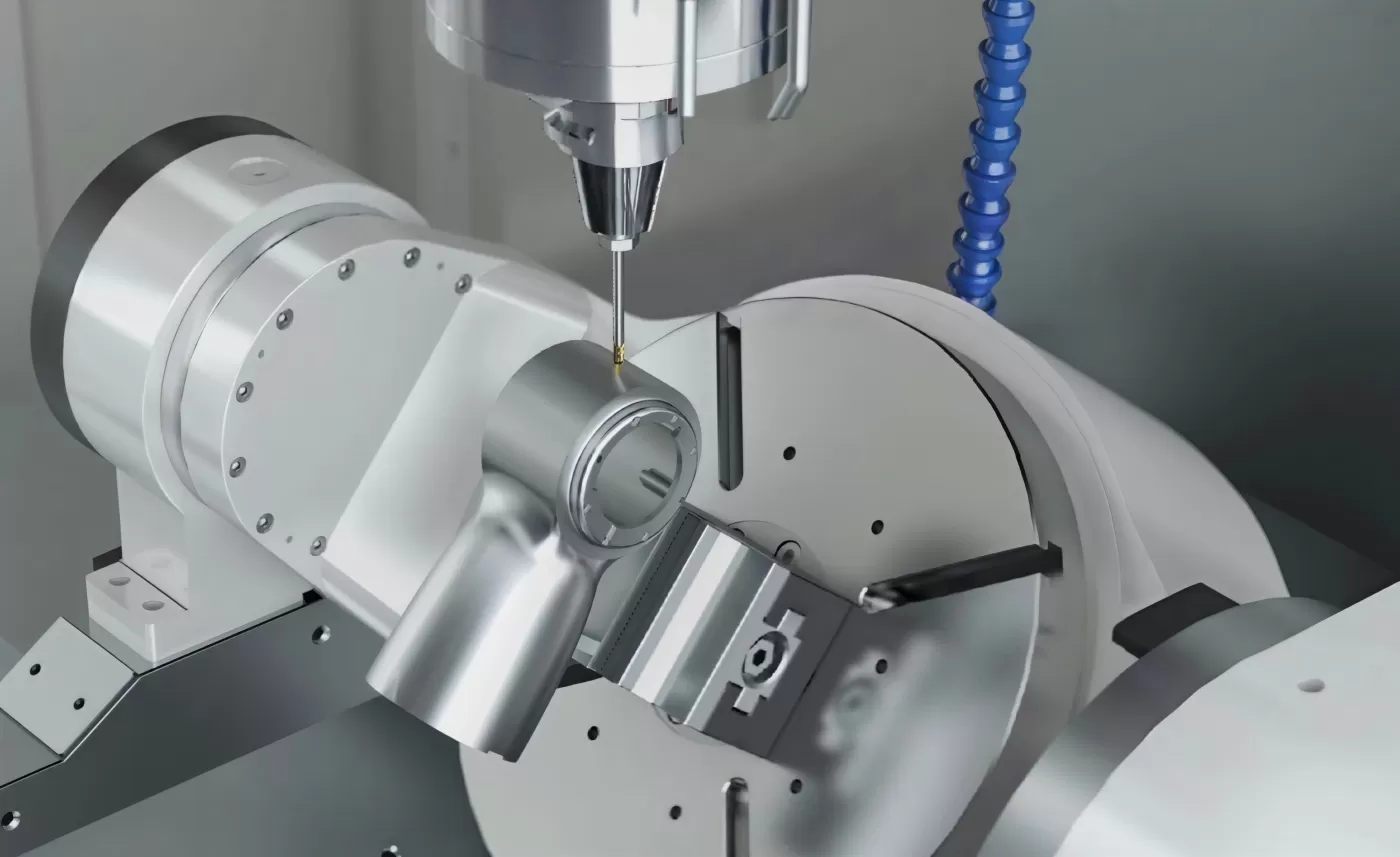

Step 6 — Surface Finishing. Precision mating components — bearing seats, seal surfaces, sliding interfaces — receive post-machining surface treatment to enhance fit and extend service life. This isn't cosmetic. It's about assembly integrity and long-term reliability in dynamic, cyclically loaded applications.

The Bigger Picture

The intelligent robotics industry is at a fascinating moment. The algorithms are maturing. The sensor technology is advancing. The business cases are becoming real. But none of it works without the physical hardware — the joint that rotates smoothly under load, the structural frame that stays rigid through millions of cycles, the dexterous hand that manipulates objects with human-like finesse.

Behind every one of those components is a machine tool. And behind every great machine tool should be a company that understands not just how to build it, but how to apply it.

At Taikan Machine, that's exactly what we do. We build the machines that build the robots. And we'd welcome the opportunity to discuss what that means for your next program.

Why Taikan Machine

We're a publicly listed machine tool builder (Stock Exchange: 300036) with over two decades of engineering heritage, over 3,000 employees, and a global footprint that spans exhibitions from EMO Hannover to TECMA Mexico City to METALEX Bangkok. Our machines are running production in aerospace, automotive, medical devices, and precision engineering shops across the world.
