Horizontal Machining Center for Automotive Parts: When Palletized Machining Improves Batch Output

Automotive parts production is not only about cutting metal. It is about holding stable accuracy across repeated batches, reducing non-cutting time, keeping operators productive, and making sure every housing, bracket, block or structural component can pass inspection without constant adjustment. For many automotive factories, the real challenge is not whether a part can be machined, but whether it can be machined repeatedly with predictable output.

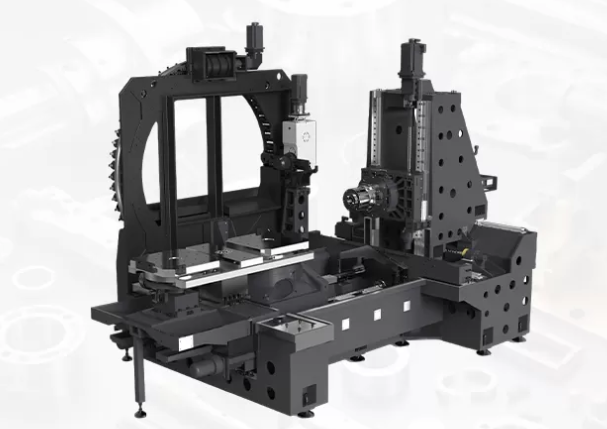

A horizontal machining center is a CNC machine tool with a horizontally oriented spindle, often combined with a rotary table or pallet system, designed for multi-face machining, stable chip evacuation and efficient batch production of box-type or housing components.

When buyers evaluate a china horizontal machining center, the decision should start from part geometry, fixture strategy, monthly volume and downtime pressure. A lower-cost machine may look attractive at quotation stage, but automotive production usually rewards stable structure, repeatable indexing, practical tool capacity and reliable palletized workflow.

Why Automotive Parts Manufacturers Use Horizontal Machining Centers

Automotive components such as engine housings, gearbox housings, motor housings, hydraulic blocks, suspension brackets and aluminum die-cast parts often require machining on several faces. If each face needs a separate setup, the process becomes longer and more exposed to alignment error. A horizontal machining center helps reduce this issue by allowing multi-face machining around a rotary table or palletized setup.

Global vehicle production rose from 92.7 million units in 2024 to 96.4 million units in 2025, according to the International Organization of Motor Vehicle Manufacturers. This production scale explains why automotive suppliers care so much about cycle time, repeatability and predictable batch output.

Automotive manufacturers usually consider HMC machining when they need:

• Multi-face machining on housings, blocks, brackets or box-type parts.

• Better chip evacuation during long cutting cycles.

• Stable clamping and indexing for repeated batches.

• Higher spindle utilization through palletized loading and unloading.

• Reduced manual repositioning between operations.

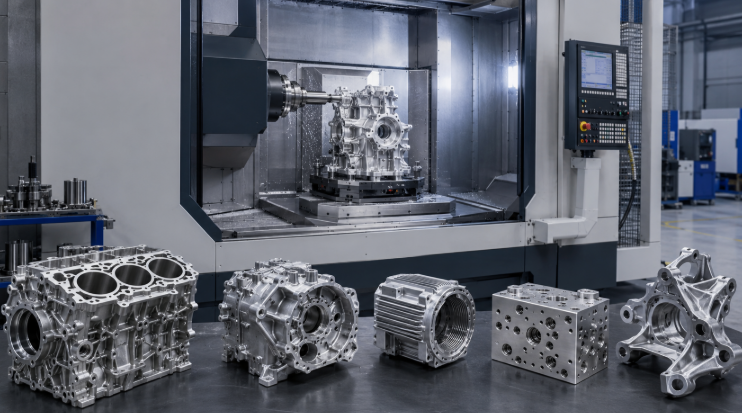

What Automotive Parts Are Suitable for HMC Machining?

A horizontal machining center is especially useful when the part has multiple machined faces, internal cavities, deep holes or strict feature-to-feature relationships. Instead of repeatedly moving the workpiece to different fixtures, manufacturers can complete more operations from one setup or one palletized process.

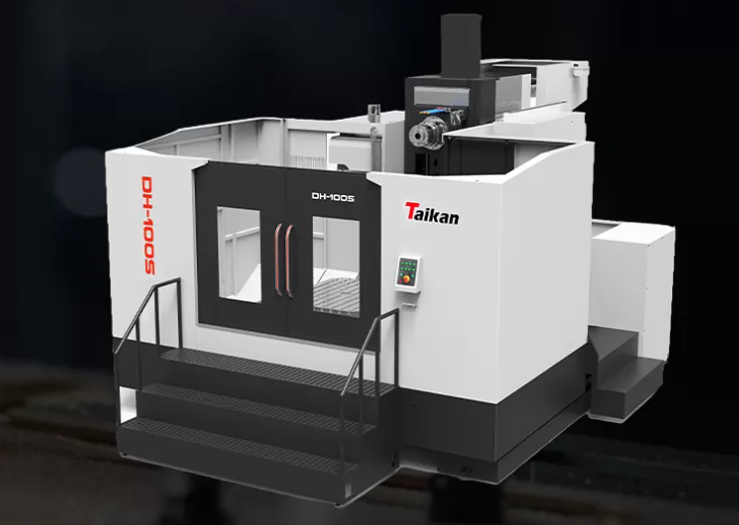

The TAIKAN Horizontal Machining Center series includes the T-H small series, DH double-table series and DHS large single-table series. The range can handle workpieces up to φ2000mm and supports multiple structural designs, turntable configurations, spindle options and personalized configurations. It is used in automotive, gearbox, engine housing and other box-type part machining, and is compatible with aluminum alloys, cast iron and steel.

How Palletized Machining Improves Batch Output

The biggest advantage of palletized machining is not only that the machine has two tables or pallets. The real value is that loading and cutting can be separated. While one pallet is inside the machining area, the operator can prepare the next workpiece outside the cutting zone. This can reduce waiting time and help keep the spindle working more consistently.

In automotive production, where a part may require many tool changes and multiple machined faces, this workflow can make a visible difference. The machine is not waiting for the operator as often, and the operator is not forced to stand idle during the full cutting cycle.

A palletized HMC setup can improve output by:

• Allowing one pallet to be loaded while another pallet is being machined.

• Reducing spindle idle time between workpieces.

• Supporting repeatable fixture positioning for batch production.

• Making it easier to organize multiple part families or fixture sets.

• Reducing manual handling inside the machining area.

Parameter Table for Automotive HMC Selection

Choosing an HMC for automotive parts should not be limited to table size. Buyers should also compare spindle options, tool capacity, rotary table structure, axis travel, workpiece envelope and inspection support.

HMC vs VMC for Automotive Batch Production

A vertical machining center can be a good choice for many brackets, plates and flexible mixed-part jobs. However, when an automotive part needs several sides machined in one process, an HMC often becomes more practical. The decision is not about which machine is “better” in general. It is about which machine reduces setup, handling and accumulated error for the part family.

When a 5-Axis Horizontal Solution May Be Needed

Some automotive and new energy vehicle parts are becoming more complex, especially motor housings, integrated aluminum structures, suspension components and precision castings. When the part needs angled features, curved surfaces, reduced setups or higher one-clamping accuracy, a 5 axis horizontal machining center or another 5-axis configuration may be worth evaluating.

TAIKAN’s 5-axis machining center range covers vertical, horizontal, mill-turn and gantry-type models, with worktable diameters from Φ180mm to Φ1800mm and beyond. This range supports small precision parts as well as large complex workpieces for industries including aerospace, medical devices and automotive manufacturing.

Consider a 5-axis solution when:

• The part has angled surfaces, compound curves or multi-directional holes.

• Several setups are currently required to complete one component.

• Datum consistency is more important than simple roughing speed.

• Tool access is limited with a standard HMC or VMC process.

• The factory wants to combine higher precision with process consolidation.

Conclusion

For automotive parts, a horizontal machining center can improve batch output when the process requires multi-face machining, stable fixturing, effective chip evacuation and palletized workflow. Buyers should compare part geometry, production volume, spindle needs, pallet size, tool capacity and acceptance testing before choosing an HMC or 5-axis configuration.

FAQ

What automotive parts are suitable for a horizontal machining center?

Engine housings, gearbox housings, motor housings, hydraulic blocks, aluminum die-cast parts and box-type components are common candidates because they often require machining on several faces.

How does palletized machining improve batch output?

Palletized machining allows one workpiece to be loaded or unloaded while another is being cut. This helps reduce spindle idle time and supports more stable batch production.

Is an HMC always better than a VMC for automotive parts?

No. A VMC is often suitable for plates, brackets and flexible machining jobs. An HMC is usually more suitable when the part requires multi-face machining, better chip evacuation and repeatable batch output.

What should buyers check before choosing a horizontal machining center?

Buyers should check pallet size, workpiece envelope, axis travel, spindle options, tool capacity, rotary table design, chip removal, fixture plan and machine acceptance standards.

When should a factory consider a 5-axis horizontal machining center?

A 5-axis horizontal solution may be useful when the part has angled features, complex surfaces, tight datum relationships or multiple setups that could be reduced through one-clamping machining.
