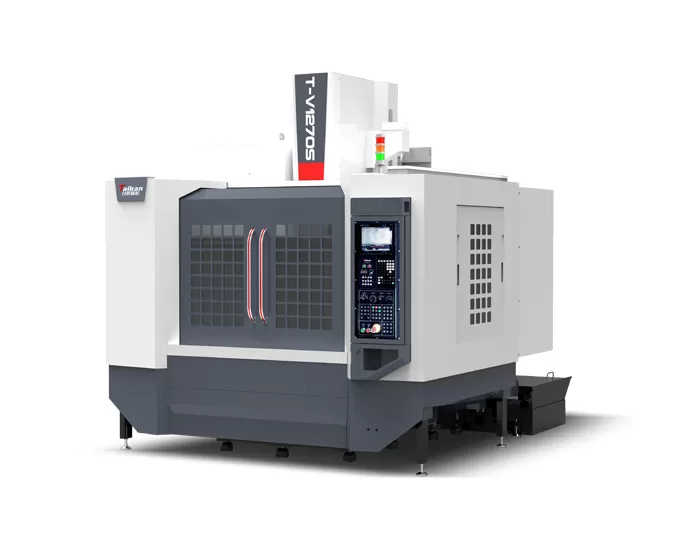

T-V1270S High-speed and High-efficiency Vertical Machining Center

Travel

Table travel (X axis)

mm

1200

Saddle travel (Y axis)

mm

700

Headstock travel (Z axis)

mm

700

Distance from spindle nose to table surface

mm

100～800

Distance from spindle center to column guide surface

mm

757

Worktable

Table size

mm

1300*650

Max. load (even load-bearing)

kg

800

T-slot (number of slots - slot width * spacing)

mm

5-18*125

Spindle

Motor power (rated/short time)

kW

7.5/11

Motor torque (rated/short time)

N.m

35.8/95.5

Speed range

r/min

50~12000 (Directly coupled)

Spindle diameter

mm

φ150

Spindle taper

/

BT40

Rivet specifications

/

P40T-I（MAS403）

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

36/36/30

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.01

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.007

Tool magazine

Tool capacity

pcs

24

Max. tool weight

kg

7

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Φ75/Φ150

Others

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR)

Air pressure

MPa

0.6~0.8

Equipment capacity

KVA

25

Coolant tank capacity

L

300

Machine size

mm

3000*3500*3100

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

6250
