Guide to Gantry Machining Centers: Working Principles and Selection Tips

In today's manufacturing landscape, machining centers are at the heart of precision production. Among them, the gantry machining center stands out for its ability to handle large, heavy, and complex workpieces with exceptional stability and accuracy. Whether you’re exploring options for aerospace components, energy equipment, or large molds, understanding what a gantry machining center is, how it works, and how it differs from other CNC machining solutions is essential to making the right investment.

What Is a Gantry Machining Center?

A gantry machining center is a type of CNC machine tool featuring a distinctive bridge-like structure where a horizontal beam (the gantry) spans the worktable and is supported by two vertical columns on either side. The spindle, mounted on the bridge, travels along multiple axes—typically X, Y, and Z—to perform milling, drilling, cutting, and shaping operations on large workpieces.

Key Structural Characteristics

• Bridge-Frame Design: The gantry consists of a crossbeam supported by two columns, creating a rigid framework that straddles the workpiece.

• Large Working Envelope: This structure allows for a stationary worktable and extensive travel distances along the X and Y axes, ideal for oversized or heavy parts.

• Multi-Axis Capabilities: Modern gantry machining centers can be configured for 3-axis, 4-axis, or 5 axis gantry machining center setups, depending on complexity and precision requirements.

Unlike traditional machining centers that limit the size of the workpiece, gantry systems excel where scale and rigidity are critical.

Gantry Machining Center Working Principle

At its core, a gantry machining center combines precision motion control with a rigid mechanical structure:

1. Workpiece Setup: The part is securely fixed on a large table that remains stationary during machining.

2. Bridge Movement: The gantry moves along the X-axis over the workpiece, guided by precision linear systems.

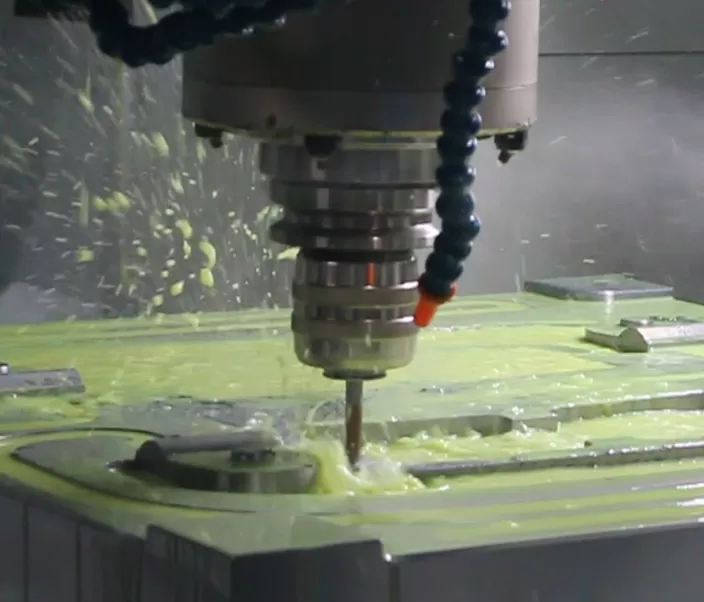

3. Spindle Motion: The spindle head travels across the gantry and adjusts vertically to machine the workpiece in the Y and Z directions.

4. CNC Coordination: The CNC control system synchronizes all axis movements with tool rotation and feed rate to execute complex cutting paths, usually generated via CAD/CAM programming.

Gantry Machining Center vs Other CNC Machine Centers

Selecting the right CNC platform comes down to structural differences, output requirements, and application needs. Here is how gantry type machining center solutions compare with more conventional options:

Gantry vs Vertical Machining Centers (VMCs)

• Scale: VMCs are ideal for small to medium parts; gantry centers handle very large parts that VMC tables or frames cannot accommodate.

• Structure: VMCs use a fixed C-frame with the spindle moving vertically over a table; gantry centers use a bridge that spans the workpiece.

• Rigidity: Gantry machines distribute loads through a broader framework, offering better resistance to vibration and deflection in heavy machining.

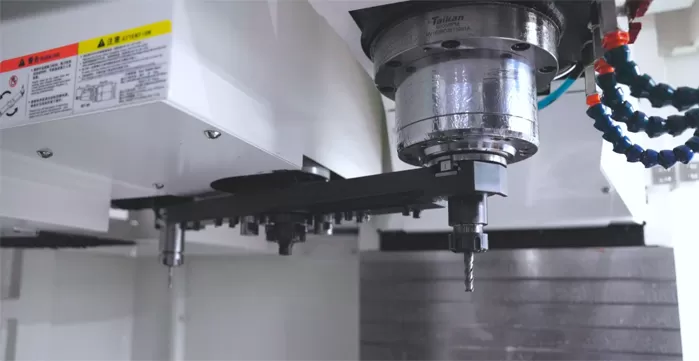

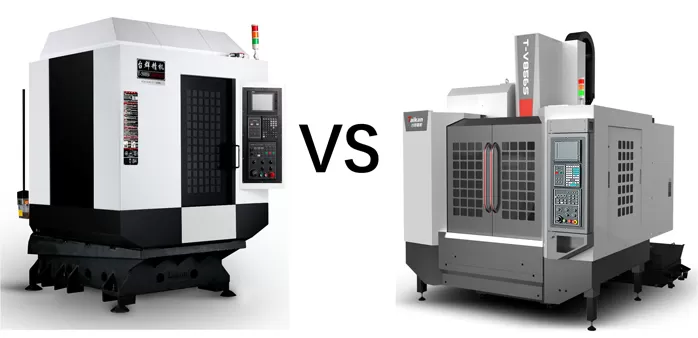

Gantry vs Horizontal Machining Centers (HMCs)

• Workpiece Handling: HMCs excel in removing chips and handling medium-sized parts efficiently, but their tables and spindles are limited in travel compared to the expansive work envelope of gantry systems.

• Cutting Scope: Gantry systems allow a fixed table and massive travel range, making them more suitable for oversized components.

Gantry vs Double Column Machining Centers

While both support heavy loads and wide tables, gantry centers often feature a moving bridge over a fixed table, whereas double column systems may rely on a moving table within a fixed support frame. Each format has strengths in rigidity and footprint efficiency, but gantry designs typically offer broader travel ranges for ultra-large workpieces.

How to Choose the Right Gantry Machining Center?

Selecting the ideal gantry machining center involves evaluating your production needs against technical capabilities:

1. Workpiece Size and Weight

Identify the maximum dimensions and weight of parts you plan to process. The machine's travel capacity and table load rating should exceed these requirements comfortably.

2. Axis Configuration

Decide whether standard 3-axis machining suffices or if complex contours and multi-surface operations benefit from 4- or 5-axis configurations.

3. CNC Control and Software

Advanced CNC systems with CAD/CAM integration streamline programming and optimize toolpaths for higher efficiency.

4. Rigidity and Precision

Look for robust structural components and precision guide systems that maintain accuracy under heavy cutting loads and long machining cycles.

5. Industry Applications

Match machine features with your industry needs—whether aerospace tolerances, automotive molds, energy sector parts, or heavy machinery components.

Conclusion: Reinvent Your Large-Part Machining with Taikan Gantry Solutions

A gantry machining center merges brute rigidity, wide work envelopes, and CNC precision to redefine what's possible in large and heavy component machining. Whether you're upgrading existing production lines or entering high-precision markets like aerospace, energy, or heavy machinery manufacturing, a carefully selected gantry system delivers unmatched performance and reliability.

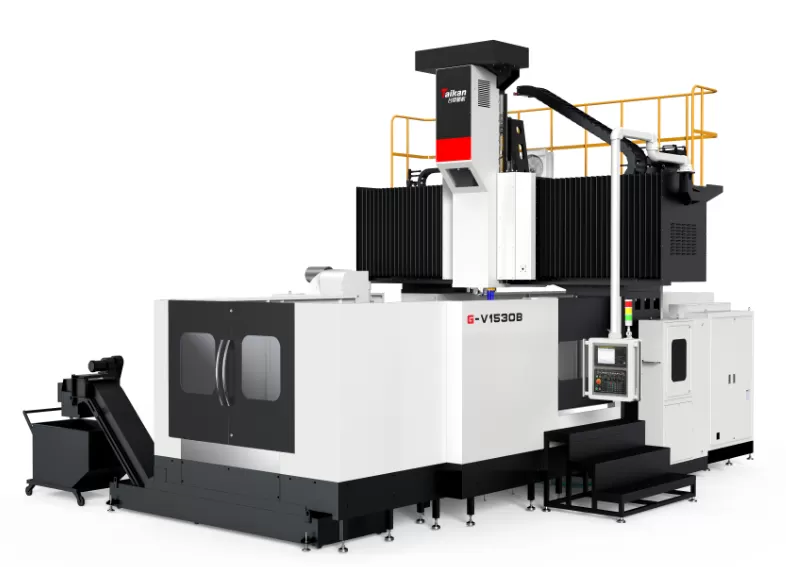

If your operations demand machining oversized, heavy, or complex parts with high repeatability and productivity, Taikan's Gantry Machining Centers are engineered to meet those challenges. Contact us now to discuss your application and find the best solution for your shop.
