How the Taikan T-V856S is Redefining the Vertical Machining Center

In the high-end intelligent manufacturing equipment space, the Taikan vertical machining center is an undisputed sales benchmark. The Taikan 856 series has surpassed 40,000 cumulative units sold, making it the best-selling vertical machining center series in its class and the common choice of nearly 20,000 enterprises worldwide. This record is built on hardcore technical strength, performance, and application depth—a clear demonstration that China's machine tool industry has moved from following to leading.

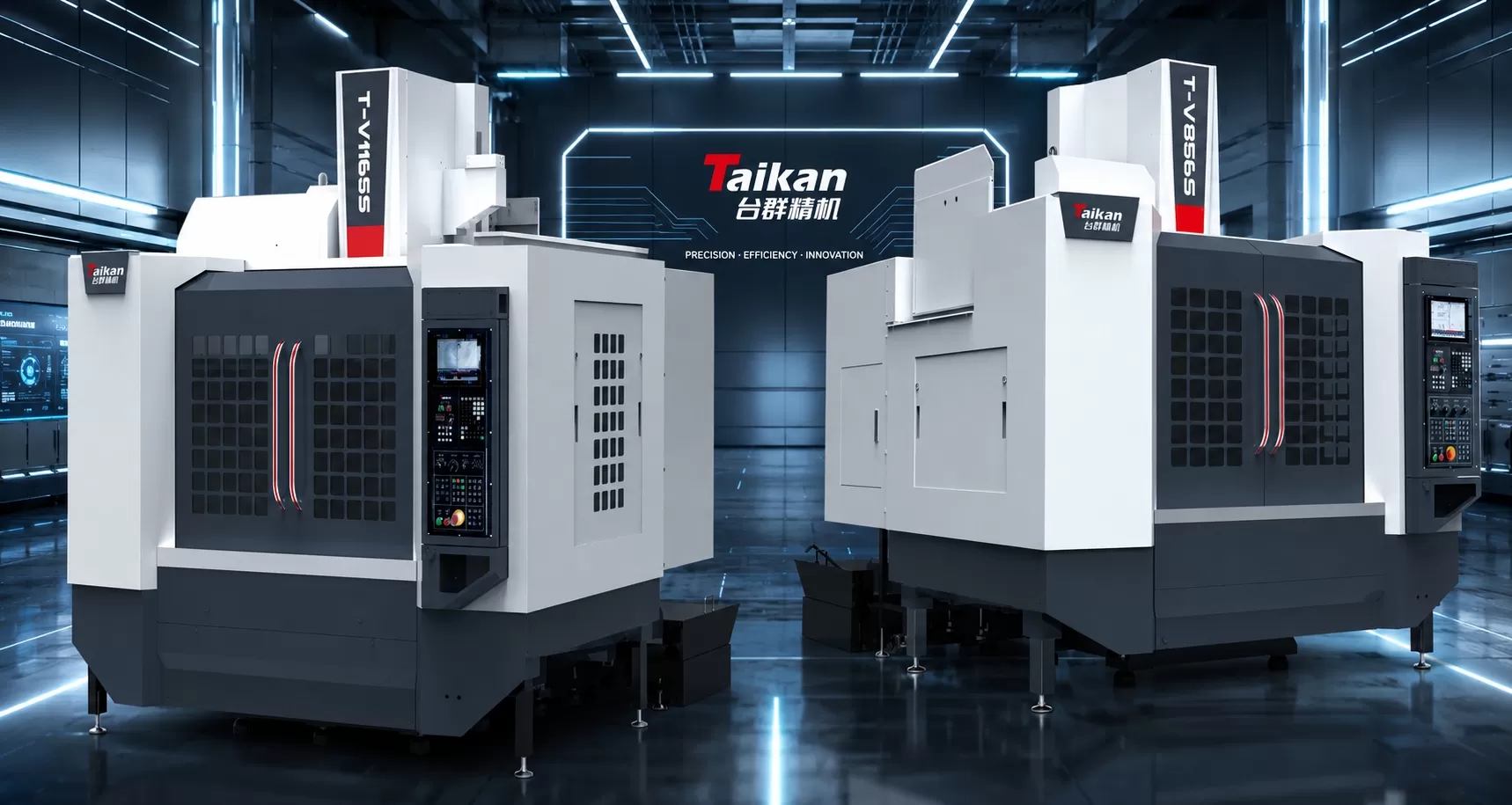

PART 1 — 40,000 Units: Proven Market Recognition for the Taikan 856 Series

The 40,000-unit milestone isn't a short-term spike. It's the result of sustained, long-term commitment. Since its debut in 2009, the Taikan 856 series has gone through five major generations of iteration. From the original model to the fifth-generation T-V856S, every upgrade has precisely targeted real market demands and continuously improved performance.

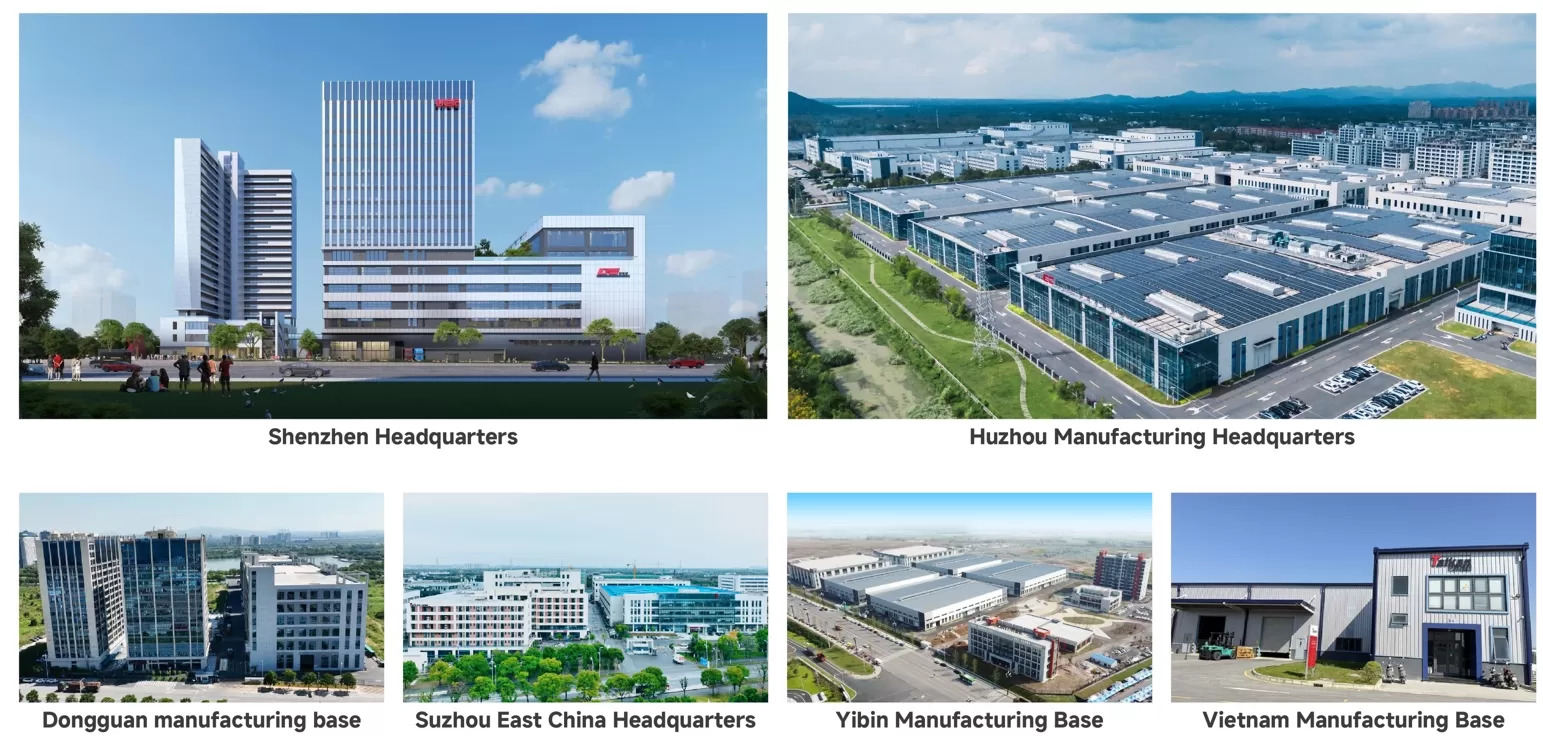

Backed by four large-scale manufacturing bases, Taikan controls product quality and production costs through mature supply chain management and integrated, high-efficiency manufacturing—delivering a genuine quality-to-value advantage. The used market tells the same story: owners report that the five-year residual value of an 856 series machine is approximately RMB 10,000–20,000 higher than comparable machines, maximizing whole-life value. It's a hard-numbers choice that has made the series the go-to equipment investment for small and medium-sized manufacturers.

PART 2 — Deep Technology: The Core Confidence of Independent Innovation

Sustained sales leadership rests on sustained R&D. The fifth-generation T-V856S is the definitive representative of the series, centered on a high-rigidity structure, a high-speed precision spindle, an intelligent variable-frequency tool magazine, and high-efficiency lubrication. It concentrates the technical strength Taikan has built through in-house development and continuous iteration, reflecting the continuous progress of the china machine tool industry in high-end manufacturing.

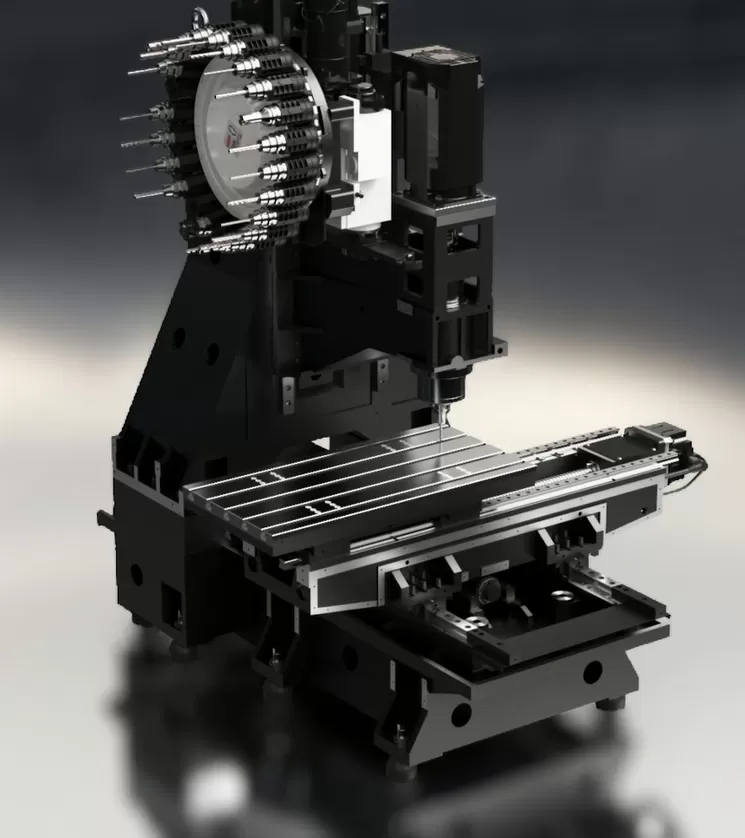

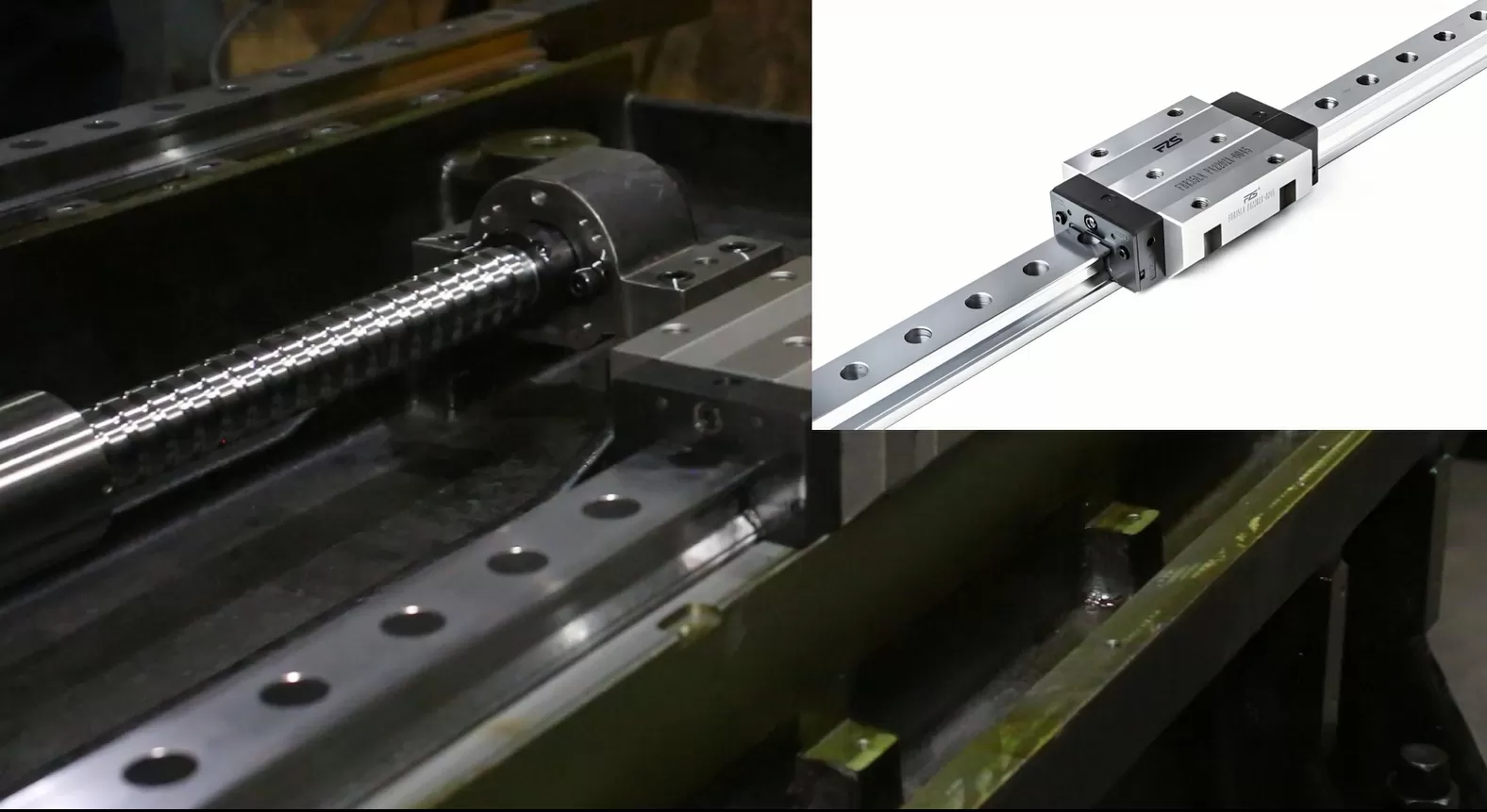

• Structure & Rigidity: Optimized through finite element analysis and modal testing, the machine uses high-strength resin sand castings with 8-point floor support. Column guideway span is 390 mm, and the base-to-column mating face is 200 mm wide. The result: vibration-free high-speed cutting and long-term machining accuracy with virtually no degradation. Y and Z axes run on 45-size roller linear guideways, and all three axes are driven by C3-class pre-tensioned ballscrews with a large 40 mm diameter—delivering stronger axial and radial rigidity.

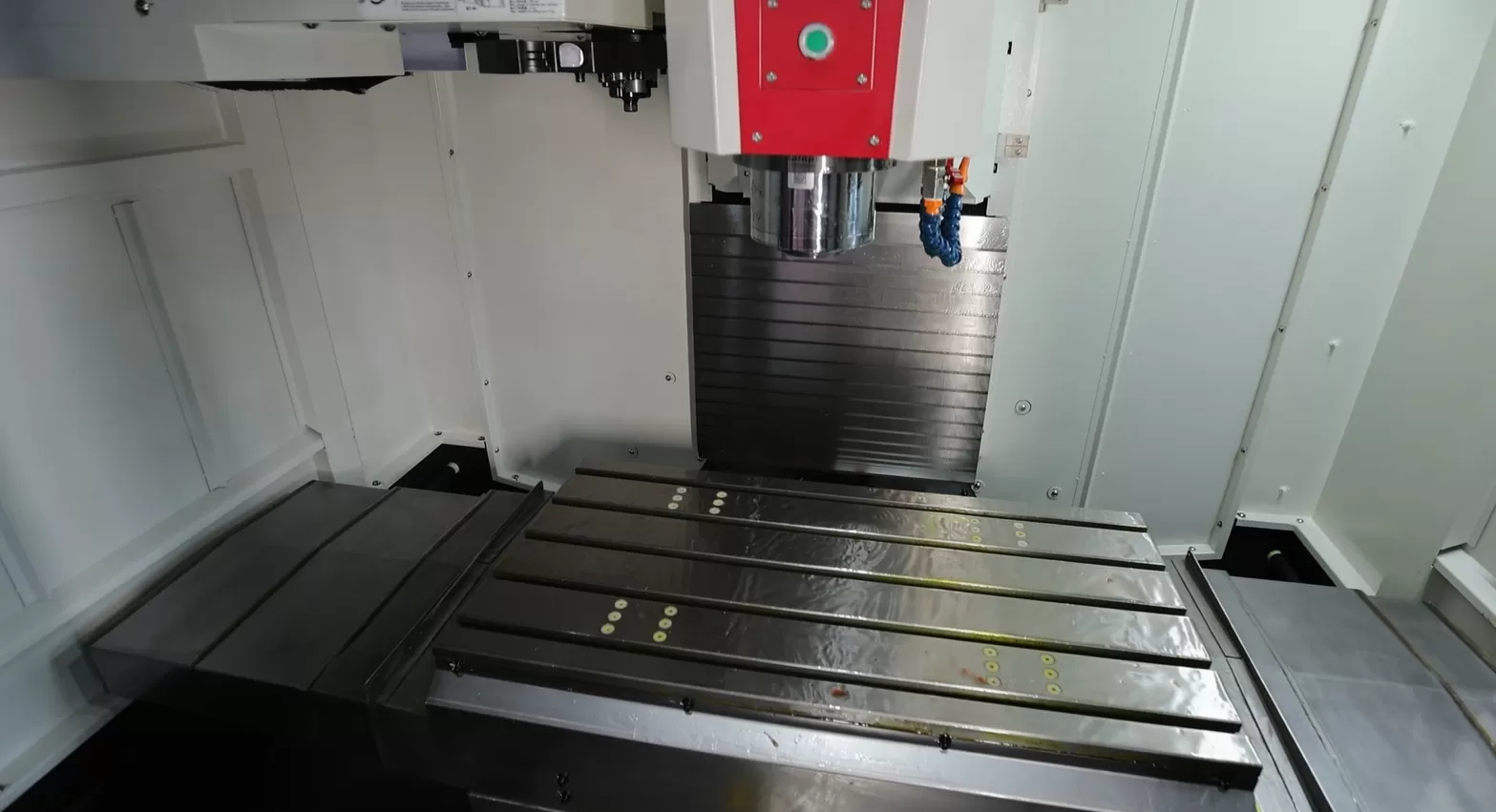

• Work Envelope: Travels are 800 × 550 × 600 mm, paired with a 1,000 × 500 mm large worktable. The generous table area leaves ample room for adding fourth- and fifth-axis rotary tables, exactly what emerging-industry customers need. This versatility is one of the reasons why the t v856s is widely adopted across a broad range of manufacturing applications.

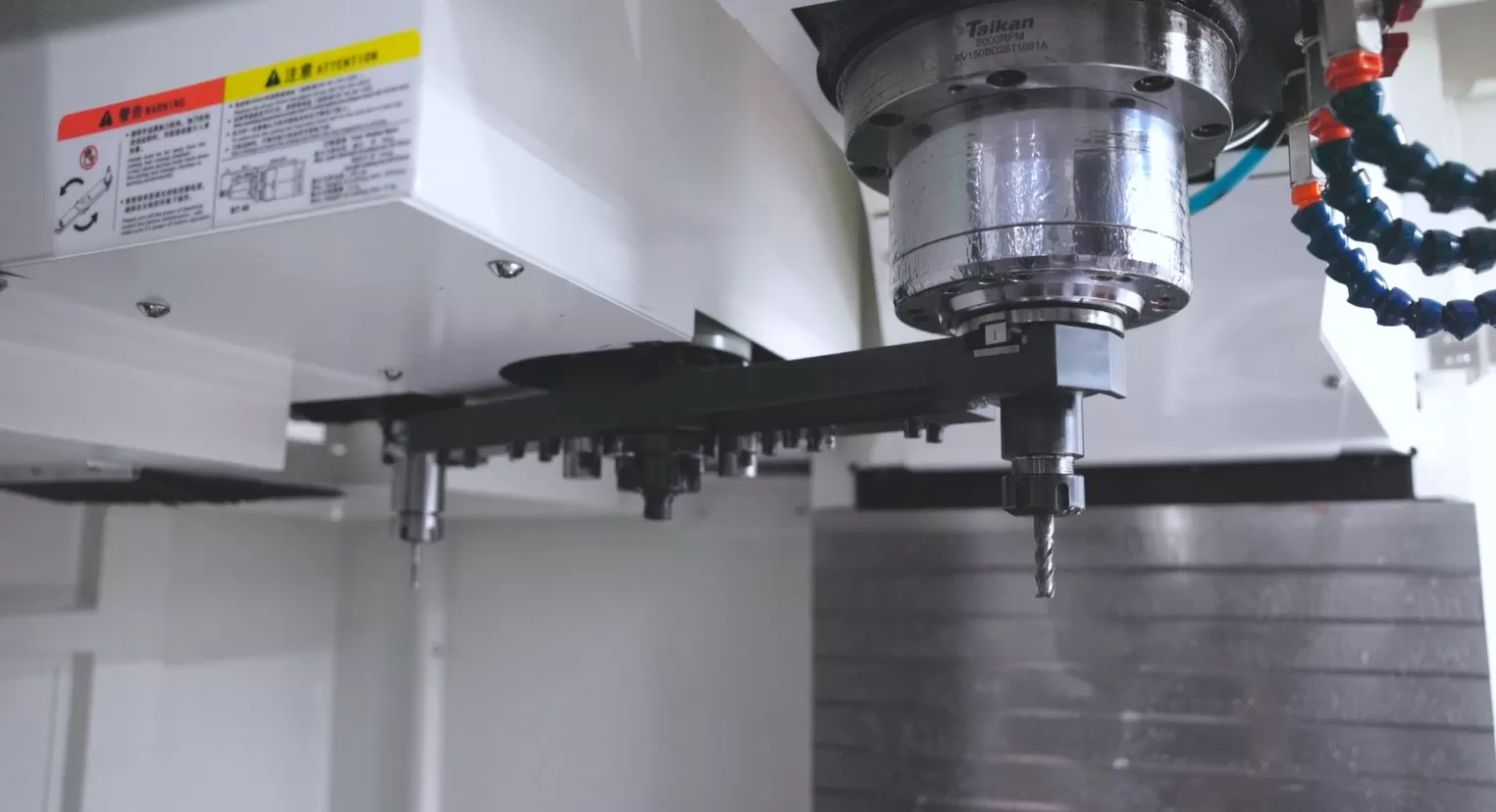

• Spindle & ATC: The machine features a Taikan-developed BBT40 12,000 rpm direct-drive spindle with a long nose and air-curtain protection for better load capacity, heat dissipation, and positioning. It works with a Taikan-designed 24-tool arm-type variable-frequency ATC. Tool-to-tool change time is just 2.3 seconds, boosting batch machining efficiency by over 30%.

• Component & Lubrication Upgrade: Pneumatic and electrical components come from world-class tier-one international brands. The lubrication system has been upgraded to grease lubrication, extending the theoretical re-lubrication interval from 6.5 days to 129 days. That saves customers approximately RMB 3,000 per year, adding up to roughly RMB 30,000 over a decade.

PART 3 — Consistent Reputation: A Quality Promise Backed by Rigorous Control

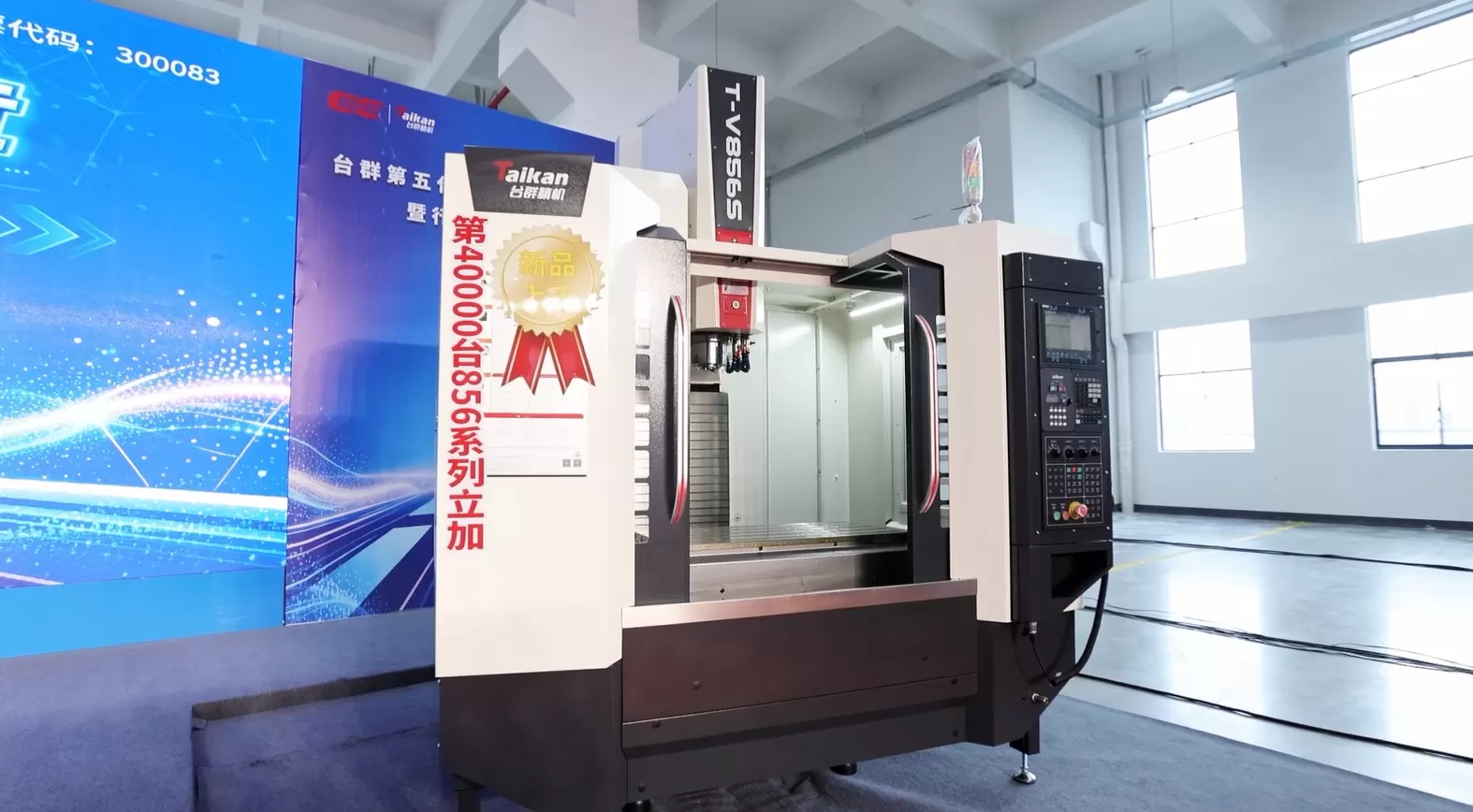

For a machine tool—the mother machine of industry—stability is its core lifeblood. The Taikan 856 series enforces strict quality control across the entire process, from structural design through production and assembly, ensuring no deformation and no accuracy fade even under long-duration, high-intensity operation. Every single machine goes through multiple inspection stages including geometric accuracy checks, load testing, and continuous-run trials, so the factory acceptance pass rate is 100%.

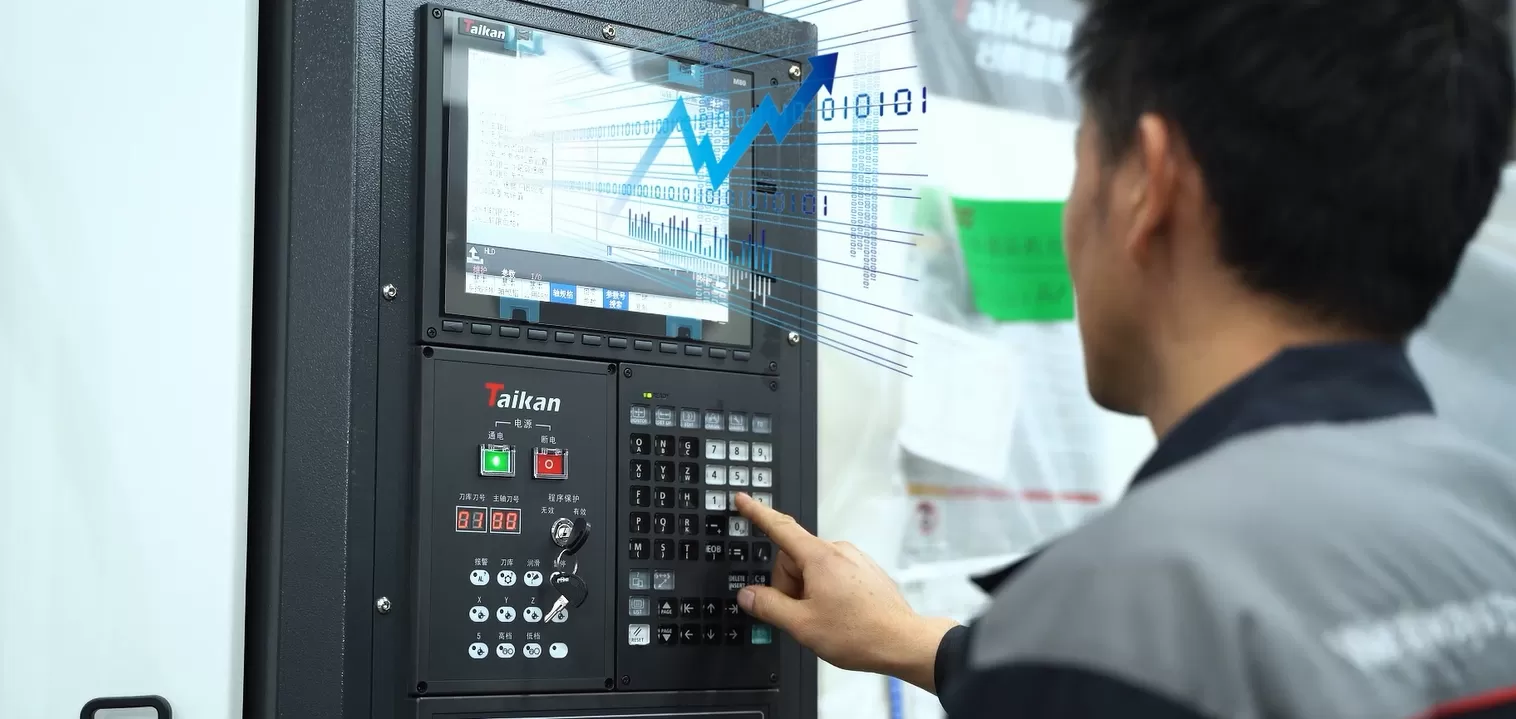

This reliability has been recognized by real users at scale. In April this year, at the 4th Machining Center User Survey hosted by Metalworking Magazine (under the China Machinery Industry Information Institute), Taikan was selected as a “User Satisfaction Brand” among numerous competitors—a heavy-weight endorsement verified by the market itself. Such recognition further strengthens its position among leading vertical machining center manufacturers serving global industries.

PART 4 — Application Innovation: How the T-V856S Supports Emerging Industries

From precision small parts to large workpieces, and from simple operations to complex machining, the Taikan 856 series has proven its flexible line-configuration capability across mature industries such as 3C electronics, 5G communications, precision mold & die, aerospace, and medical devices.

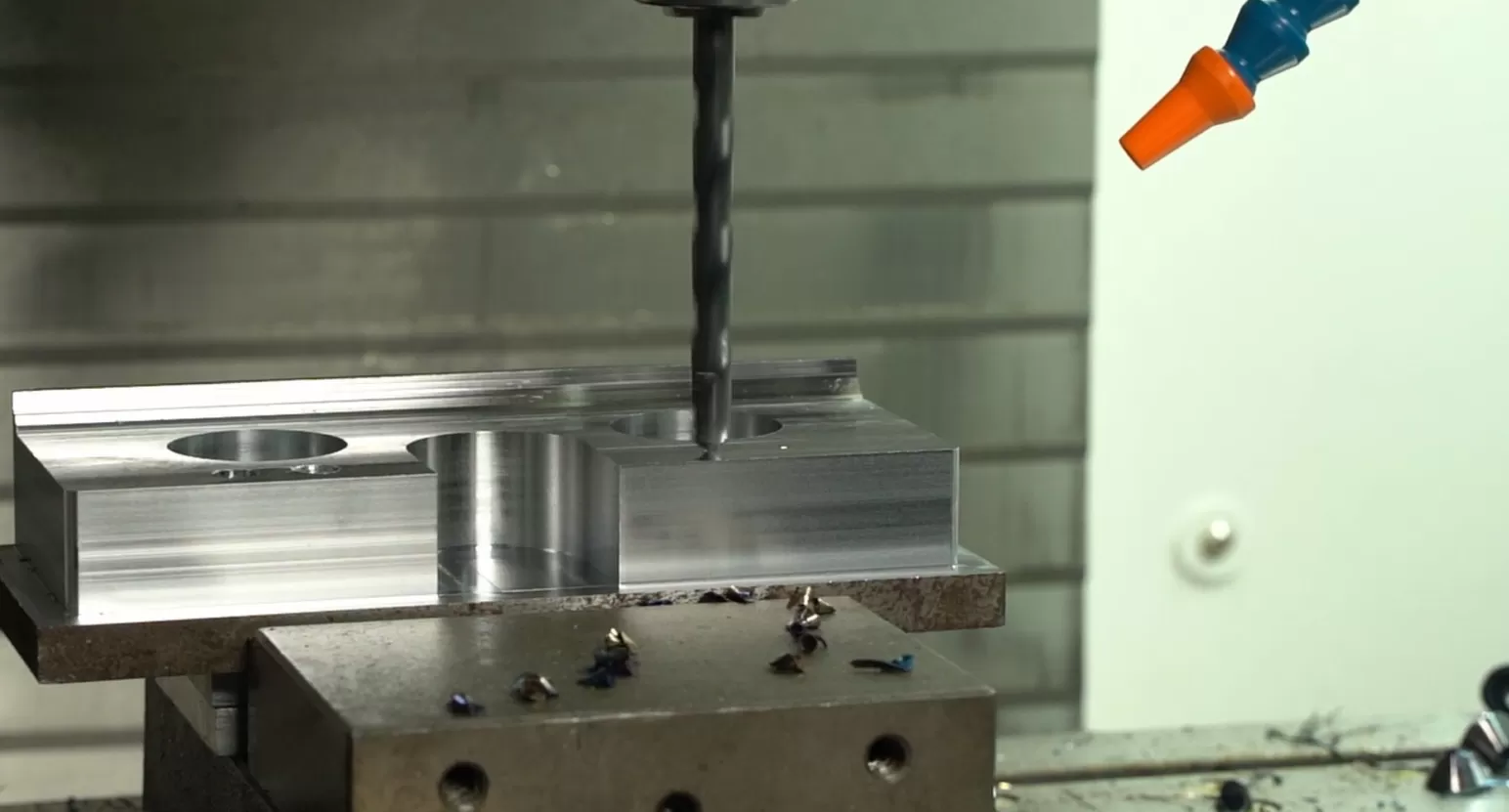

At the same time, the Taikan T-V856S is actively penetrating the new-quality productivity frontier: new energy vehicles, low-altitude aircraft (eVTOL), humanoid robots, and AI liquid-cooling heat dissipation. It matches the stringent precision demands of new-material applications perfectly. With high rigidity, high efficiency, and stable accuracy, the T-V856S has already won recognition from a large number of head customers in these emerging sectors. It efficiently machines lightweight structural components for aircraft, precision joint housings for robots, and cold plates for AI liquid cooling—establishing itself as the precision machining benchmark in new-track manufacturing.

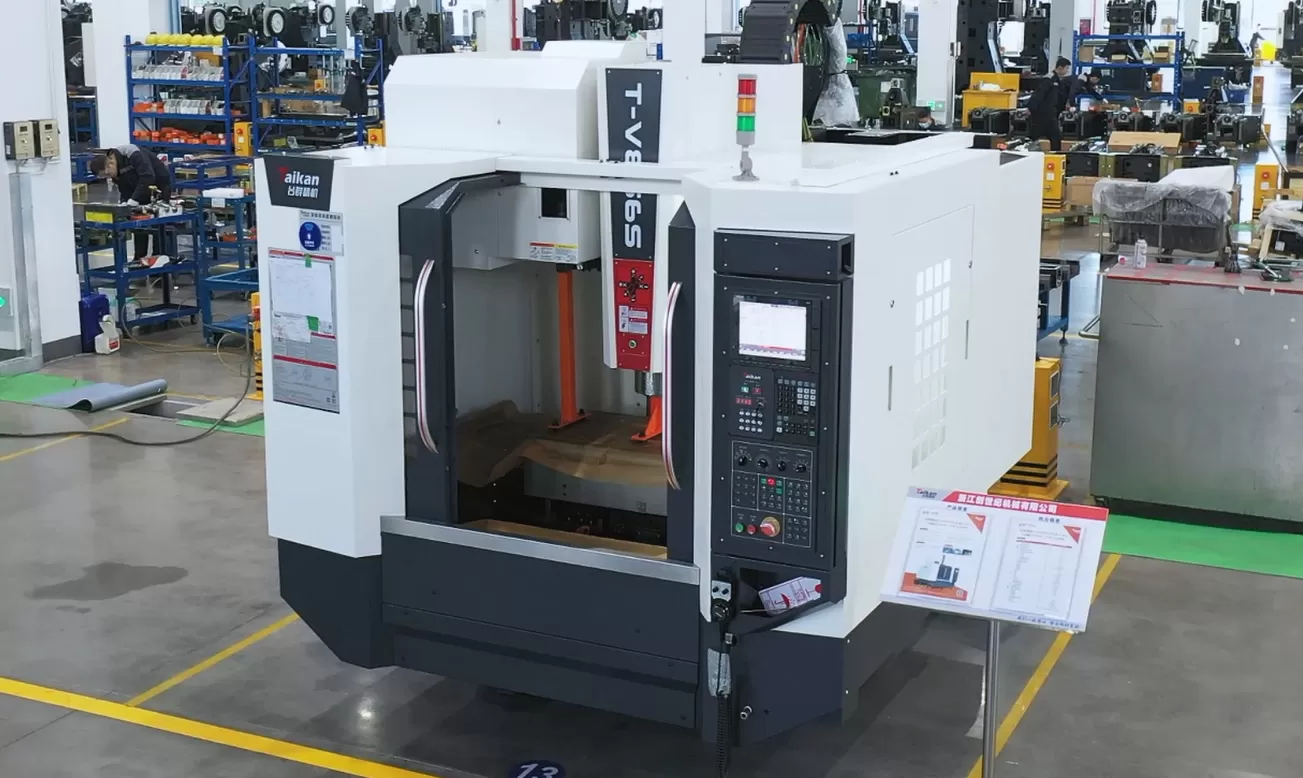

From the first unit to the 40,000th, the Taikan 856 series' growth journey is a condensed portrait of independent innovation and deep market cultivation. It represents market recognition of intelligent manufacturing, the accumulation of R&D strength, the return on quality commitment, and the capability to meet diverse application demands. Moving forward, Taikan vertical machining centers will continue to make technology the core, quality the foundation, and real customer needs the guide—iterating generation after generation to help more manufacturers improve quality and boost efficiency.
