Turn-Mill Lathe vs. Conventional Lathe

Choosing between a turn-mill lathe and a conventional CNC lathe is not simply a matter of choosing a more advanced machine. The right choice depends on the geometry of the workpiece, the number of machining operations, production volume, required accuracy, and overall process strategy.

A conventional CNC lathe remains an effective solution for parts that are primarily based on turning operations. But when a component requires turning combined with milling, drilling, tapping, or other secondary operations, a CNC turning and milling compound machine can offer a more integrated approach.

For manufacturers producing increasingly complex components, the key question is not only how a machine cuts metal, but how efficiently the entire machining process can be completed.

What Is a Conventional CNC Lathe?

A conventional CNC lathe is primarily designed for turning operations. The workpiece is held by the spindle and rotated while cutting tools remove material to create cylindrical, conical, threaded, grooved, or other rotational features.

Depending on the machine configuration, a CNC lathe can efficiently perform operations such as:

• External and internal turning

• Facing

• Grooving

• Threading

• Boring

• Drilling

For parts with relatively simple rotational geometries, a conventional CNC lathe can provide a practical balance of productivity, accuracy, and operating cost.

However, many modern components are no longer purely rotational. Features such as cross holes, slots, flats, radial holes, and milled surfaces may require additional machining operations. In these cases, the workpiece may need to be transferred to another machine after turning.

This is where a turn-mill lathe becomes increasingly valuable.

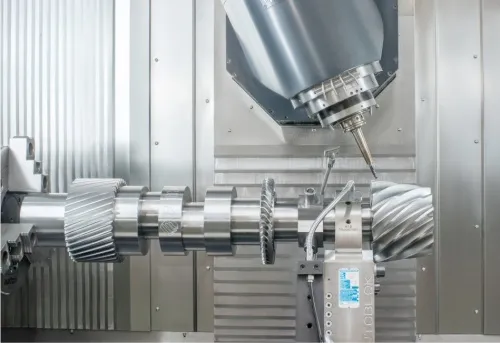

What Is a Turn-Mill Lathe?

A turn-mill lathe, also known as a CNC turning and milling compound lathe or mill-turn machine, integrates turning and milling capabilities into one CNC machine.

Instead of completing turning on one machine and then moving the workpiece to a machining center or another machine for secondary operations, a turn-mill machine can combine multiple processes within the same machining system.

Depending on the machine configuration, turn-mill machining can integrate operations such as:

• Turning

• Milling

• Drilling

• Tapping

• C-axis machining

• Y-axis machining

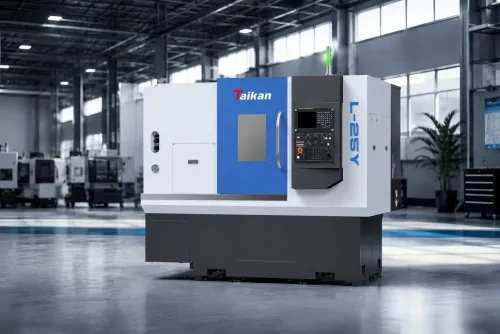

Taikan Machine's CNC lathe portfolio includes both conventional horizontal CNC lathes and turning-milling compound machines, including L-M Series and L-Y Series configurations. This product structure allows manufacturers to select a machine according to actual part geometry and machining requirements rather than applying a one-size-fits-all approach.

Turn-Mill Lathe vs. Conventional Lathe: Key Differences

The fundamental difference is process capability.

A conventional CNC lathe is optimized primarily for turning. A turn-mill lathe expands this capability by integrating turning and milling processes.

The difference becomes especially important when a part requires several machining processes.

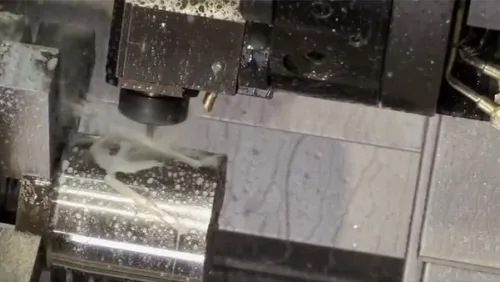

1. Machining Process: One Setup vs. Multiple Setups

One of the most important advantages of a turn-mill machine is process integration.

With a conventional CNC lathe, a complex component may need to follow a process such as:

Turning → Workpiece transfer → Milling → Drilling → Additional machining

Every additional transfer introduces another setup.

With a turn-mill lathe, more of these operations can be performed in a single setup:

Turning + Milling + Drilling + Tapping

Reducing the number of setups can simplify the production process and reduce handling between machines. Leading multi-tasking machine manufacturers also emphasize single-setup and complete machining as major benefits of turn-mill technology.

This is particularly valuable for components where machining accuracy depends on maintaining the relationship between multiple features.

2. Accuracy: Fewer Setups Can Mean Better Process Control

Accuracy is not determined by the machine alone. The complete machining process also matters.

When a workpiece is transferred from one machine to another, it must be repositioned and re-clamped. Each additional setup creates another opportunity for positioning errors, datum variation, or alignment issues.

A turn-mill lathe can reduce these additional setups by completing more operations in the same clamping condition.

This does not mean that every turn-mill machine will automatically produce higher accuracy than every conventional lathe. Rather, the integrated process can reduce variables associated with repeated workpiece handling.

For complex components, this can make process planning simpler and more consistent.

3. Productivity: Look Beyond Cutting Time

When comparing a turn-mill lathe vs. a conventional lathe, cutting time is only part of the equation.

Total production time also includes:

• Workpiece loading and unloading

• Workpiece transfer

• Re-clamping

• Setup

• Datum alignment

• Tool preparation

• Intermediate inspection

• Movement between machines

A turn-mill machine can reduce some of these non-cutting activities by integrating multiple machining processes.

This is one reason process integration has become an important direction in modern CNC manufacturing. Instead of evaluating productivity only by the cutting cycle, manufacturers increasingly look at the complete process from raw material to finished component.

4. Workpiece Complexity: Where Turn-Mill Technology Creates the Most Value

A conventional CNC lathe is highly effective when the workpiece is mainly rotational.

For example, a shaft, sleeve, or other cylindrical component may not require integrated milling capability.

But consider a component that combines:

• A turned outer diameter

• Internal boring

• Radial holes

• Milled flats

• Cross holes

• Threaded features

Running these operations across multiple machines can make the manufacturing process more complicated.

A CNC turning and milling compound lathe is designed for this type of multi-process machining. By combining turning and milling capabilities, it provides greater flexibility for complex turned components.

Taikan's L-M Series, for example, integrates a C-axis indexing spindle with powered tooling to support machining processes such as milling, drilling, and tapping.

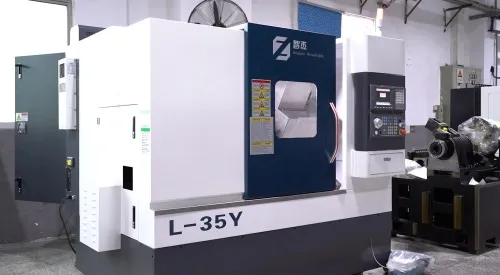

For applications requiring Y-axis machining, Taikan's L-Y Series further expands the machining capability for complex workpieces.

5. Production Flexibility

Manufacturing requirements are becoming more diverse. Many manufacturers need to handle different part geometries, smaller batch sizes, and more complex machining processes without creating an unnecessarily complicated production flow.

A conventional CNC lathe remains an excellent choice when the process is straightforward and turning is the dominant operation.

A cnc turning and milling machine becomes more attractive when several processes need to be combined.

This makes turn-mill technology particularly relevant for manufacturers looking for greater machining flexibility, process integration, and reduced dependence on multiple standalone machines.

When Should You Choose a Conventional CNC Lathe?

A conventional CNC lathe may be the better choice when:

• The workpiece is primarily rotational.

• Most operations are turning-related.

• Milling requirements are limited or not required.

• The production process is already optimized around dedicated turning.

• The additional capabilities of a turn-mill machine would not provide meaningful production value.

In these situations, choosing a more complex machine does not necessarily create a better manufacturing solution.

The goal should always be to match the machine architecture to the actual machining process.

When Should You Choose a Turn-Mill Lathe?

A turn-mill lathe is worth considering when:

• The workpiece requires both turning and milling.

• Multiple secondary operations are required.

• The component has complex geometric features.

• Multiple setups create process difficulties.

• Workpiece transfer between machines increases production time.

• Maintaining the relationship between turned and milled features is important.

• You want to consolidate multiple machining processes into one machine.

For complex parts, the value of turn-mill machining comes from more than simply adding milling capability to a lathe. Its real advantage is process integration.

Turn-Mill Lathe vs. Conventional Lathe: A Practical Decision

The choice can be summarized in one principle:

If the part is mainly turned, a conventional CNC lathe may be the most efficient solution. If the part requires turning plus multiple secondary machining operations, a turn-mill lathe can provide a more integrated process.

The decision should therefore consider four factors:

Part geometry
How many turned, milled, drilled, or tapped features does the component contain?

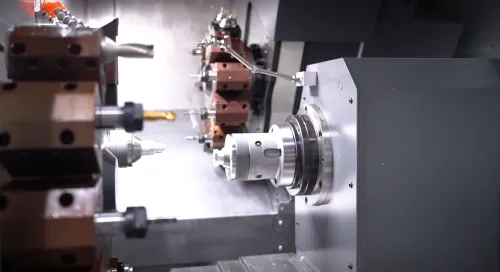

Setup requirements
How many times does the workpiece need to be removed, repositioned, and re-clamped?

Production strategy
Is the priority dedicated turning productivity or multi-process flexibility?

Long-term manufacturing needs
Will future components require more complex machining than the current product?

A machine should be selected according to the production process, not simply according to the number of functions it offers.

Taikan Machine: Integrated CNC Solutions for Modern Manufacturing

As a global CNC machine tool manufacturer, Taikan Machine develops a broad portfolio covering vertical machining centers, horizontal machining centers, 5-axis machining centers, CNC lathes, CNC Swiss-type automatic lathes, and turning-milling compound machines.

Its CNC lathe portfolio includes conventional horizontal turning solutions as well as L-M Series turning-milling compound lathes and L-Y Series turning-milling compound lathes with Y-axis capability.

With more than 20 years of industry experience, Taikan Machine has developed a global service and sales network covering more than 50 countries and regions. The company's CNC machine tools are designed around practical manufacturing requirements, with a focus on rigidity, precision, efficiency, and reliable long-term performance.

For manufacturers evaluating a turn-mill lathe vs. conventional lathe, the right solution starts with the part and the process.

Taikan Machine provides CNC turning and milling solutions designed to help manufacturers move from individual machining operations toward more integrated and efficient production.

Conclusion

The choice between a turn-mill lathe and a conventional CNC lathe should not be based on which machine is more advanced. It should be based on what the workpiece actually requires.

A conventional CNC lathe remains a strong solution for efficient turning of rotational components. A turn-mill lathe offers greater process integration when turning must be combined with milling, drilling, tapping, or other machining operations.

As part complexity increases, reducing setups and integrating processes can become increasingly important.

The right CNC machine is the one that matches the geometry, process, accuracy requirements, and production goals of your parts.

With a comprehensive CNC machine tool portfolio and experience in precision manufacturing, Taikan Machine provides flexible solutions for both turning-focused production and complex turn-mill machining.
