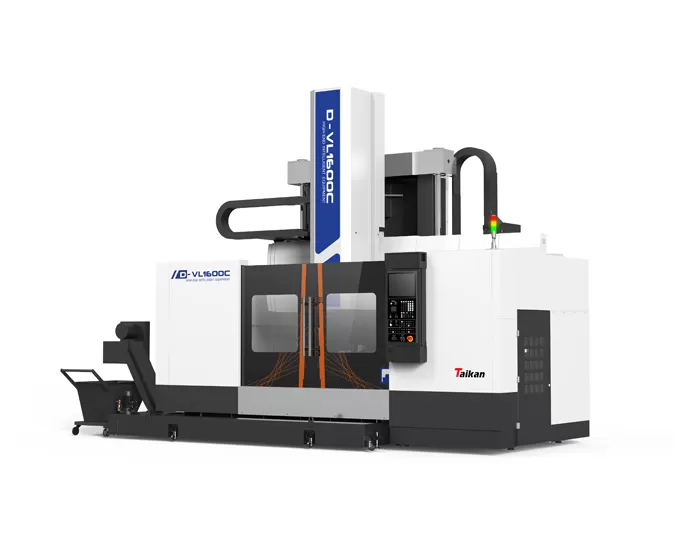

Name: D-VL1600C/D-VL1600CM High-precision CNC Vertical Lathe
Brand: Taikan Machine
Availability: InStock

Characteristic of D-VL1600C/D-VL1600CM High-precision CNC Vertical Lathe

Machine Structure

The machine features a bed-type, thermally symmetric structure, with major components made from high-strength cast iron to ensure stability and rigidity.
The bridge is vertically adjustable to accommodate parts of different heights, ensuring optimal rigidity for each machining task.
The movement uses a staged positioning system to maintain accuracy, with a floor-mounted tool magazine for improved efficiency.

X-Axis Bridge

Z-Axis Ram

Table & Spindle

Application of D-VL1600C/D-VL1600CM High-precision CNC Vertical Lathe

It is widely used in the manufacturing of automobile parts, such as hubs, brake discs, wheels, brake hubs, reducers, and more. It is particularly suitable for processing complex components like discs, shells, and short shaft parts used in bearings, energy, and other industries. The machine tools offer high precision, efficiency, and quality.

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of D-VL1600C/D-VL1600CM High-precision CNC Vertical Lathe

Item		Unit	D-VL1600C		D-VL1600CM
Processing Range	Max Turning Diameter	mm	1600
	Max Workpiece Height	mm	1000
	Max Workpiece Weight	kg	8000
Spindle	Table Diameter	mm	1400
	Spindle Speed Range	r/min	2.5～315
	Milling Feed and Indexing Range	r/min	/	0.04～2
	Max Table Torque	kN·m	10	20
	Main Motor Power	KW	S1=31,S2=37	S1=31,S2=37(two sets)
Turret	Tool Turret Type	/	Turning Center	Turning-Milling Center
	Saddle Cross Section	mm	220×220	280×280
	Tool Positions	/	8或12	8或12
	Outer Diameter Turning Tool Holder Size	mm	32×32	40×40
	Turning Center Output Interface	/	BT50	BT50
Feed	X-axis Feed Guideway Type	/	Box Guideway / Linear Guideway
	Z-axis Feed Guideway Type	/	Box Guideway
	X, Z-axis Cutting Feed Range	mm/min	1000
	X, Z-axis Tool Turret Rapid	m/min	12/10
	X-axis Horizontal Travel	mm	—50～1000
	Z-axis Vertical Travel	mm	1000
	X, Z-axis Feed Motor Torque	Nm	37/25
Crossbeam	Crossbeam Vertical Travel	mm	600
	Crossbeam Indexing Pitch	mm	200
	Crossbeam Indexing Steps	/	4
Milling Spindle	Milling Spindle Motor Power	KW	/	S1=31,S2=37
	Milling Spindle Speed	r/min	/	10～2000
	Milling Spindle Taper Hole	/	/	BT50
	Max Milling Spindle Torque	N·m	/	1200
Accuracy	Positioning Accuracy (X/Z)	mm	0.02
	Repeatability (X/Z)	mm	0.01
Others	CNC System	/	Siemens
	Total Machine Power	kVA	75	85
	Coolant Tank Capacity	L	600
	Machine Footprint (L×W)	mm	5750×3750
	Machine Height	mm	4650	6450
	Machine Weight (approx.)	t	24	28

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
