Box Guideways vs Linear Guideways: Which VMC Construction Is Right for Your Heavy-Duty Cutting Needs?

When it comes to vertical machining centers (VMCs) for heavy-duty cutting, the choice of guideway system is critical. At Taikan, we understand that box guideways vs linear guideways can significantly impact precision, speed, and machine longevity. Selecting the right guideway affects not only machining performance but also the return on investment for your shop.

What Are Box Guideways?

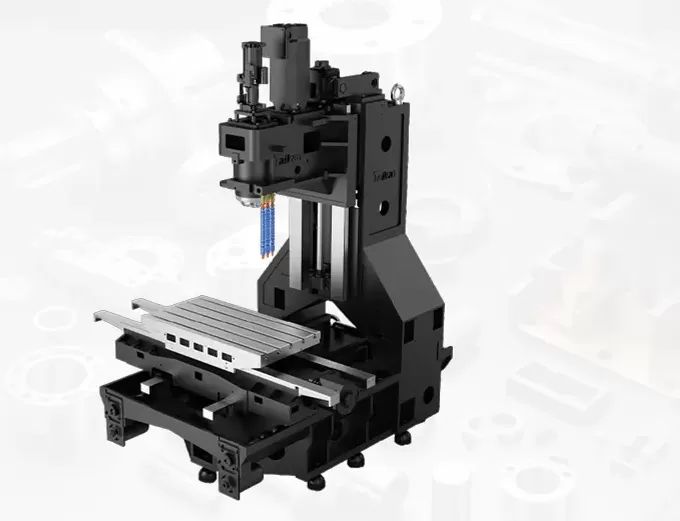

Box guideways (or box ways) are sliding guide rails integrated directly into the machine bed. Typically crafted from cast iron and finished with hand scraping, these guideways form a rigid support structure that maximizes contact surface and vibration absorption.

Key Advantages of Box Guideways:

• Superior rigidity and stability: box way machining center is ideal for heavy cutting and machining large workpieces.

• Excellent load distribution: Maintains precision even under eccentric or high-force operations.

• Durability: Well-suited for cast iron, steel, and forged components.

What Are Linear Guideways?

Linear guideways (or linear motion guides, LM guide ways) employ rolling elements such as balls or rollers to achieve smooth, low-friction movement. With a friction coefficient as low as 0.05, linear guides excel in precision and speed.

Key Advantages of Linear Guideways:

• High-speed operation: The linear guide rail system supports rapid tool movement and acceleration.

• Precision positioning: Suitable for automated production lines and multi-axis machining.

• Energy efficiency: Reduced resistance allows smoother, more controlled operations.

Box Way vs Linear Guide: Choosing the Right VMC

The decision between box guideways and linear guideways hinges on your production requirements:

Applications of Guideways in CNC Machines

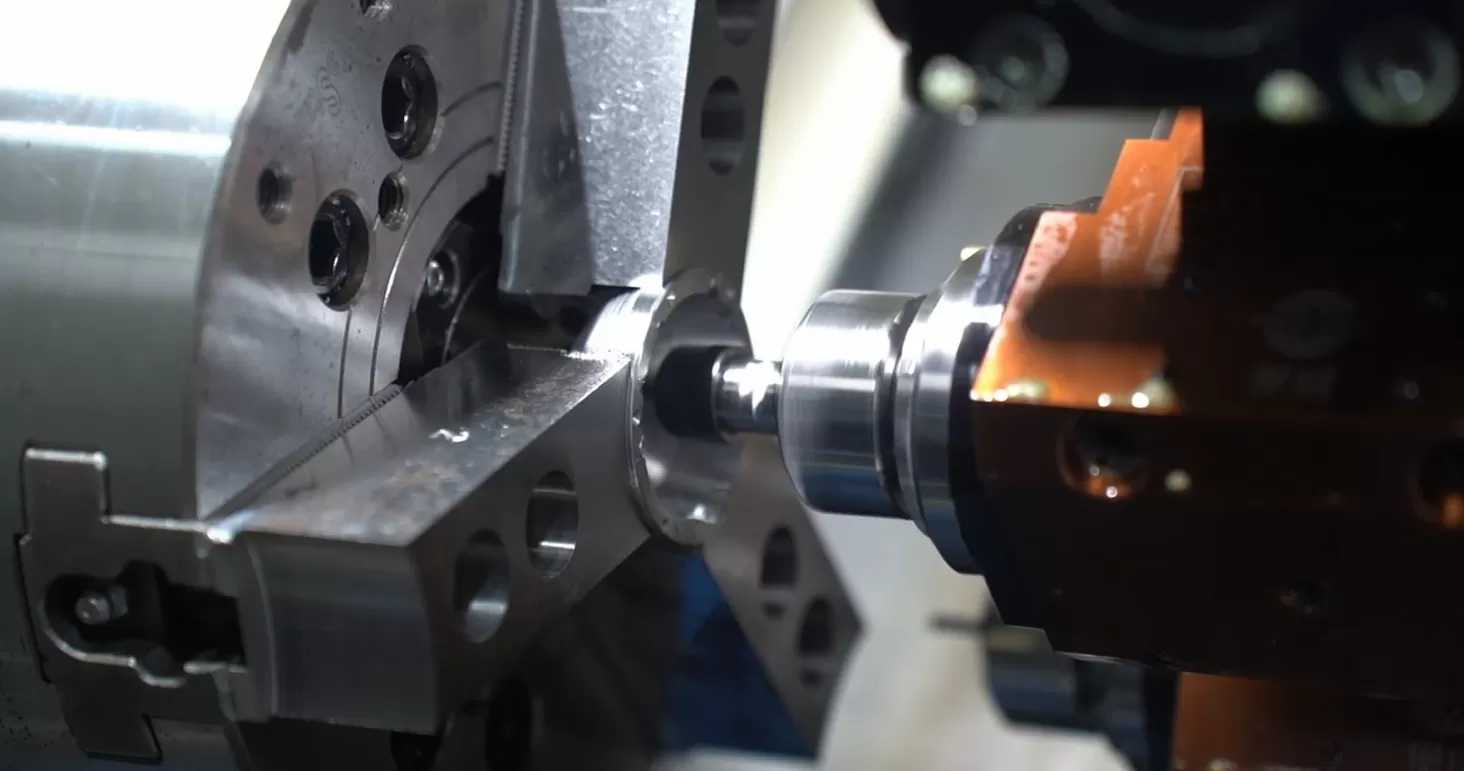

• Linear guide CNC lathe: High-speed precision inclined guide high precision CNC lathe for molds and aluminum components.

• Guideways in lathes and milling centers: Critical for heavy-duty cutting, tool life extension, and surface finish quality.

• Sliding guides for machine tools: Ensure smooth and accurate motion over repetitive cycles.

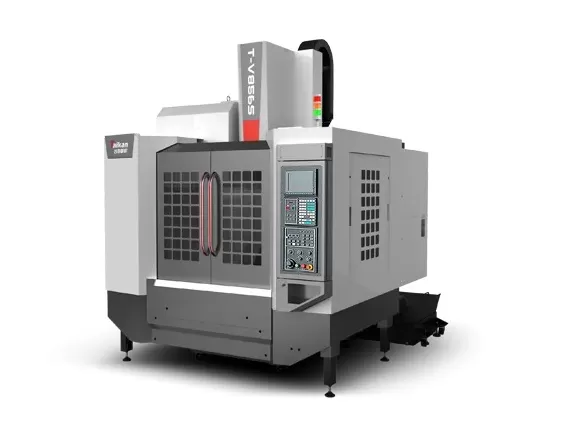

• Linear guideway vertical machining centers: Enable automated production with minimal operator intervention.

Why Guideway Selection Matters?

Selecting the right guideway impacts:

1. Machining Accuracy: Proper guideway selection prevents deviation under load.

2. Operational Speed: Linear guideways facilitate rapid production cycles.

3. Machine Longevity: Box ways absorb vibrations and heavy forces, extending service life.

4. Energy Efficiency: Linear guideways reduce friction, cutting energy consumption.

For manufacturers dealing with heavy steel, cast iron, or large workpieces, box guideways remain the preferred choice. For high-volume, precision-demanding tasks with lighter materials, linear guideways excel.

Taikan Expertise in Guideway Solutions

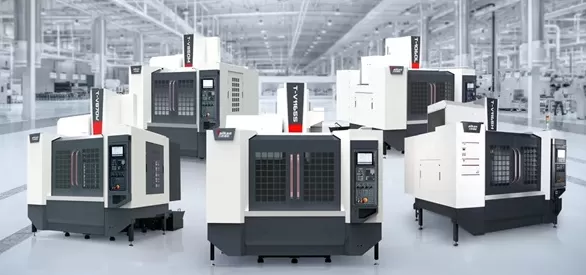

As one of the leading Chinese CNC manufacturers, Taikan offers customized Vertical Machining Centers featuring box, linear, or hybrid guideway systems designed to meet diverse production requirements. Ready to optimize your machining efficiency? Contact Taikan today to discuss your guideways in CNC requirements and explore the best VMC construction for your shop.

FAQs

Q1: What is the difference between box guideways and linear guideways?

A: Box guideways offer superior rigidity for heavy cutting, while linear guideways provide high-speed precision with lower friction.

Q2: Are linear guideways suitable for heavy cutting?

A: Linear guides are sensitive to vibration and less suited for heavy, high-force machining. Box ways are preferred for such tasks.

Q3: Can a CNC machine have both box and linear guideways?

A: Yes, hybrid configurations use box ways for stability on heavy-load axes and linear guides for speed on high-movement axes.

Q4: What is a linear guideway in CNC machining?

A: A linear guideway is a rolling-element guide system that ensures smooth, precise, and high-speed linear motion for CNC machines.

Q5: How does guideway selection affect machining?

A: It influences accuracy, speed, tool life, energy consumption, and overall machine longevity.
