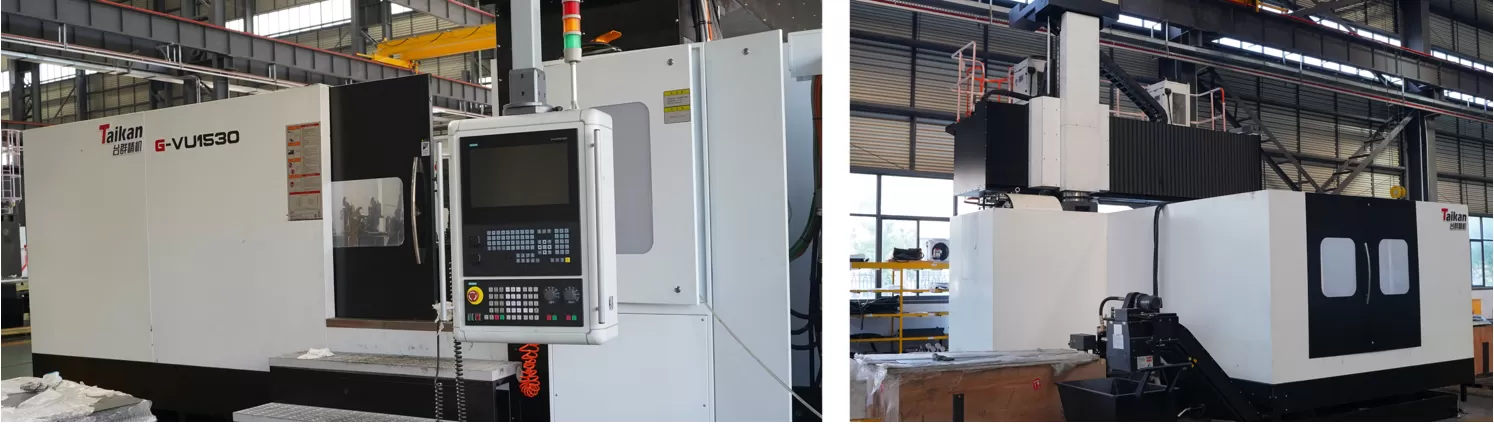

G-VU1530 5-Axis Gantry Machining Center: Precision and Power for Complex Components

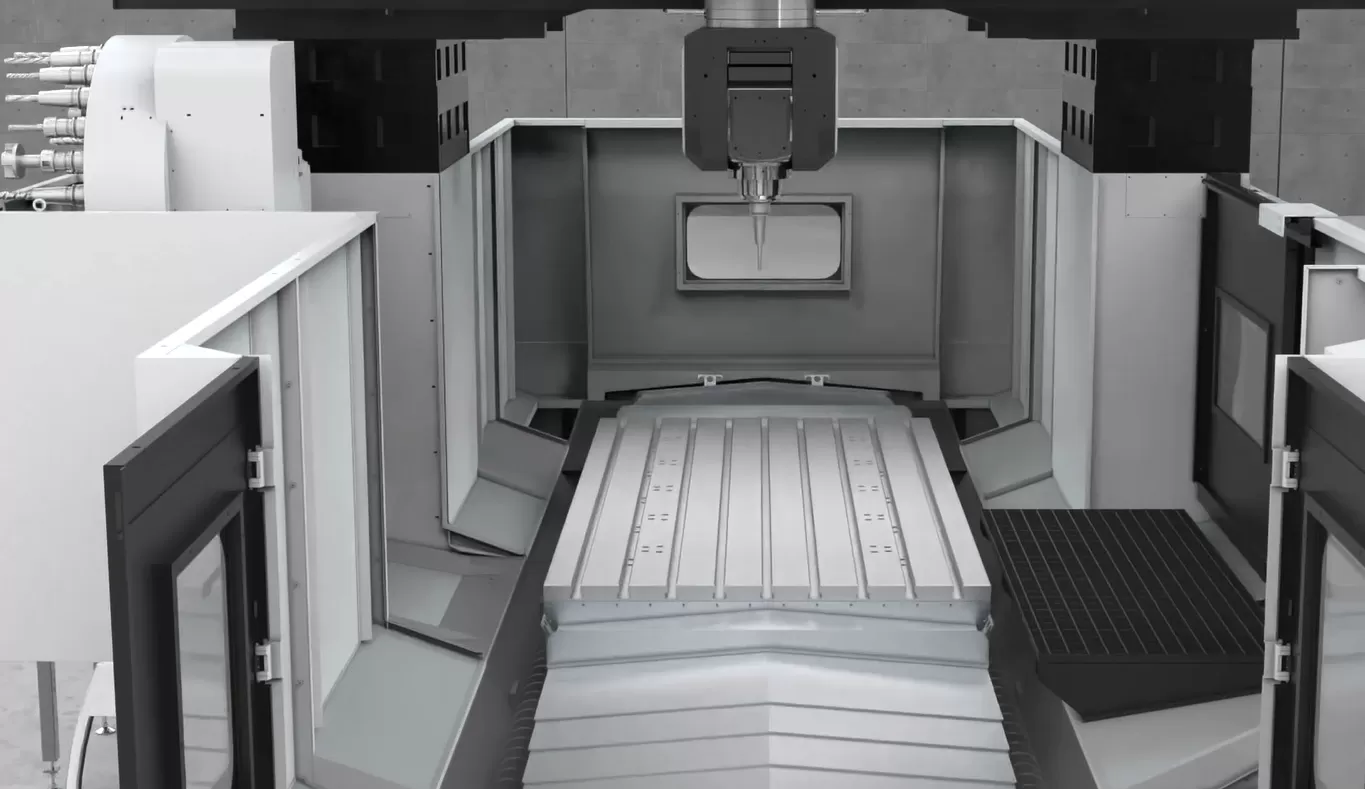

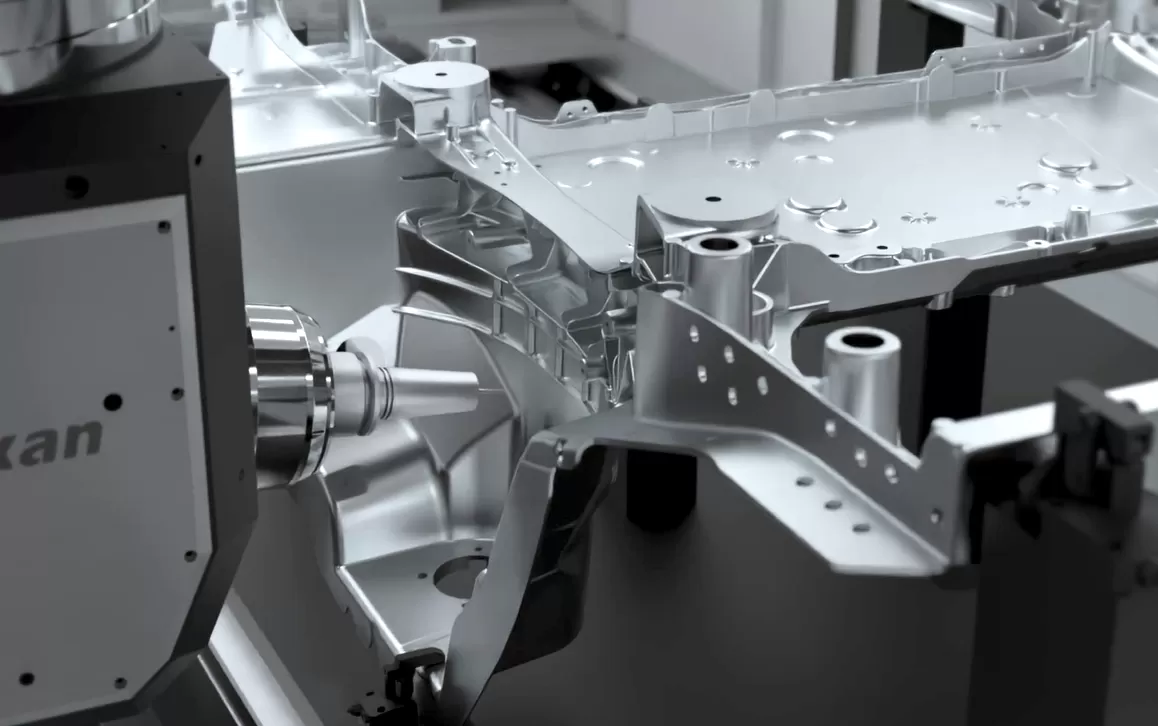

Engineered for manufacturers who demand rigidity, accuracy, and throughput, the G-VU1530 delivers high-precision, high-efficiency machining of complex 3D geometries — from impellers and aerospace components to automotive parts and precision molds.

Gantry rigidity, stable accuracy: Fixed gantry frame with a movable worktable; major castings optimized by FEA and made from resin-sand molded, high-strength cast iron to resist vibration and high-torque cutting.

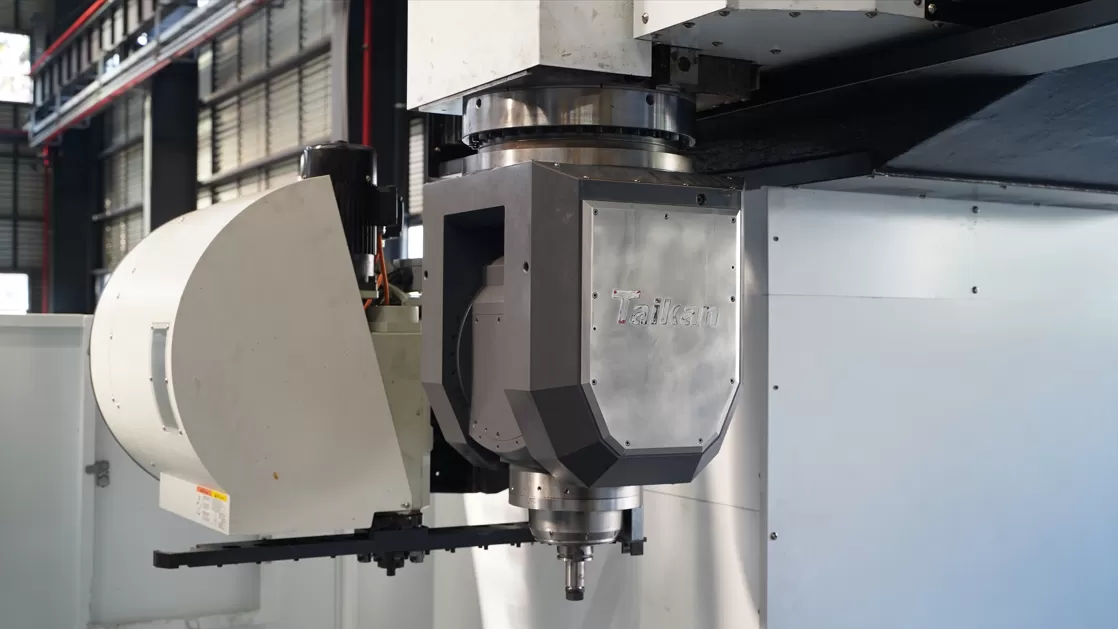

True continuous 5-axis capability: Mepro T70.5 A/C dual-swivel milling head (A: ±110°, C: ±360°) with high-precision encoders and hydraulic clamping for secure, uninterrupted multi-axis machining.

High-speed, reliable spindle: Standard 18,000 rpm motorized spindle for fast, precise cutting of difficult materials.

Heavy-duty motion system: Imported roller linear guideways across X/Y/Z for low friction, high load capacity and superior positioning; stepped crossbeam layout increases stiffness and bearing capacity.

Robust drive design: Servo-driven X/Y/Z axes, long-lead ball screws on X/Y and direct motor-to-ball-screw Z drive; nitrogen balance cylinder improves dynamic response.

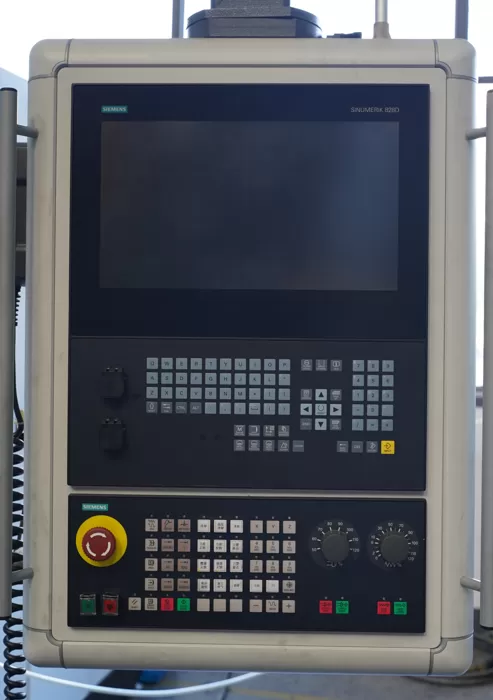

Industry-grade control: Siemens CNC platform ensures stable, dependable control and the processing functions professionals require.

Compact, powerful, and purpose-built, the G-VU1530 combines structural excellence with advanced motion and control to shorten cycle times, improve surface quality, and raise first-pass yield — ideal for aerospace, automotive, mold-making, and other high-tech production environments.

Product detail: https://www.taikanmachine.com/products/g-vu1530-5-axis-gantry-machining-center/

Wayne Zhao

Chief Technical Expert, Taikan Machine



A CNC expert with 10+ years of experience in control systems and machining.

Formerly with Siemens and FANUC, Wayne specializes in system commissioning, 5-axis programming, and integrated machining applications. He is dedicated to transforming technical expertise into actionable industry insights.
