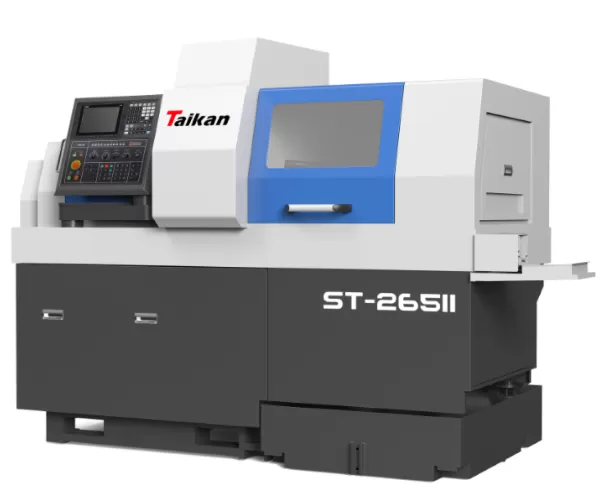

[Egypt MACTECH Show] ST-265II: The Precision Powerhouse for Complex, High-Rigidity Components

In an era where manufacturing demands increasingly complex, high-precision parts from challenging materials, the capability of your machine tool is paramount. The ST-265II CNC Swiss-type lathe stands at the forefront of this evolution, engineered to deliver unmatched performance, flexibility, and value in the realm of precision turning.

This advanced 5 axis swiss lathe is designed from the ground up to meet diverse customer requirements, combining high efficiency, remarkable speed, exceptional accuracy, and outstanding cost-effectiveness. Its core philosophy is complete machining in a single setup. By integrating multiple operations into one seamless cycle, the ST-265II effectively eliminates cumulative errors associated with secondary fixturing, dramatically enhancing part accuracy and slashing production cycle times.

Engineered for Rigidity and Performance

The ST-265II is built on a bed optimized through Finite Element Analysis (FEA), ensuring high rigidity and superior vibration damping for stable, reliable machining. It excels in processing high-rigidity materials, notably stainless steel, and offers comprehensive capabilities including turning, milling, drilling, and boring.

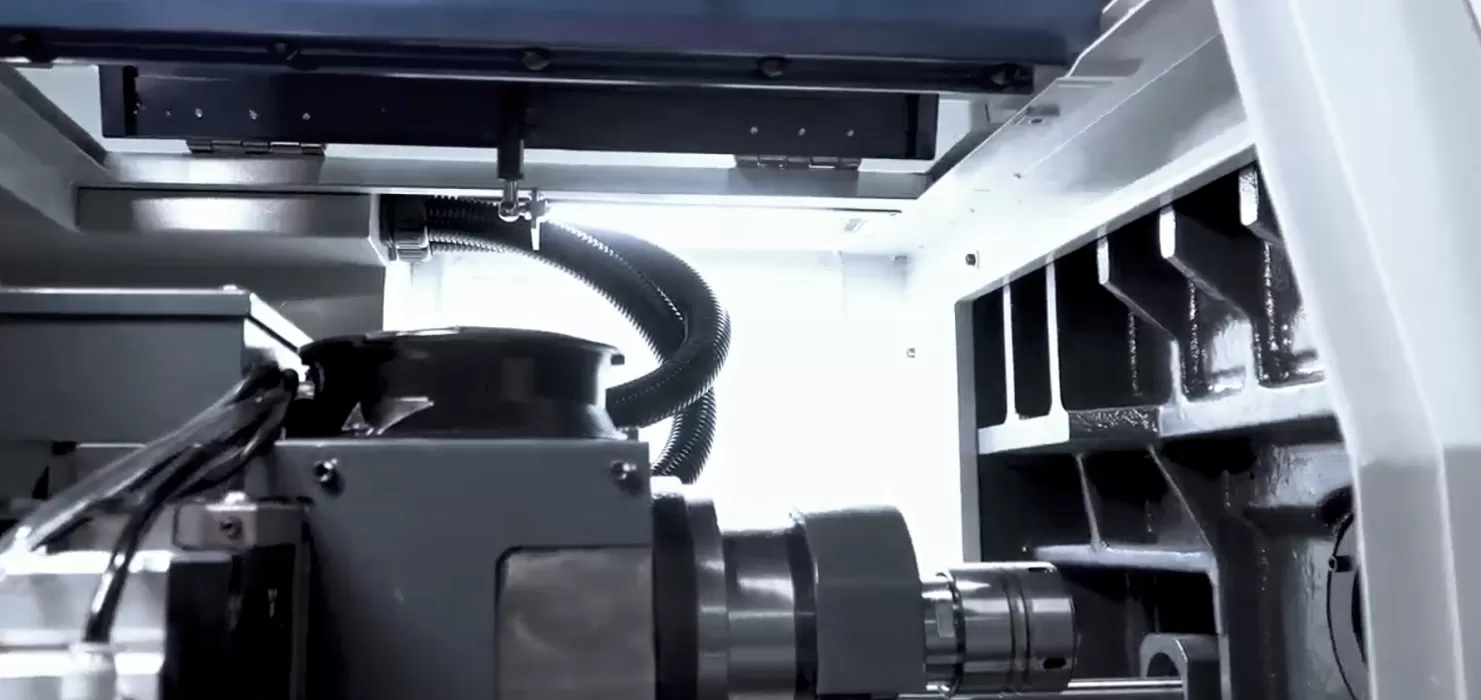

At its heart is a robust double spindle cnc machine configuration, featuring two independent systems and integral motor spindles. The main spindle achieves a maximum speed of 8,000 RPM, coupled with rapid axis movements of 32 m/min. Standard-equipped with the powerful and user-friendly Mitsubishi CNC system, it is driven by a 5.5 kW spindle motor, with 1 kW motors for feed axes and driven tools.

Key Design Advantages for Superior Results

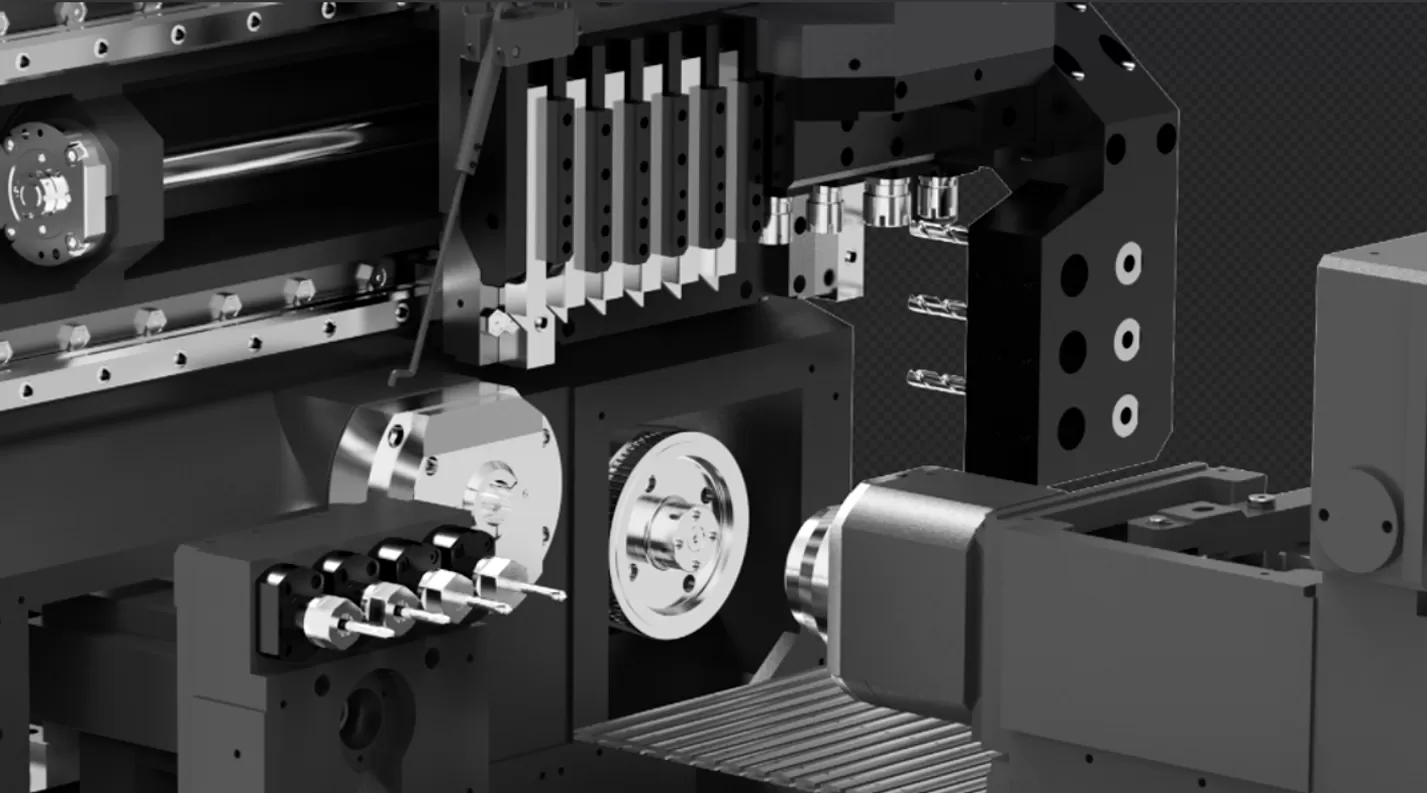

The machine employs a unique horizontal tool arrangement. This Swiss lathe machine design offers significant benefits for demanding applications: enhanced capability for heavy-duty cutting, exceptional structural rigidity, and improved chip evacuation – a critical advantage when machining sticky materials like stainless steel to prevent residue buildup.

The modular tooling system supports quick-change synchronous guide bushings, facilitating fast job changeovers and non-productive time reduction.

Enhanced Features for Expanded Capabilities

To further meet the market's need for higher precision and productivity, the ST-265II incorporates several key upgrades:

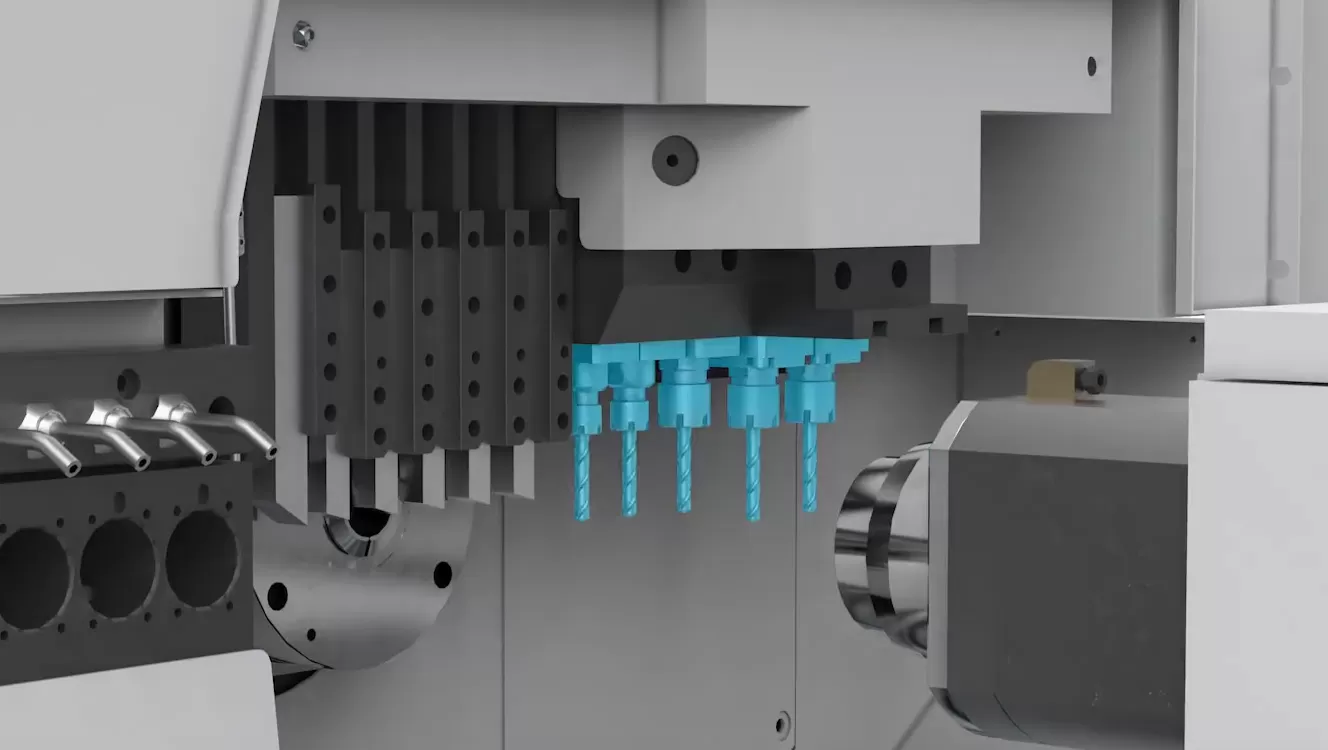

• Five side-milling driven tool stations are now standard (increased from four), enabling more complex geometries in one setup and further mitigating alignment errors.

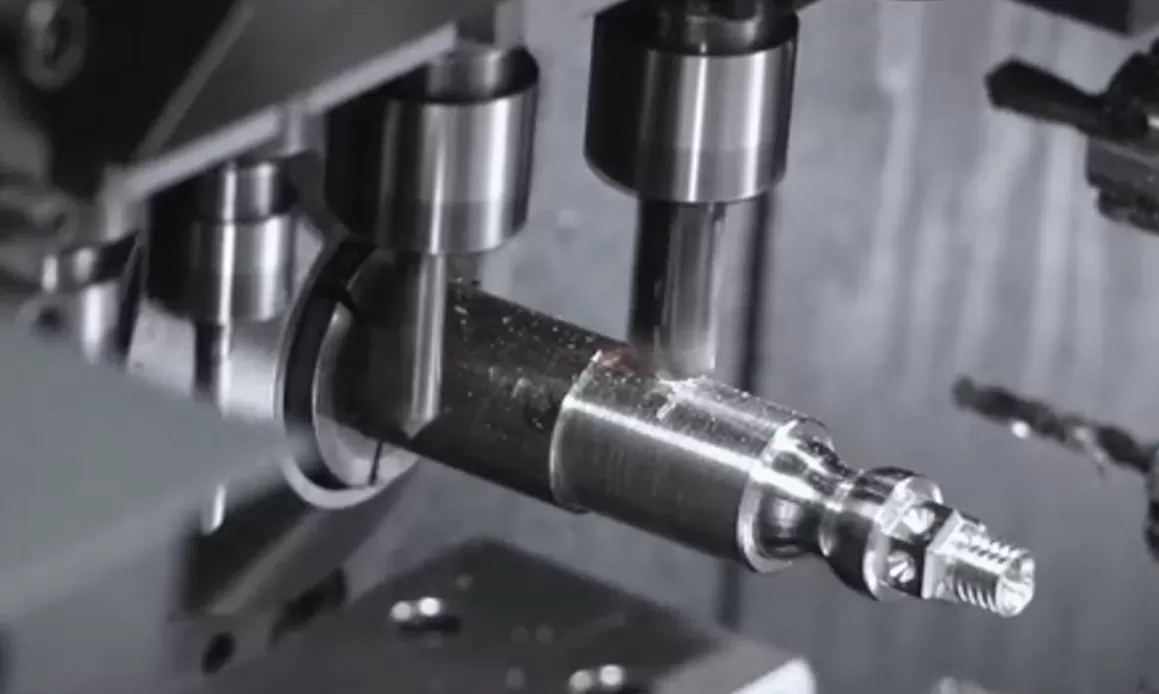

• The driven tool motor power is upgraded to 1 kW, providing ample torque for more aggressive milling, drilling, and tapping operations on complex workpieces. This reduces tool changes and associated costs.

• The maximum machining length has been increased to 240 mm, significantly boosting productivity for longer components.

• All machines feature the Mitsubishi system with a secondary-developed thermal compensation interface, ensuring consistent accuracy from cold start to continuous operation.






Application Versatility

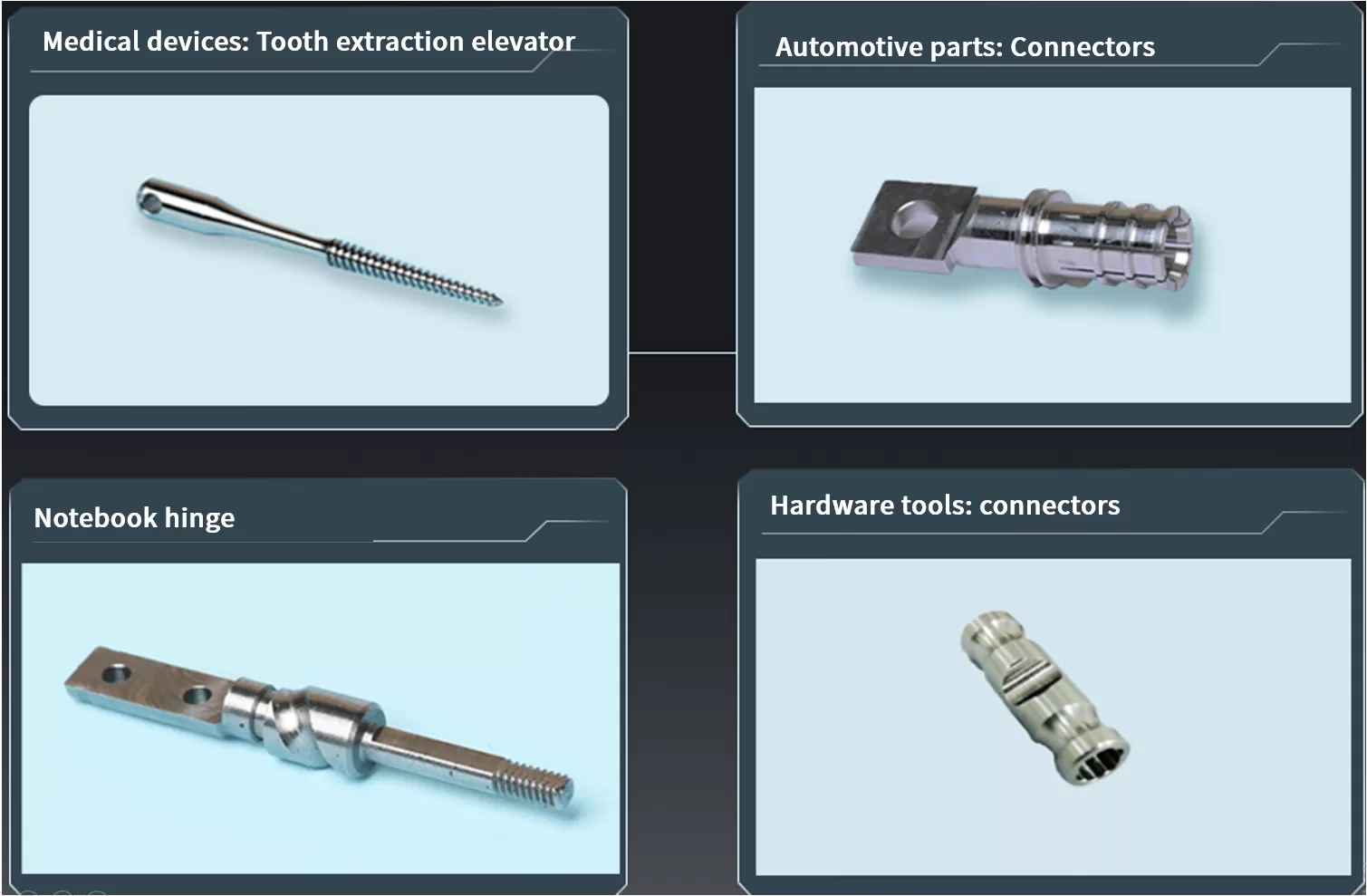

Ideal for high-rigidity materials, especially stainless steel, the ST-265II CNC Swiss-type lathe is widely adopted across the automotive, medical device, and general precision engineering industries. It is the optimal solution for manufacturers seeking to consolidate processes, reduce lead times, and achieve impeccable quality on complex, slender parts.

Discover the next level of precision manufacturing. The ST-265II is more than a machine; it's your partner in achieving manufacturing excellence.
