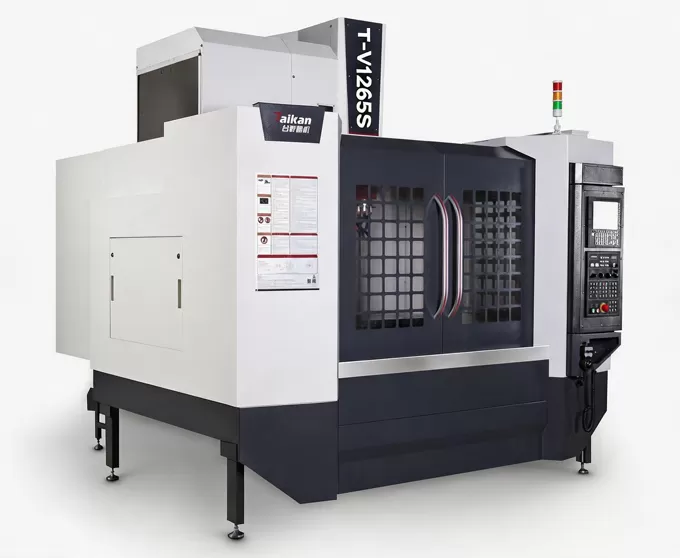

Name: T-V1265S High-speed and High-efficiency Vertical Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Highlights of T-V1265S High-speed and High-efficiency Vertical Machining Center

Machine Structure

Through Finite Element Analysis, the structure has been optimized—incorporating practical considerations—to enhance the machine tool's rigidity and natural frequency.

Guideways and Ball Screws

The lead screws for the X, Y, and Z axes feature C3-grade high precision; the X and Y axes are equipped with standard 4012 lead screws, while the Z axis utilizes a 4010 small-pitch lead screw, thereby ensuring the rigidity of the screw transmission and extending its service life.
All three axes—X, Y, and Z—are fitted with size 45 roller linear guides, capable of supporting heavier loads and meeting the demands of 4-axis machining, fixture-based operations, and high-precision cutting under heavy-load conditions.

Spindle

The machine comes standard with a 12,000 RPM high-speed, long-nose, direct-drive spindle. Featuring excellent heat dissipation and minimal thermal deformation, it is also equipped with a cooling system that effectively controls thermal expansion, thereby enhancing machining precision and surface finish.

Tool Magazine

24-pocket arm-type tool magazine: Good stability, reliable tool changes, and ensures continuous

Application of T-V1265S High-speed and High-efficiency Vertical Machining Center

The machine tool is suitable for the multi-variety, small-batch processing of complex parts such as medium and small-sized box-shaped components, plates, disks, valves, housings, and molds. It is widely used in industries such as precision parts, 5G products, hardware, automotive parts, and medical devices.

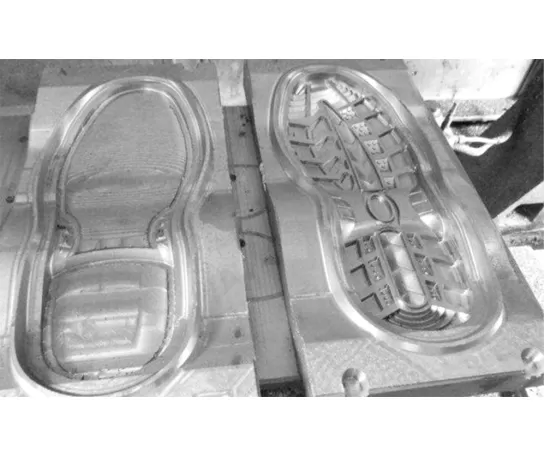

Workpiece Example 1

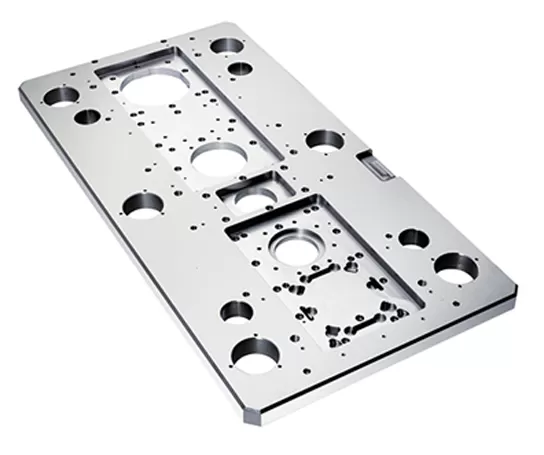

Workpiece Example 2

Workpiece Example 3

Workpiece Example 4

Specifications of T-V1265S High-speed and High-efficiency Vertical Machining Center

Item		Unit	T-V1265S	Remarks
Travel	Table travel (X axis)	mm	1200
	Saddle travel (Y axis)	mm	650
	Headstock travel (Z axis)	mm	600
	Distance from spindle nose to table surface	mm	80~680
	Distance from spindle center to column guide surface	mm	707
Worktable	Table size	mm	1000*500
	Max. load (even load-bearing)	kg	500
	T-slot (number of slots - slot width * spacing)	mm	5-18*100
Spindle	Motor power (rated/short time)	kW	7.5/11
	Motor torque (rated/short time)	N.m	35.8/95.5
	Speed range	r/min	50~10000
	Spindle diameter	mm	φ150
	Spindle taper	/	BBT40
Speed	Cutting feed speed range	mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed	m/min	36/36/30
Tool magazine	Tool capacity	pcs	24
	Max. tool weight	kg	7
	Max. tool length	mm	250
	Max. tool diameter (full /adjacent empty)	mm	Φ75/Φ150
Others	CNC system	/	Mitsubishi M80VB
	Equipment capacity	KVA	25
	Coolant tank capacity	L	300
	Machine size	mm	300026773000	Corresponding to XYZ axis
	Weight (approx.)	Kg	6500

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
