CNC Machining Solutions for the Low-Altitude Economy: Redefining UAV and eVTOL Component Manufacturing

As the "Low-Altitude Economy" ascends into a strategic global frontier, the rapid evolution of Unmanned Aerial Vehicles (UAVs) and electric Vertical Take-off and Landing (eVTOL) aircraft is reshaping modern logistics and urban mobility. At the heart of this revolution lies the demand for structural components that balance extreme lightweight requirements with uncompromising mechanical integrity.

Taikan Machine, a leader in high-end intelligent equipment, provides comprehensive CNC machining solutions tailored for the core structural elements of low-altitude aircraft. By integrating deep technical expertise with advanced manufacturing processes, we empower our partners to achieve high-precision, high-efficiency, and stable mass production.

Navigating Material Complexity and Structural Rigidity

Low-altitude aircraft components demand a diverse range of high-performance materials, including aerospace-grade aluminum alloys, titanium, carbon fiber composites, and high-strength stainless steel. Taikan Machine categorizes these into three core machining domains, each optimized for maximum throughput and accuracy.

1. Complex Cavity Structures: High-Speed Efficiency with 4-Axis Integration

Airframe skeletons, battery housings, and frame structures often feature thin-walled geometries, deep cavities, and intricate weight-reduction pockets. Traditional machining frequently struggles with tool vibration and excessive cycle times.

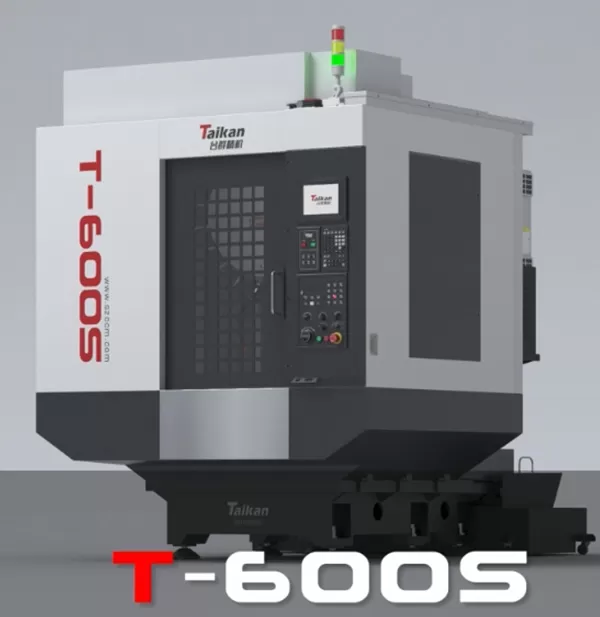

The Taikan Solution: T-500S / T-600S Series High-Speed drilling machining center. Engineered for high-efficiency metal removal, these machines are the cornerstone of UAV frame production.

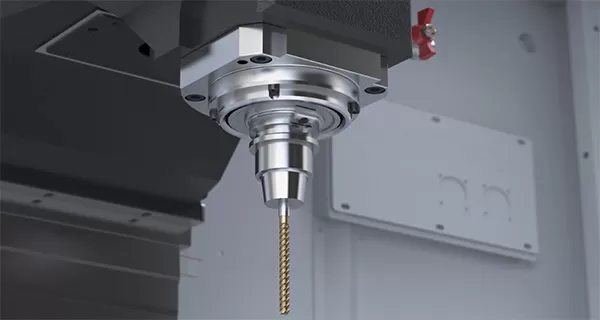

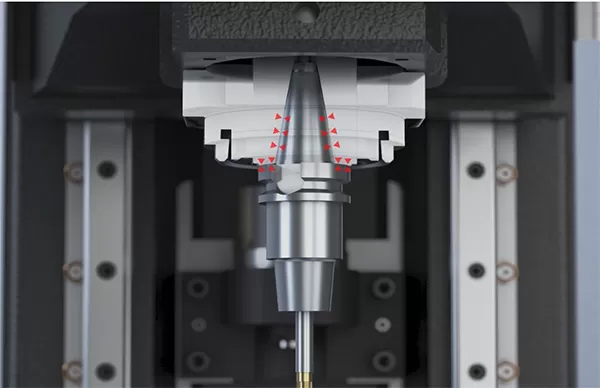

• Vibration Suppression & Surface Integrity: Featuring high-rigidity bed structures and direct-drive spindles reaching 24,000 RPM, the T-series effectively suppresses resonance during thin-wall machining. This ensures superior surface finishes on pocket floors and sidewalls, minimizing the need for secondary manual polishing.

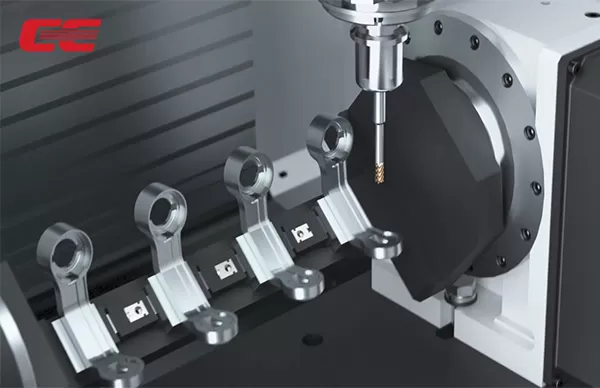

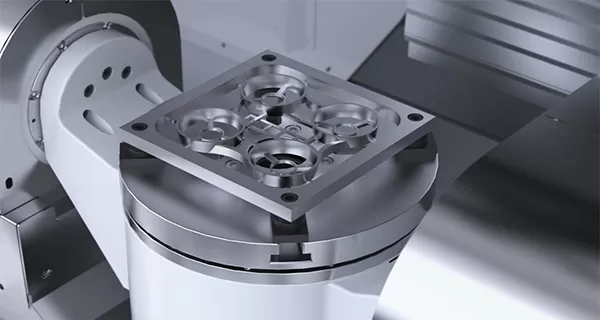

• 4-Axis Simultaneous Processing: By integrating high-precision rotary tables, we transition from standard 3-axis to 4-axis multi-face machining. For components like motor mounts and arm connectors, this allows multi-sided milling and drilling in a single setup, increasing overall efficiency by over 30%.

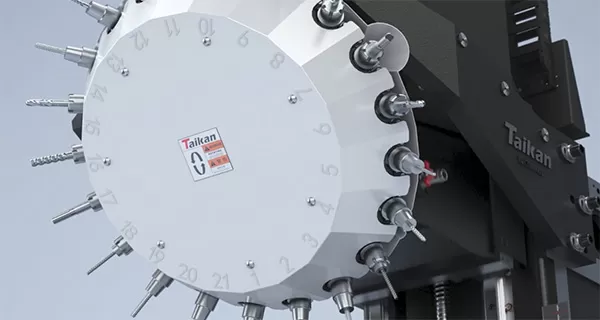

• Rapid Tool Management: An 21-tool high-capacity magazine and high-speed ATC (Automatic Tool Changer) minimize non-cutting time, accommodating the frequent tool changes—from end mills to drills and taps—required for complex cavity work.




2. Aerodynamic Geometries: 5-Axis Simultaneous Precision

Components with free-form surfaces, deep angled cavities, and complex spatial features are critical for aerodynamic performance. Conventional multi-setup machining introduces cumulative errors that compromise flight stability.

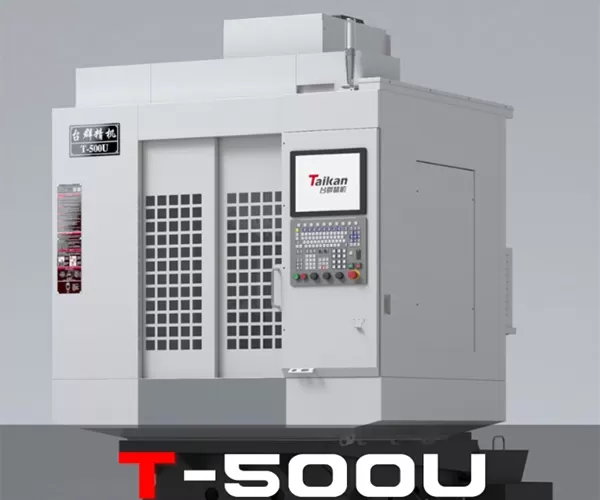

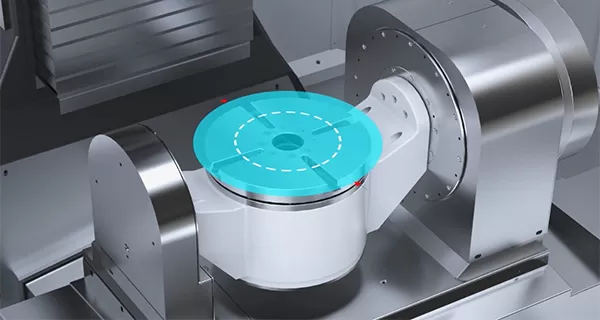

The Taikan Solution: T-500U 5-Axis Simultaneous drilling and tapping machining center utilizing a "Cradle-type" tilting-rotary structure (A/C axes), this 5 axis machining center achieves "Done-in-One" processing for the most challenging geometries.

• Optimized Tool Posture: 5-axis linkage ensures the tool maintains the ideal cutting angle relative to complex curves. For UAV fairings and aerodynamic shrouds, this eliminates "cusp marks" or "witness lines" caused by multiple setups, ensuring the smooth transitions essential for flight efficiency.




• Enhanced Rigidity through Interference Avoidance: The ability to tilt the workpiece allows for the use of shorter, more rigid cutting tools while avoiding interference with fixtures. Short tools significantly reduce deflection and chatter, particularly when machining difficult materials like titanium or high-strength aluminum.




• Spatial Accuracy for Flight Systems: To ensure flight control reliability, motor mounting positions require extreme spatial tolerances. The T-500U delivers the high-precision coordinate control necessary to provide a stable mechanical foundation for the aircraft's propulsion system.




3. Precision Rotational Parts: High-Stability Swiss-Type Turning

UAV propulsion systems and flight controls rely on a multitude of small-diameter shafts and pins characterized by high slender ratios and tight tolerances.

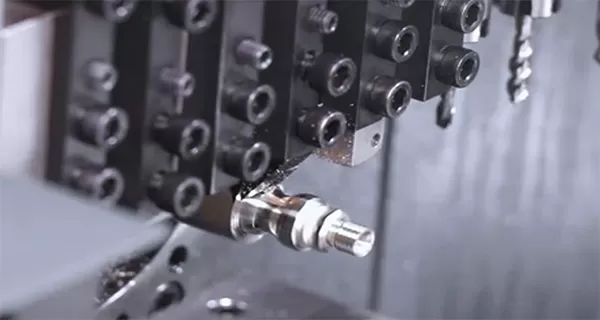

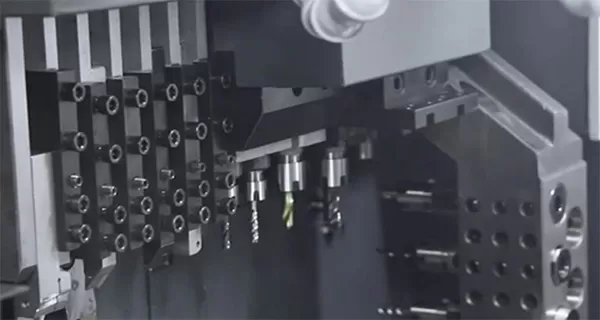

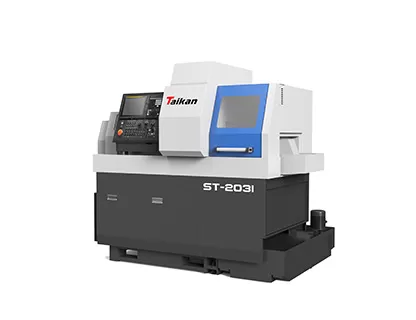

The Taikan Solution: ST-2031 / ST-2631 Series Swiss-Type CNC Lathes The ST series is specifically designed for the high-volume production of slender, high-precision rotational components.

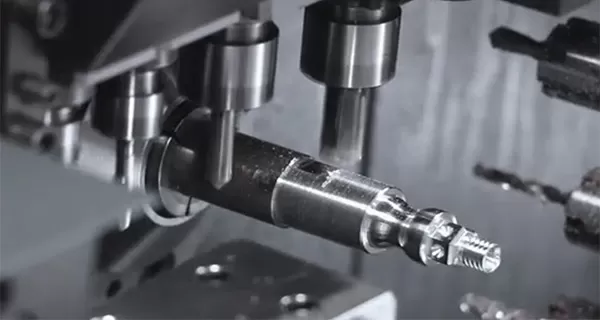

• Longitudinal Machining Excellence: By utilizing a sliding headstock and guide bushing support, the cutting point remains consistently close to the support point. This virtually eliminates workpiece deflection, a common challenge when machining the long, thin motor shafts and drive pins used in UAVs.




•  Exceptional Material Versatility: Whether processing 316L stainless steel for motor internals or high-strength alloy steels for transmission pins, the ST series provides the thermal stability and rigid architecture required for consistent dimensional accuracy across 24/7 production cycles.




Driving Customer-Defined Success

At Taikan Machine, we understand that the future of the low-altitude economy depends on manufacturing simplicity, precision, and scalability. By offering a complete ecosystem of machining solutions—from high-speed drilling and 5-axis simultaneous milling to precision turning—we provide the technological infrastructure our partners need to lead in a competitive global market.

Taikan Machine: Precision in Motion, Excellence in Flight.

Wayne Zhao

Chief Technical Expert, Taikan Machine



A CNC expert with 10+ years of experience in control systems and machining.

Formerly with Siemens and FANUC, Wayne specializes in system commissioning, 5-axis programming, and integrated machining applications. He is dedicated to transforming technical expertise into actionable industry insights.
