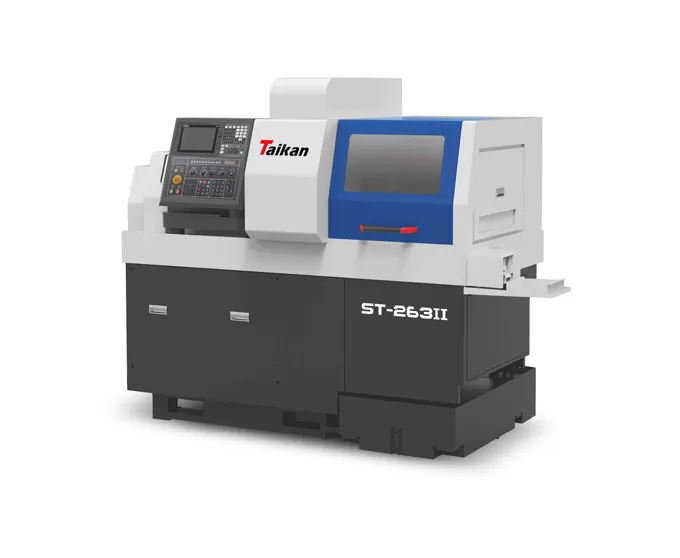

ST-263Ⅱ High-precision CNC Swiss-Type Lathe

Max. Processing Diameter

Ø26

Max. Processing Length

240mm

Front Drilling Diameter

Max. Ø10

Front Thread Processing

Max. M8

Max. Spindle Through Hole Diameter

28mm

System Device

Mitsubishi E80

Spindle Speed

Max. 8000 r/min

Max. Drilling Diameter for Side Milling

Max. Ø10 (Copper)

Max. Tapping Diameter for Side Milling

Max. M8 (Copper)

Max. Speed for Side Milling

Max. 5000r/min

Turning Tool

5*□12 + 1*□16

Side Milling Driven Tool Holder

2ER11 + 3ER16

(incl. 2 quick-change units)

End Fixed Tool Holder

5*ER16

Movement Speed

X:20/Y:32/Z:24 m/min

Spindle Motor Power

3.7kW/5.5kW

Side Milling Motor Power

1.0kW

Feed Motor Power

1.0kW (X/Y/Z)

Total Machine Power

8kW

Total Machine Weight

1800kg
