VMC Machine Operation Guide: Startup, Tool Setting, Work Offsets, Machining and Shutdown

A complete VMC machine operation includes machine preparation, startup, tool setting, work offset adjustment, program verification, machining execution and final shutdown. Unlike simply running a CNC program, professional VMC operation requires operators to control every step to maintain machining accuracy, improve tool life and prevent machine collisions. A typical VMC machining process starts with checking machine conditions, setting the workpiece coordinate system, loading correct tools and verifying cutting parameters before automatic machining. This guide explains the practical workflow of VMC machine work, helping CNC operators and manufacturers understand how vertical machining centers are operated in real production environments.

What Are the Main Steps of VMC Machine Operation

A standard VMC operation usually follows six key stages:

Each stage affects the final machining result. Incorrect tool data, wrong work offsets or unsuitable cutting parameters can cause dimensional errors, tool damage or even machine crashes.

VMC Machine Startup and Preparation Procedure

Before starting any machining job, operators should inspect the machine and working environment.

The basic startup procedure includes:

• Check emergency stop status

• Confirm lubrication system operation

• Check coolant level

• Remove chips from the previous machining cycle

• Verify fixture and workholding conditions

• Check air pressure if pneumatic systems are used

After inspection, the operator can power on the CNC system and activate the machine.

The next important step is axis referencing. The X, Y and Z axes must return to the machine home position so the controller can establish the machine coordinate system. Without proper homing, the machine cannot accurately determine tool positions, which may affect the entire VMC process.

Tool Setting and Work Offset Setup in VMC Machining

Why is tool setting important in VMC machining?

Tool setting determines the exact position and size of each cutting tool. Since every tool has different lengths and diameters, the CNC controller needs accurate tool information before machining.

Common tool setting methods include:

• Automatic tool measurement systems

• Tool presetters

• Manual tool touch-off methods

• CNC probe measurement

After measurement, operators input tool data into the CNC controller, including:

• Tool length compensation

• Tool diameter compensation

• Tool wear compensation

Correct tool data helps maintain machining accuracy and reduces manual adjustments during production.

How are work offsets used in VMC operation?

Work offsets define the relationship between the machine coordinate system and the workpiece location.

Common work coordinate systems include:

• G54

• G55

• G56

• G57

• G58

• G59

For example, when a workpiece is installed on the fixture, the operator selects a reference point such as the top surface or corner of the part and assigns it as the machining zero point.

A correct work offset allows the CNC program to execute tool paths at the intended position.

VMC Machining Process: From Program Verification to Cutting

What happens before automatic machining?

Before starting the cutting cycle, operators need to verify the CNC program.

Important checks include:

• Correct tool numbers

• Correct spindle speed

• Suitable feed rate

• Correct work offset

• Safe tool movement

• Proper coolant operation

A dry run is commonly performed before actual cutting.

During dry running, operators may use:

• Single block mode

• Reduced feed override

• Machine lock function

• Air cutting

This allows operators to confirm the program path and identify possible errors before the tool contacts the workpiece.

How is machining monitored during VMC operation?

During automatic machining, operators should continuously monitor machine conditions.

Important factors include:

• Spindle load changes

• Cutting noise

• Chip shape

• Coolant flow

• Surface finish quality

• Tool wear condition

Stable cutting conditions help achieve consistent part quality.

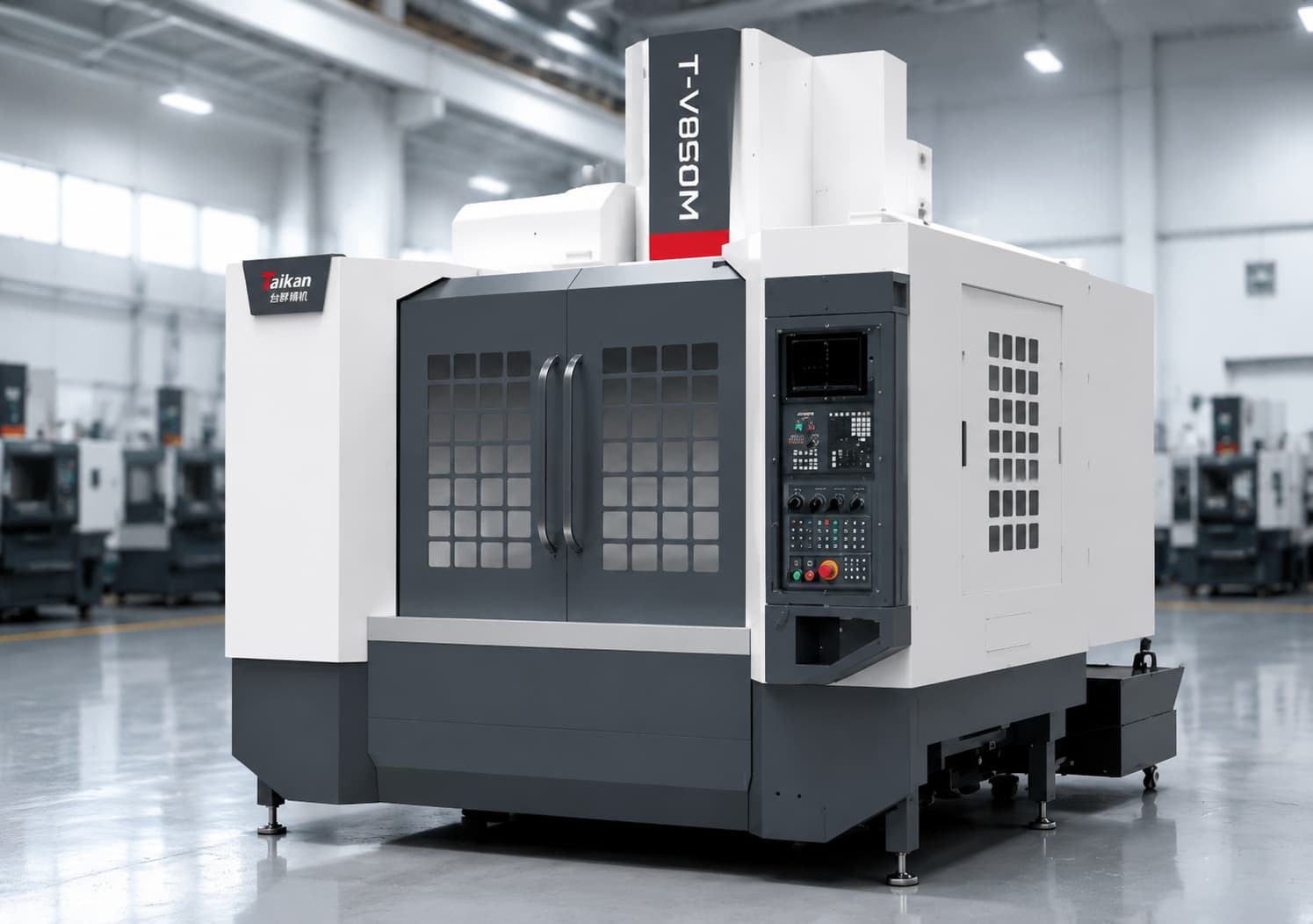

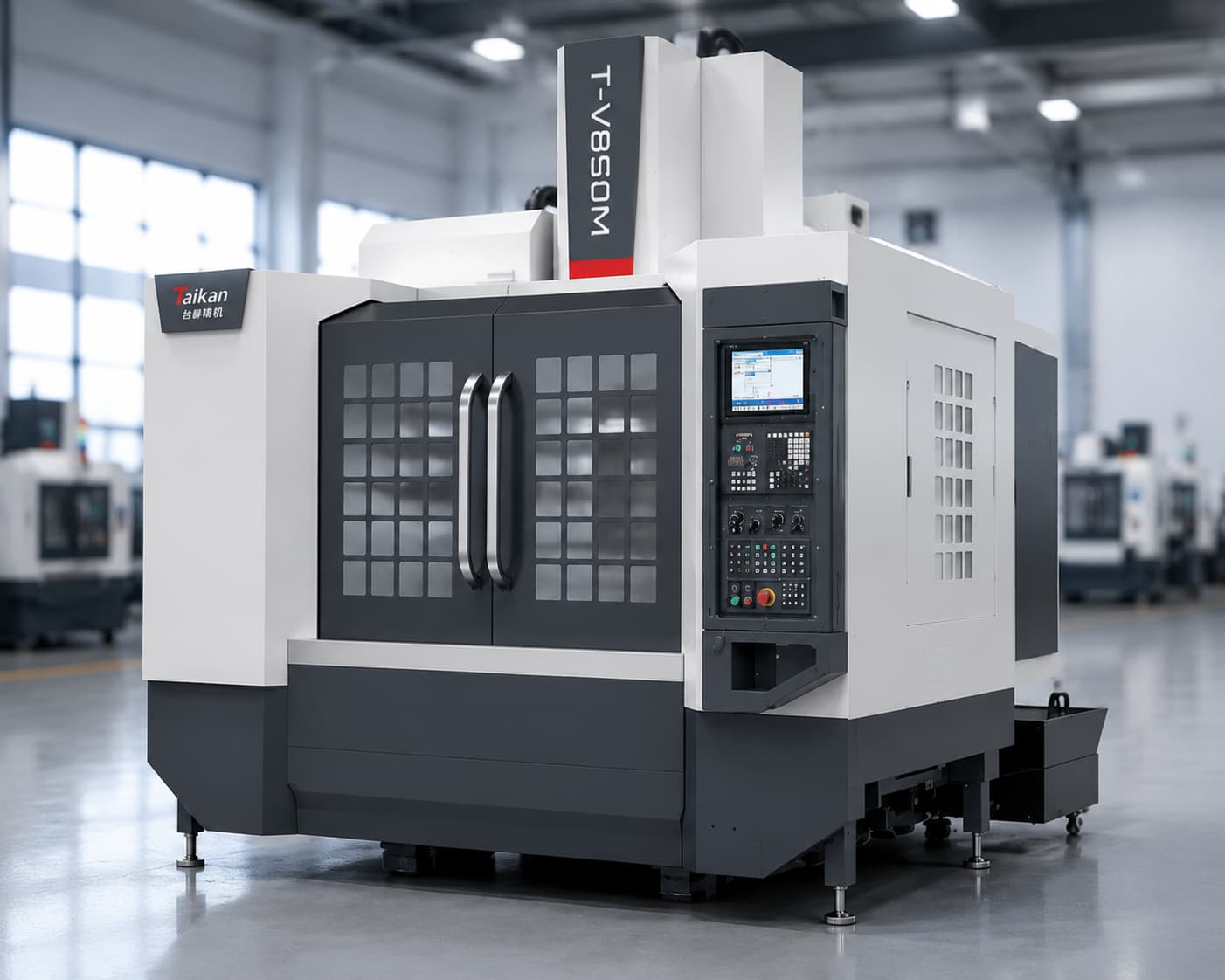

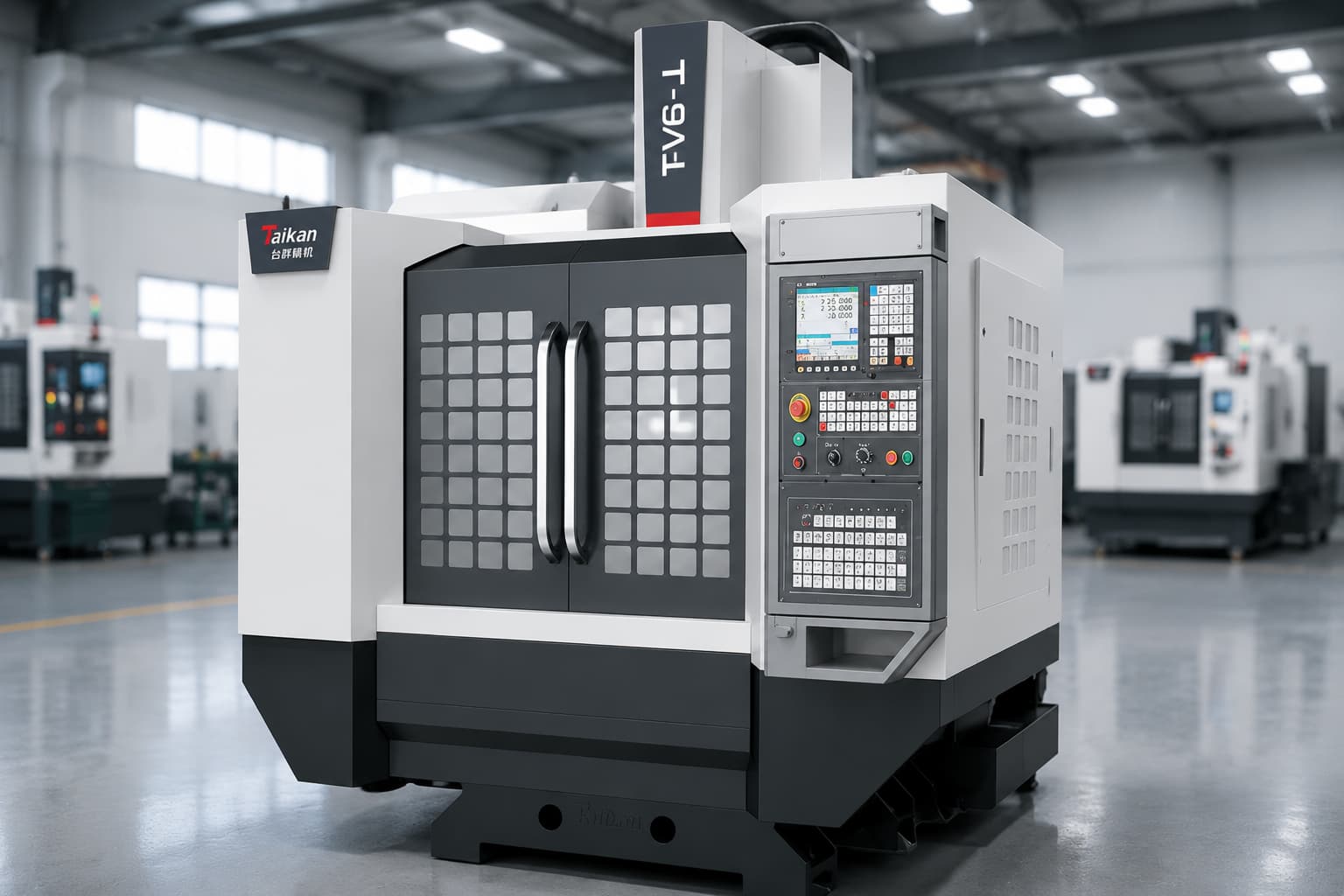

For high-precision applications, manufacturers often combine VMC equipment with advanced inspection systems and automation solutions. Taikan provides CNC machining solutions including High Speed Vertical Machining Center equipment and other Vertical Machining Centers, helping manufacturers achieve stable and efficient production for various industrial applications.

Common VMC Operation Problems and Solutions

Even with correct programming, machining problems may occur due to cutting conditions, tooling or setup errors.

Regular maintenance and proper operating procedures help reduce these problems.

Best Practices for Efficient VMC Machine Work

A reliable VMC machine work process depends on both machine capability and operator experience.

Recommended practices include:

• Record successful machining parameters for repeated jobs

• Check tool wear before quality problems appear

• Keep fixtures clean and stable

• Remove chips regularly

• Maintain correct coolant concentration

• Verify offsets after changing setups

• Follow preventive maintenance schedules

For manufacturers handling different materials and production volumes, selecting the right machine configuration is also important.

Taikan offers various CNC equipment options, including 5 axis CNC machining center solutions and high-performance machining solutions for complex parts, precision components and automated production environments.

How to Choose the Right VMC for Production?

The right box way machining center or vertical machining center depends on workpiece requirements, production volume and machining complexity.

For manufacturers producing complex parts, a 5-axis machining center may reduce multiple setups and improve machining efficiency. For general milling applications, a standard vertical machining center can provide an effective balance between cost and productivity.

Conclusion

A complete VMC machine operation requires careful control from startup preparation to final shutdown. Tool setting, work offset adjustment, program verification and machining monitoring are all essential parts of a reliable VMC machining process. By following standardized operating procedures and selecting suitable CNC equipment, manufacturers can improve machining accuracy, reduce downtime and achieve more consistent production results.

FAQ

What is VMC machine operation?

VMC machine operation refers to the complete workflow of preparing, setting up and running a vertical machining center, including tool setting, work offsets and machining execution.

What is the difference between VMC operation and CNC programming?

VMC operation focuses on machine setup and execution, while CNC programming creates the instructions that control tool movement.

Why are work offsets important in VMC machining?

Work offsets define the position of the workpiece in the CNC system and ensure tools machine the correct location.

How can VMC machining accuracy be improved?

Accuracy can be improved through correct tool calibration, stable fixtures, proper cutting parameters and regular machine maintenance.

What industries use VMC machines?

VMC machines are widely used in automotive parts, aerospace components, molds, electronics, medical equipment and precision manufacturing industries.
