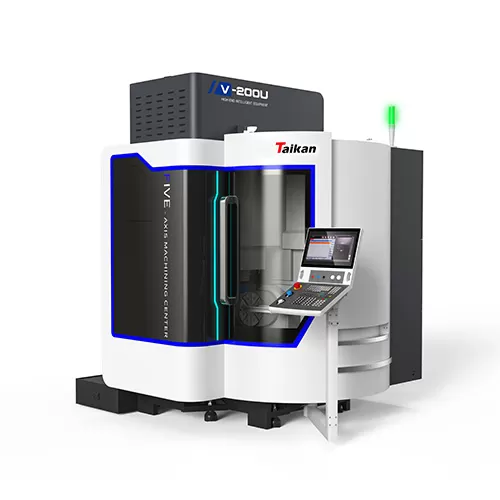

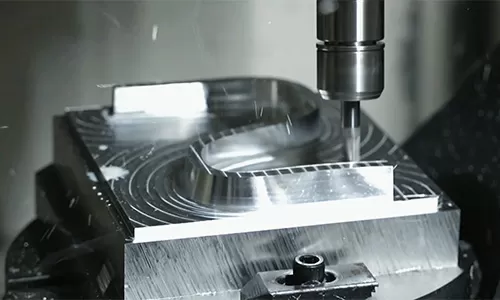

Taikan V-200U 5-Axis Vertical Machining Center: Engineered for Complex Part Precision

Taikan Machine, a global leader in advanced manufacturing technology, presents the V-200U 5-Axis Vertical Machining Center. Designed for the high-accuracy production of intricate components, the V-200U integrates a robust mechanical foundation with direct-drive rotary technology and a high-performance CNC system. It delivers the ultimate combination of rigidity, speed, and precision for industries demanding excellence, such as aerospace, medical device manufacturing, automotive, optics, and precision mold & die.

1. High-Rigidity Monoblock Construction for Ultimate Stability

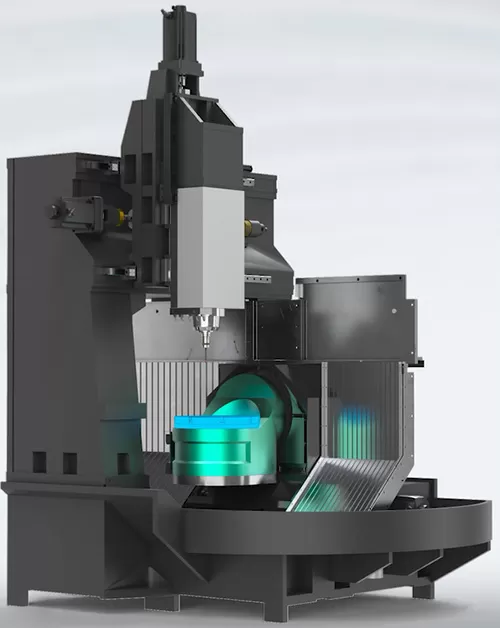

The core of the V-200U 5 axis vertical machining center is its exceptionally rigid portal-type O-frame structure. Optimized through advanced finite element analysis (FEA), the design features a massively ribbed, wide base and a one-piece column-and-crossbeam construction. This minimizes axis overhang, reduces cumulative error, and enhances dynamic performance. Cast from high-grade Mechanite iron and subjected to a double stress-relief annealing process, the 5 axis CNC machine guarantees superior vibration damping, thermal stability, and long-term geometric accuracy.

2. Advanced Direct-Drive 5-Axis Rotary Table

Central to its capability is the proprietary B/C axis rotary table. Engineered with high-rigidity cast iron and a 45-degree inclined slide configuration, it provides exceptional tilting moment capacity and vibration resistance. Both rotational axes are powered by high-torque direct-drive (DD) motors, eliminating traditional mechanical transmissions like worm gears or roller cams. Coupled with high-resolution optical encoders for full closed-loop control, this setup ensures outstanding positioning accuracy, smooth operation at rapid speeds up to 50 rpm, faster acceleration, minimal maintenance, and quiet running.

3. Precision Linear Drives and Synchronized Motion Control

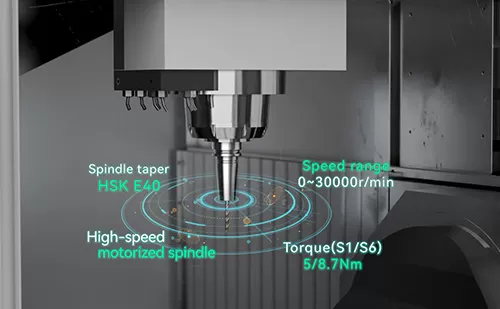

The linear axes (X, Y, Z) are equipped with precision roller‑type linear guides and cooled ball screw assemblies to maintain accuracy during high‑duty‑cycle operations. With rapid traverse rates of 24 m/min on all linear axes, this 5 axis machining center ensures fast positioning. The entire kinematic chain is governed by the Siemens SINUMERIK ONE high‑precision CNC system, which seamlessly synchronizes all five axes. Full closed‑loop feedback via integrated encoders guarantees micron‑level accuracy and repeatability for complex 3D contours and free‑form surfaces. A high‑speed, high‑rigidity spindle completes the package, enabling efficient machining of a wide range of materials.

4. Digital Twin Technology for Risk-Free Process Verification

Proving out complex 5-axis CNC machining for impellers traditionally involves costly physical test cuts, tying up valuable machine time, tooling, and materials while risking collisions and program errors.

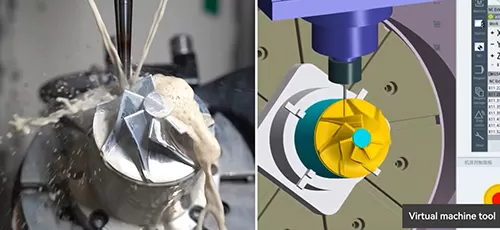

Taikan eliminates this bottleneck with its integrated digital twin solution. Our virtual machine is a perfect digital replica of the physical V-200U, featuring identical kinematics, controller logic, and performance parameters. Engineers can perform 100% realistic machining simulations to validate NC code, verify tool paths, check for fixture collisions, accurately predict cycle times, and eliminate potential crashes—all offline. This powerful capability makes CNC impeller machining service more reliable and efficient by drastically reducing machine downtime for sampling, slashing proofing costs, accelerating product development cycles, and enabling optimized production planning.

Taikan V-200U 5-Axis Vertical Machining Center is more than a machine tool; it is a comprehensive manufacturing solution built for reliability and precision. By foring a rigid mechanical structure with state-of-the-art direct-drive technology and forward-looking digital simulation, the V-200U empowers manufacturers to tackle their most challenging components with unmatched confidence and efficiency.

Explore the full specifications and capability of the Taikan V-200U 5-Axis VMC. Contact our engineering team today to discuss your application.
