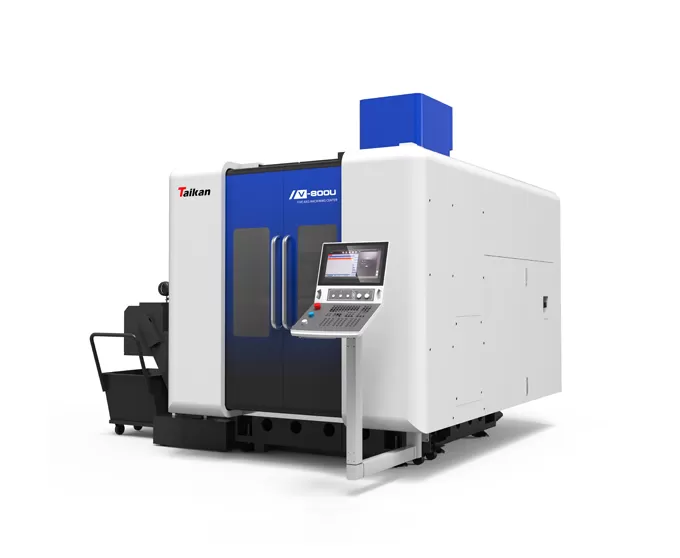

V-800U Vertical 5-Axis Machining Center

Travel

X/Y/Z travel

mm

850/900/580

A axis rotation range

°

±120

C axis rotation range

°

360

Distance from spindle nose to worktable surface

mm

180-760

Table

Table size

mm

Φ800*630

Max. load

kg

800

T-slot (number of slots - slot width * spacing)

mm

9-18*65

Speed

X/Y/Z axis rapid traverse speed

mm/min

36

A/C axis rapid traverse rotation speed

r/min

A:30/C:50

Accuracy

X/Y/Z axis positioning accuracy

mm

0.006/0.006/0.006

X/Y/Z axis repeatability accuracy

mm

0.004/0.004/0.004

A/C axis positioning accuracy

sec

6/6

A/C axis repeatability accuracy

sec

4/4

Spindle

Spindle motor power (S1/S6)

kW

30/36

Spindle motor torque (S1/S6)

Nm

100/120

Spindle speed

r/min

0~16000

Tool holder specifications

/

HSK A63

Tool magazine

Tool magazine structure

/

Chain tool arm magazine

Tool magazine capacity

T

40

Max. tool weight

kg

8

Max. tool length

mm

300

Max. diameter (full /adjacent empty)

mm

φ80/φ150

Others

CNC system

/

Siemens SINUMERIK ONE

Air source pressure requirement

MPa

0.6~0.8

Total electrical capacity

kW

75

Machine size(length*width*height)

mm

5100*4500*3400

Main machine weight (approx.)

KG

18000
