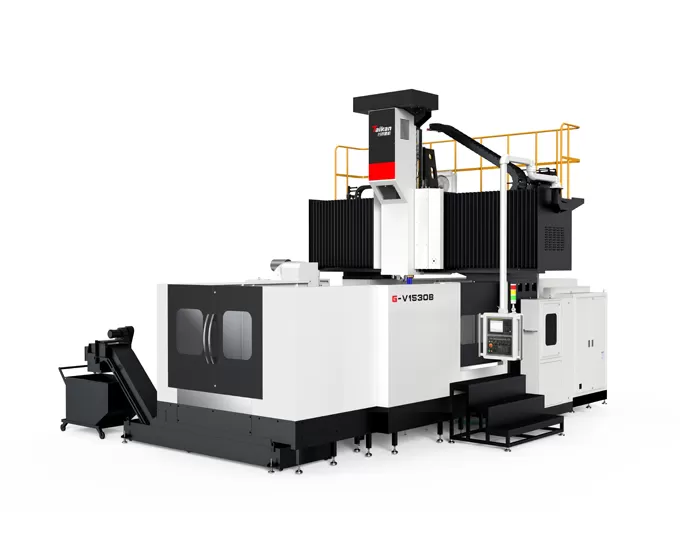

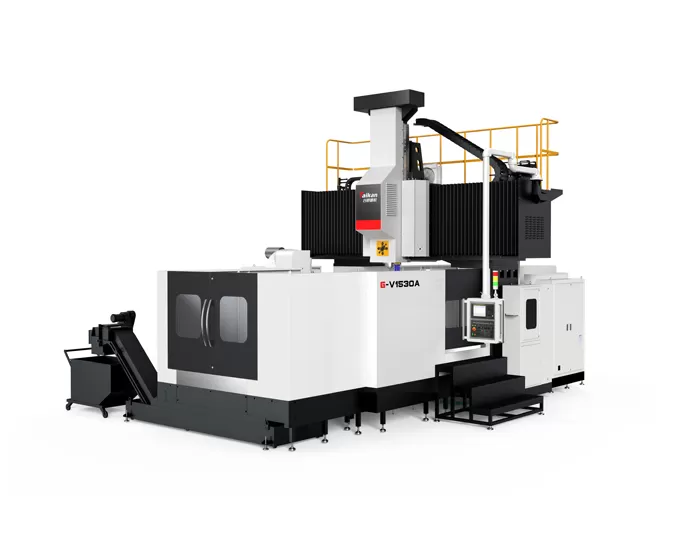

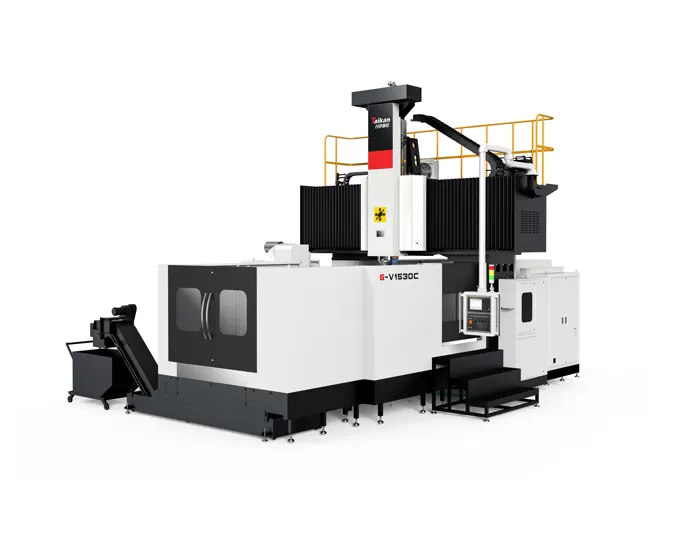

Name: HG-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center
Brand: Taikan Machine
Availability: InStock

Characteristic of HG-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

Machine Structure

The machine features a gantry frame fixed structure with a moving worktable.

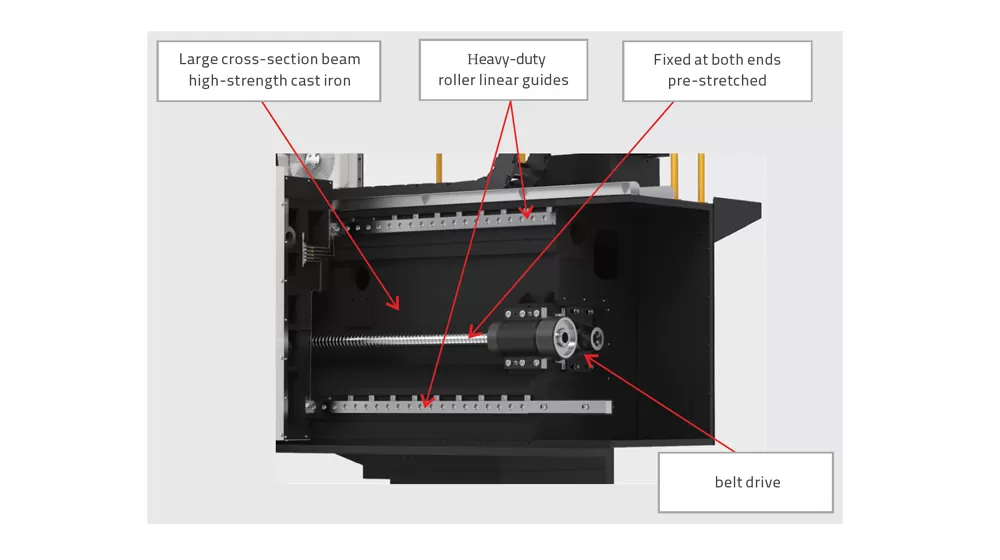

High-Rigidity Beam: The beam adopts a rectangular large cross-section arch design. The height-to-width ratio is optimized through simulation analysis, significantly enhancing its bending and torsional resistance, ensuring precision stability.

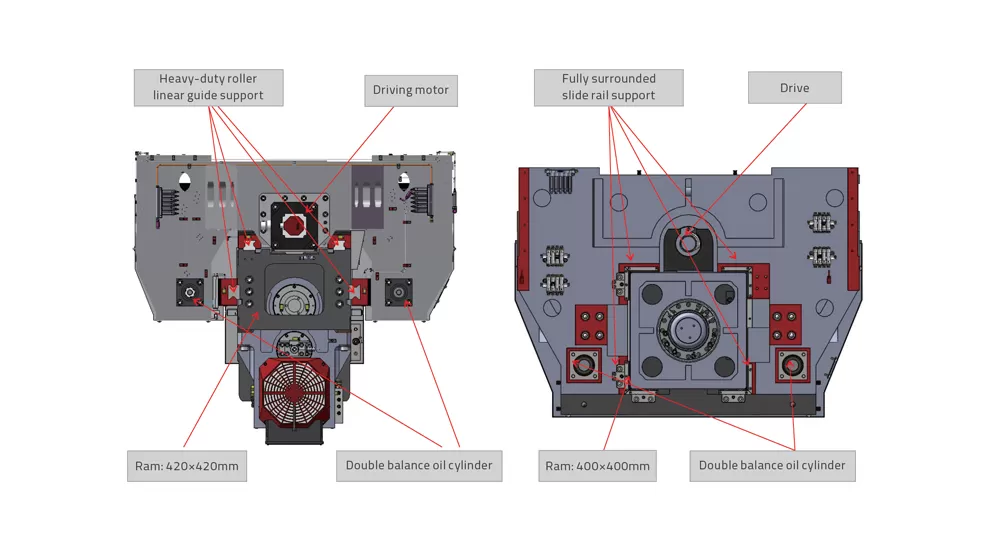

Large Cross-Section Ram: The ram has a cross-sectional size of 420x420mm, supported by four linear guide rails in a semi-enclosed arrangement. This provides high-strength support with low friction resistance, ensuring zero creep at low speeds, minimal vibration, fast response, and excellent dynamic and static performance, low maintenance requirements, and long service life.
Multiple Support Table: The table is supported by multiple closely spaced slides, ensuring stable and reliable load-bearing performance with excellent precision retention.

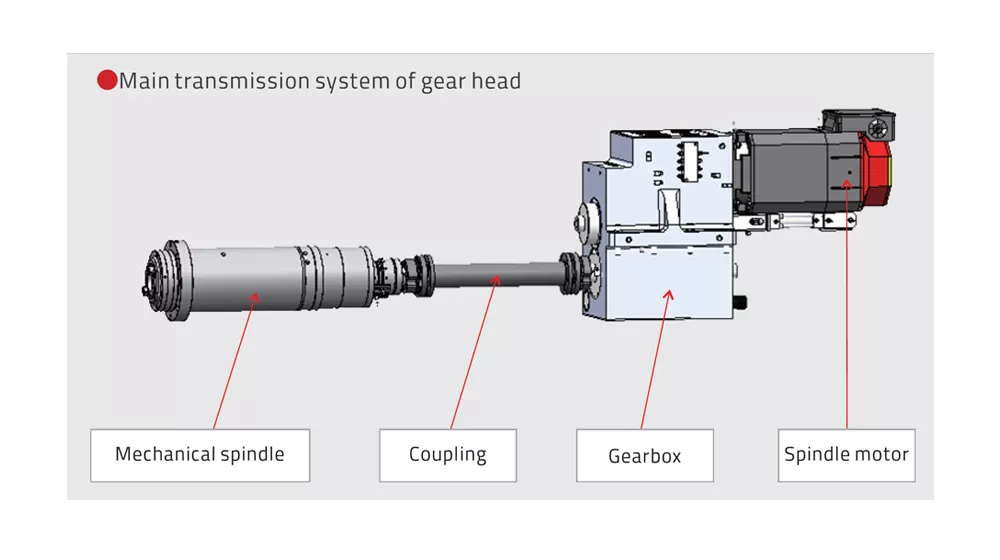

Diverse Spindle Options

Feed System

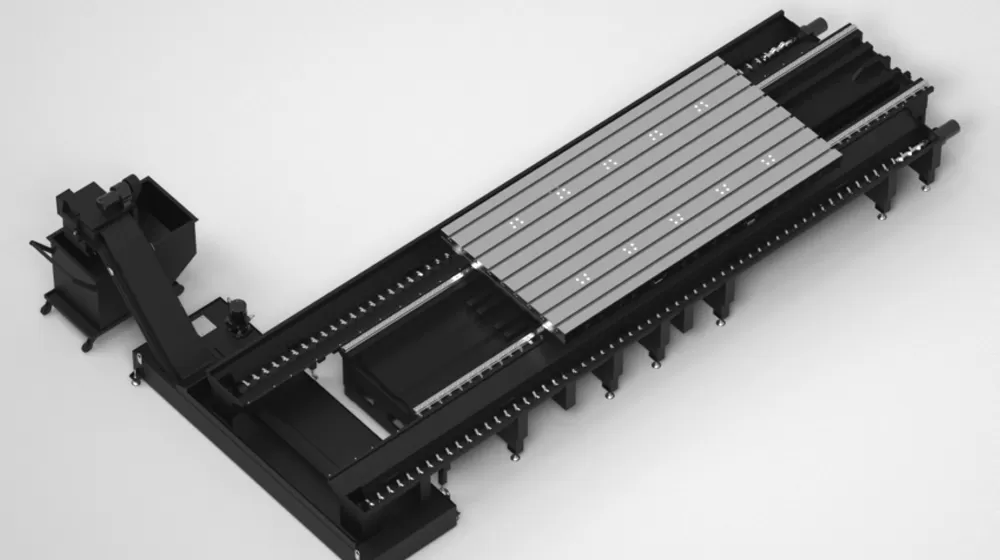

Chip Removal and Coolant Tank

Application of HG-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

The machine series is mainly used for high-speed and high-precision machining of parts in industries such as automotive components, molds, construction machinery, valves, rail transit, energy, agricultural machinery, and coal mining machinery.

Specifications of HG-V1530A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

Item			Unit	HG-V1520B	HG-V1530B	HG-V1540B	HG-V1520C	HG-V1530C	HG-V1540C
Travel	X-axis travel		mm	2200	3200	4200	2200	3200	4200
	Y-axis travel		mm	2200			2200
	Z-axis travel		mm	1000(Opt.1250)			1000(Opt.1250)
	Distance from spindle end to table		mm	250～1250(Opt.250～1500)			100～1100(Opt.100～1350)
	Effective gantry width		mm	1980			1980
Table	Table size (L×W)		mm	1500×2000	1500×3000	1500×4000	1500×2000	1500×3000	1500×4000
	Max. load		kg	6000	10000	13000	6000	10000	13000
	T-slot (Width×Pitch×Qty)		mm	28×160×9			28×160×9
Spindle	Drive type		/	Gear drive (Opt. belt drive)			Motorized spindle
	Max. spindle speed		r/min	6000			15000 (Opt. 18000、10000）
	Spindle power (Rated/Peak)		kW	15/18.5			15/22
	Torque output (Rated/Peak)		N.m	807/1331			45.7/73.6
	Ram section (Square ram)			420×420 (Opt. Z-axis box ways 400×400, 450×450）			420×420
	Spindle taper		/	BT50			BBT40 (Opt. HSK-A63、BT50)
ATC (Opt.)	Number of tools		T	24（40）			24
	Max. tool dia. (Full/Adjacent)		mm	φ110/φ200			φ80/φ150
	Max. tool length		mm	350			250
	Max. tool weight		kg	18			8
Speed	Feed rate range (Cutting)		m/min	10/10/10	10/10/10	8/8/8	10/10/10	10/10/10	8/8/8
	Rapid traverse speed (X/Y/Z-axis)		m/min	15/15/15	15/15/15	10/15/15	15/15/15	15/15/15	10/15/15
Accuracy	Positioning accuracy (Without/With scale)	X	mm	0.023/0.019	0.027/0.023	0.032/0.028	0.023/0.019	0.027/0.023	0.032/0.028
		Y	mm	0.023/0.019			0.023/0.019
		Z	mm	0.018/0.014			0.018/0.014
	Repeatability (Without/With scale)	X	mm	0.014/0.012	0.017/0.015	0.02/0.018	0.014/0.012	0.017/0.015	0.02/0.018
		Y	mm	0.014/0.012			0.014/0.012
		Z	mm	0.012/0.011			0.012/0.011
Others	Z-axis counterweight		/	Hydraulic + nitrogen balance			Hydraulic + nitrogen balance
	CNC system		/	FANUC 0I-MF PLUS (Opt. Siemens 828D)			FANUC 0I-MF PLUS (Opt. Siemens 828D)
	Air supply	Flow	L/min	300			300
		Pressure	MPa	0.6~0.8			0.6~0.8
	Total electrical capacity		kVA	50			60
	Coolant tank capacity		L	500			500
	Machine size	Length	mm	6406	7676	10241	6406	7676	10241
		Width	mm	5576			5576
		Height	mm	5200(5900 when Z axis is optional)			5200(5900 when Z axis is optional)
	Machine Enclosure		-	Full perimeter sheet metal			Full perimeter sheet metal

Notes:

1. G-V1520A, G-V1530A, G-V1540A – Optional 6000 RPM belt-driven spindle, output torque 186/297 N•m.

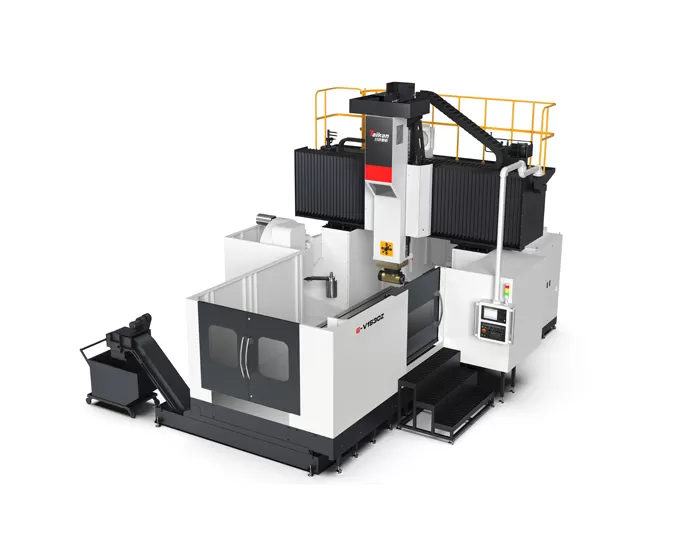

2. G-V1530Z, G-V1540Z – Optional fully automatic right-angle milling head, with a Y-axis travel of 2700 mm.

3. G-R1520B, G-R1530B, G-R1540B – Optional Z-axis square ram (Z = 1000 mm, machine height 5600 mm; Z = 1250 mm, machine height 6300 mm).

4. G-R1530Z, G-R1540Z – Optional Z-axis square ram + automatic right-angle milling head (Y-axis travel 2700 mm; Z = 1000 mm, machine height 5600 mm; Z = 1250 mm, machine height 6300 mm).

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
