Aerospace structural parts are rarely simple blocks of metal. They often combine thin walls, deep pockets, curved surfaces, angled holes, weight-reduction features, and strict dimensional control. For a factory that machines aircraft brackets, frames, impellers, housings, or lightweight alloy components, the machine choice affects not only cycle time, but also scrap rate, setup stability, and final inspection results.
A 5-axis CNC machine is a computer-controlled machining system that moves a cutting tool or workpiece across three linear axes and two rotary axes to machine complex geometries from multiple angles in one setup. For aerospace parts, this matters because every additional setup can introduce alignment error, increase inspection work, and make process control harder.
Choosing the right 5 axis machining center should start with the part, not the machine brochure. Buyers need to understand the workpiece material, part envelope, tolerance requirements, surface finish target, fixture method, and whether the process needs simultaneous 5-axis machining, 3+2 positioning, or milling-turning capability.

Aerospace structural components are usually designed to reduce weight while maintaining strength. This often leads to thin ribs, internal pockets, curved transitions, and multi-directional features. A standard 3-axis machining center may complete some operations, but it often requires repeated repositioning when the part has angled faces, undercuts, or features on multiple sides.

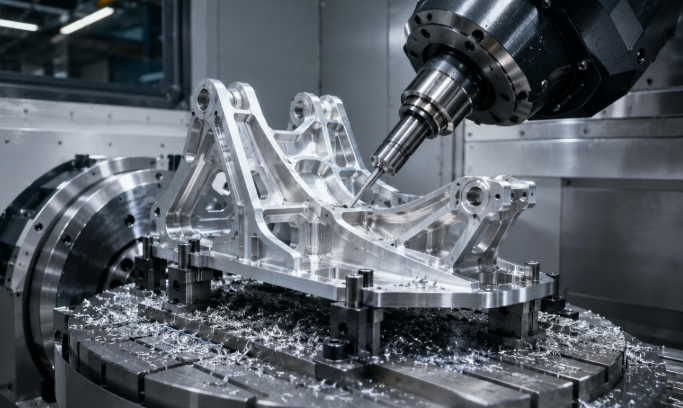

5-axis machining helps reduce this problem by allowing the tool to approach the workpiece from more directions. In practical production, this can shorten the process route, reduce fixture changes, and improve feature-to-feature accuracy. The benefit is especially clear when machining aluminum alloy aerospace frames, titanium structural brackets, complex impellers, and precision housings.
Aerospace parts usually create several machining challenges:
Thin-wall structures may vibrate or deform during heavy cutting.
Deep pockets require stable tool engagement and careful chip evacuation.
Angled holes and curved surfaces may need rotary-axis positioning.
High-value materials make scrap control more important than simple speed.
Complex geometry requires reliable simulation, toolpath planning, and collision avoidance.

For aerospace machining, accuracy cannot be judged only by a single number in a catalog. The buyer should ask how the machine maintains repeatability under real cutting conditions, especially when the part is large, thin, or made from hard-to-machine material. Linear-axis positioning, rotary-axis behavior, thermal stability, spindle performance, and fixture rigidity all work together.
ISO 230-2:2014 specifies methods for testing and evaluating the accuracy and repeatability of positioning of numerically controlled machine tool axes, including linear and rotary axes. This makes it a useful reference when buyers discuss machine acceptance, inspection reports, or internal quality approval.
For aerospace suppliers, quality systems also matter. SAE AS9100D includes ISO 9001:2015 quality management requirements and adds aviation, space, and defense industry requirements. Even when a machine supplier is not responsible for part certification, aerospace buyers should still think in terms of traceability, process stability, and inspection discipline.
| Aerospace Part Type | Main Machining Challenge | Machine Feature to Check |
| Structural brackets | Multi-angle faces, pocketing, and strict hole position | Rotary-axis accuracy, fixture accessibility, and toolpath stability |
| Thin-wall frames | Vibration, deformation, and uneven material removal | Machine rigidity, smooth feed control, and stable clamping support |
| Impellers | Curved channels and difficult tool approach | Simultaneous 5-axis control and high-quality surface machining ability |
| Large aluminum components | High material removal and large workpiece envelope | Travel range, spindle power, chip removal, and thermal stability |
| Rotational aerospace parts | Milling and turning features in one component | Mill-turn capability, C-axis control, and one-clamping process design |
Not every aerospace part needs the same type of 5-axis equipment. A compact precision bracket and a large structural frame create very different demands. The buyer should first classify the part by size, material, process route, and required feature access.
Use the following logic during early selection:

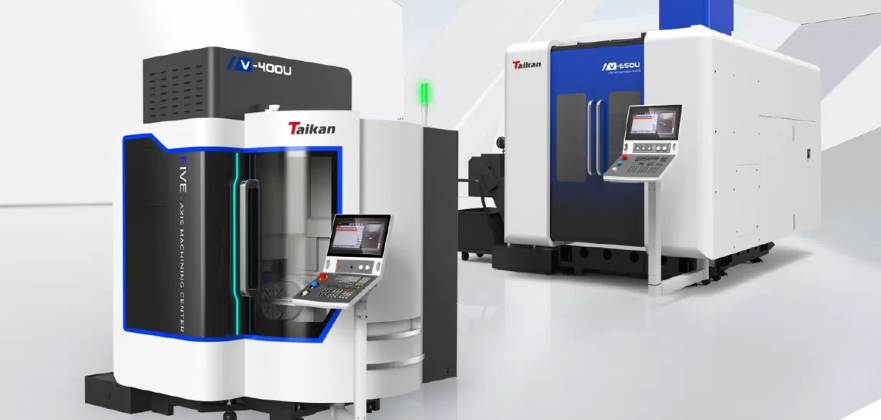

Choose a vertical 5-axis machining center for medium-size precision components, molds, medical parts, impellers, and complex aluminum parts.
Choose a gantry-type 5-axis solution when the workpiece is large, heavy, or requires a wide machining envelope.
Choose a mill-turn 5-axis machine when the part combines rotary features, side milling, angled machining, and turning operations.
Choose a higher-rigidity configuration when cutting titanium, steel, or large aerospace structural parts with heavy material removal.
Some aerospace components require both milling and turning. In that case, transferring the part between a lathe and a machining center may increase setup time and create alignment risk. A 5 axis milling machine with turning capability can be useful when one-clamping machining is more important than simply using multiple separate machines.
For example, a part with round reference surfaces, side features, inclined surfaces, and precision holes may benefit from a mill-turn process. The key advantage is not only saving one operation. It is also keeping the part datum more consistent across different machining steps.

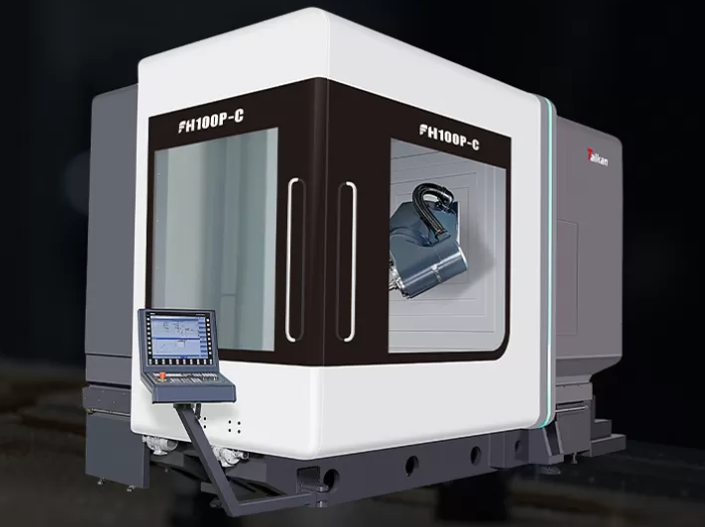

The FH Series includes FH60P-C, FH80P-C, FH100P-C, FH135P-C, FH170P-C, and FH210P models. The direct-drive B-axis swing head supports vertical, horizontal, side, inclined-surface, and five-axis linkage machining, while the direct-drive C-axis rotary table supports milling and turning in one clamping.
| FH Series Item | FH60P-C | FH80P-C | FH100P-C |
| Table size | Ø660mm | Ø880mm | Ø1,100mm |
| X/Y/Z axis travel | 600×800×600mm | 800×1,050×800mm | 1,000×1,150×1,000mm |
| Max. spindle speed | 12,000rpm | 12,000rpm | 12,000rpm |
| Spindle power | 42kW | 42kW | 58kW |
| Tool capacity | 40T | 40T | 40T |

Before confirming a model, buyers should prepare real production information rather than only asking for a general recommendation. A better process brief helps the manufacturer judge whether the machine structure, spindle, rotary table, travel range, and control system can support the required part.
Key questions include:
What is the maximum workpiece size, weight, and material?
Does the part require simultaneous 5-axis cutting or mainly 3+2 positioning?
Are there thin walls, deep pockets, or long tools that may cause vibration?
Will the process require turning, side milling, inclined-surface machining, or one-clamping completion?
What inspection method will be used for machine acceptance and part verification?
What operator training, maintenance support, and spare parts plan are available after installation?
If the supplier can discuss these points with part drawings, process assumptions, and configuration details, the recommendation is more likely to be useful for aerospace production.
Aerospace structural parts require more than a general-purpose CNC machine. Buyers should compare accuracy, rigidity, rotary-axis performance, workpiece range, spindle capability, and one-clamping process value. A suitable 5-axis solution should match the part geometry, material, tolerance target, and long-term production plan.
They allow the cutting tool or workpiece to approach complex surfaces from multiple angles, reducing repeated setups and improving the consistency of features that must relate to the same datum.
No. Some aerospace parts only need 3+2 positioning, where the rotary axes position the part before 3-axis cutting. Simultaneous 5-axis machining is more useful for complex curved surfaces, impellers, and toolpath-sensitive geometry.
Start with the workpiece size, material, tolerance, required surface finish, fixture method, and whether the part needs milling, turning, side machining, or multi-angle hole processing.
It is useful when one part requires both rotary machining and multi-angle milling. By completing more operations in one clamping, the process can reduce setup transfers and improve datum consistency.
It can be better for large aerospace frames or structural parts that need a bigger work envelope. Smaller precision parts may be more suitable for vertical or mill-turn 5-axis models.
Chief Technical Expert, Taikan Machine
A CNC expert with 10+ years of experience in control systems and machining.
Formerly with Siemens and FANUC, Wayne specializes in system commissioning, 5-axis programming, and integrated machining applications. He is dedicated to transforming technical expertise into actionable industry insights.
