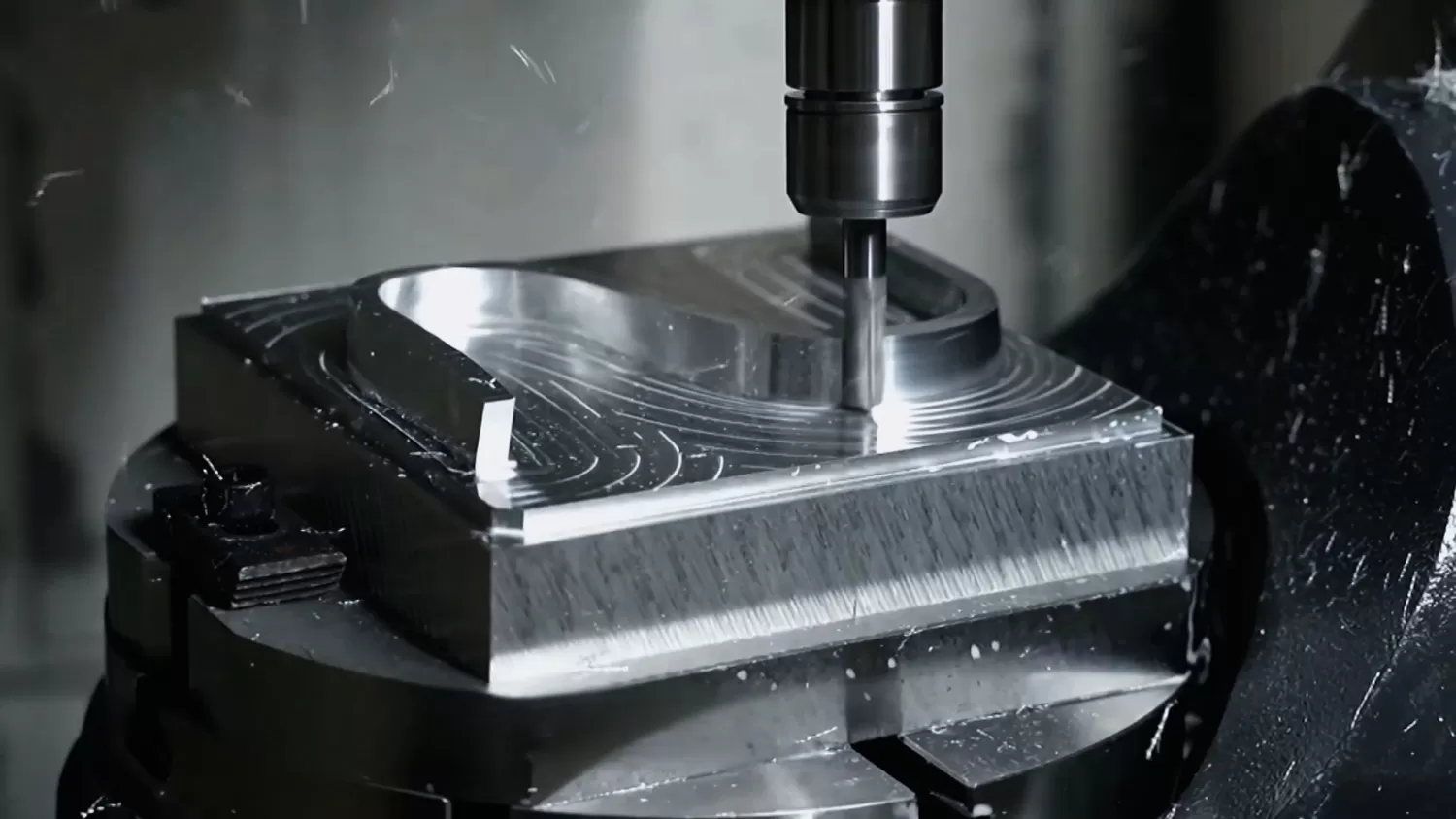

How to Improve Precision and Accuracy in CNC Machining?

In fields demanding extreme precision—such as high-end equipment manufacturing, precision mold making, and aerospace—micron-level machining capability directly determines product performance and service life. Stable high accuracy, however, is not achieved by chance. It is a systematic engineering discipline encompassing inherent machine tool characteristics, thermal environment control, cutting process strategies, and online closed-loop feedback. As one of the premier publicly listed cnc machine tool manufacturers specializing in high-end research, development, and production, Taikan systematically elaborates on the in-depth methods and cutting-edge technical practices used to enhance machining accuracy across all core dimensions of precision.

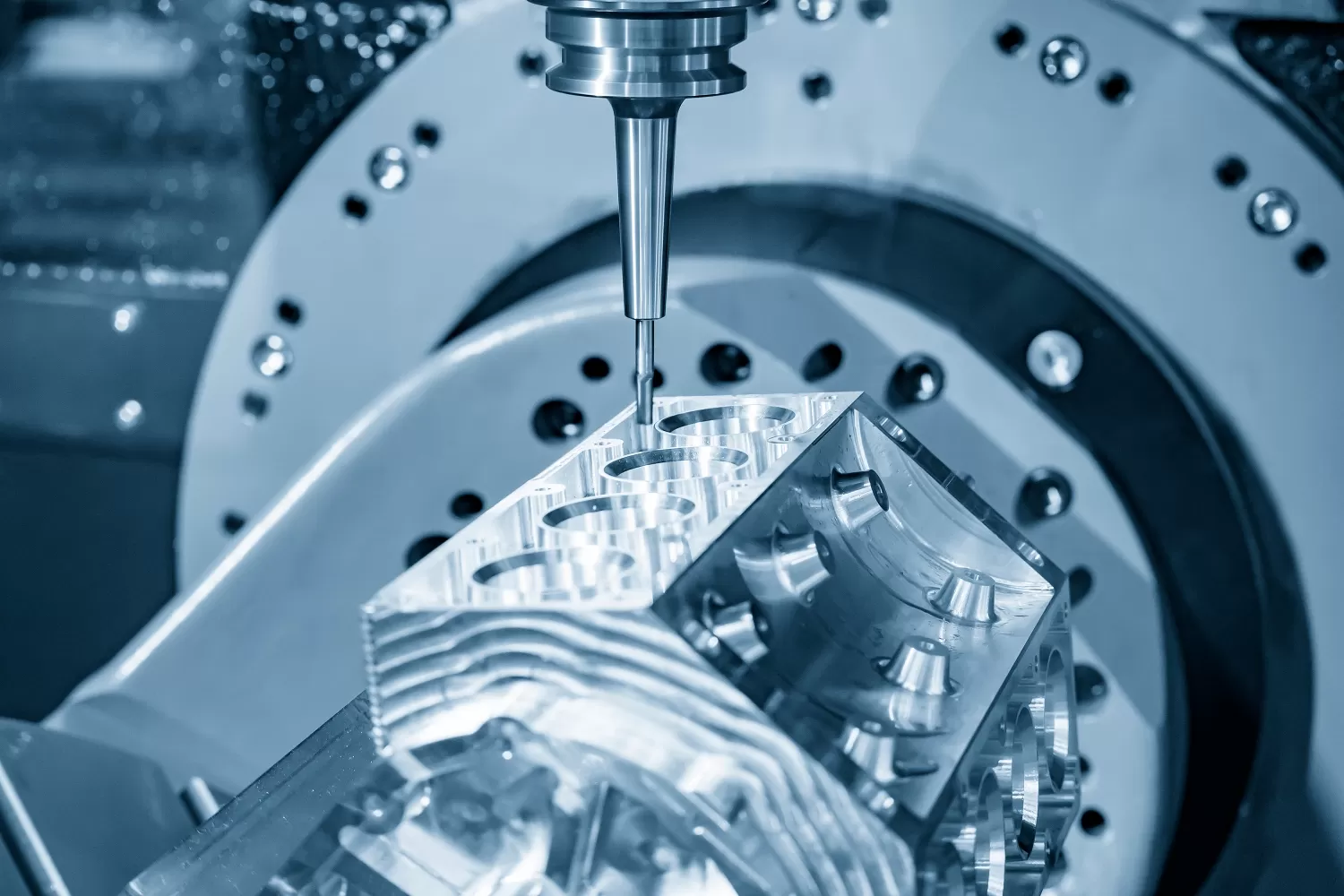

Understanding Machining Accuracy: From Macro Geometry to Micro Surface Integrity

Machining accuracy refers not only to the degree of conformity between the actual geometric parameters of a part and its design values but also encompasses dimensional accuracy, form accuracy, positional accuracy, and micro-geometric surface texture. In the context of precision machining, the pursuit of accuracy extends beyond simple tolerance compliance, reaching into implicit indicators that govern service life, such as surface residual stress states and sub-surface damage control.

In-Depth Analysis of Factors Affecting CNC Machining Accuracy

Achieving micron-level improvements in accuracy requires a rigorous deconstruction of error sources. Beyond intuitive geometric errors, the following hidden factors are often the root causes of accuracy loss.

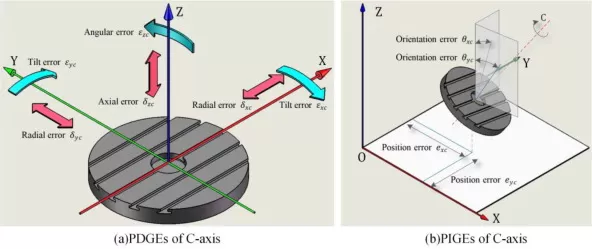

1.  Machine Tool Geometric Errors and Kinematic Errors

The geometric accuracy of a machine tool is the cornerstone of machining precision. The straightness and squareness of guideways, as well as the radial runout and axial drift of rotary axes, are directly mapped onto workpiece contours through the kinematic chain. Numerous installation cases show that after prolonged service and subtle foundation shifts,  the static accuracy indicators of most vertical CNC machines deviate significantly from factory standards, with accuracy degradation primarily caused by unstable installation foundations and the release of internal structural stresses. Volumetric error compensation technology can accurately map a machine tool’s 21 geometric error components (positioning, straightness, angular errors of each linear axis, and squareness between axes) using laser interferometers and ballbars, and implement real-time spatial vector corrections within the CNC system. This is a core technical means for elevating the intrinsic accuracy of a machine tool.

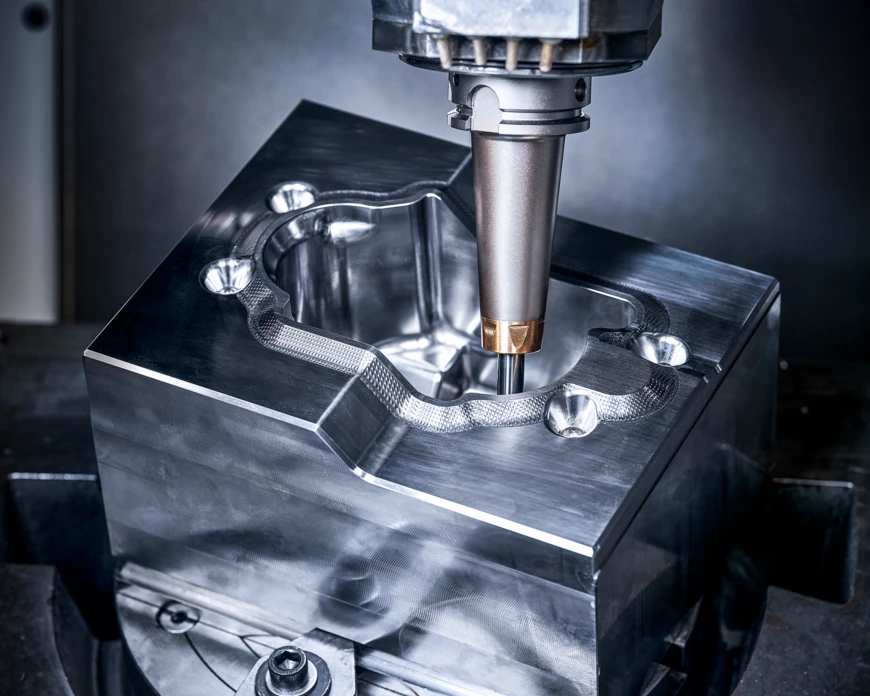

2. Thermal Deformation — The Invisible Killer of Accuracy

Temperature fluctuation is the most difficult error source to precisely model in precision machining. Frictional heat from spindle bearings, ball churning heat within the ballscrew assembly, heat from the cutting zone, and ambient temperature gradients in the shop floor all induce thermo-elastic deformation of the machine structure. Particularly, when a ballscrew experiences axial thermal expansion due to temperature rise, a direct deviation between the actual displacement and the commanded position occurs under semi-closed loop control, leading to gradual dimensional drift in batch production. Advanced thermal stability solutions include: adopting hollow-core screw cooling and precise spindle oil circulation temperature control, deploying temperature sensors at critical structural locations, and building real-time thermal error compensation models to ensure that the machine maintains micron-level thermal stability over extended continuous operation.

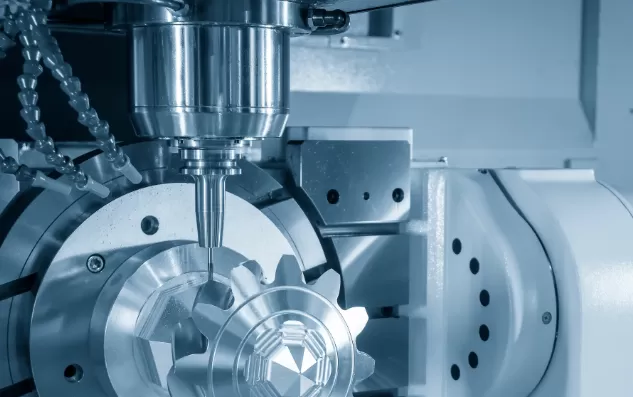

3. Backlash and Servo Dynamic Lag

Backlash is the lost motion generated when the direction of a coordinate axis changes, caused by mechanical clearances and elastic deformation within the drive train. In a semi-closed loop servo system, mechanical clearances downstream of the ballscrew are outside the position loop feedback and directly translate into positioning errors, producing characteristic reversal spikes (quadrant glitches) at the quadrant transitions of circular interpolation. Applying the CNC’s backlash compensation parameters provides basic correction, while high-end solutions tend toward direct-drive motors or mechanical structures with dual-drive preload to physically eliminate the reversal dead zone and guarantee stringent bidirectional repeatability.

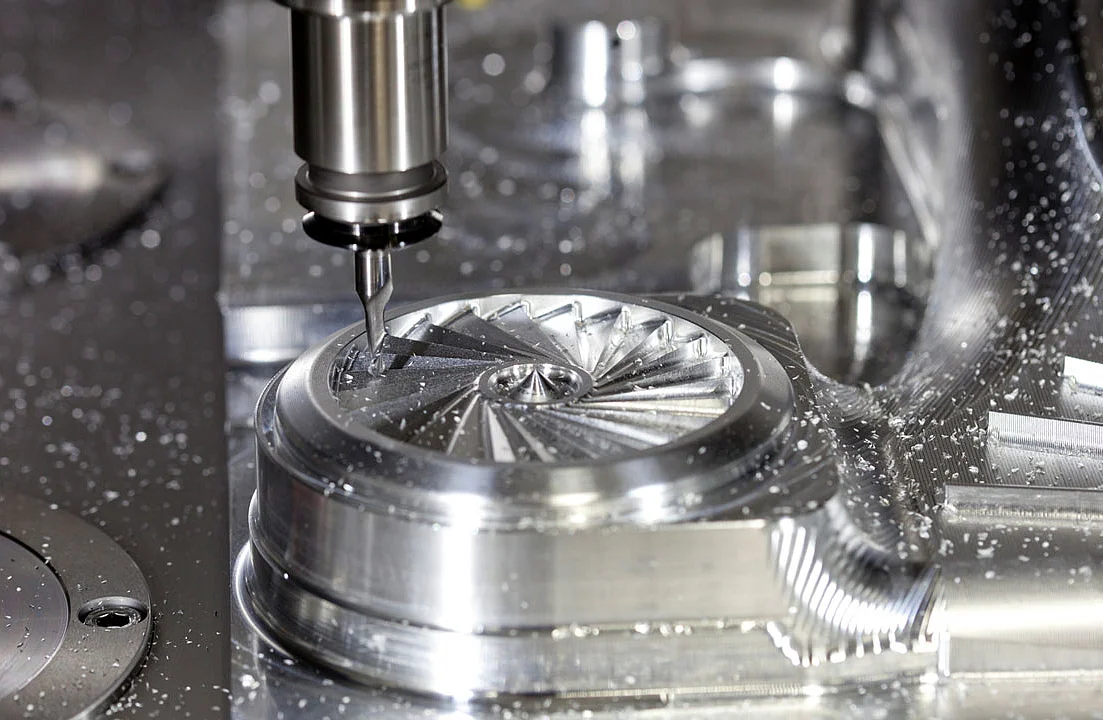

4. Dynamic Errors Caused by Insufficient Drive Train Stiffness

The torsional stiffness of the drive train not only amplifies the effect of backlash but also increases the following error during high-speed interpolation, exacerbating quadrant protrusions and contour distortion in circular cuts. Enhancing drive train stiffness requires the use of double-nut preloaded ballscrews, high-torsional-rigidity couplings, and proper servo inertia matching to ensure the linear transmission of commanded torque and suppress surface waviness caused by micro-vibrations.

Process Strategies and Practices for Improving Machining Accuracy

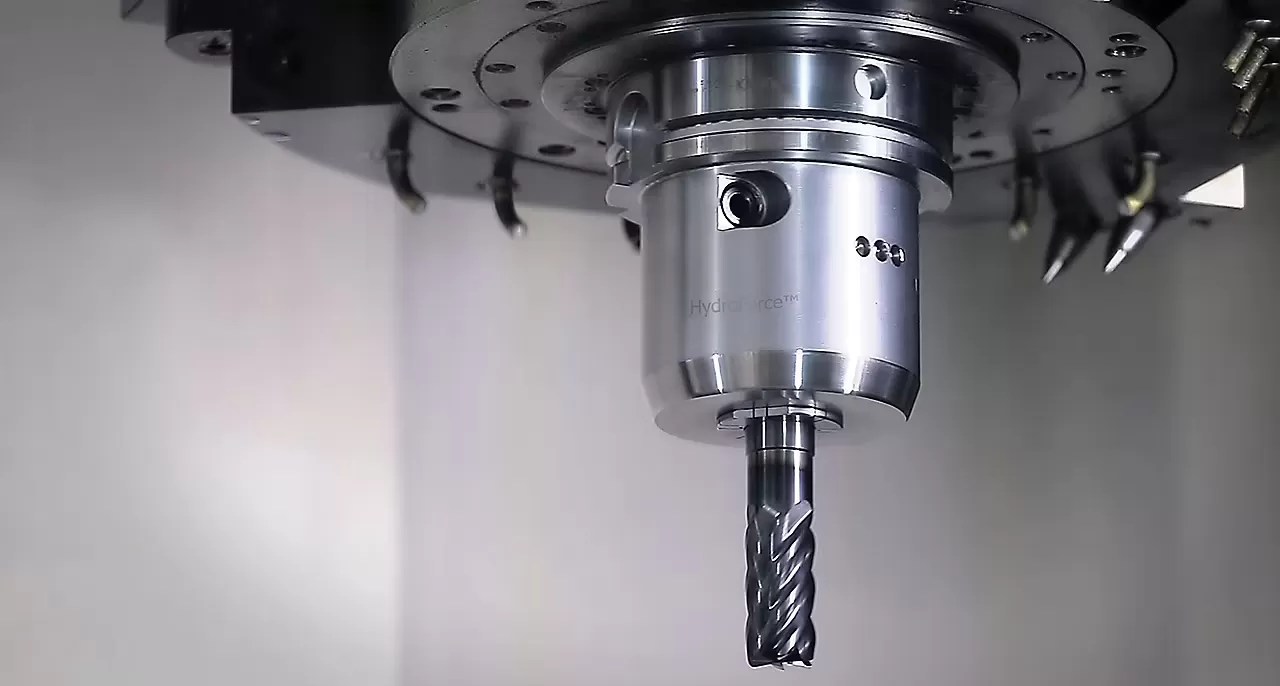

1. Fine-Tuned Design of Entry and Exit Paths

The way a cutting tool enters and exits the workpiece directly affects surface witness marks and edge precision. Tangential arc lead-in/lead-out paths should be used to avoid instantaneous stress impacts on the contour. The feed rate during entry must be smoothly graded, transitioning from one cutting layer to another without abrupt pauses that create dwell marks. Concurrently, adopting constant cutting load path strategies (with constant surface speed control for turning and adaptive feed rate for milling) keeps cutting forces stable and avoids tool deflection caused by sudden changes.

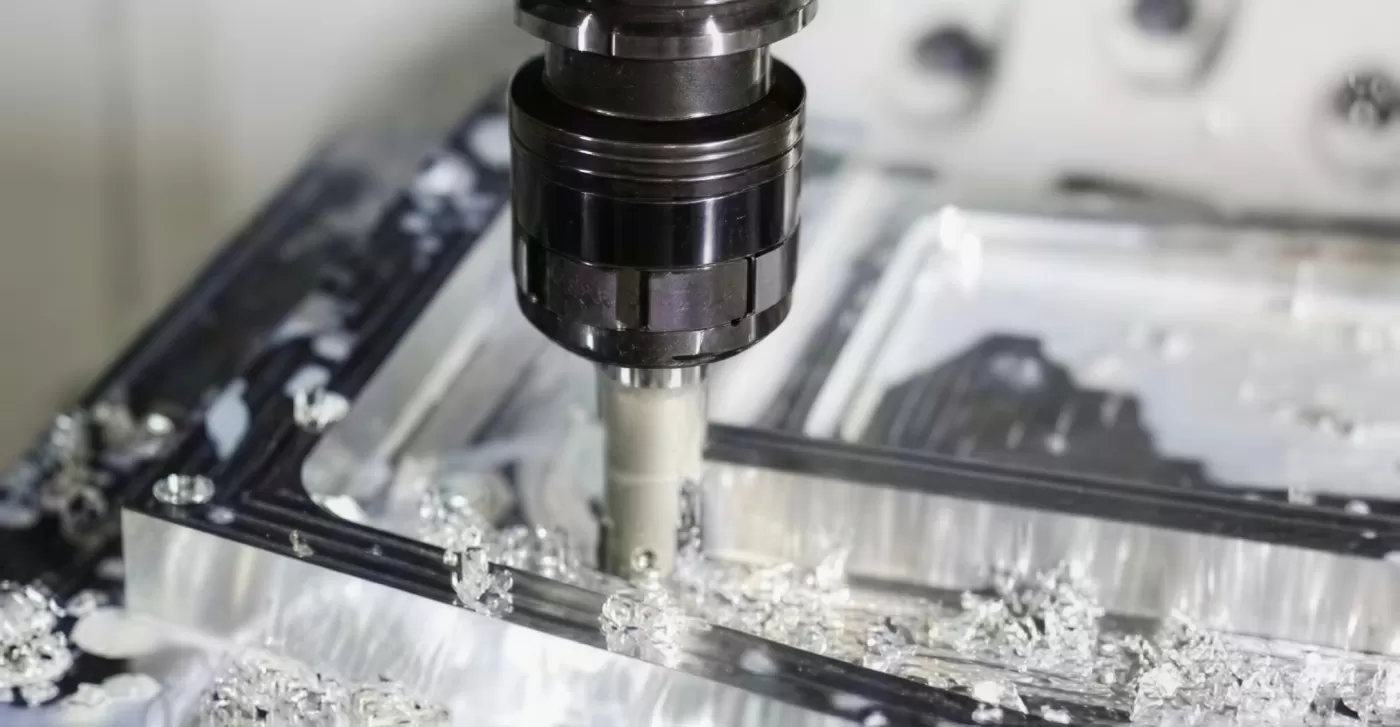

2. Scientific Selection of Cutting Methods and Strategies

In finish machining, climb milling should be the preferred milling method, as it directs cutting forces toward the table, dampens vibration, and delivers superior surface finish. For shaft turning, a single tool should ideally complete all continuous contour features (outer diameters, faces, and arc transitions) to eliminate blend marks. For discontinuous surfaces, an ordered turning sequence from the outside in must be followed to prevent local geometric steps caused by tool interference. When machining arc surfaces, selecting a smaller tool nose radius effectively suppresses radial cutting force and improves contour accuracy.

3.  Application of High-Efficiency Precision Tools and Toolholding Systems

The cutting tool is the final execution link in precision manufacturing. Using advanced coated carbide, CBN, or ceramic inserts significantly reduces cutting forces and heat. Equally critical is the interface connecting the tool to the machine: shrink-fit and hydraulic toolholders provide a clamping radial runout of ≤3 μm, and coupled with a high-rigidity taper interface, ensure stable tool concentricity at high rotation speeds. This is an essential prerequisite for achieving mirror-surface milling and high-precision holemaking.

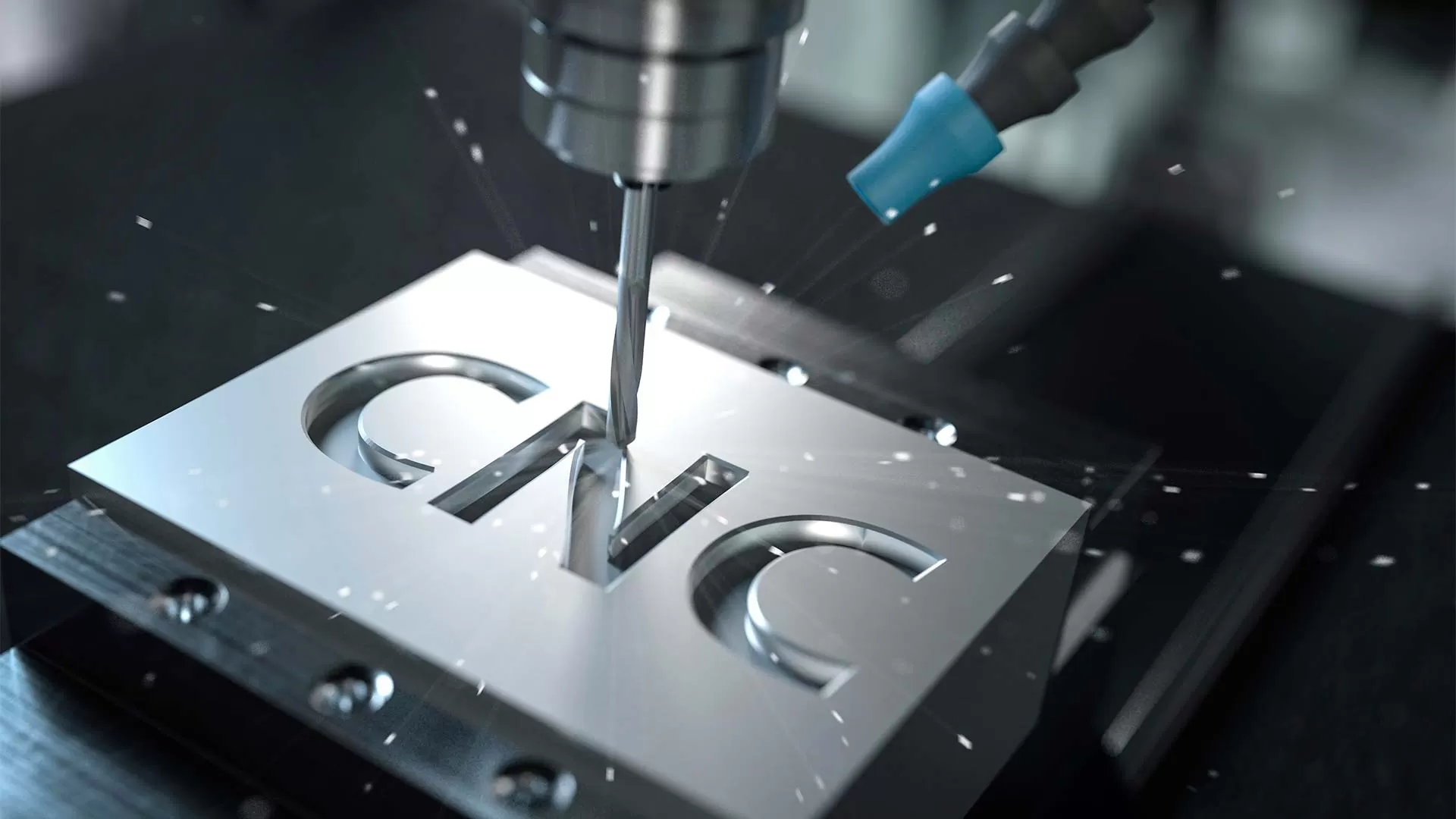

4. Integration of On-Machine Probing and Automatic Tool Setting Systems

A digital closed loop is the leap forward to achieve stable precision manufacturing. By deeply integrating an on-machine probing system into Taikan machine tools, automatic workpiece datum alignment and precise coordinate system setting become possible, alongside in-process inspection of critical features to detect dimensional drift in real time and automatically update coordinate systems or tool offsets. The coordinated automatic tool setting probe quickly measures tool length and diameter, detects tool breakage, and builds a closed-loop tool parameter management system, dramatically reducing non-cutting time and eliminating scrap.

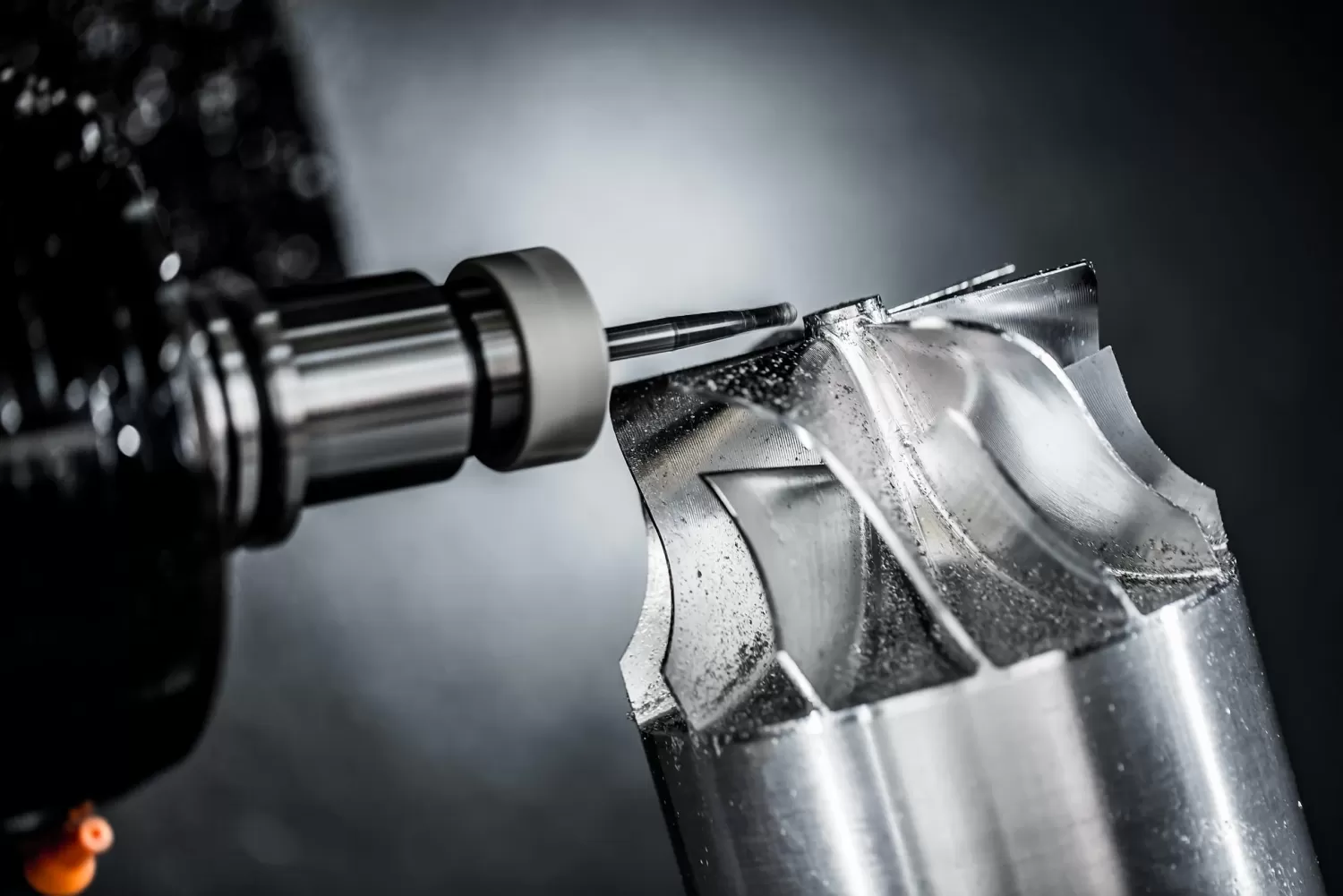

5. Accuracy Optimization Through Superior Programming

The CNC program not only drives motion but also carries the accuracy strategy. Excellent CAM programming should employ the following techniques:

• Smooth Interpolation and Look-Ahead Control: Through NURBS curve fitting, paired with a high number of CNC look-ahead blocks, acceleration and jerk are constrained to avoid corner overcutting and machine vibration.

• Intelligent Corner Deceleration: Automatically optimizes feedrate at sharp transitions to maintain a clean and precise contour.

• Macro Program and Probe Integration: Writing macro programs to invoke a probe for sequential feature inspection and automatically apply tool offsets based on measured errors enables adaptive machining, thereby significantly elevating the process capability index (Cpk).

Conclusion

The improvement of CNC machining accuracy has evolved from a single focus on static precision to a multi-dimensional system engineering integrating electromechanical-thermal coupling analysis, process system stiffness matching, online closed-loop measurement, and intelligent compensation. As a high-end CNC machine tool manufacturer, Taikan is consistently dedicated to deeply integrating precision manufacturing processes with intelligent metrology technologies, providing global users with complete accuracy solutions — from machine tools to finished parts — and empowering the manufacturing industry to achieve the decisive leap from tens of microns to true micron-level precision.

Wayne Zhao

Chief Technical Expert, Taikan Machine



A CNC expert with 10+ years of experience in control systems and machining.

Formerly with Siemens and FANUC, Wayne specializes in system commissioning, 5-axis programming, and integrated machining applications. He is dedicated to transforming technical expertise into actionable industry insights.
