Vertical vs 5-Axis vs Gantry Machining Center: How to Choose for Your Parts and Production

Selecting a machining center should begin with the workpiece rather than the machine specification sheet. Part size, geometry, material, tolerance, number of machined surfaces, production volume, and required cycle time all influence which machine structure is most suitable.

For many manufacturers, the choice eventually comes down to three common machine configurations: vertical machining centers, 5-axis machining centers, and gantry machining centers. Although all three can perform milling, drilling, tapping, and other machining operations, they are designed around different production requirements. Understanding these differences can help manufacturers avoid both under-specifying a machine and investing in capabilities that their parts rarely require.

Start With Part Geometry and Machining Requirements

The first question is not how many axes a machine has, but how the workpiece needs to be processed. A relatively simple plate, housing, mold insert, or mechanical component may mainly require machining from the top and several accessible sides. In this situation, a conventional vertical machining center can often provide the required productivity without unnecessary complexity.

As workpieces become more geometrically complex, however, the number of setups begins to matter. Parts with angled holes, inclined surfaces, deep cavities, impellers, or multiple precision features located on different faces can require repeated repositioning on a standard three-axis machine. Each additional setup increases handling time and introduces another opportunity for positioning error.

Workpiece dimensions create another dividing line. Very large molds, structural components, long plates, and heavy industrial parts may exceed the practical travel or table capacity of conventional machining centers. These applications often require a larger machine architecture that provides both working range and structural support.

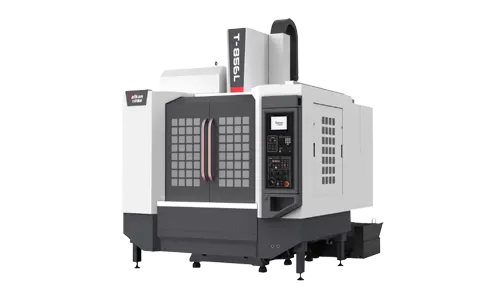

When a Vertical Machining Center Is the Practical Choice

A vertical machining center remains one of the most widely used solutions for general precision machining because of its balance between flexibility, productivity, machine footprint, and investment cost.

A typical vertical machine center is particularly suitable for prismatic components that can be processed efficiently from one primary direction. Common examples include plates, housings, brackets, dies, molds, valve components, and general mechanical parts.

Vertical machines can be effective when a manufacturer needs:

• Three-axis milling, drilling, boring, and tapping operations

• Flexible production of multiple part types

• Easy workpiece loading and operator access

• Good productivity for small and medium-sized components

• A relatively straightforward machining and programming process

For job shops and manufacturers producing a broad mix of components, a vertical machining center can also provide useful flexibility. Fixtures, tools, and machining programs can be changed according to different production orders without requiring a highly specialized machine configuration.

However, the number of setups should always be considered. If a part repeatedly requires three, four, or more orientations during machining, a more advanced machine configuration may reduce total manufacturing time even if its initial investment is higher.

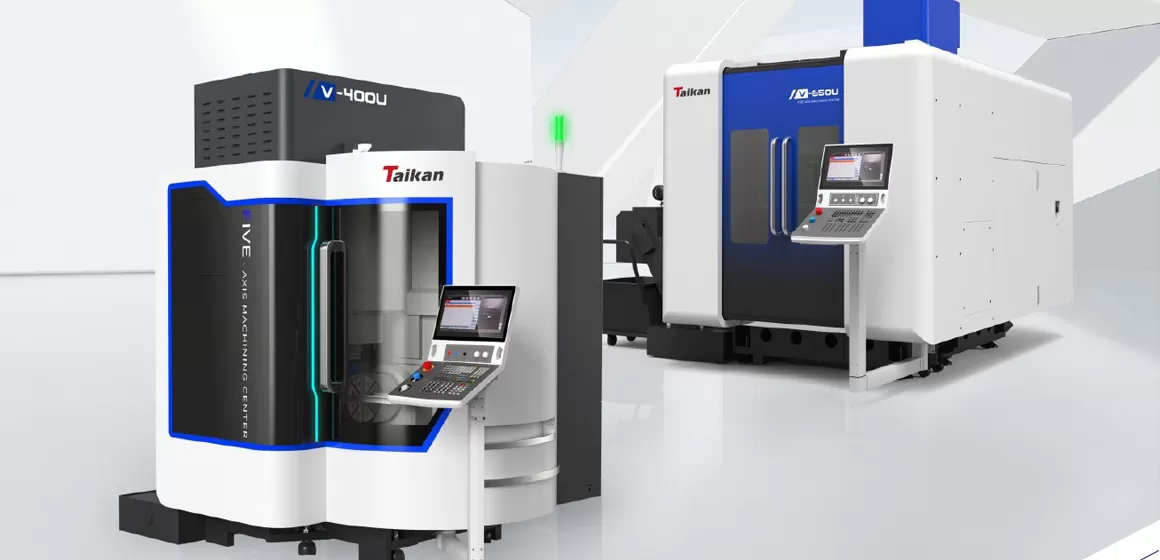

When 5-Axis Machining Reduces Setups and Improves Process Control

Five-axis machining becomes attractive when complex surfaces or multiple faces need to be machined while maintaining their relationship to one another. Instead of repeatedly removing, repositioning, and re-clamping the workpiece, the machine can orient the component or cutting tool to access additional features within the same setup.

This capability can be particularly valuable for aerospace components, precision molds, medical parts, complex housings, impellers, and other components with compound angles or closely related features.

Manufacturers evaluating a 5 axis cnc machine china manufacturing solution should therefore look beyond the number of controlled axes. The more important questions include usable working envelope, rotary-axis configuration, spindle performance, positioning accuracy, tool capacity, control system, and whether the machine structure matches the actual workpiece.

The major production advantage of five-axis machining is often process consolidation. Fewer setups may lead to:

• Shorter non-cutting time between operations

• Reduced dependence on multiple fixtures

• Better positional consistency between machined features

• Improved access to difficult surfaces

• Reduced work-in-process between machines

That does not mean every complex-looking part requires five-axis machining. If the majority of production consists of straightforward three-axis operations, the additional capability may not provide enough productivity improvement to justify the extra investment, programming requirements, and operator training.

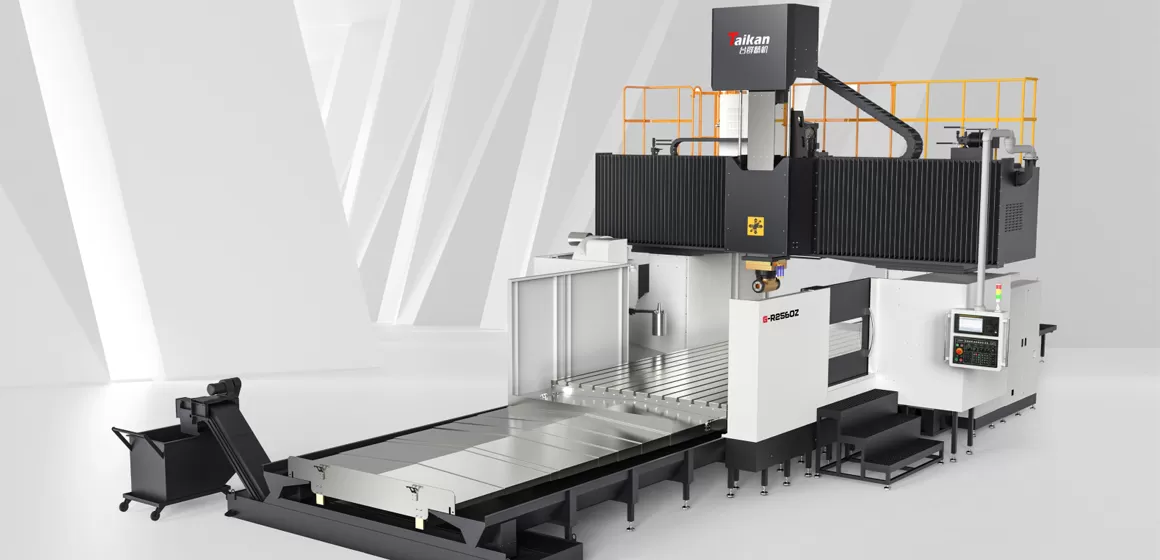

When a Gantry Machining Center Becomes Necessary

Workpiece scale is often the main reason manufacturers move toward a gantry configuration. Large molds, machine bases, structural components, energy equipment parts, and oversized plates may require much greater X-, Y-, and Z-axis travel than a conventional vertical machine can provide.

A gantry machining center typically uses a bridge or gantry structure spanning the work area. This architecture allows manufacturers to machine large or heavy workpieces while maintaining the structural rigidity required for demanding cutting operations.

Gantry machines are therefore usually selected not simply because a part is complicated, but because its dimensions, weight, machining area, or metal-removal requirements demand a larger and more rigid platform.

Important selection factors include table dimensions, permissible workpiece weight, axis travels, distance between columns, spindle configuration, torque characteristics, and the accessibility required for loading large components.

For some applications, five-axis capability may also be incorporated into a gantry machine. In those cases, the machine combines a large working envelope with multi-face machining capability, which can be useful for complex aerospace structures, molds, and other large precision components.

Production Volume Can Change the Best Machine Choice

Machine selection should also consider how the part will be produced, not simply whether the machine is technically capable of producing it.

A manufacturer producing several hundred relatively simple aluminum components may gain more from short tool-change time and fast drilling and tapping cycles than from advanced multi-axis interpolation. For hole-intensive small and medium-sized components, a dedicated drilling and tapping center may even offer a more efficient production route than selecting a larger general-purpose machining center.

In contrast, manufacturers producing low volumes of high-value complex components may place greater emphasis on reducing setups and protecting dimensional relationships. In these situations, a 5-axis machine can improve overall process efficiency even when its individual cutting operations are not dramatically faster.

Large-component manufacturers face another calculation. Loading and realigning a heavy part multiple times can consume substantial production time, making sufficient machine travel and one-setup machining capability especially important.

Compare Total Process Efficiency, Not Only Machine Price

Purchase price is only one component of machining cost. A machine that appears more economical initially may create additional fixture costs, setup labor, workpiece handling, secondary operations, or inspection requirements.

When comparing machine configurations, manufacturers should consider the complete production process:

• How many setups does the part require?

• How long does each setup take?

• Are special fixtures necessary?

• How many machines are required to finish the component?

• Can operators easily load and inspect the workpiece?

• Will future parts require greater complexity or size?

• What spindle speed, torque, and rigidity are required for the material?

Evaluating these factors makes it easier to identify which machine can deliver the lowest practical cost per finished part rather than simply the lowest acquisition cost.

FAQ

Is a 5-axis machining center always more accurate than a vertical machining center?

Not automatically. Accuracy depends on machine construction, axis positioning, thermal control, tooling, fixtures, programming, and process conditions. A major advantage of five-axis machining is that fewer setups can reduce accumulated positioning errors on complex multi-face components.

When should I choose a vertical machining center instead of a 5-axis machine?

A vertical machining center is often the more economical choice when most parts require three-axis machining, are easy to fixture, and do not require frequent repositioning to reach complex surfaces.

What type of parts normally require a gantry machining center?

Gantry machines are commonly considered for large molds, machine structures, oversized plates, aerospace structural parts, energy equipment components, and other workpieces requiring large travels or high table load capacity.

Can a gantry machining center also perform 5-axis machining?

Yes. Some gantry machining centers can be configured with five-axis heads or other multi-axis systems. This allows large workpieces to benefit from both an expanded machining envelope and multi-angle machining.

What information should be prepared before choosing a machining center?

Manufacturers should ideally provide workpiece drawings, material, dimensions, weight, tolerances, surface requirements, expected annual volume, machining operations, tooling requirements, and current production challenges. These details allow a machine configuration to be evaluated according to the real manufacturing process.

Conclusion

There is no single machining center configuration that is best for every manufacturer. Vertical machining centers provide a practical balance of flexibility and productivity for many general machining applications. Five-axis machines become increasingly valuable as part geometry becomes more complex and setup reduction becomes important, while gantry machining centers address the size, weight, rigidity, and machining-envelope requirements of large components.

The most effective selection process starts with the workpiece and follows the complete production route. By comparing part geometry, machine travel, number of setups, cutting requirements, batch size, fixture strategy, and future production needs, manufacturers can select a machining center that improves not only machining capability but also overall production efficiency.
