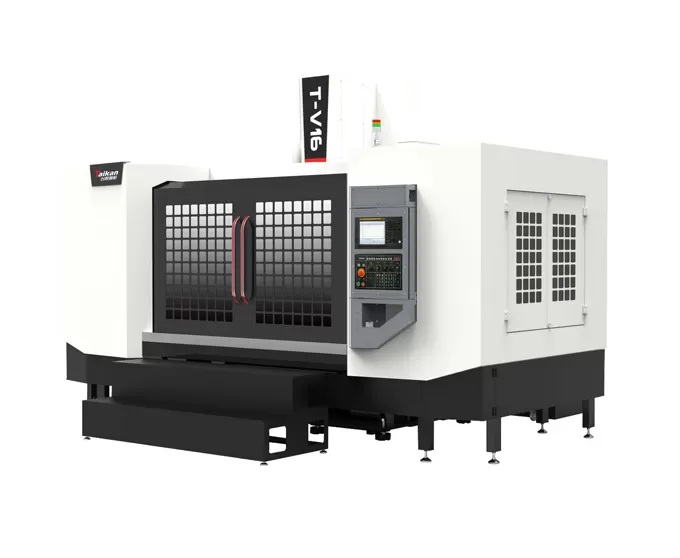

T-V16 Light Cutting Vertical Machining Center

Travel

Table travel (X axis)

mm

1600

Saddle travel (Y axis)

mm

650

Headstock travel (Z axis)

mm

590

Distance from spindle nose to table surface

mm

100-690

Distance from spindle center to column guide surface

mm

707

Worktable

Table size

mm

1700*650

Max. load (even load-bearing)

kg

800

T-slot (number of slots - slot width * spacing)

mm

5-18*125

Spindle

Motor power (rated/short time)

kW

7.5/11

Motor torque (rated/short time)

N.m

35.8/95.5

Speed range

r/min

20-12000

Spindle diameter

mm

Ф150

Spindle taper

/

BT40

Rivet specifications

/

1-15000

Speed

Cutting feed speed range

mm/min

30/36/36

X/Y/Z axis rapid traverse speed

m/min

0.015

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.008

GB/T18400.4（Full travel）

Repeatability (X/Y/Z)

mm

0.01

Tool magazine

Tool capacity

pcs

0.006

Max. tool weight

kg

24

Max. tool length

mm

7

Max. tool diameter (full /adjacent empty)

mm

250

Others

Z-axis counterweight

Ф75/Ф150

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

KVA

25

Coolant tank capacity

L

400

Machine size

mm

4000*3900(including steps)*2950

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

7850
