The Ultimate Guide to Diagnosing & Resolving ATC Arm Hang-Ups on Machining Centers

In the field of precision manufacturing, the arm-type Automatic Tool Changer (ATC) of a machining center is a critical component that directly determines machining efficiency and continuous operational capability. When a "tool change hang-up" (often referred to as a "tool change crash" or "stuck ATC arm") occurs, it not only interrupts the production cycle but can also cause irreversible damage to precision components such as the spindle taper and the ATC arm cam box. This article provides a systematic analysis of the root causes of arm-type ATC hang-ups from an integrated electromechanical and software perspective. It also presents a standardized troubleshooting procedure and preventive maintenance strategies to help businesses improve Overall Equipment Effectiveness.

I. Mechanism and Root Cause Analysis of Tool Change Hang-Up Failures

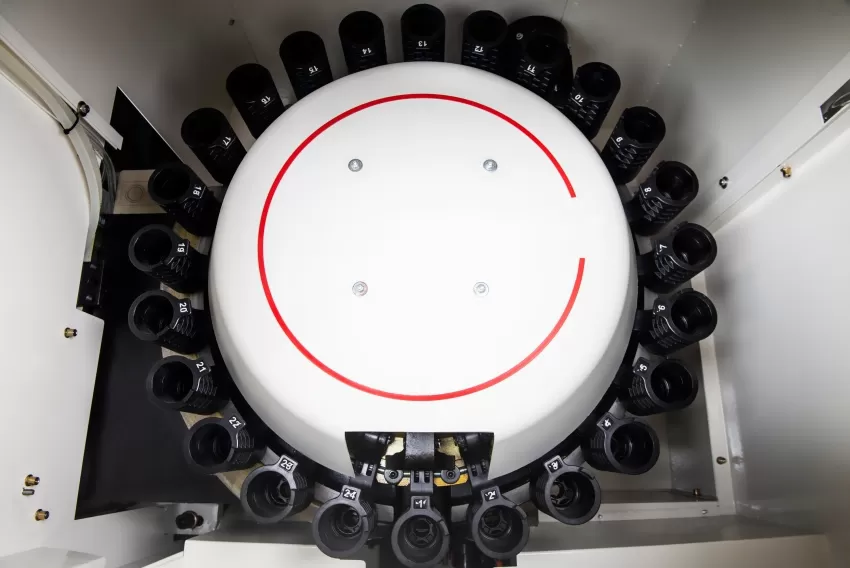

A tool change hang-up essentially indicates a mismatch in the spatial position, motion sequence, or status signals among the ATC arm, the spindle, and the tool pot during the tool change cycle. The causes can be summarized into the following five categories:

1. External Environmental Factors & Power Interruption

The CNC system relies on continuous, stable control signals and power sources during the execution of the tool change macro program. A sudden power failure, compressed air pressure dropping below the equipment's rated value (typically 0.5–0.7 MPa, depending on the manufacturer's specifications) causing the unclamp cylinder to malfunction, or a loss of hydraulic pressure can all cause the ATC arm to stop midway during the gripping or clamping phase, resulting in a mechanical lock-up in an intermediate position.

2. Improper Operator Intervention

If the operator presses the Emergency Stop (E-STOP) or RESET button while a tool change cycle is in progress, it interrupts the sequence control commands issued by the Programmable Machine Controller (PMC). At this point, the ATC arm motor stops, but components like solenoid valves and the angular position of the ATC arm remain in an intermediate state, preventing the system from automatically recovering.

3. Mechanical Interference & Deformation

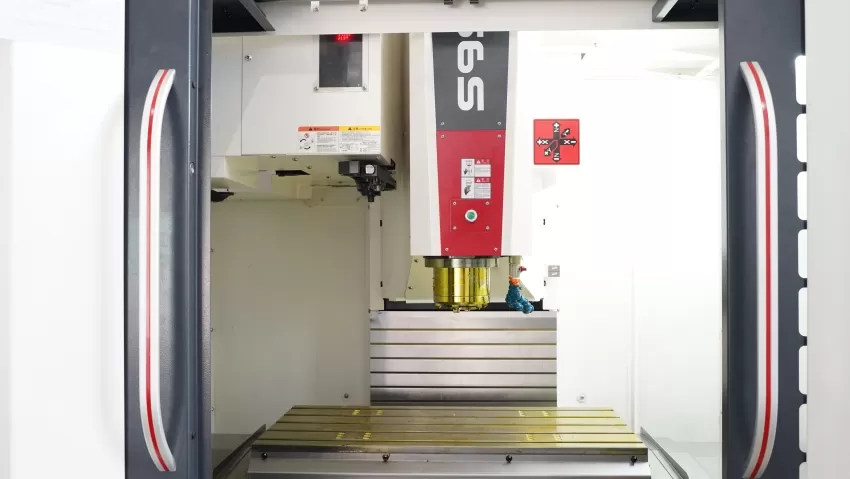

The precision fit between the curved surface of the ATC arm and the V-groove of the tool holder is extremely high. A machine crash during machining, or a tool not being fully seated in the tool pot causing the ATC arm to impact the tool holder during rotation, can lead to deformation of the ATC arm, loosening of the linkage mechanism, or damage to the roller bearings inside the cam box. These issues result in mechanical jamming.

4. Electrical Issues & Parameter Setting Deviations

The tool change position is determined by a combination of proximity switches (e.g., ATC arm home position, brake position, grip position) and PMC logic or ATC servo parameters. Errors can occur if the absolute position is lost due to low battery voltage, if the tool change position offset is altered due to operational errors, or if a sensor (proximity switch) malfunctions due to oil contamination or chips. In such cases, the system triggers an alarm and aborts the tool change cycle because it fails to receive the correct in-position signal.

Note: The specific parameter numbers and setting methods for tool change positions vary by equipment manufacturer (e.g., Fanuc, Mitsubishi, Siemens) and ATC drive type (hydraulic, servo). On-site maintenance should always refer to the "Tool Change Position Setting" or "ATC Parameter List" in the equipment manual.

5. Mechanical Wear & Fatigue Failure

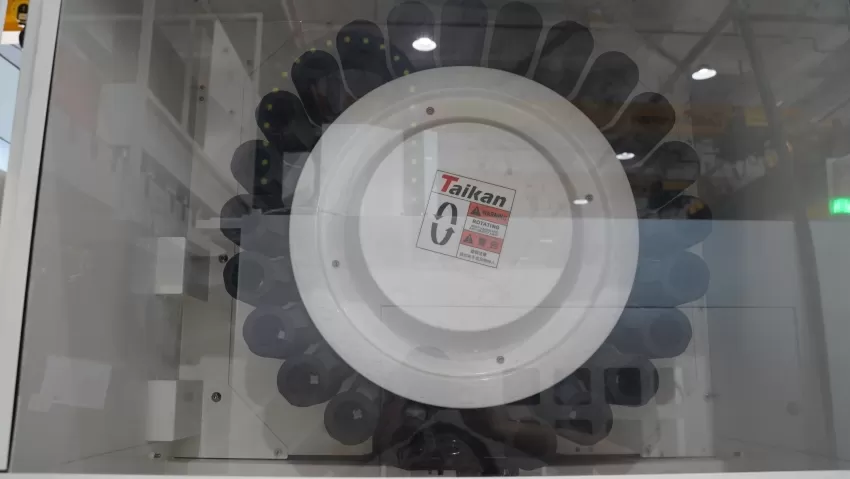

Over long periods of high-frequency tool changes, components such as the cam surfaces inside the ATC cam box, the pins of the tool pot chain, and the tool clamping mechanism on the ATC arm can wear out. When wear exceeds tolerance limits, the repeatability of the tool change motion degrades, significantly increasing the likelihood of issues like improper tool gripping or tools falling out, which can lead to hang-ups.

II. Standardized Troubleshooting Procedure

When a tool change hang-up occurs, follow a standardized procedure: "Emergency Stop & Energy Isolation → Status Confirmation → Manual Return → Signal Verification." Avoid any forced or violent actions.

1. Emergency Stop & Energy Isolation

Immediately press the Emergency Stop button to disable the servo motor enables. If pneumatic or hydraulic power sources are present, close the corresponding shut-off valves to prevent unexpected machine movement during manual operations. The system is now in a safe, locked-out state.

2. Fault Observation & Diagnosis

Access the PMC signal diagnostic screen and record the current alarm code and diagnostic parameters (e.g., F-signals or G-signals). Pay close attention to the following:

• Is the ATC arm in the horizontal position (grip position) or the vertical position (home position)?

• Has the spindle unclamp switch been triggered?

• Is the tool pot fully tilted down (in the ready position)?

This information helps determine whether the hang-up occurred during the "grip," "clamp," or "return to home" phase of the tool change cycle.

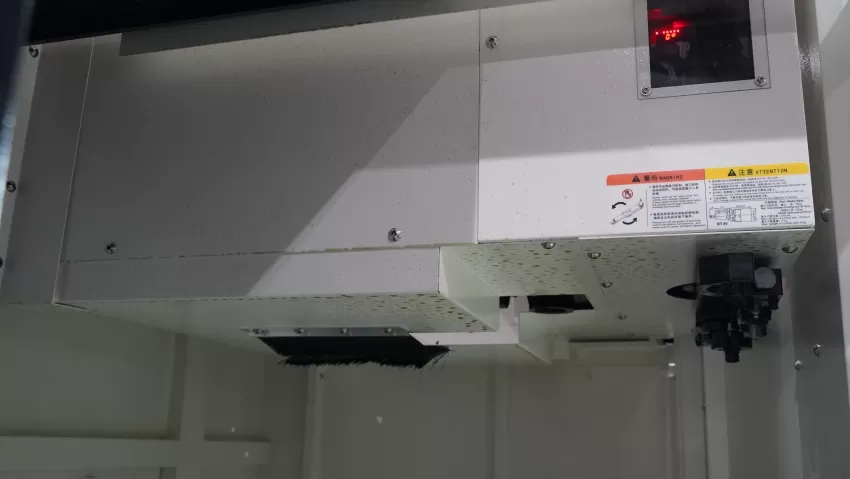

3. Manual ATC Arm Repositioning (Electrical Reset Method)

For servo motor-driven ATC arms, first try the system's built-in "ATC Arm Manual Reset" function (usually activated via a PMC switch or M-code). If this function is unavailable, follow the manual procedure:

• Preparation: Access the machine's hydraulic or pneumatic control panel. Use the manual override valve (or use a hex key to manually actuate the solenoid valve spool) to force the spindle to unclamp, ensuring the ATC arm is not held by the spindle taper.

• Motor Shaft Operation: Locate the square drive (or slot) at the rear of the ATC arm motor. Use the appropriate specialized wrench to rotate it slowly and steadily. The rotation direction should follow the ATC arm's mechanical home direction (typically clockwise or counterclockwise; refer to the equipment manual). If you encounter a sudden increase in resistance, stop immediately and inspect the cam box for foreign objects.

• Tool Removal: After manually rotating the ATC arm so that it disengages from the spindle taper or tool pot, examine the ATC arm gripper structure. For arms with a spring-clamp mechanism, gently pry open the gripper's spring clip using a flathead screwdriver, or loosen the locking screw on the arm to release the clamping force on the tool holder pull stud. While doing this, support the tool with one hand and carefully remove it with the other to prevent it from falling and damaging the worktable or machine enclosure.

4. Homing and Precision Verification

Once the ATC arm is manually returned to its home position (usually vertical), release the Emergency Stop button. In MDI mode, execute the M-codes to return the tool pot to the magazine and to return the ATC arm to its home position. Confirm that all status indicator lights are normal. Then, perform a dry run tool change (without an actual tool in the arm) to observe the smoothness of the motion and listen for any unusual noises. If the tool change position appears incorrect, recalibrate the change position using the parameter interface specified by the machine tool builder.

If the above steps do not resolve the issue, or if you observe severe abnormal noises from the cam box, significant deformation of the ATC arm, or damage to the spindle taper, stop immediately and contact the equipment manufacturer's service engineer for professional repair.

III. Systematic Prevention and Maintenance Strategies

To fundamentally reduce the occurrence of tool change hang-ups, it is recommended to establish a Predictive Maintenance (PdM) system based on data monitoring:

1. Periodic Calibration of Key Components

Calibrate the concentricity between the ATC arm and the spindle taper quarterly using a dial indicator. For tool magazines using a three-point positioning system, ensure the repeatability of the tool pot at the change position is within ±0.05 mm. Regularly inspect the lubrication circuit of the cam box to ensure grease (e.g., lithium-based grease) reaches the cam surfaces to minimize friction and wear.

2. Electrical System & Parameter Backup Management

Regularly back up CNC parameters, PMC programs, and macro programs via CF card or Ethernet. This is especially critical for tool-change-related macro variables (e.g., #1000 series) and ATC servo parameters to prevent positional errors caused by parameter loss.

3. Operational Standards & Signal Monitoring

Strengthen operator training, emphasizing that the Emergency Stop or RESET buttons should never be pressed during a tool change cycle, especially when the ATC arm is in motion. Consider adding "tool change cycle interruption prevention" logic to the ladder program. Utilize the CNC system's waveform diagnostic functions to periodically monitor the response times of critical signals like spindle unclamp and ATC arm motion, allowing you to predict the performance degradation of solenoid valves or proximity switches.

4. Power Source Cleanliness Management

Ensure the functionality of the Filter-Regulator-Lubricator (F.R.L.) unit in the air supply system. Maintain stable pressure within the rated range (typically 0.5–0.7 MPa, strictly follow the equipment specifications). Regularly drain condensate from the air receiver tank. Insufficient air pressure is a primary cause of incomplete spindle unclamping, slow tool pot tilting, or failure to locate the ATC arm. This must be a key item in daily inspections.

Conclusion

The stability of the arm-type Automatic Tool Changer is a core indicator of a machining center's reliability. When faced with a tool change hang-up fault, employing scientific and rigorous troubleshooting methods, combined with regular precision calibration and condition monitoring, can effectively reduce Mean Time To Repair and extend equipment lifespan. By establishing robust operating standards and a comprehensive maintenance system, manufacturers can significantly enhance the continuous operation capabilities of their automated production lines, providing a solid foundation for high-precision, high-efficiency smart manufacturing.
