What is the difference between Horizontal and vertical machining centers？

In the competitive landscape of modern manufacturing, selecting the right CNC equipment is the cornerstone of profitability and precision. For machine shop owners and production managers, the debate often comes down to one critical decision: Vertical Machining Center (VMC) vs. Horizontal Machining Center (HMC).

While both platforms utilize rotary cutting tools to remove material from a workpiece, their structural designs dictate distinctly different capabilities. Understanding the nuanced differences between VMC and HMC technologies is essential for optimizing cycle times, maximizing ROI, and scaling your manufacturing solutions.

Here is an in-depth, professional comparison of vertical and horizontal CNC machining centers to help you make an informed investment.

What is a Vertical Machining Center (VMC)?

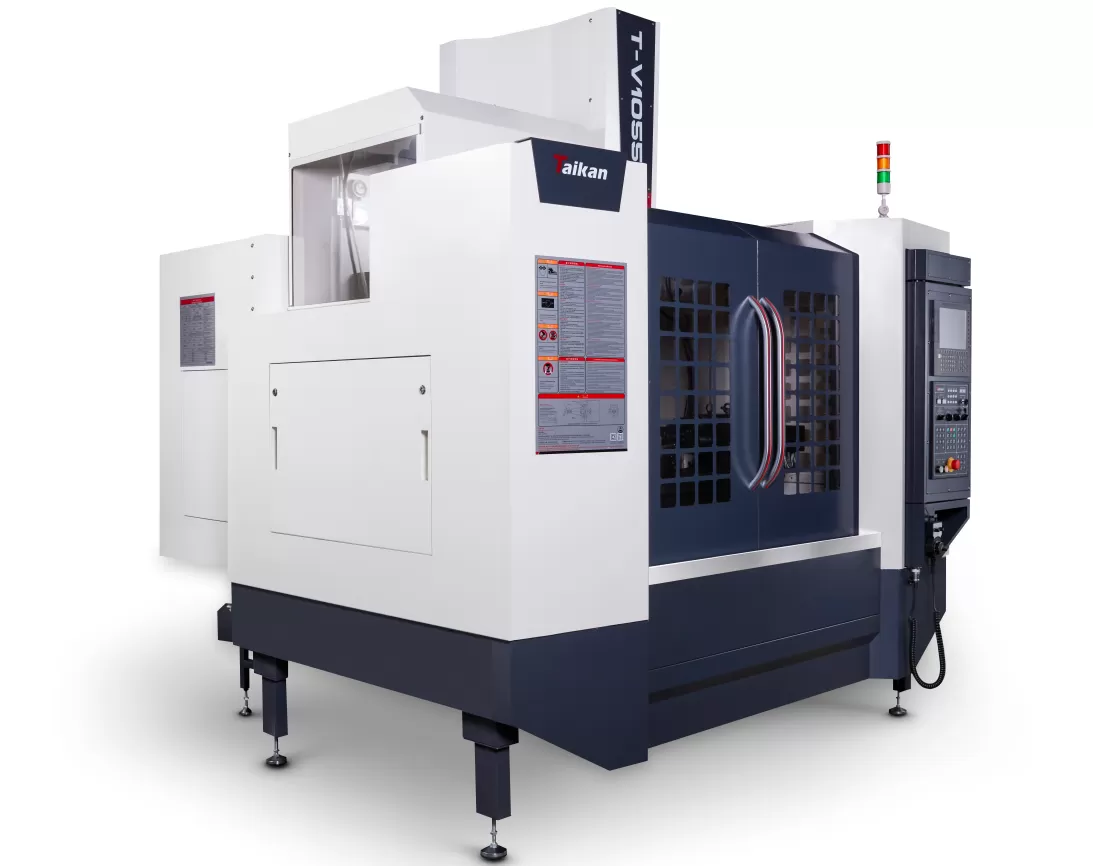

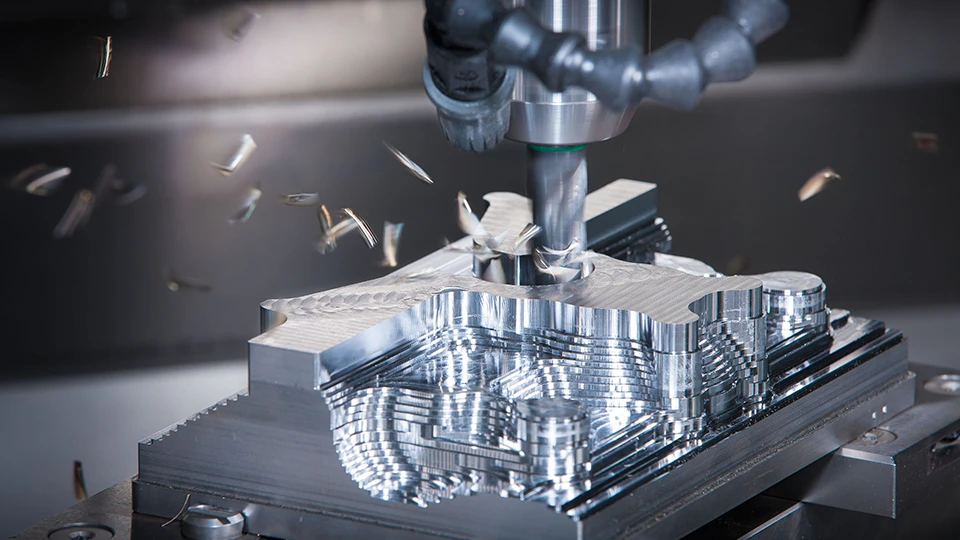

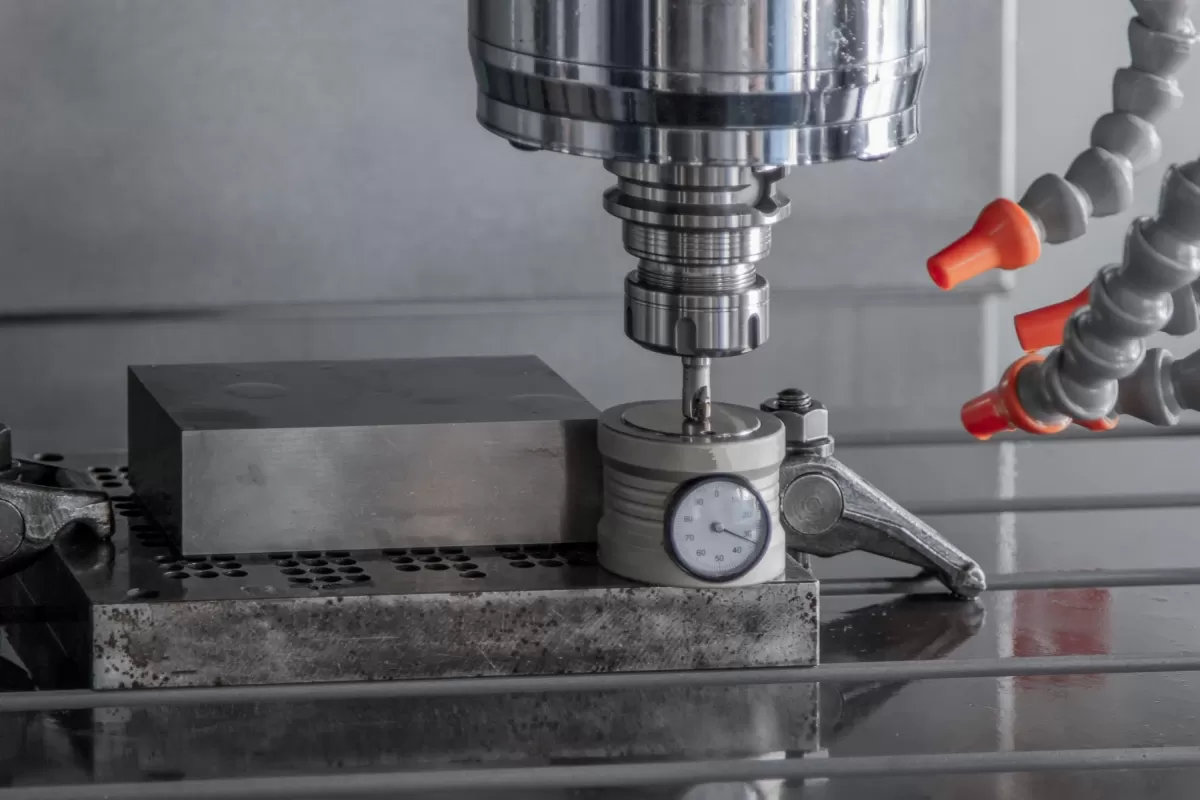

A Vertical Machining Center (VMC) features a vertically oriented spindle axis. The cutting tool reaches down from above to mill the top surface of the workpiece, which is typically mounted on a standard worktable.

Best for: Flat parts, plate work, mold cavities, and single-sided machining operations.

Key Advantages of VMC

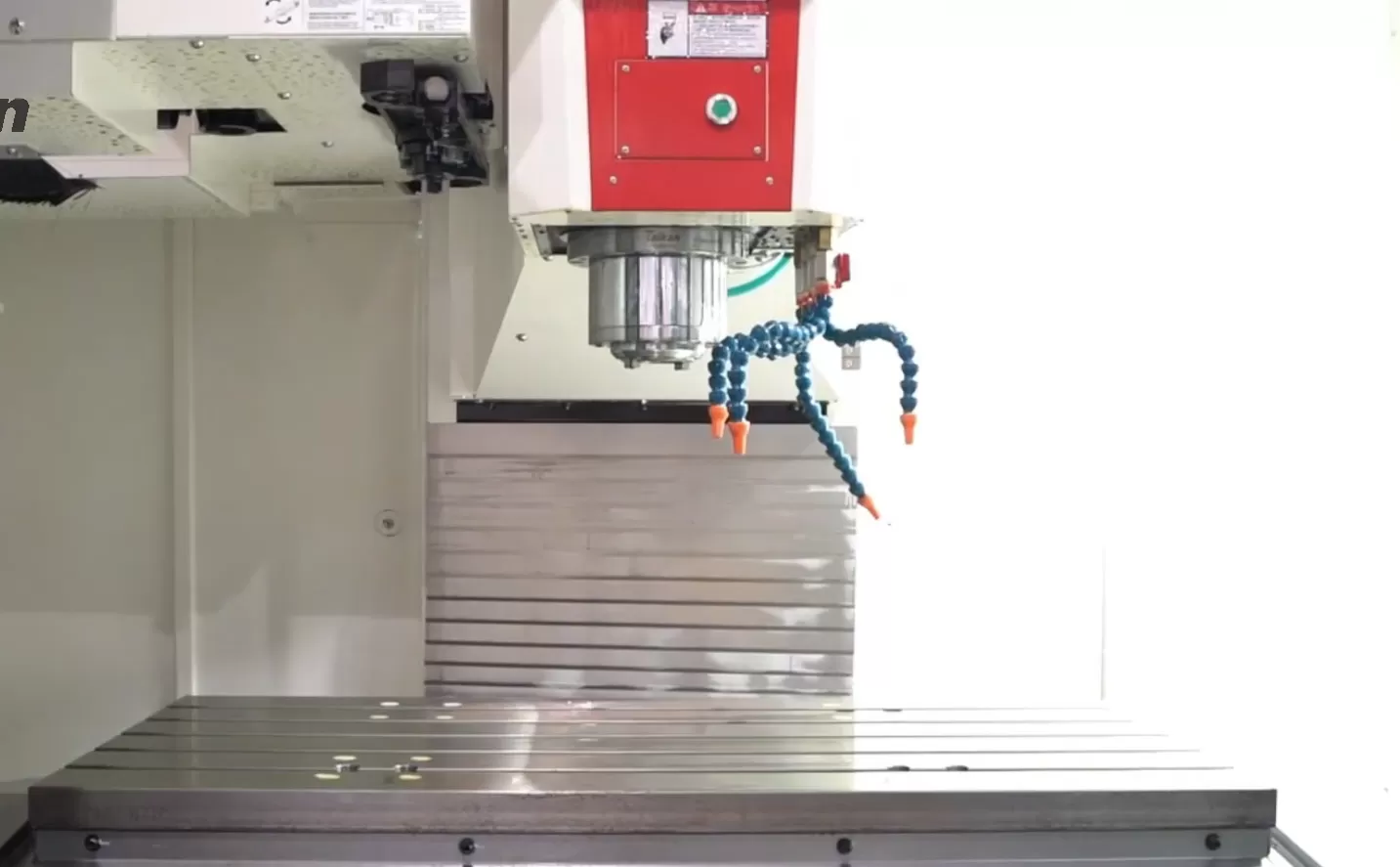

• Ease of Setup and Operation: Because the spindle is positioned above the table, operators have a clear, unobstructed view of the cutting action. This makes VMCs highly intuitive for setup, troubleshooting, and custom fixture design.

• Lower Initial Investment: VMCs are structurally less complex than their horizontal counterparts, resulting in a significantly lower upfront capital expenditure.

• Compact Footprint: Generally, vertical CNC machines consume less floor space, making them ideal for job shops with limited square footage.

• Versatility in Short Runs: Excellent for high-mix, low-volume production and rapid prototyping.

Limitations of VMC

• Poor Chip Evacuation: Gravity works against the VMC. Chips tend to pool in deep cavities, which can cause recutting, accelerated tool wear, and poor surface finishes if not managed with high-pressure coolant.

• Limited Multi-Sided Machining: Machining multiple sides of a part usually requires manual repositioning (flipping the part), increasing the risk of tolerance stacking and adding non-productive time.

What is a Horizontal Machining Center (HMC)?

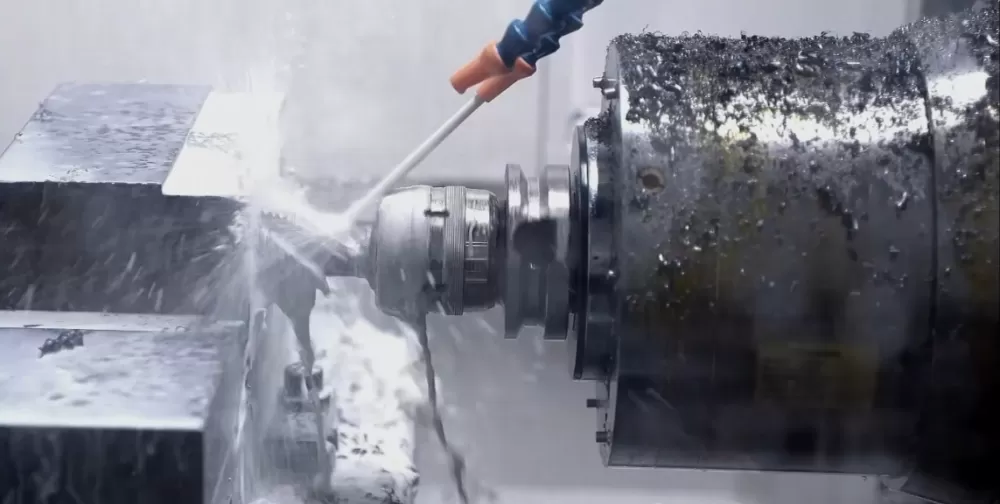

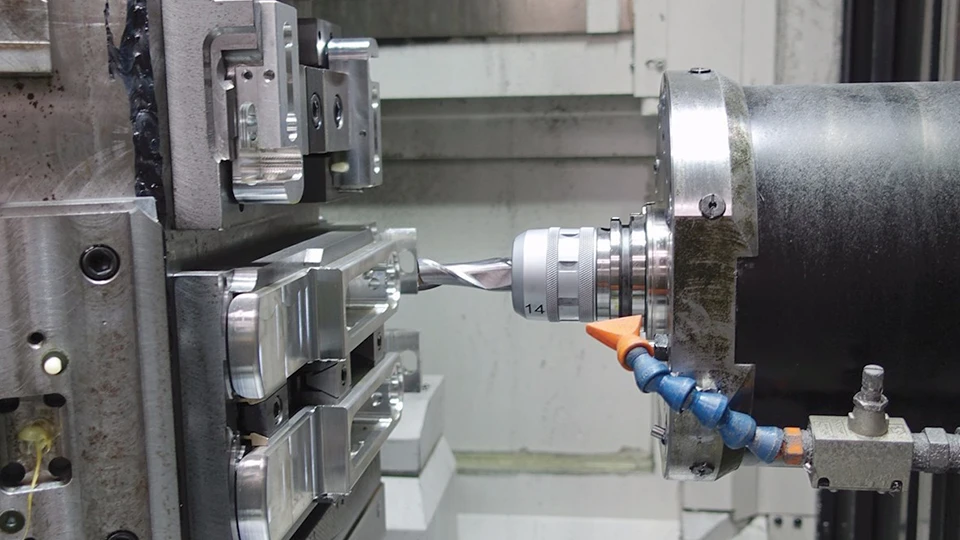

A Horizontal Machining Center (HMC) utilizes a horizontally oriented spindle axis parallel to the floor. HMCs are built for heavy-duty, high-volume production and typically incorporate an integrated Automatic Pallet Changer (APC) and a rotary table (B-axis).

Best for: Complex boxy parts, heavy material removal, and high-volume continuous production.

Key Advantages of HMC

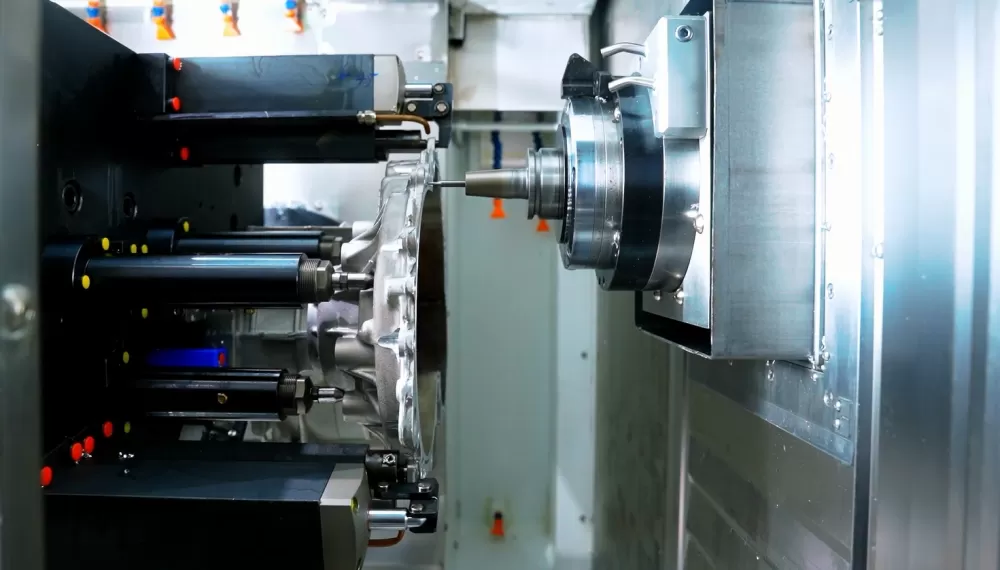

• Superior Chip Evacuation: Gravity is the HMC’s greatest ally. As the horizontal spindle cuts, chips naturally fall away from the workpiece, extending tool life and ensuring a pristine surface finish.

• High-Volume Efficiency (Tombstone Fixturing): The integration of tombstone fixtures allows multiple parts to be mounted on several faces simultaneously. Coupled with a 4th-axis rotary table, the spindle can access three or four sides of a part in a single setup.

• Uninterrupted Machining: Thanks to the standard Automatic Pallet Changer (APC), an operator can load, unload, or inspect parts on one pallet while the machine continues to cut on the other. This drastically reduces spindle downtime.

• Higher Rigidity: HMCs are engineered with a heavier cast-iron base to absorb severe vibrations, allowing for heavier cuts, faster feed rates, and superior precision in hard alloys.

Limitations of HMC

• Steep Capital Investment: An HMC typically costs 2 to 3 times more than a VMC of comparable working envelope.

• Complex Programming and Setup: Operating an HMC, especially with multi-part tombstone fixtures and pallet changers, requires advanced CAM programming skills and specialized workholding solutions.

• Larger Footprint: HMCs demand significantly more floor space due to the pallet changers and bulkier machine enclosures.

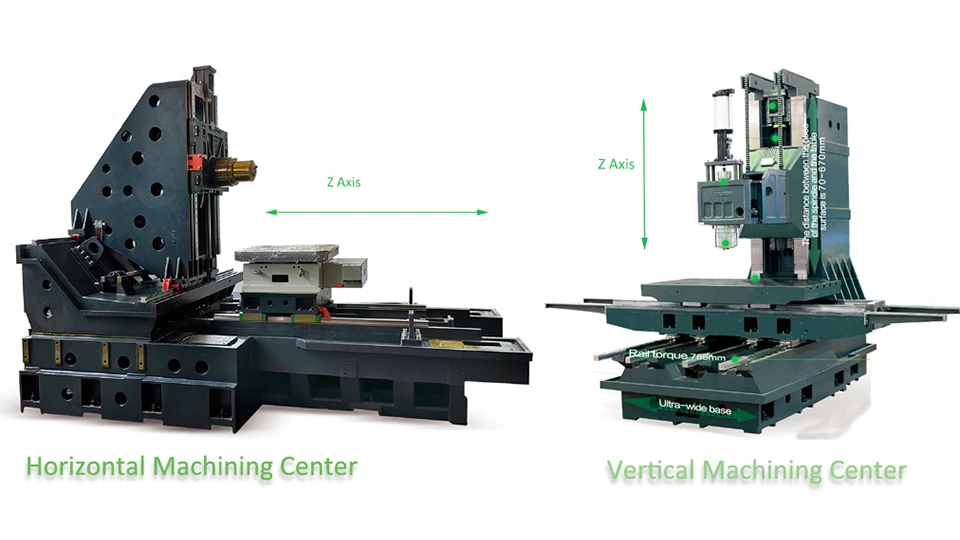

VMC vs. HMC: The Core Comparison

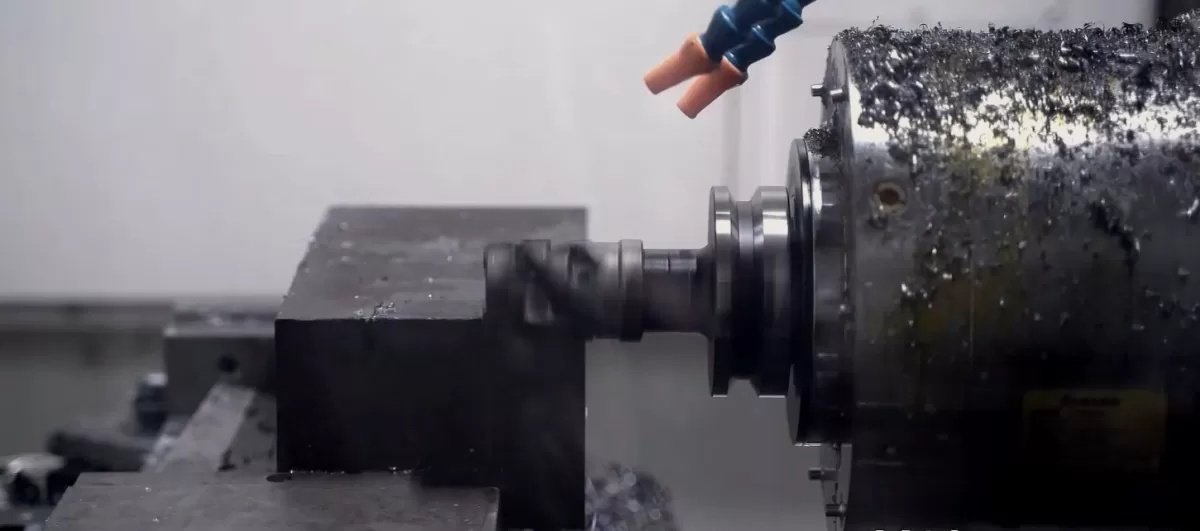

To help you streamline your purchasing decision, here is a direct comparison across the most critical manufacturing metrics:

How to Choose the Right CNC Machine

Choosing between a VMC and an HMC ultimately boils down to your shop's specific applications and business model.

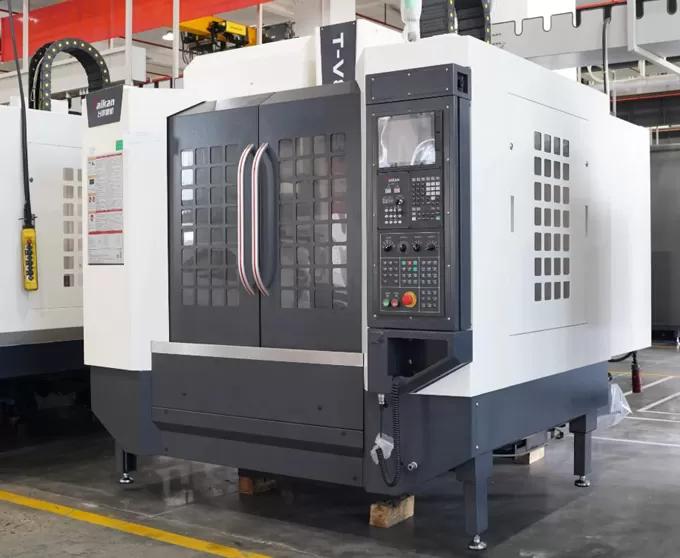

Invest in a Taikan vertical machining center if:

• You are a job shop handling single-part prototyping or small-batch runs.

• Your primary workpieces are flat plates, molds, dies, or large, single-sided aerospace panels.

• You have budget constraints and need a quick return on investment (ROI).

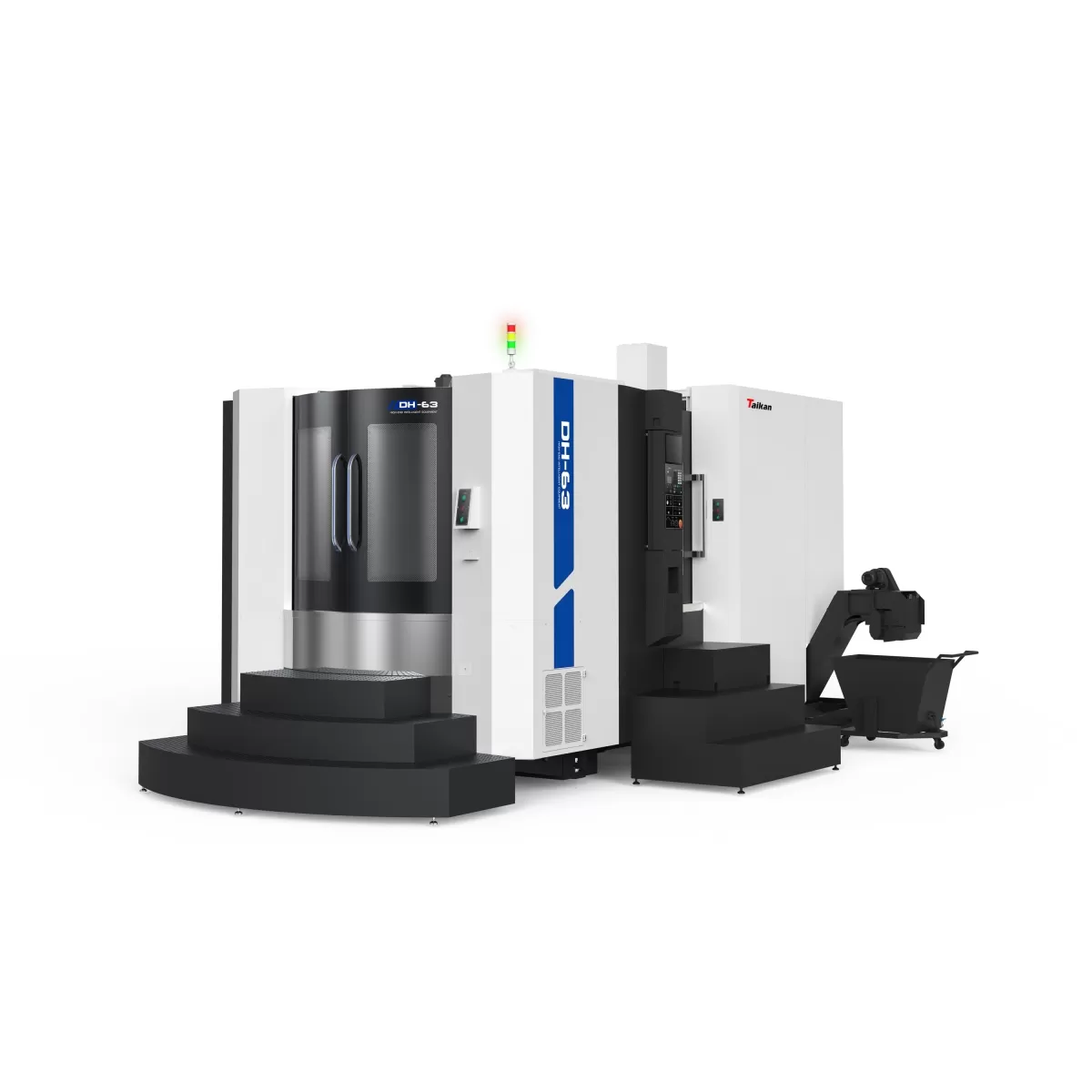

Invest in an high precision cnc horizontal machining if:

• You manufacture complex, multi-sided parts (like engine blocks, pump housings, or gearbox casings).

• Your operation demands high-volume, "lights-out" manufacturing.

• You want to reduce setup times and minimize the labor cost per part through palletization.

Conclusion

In the VMC vs. HMC debate, there is no one-size-fits-all answer. Vertical machining centers offer unmatched versatility and value for low-volume, single-sided work. Conversely, horizontal machining centers are industrial powerhouses, designed to slash cycle times and dominate high-volume production through superior chip control and multi-sided accessibility. By aligning your machine choice with your production strategy, you establish a solid foundation for long-term manufacturing excellence.
