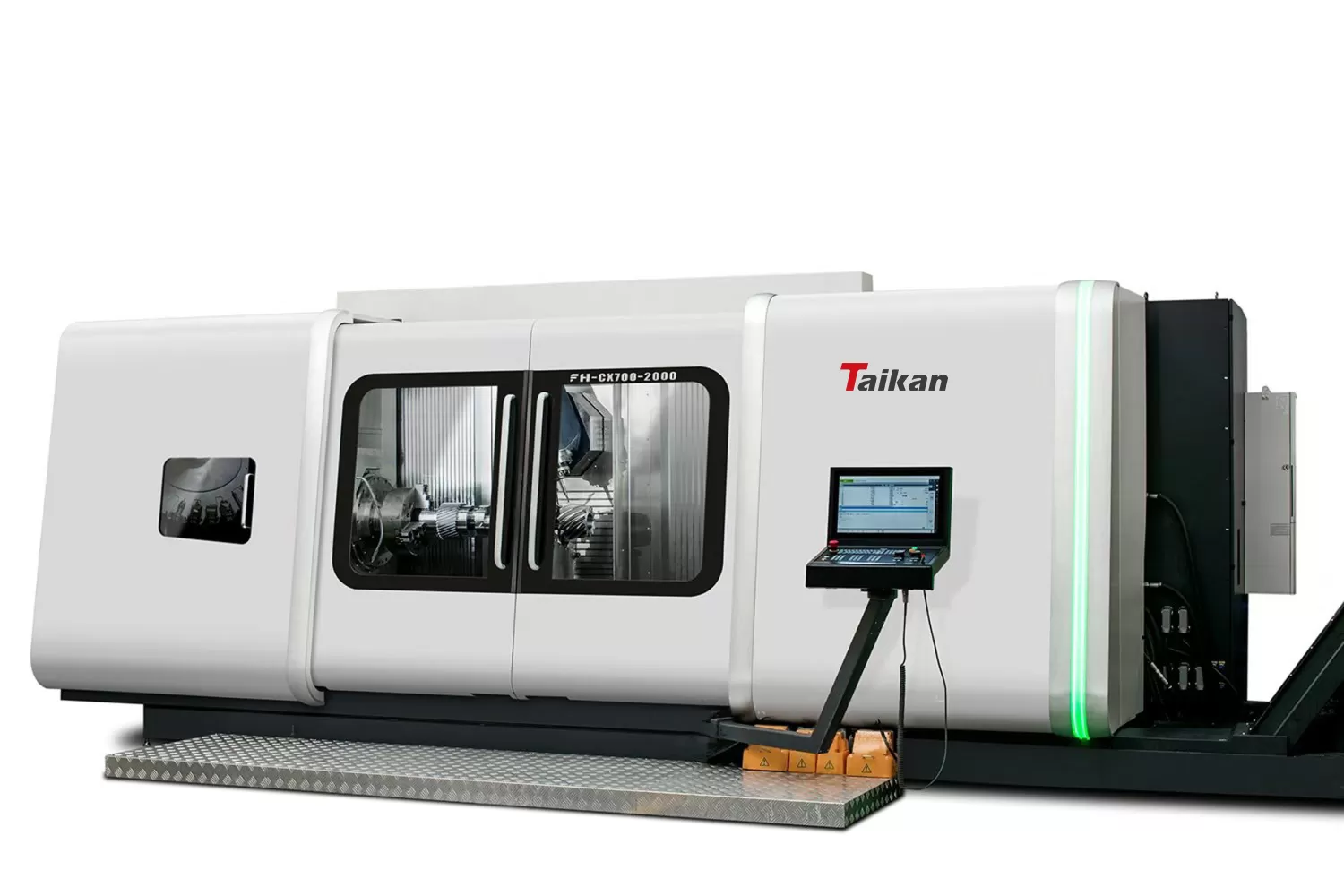

CX700-2000 7-axis 5-axis Simultaneous Turn-Mill Center—One Setup, Endless Possibilities.

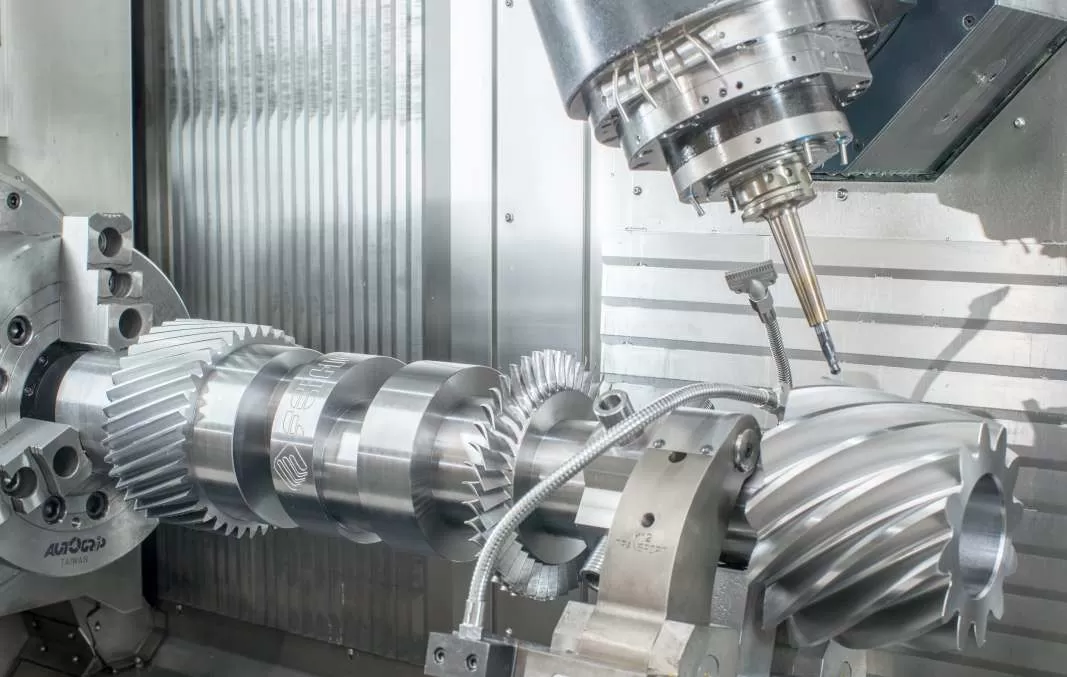

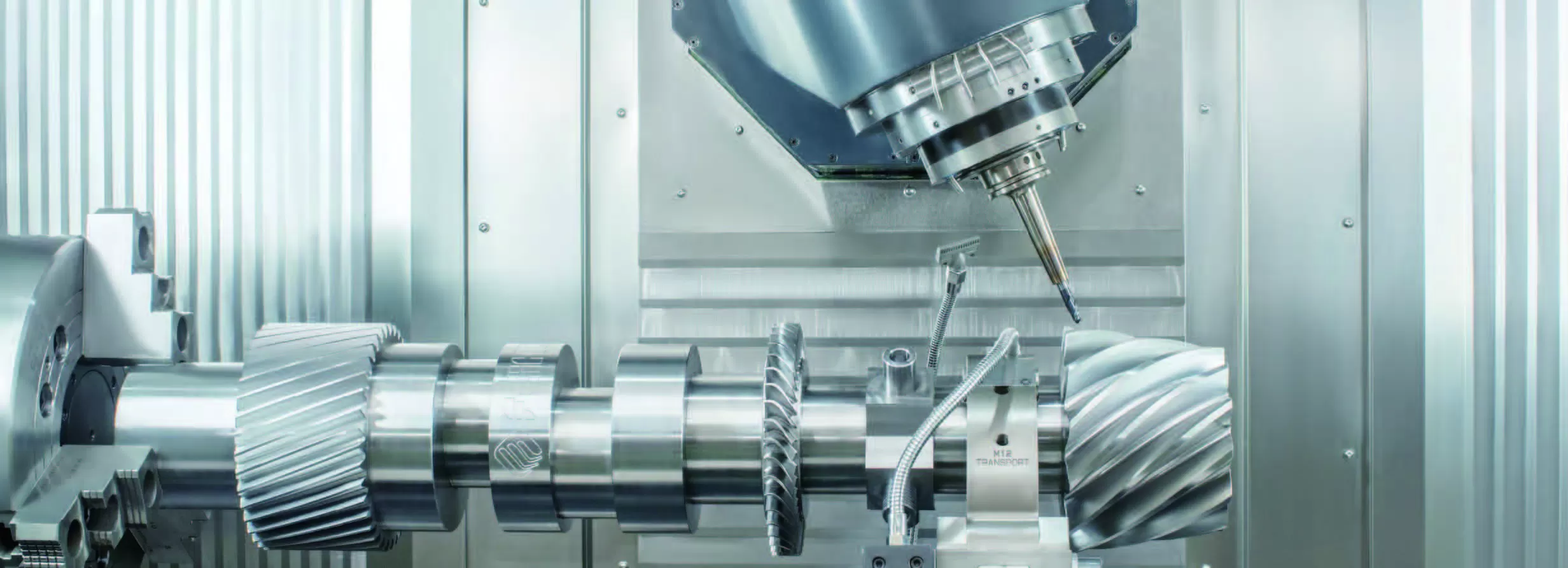

Achieve unparalleled precision with the CX700-2000—a turn-mill center engineered to handle milling, drilling, turning, and complex 5-axis contour machining in a single clamping. Ideal for aerospace rotors, ship propellers, crankshafts, impellers, and other high-value components.

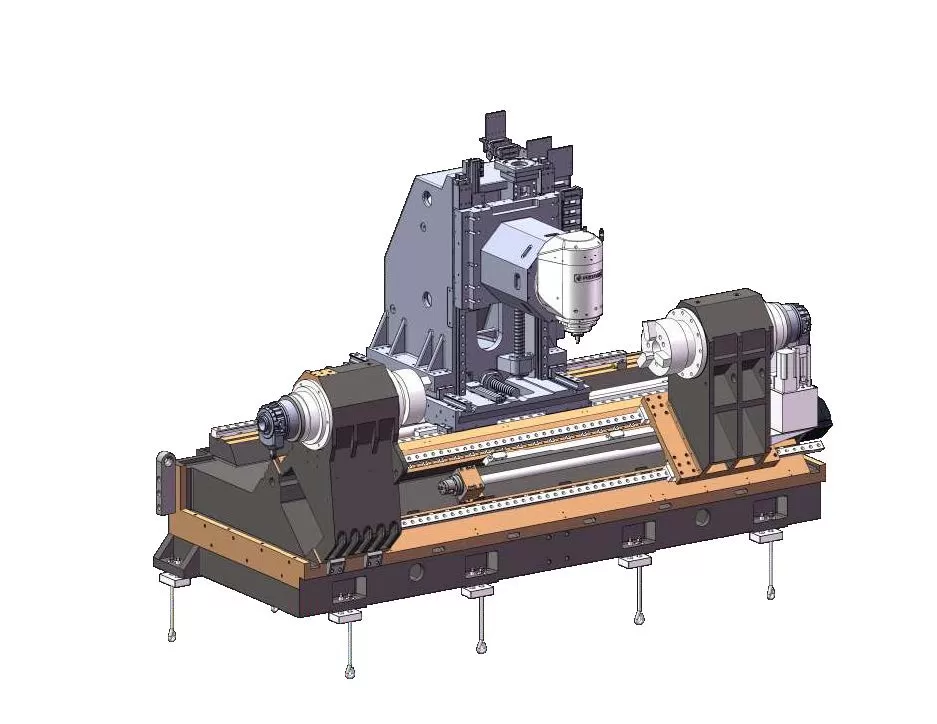

Superior Structural Integrity

The machine base is made of mineral cast, while moving parts are constructed from premium Meehanite cast iron—stress-relieved through tempering and natural aging for exceptional stability and vibration resistance.

Moving-Column Design for Large-Part Machining

With a turning diameter of up to 630 mm and Y-axis travel of 400 mm, the machine supports eccentric and off-center operations. A standard counter-spindle enables complete 6-sided machining and true 5-axis freeform milling.

High-Torque Turning & Milling

A Kessler electric spindle (12,500 rpm, 54 kW, 210 Nm) offers extreme milling precision, supported by external cooling for consistent thermal performance.

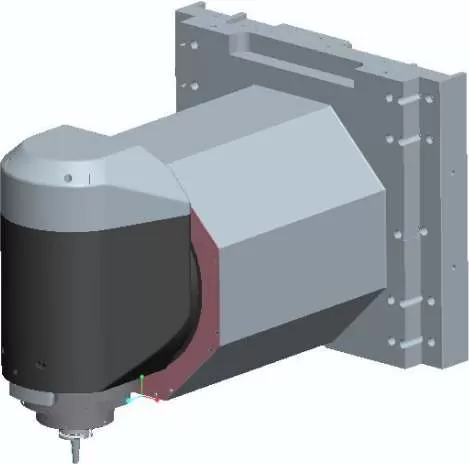

Direct-Drive B-Axis Milling Head

Featuring a built-in torque motor, the tilting milling head ensures zero-backlash operation and superior rigidity. Integrated Heidenhain encoders and full closed-loop control guarantee ultra-precise positioning.

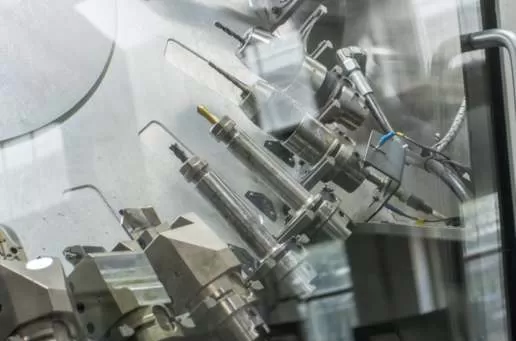

Efficient Tool Management

A high-capacity 36-tool servo-driven magazine enables fast and stable tool changes with high repeatability.

Powerful CNC and Drive System

Siemens S120 drives with 3x overload capacity and 1FT high-dynamics motors are paired with a TCU30.3 + ICP427E HMI control platform, offering robust processing power and smooth operation
