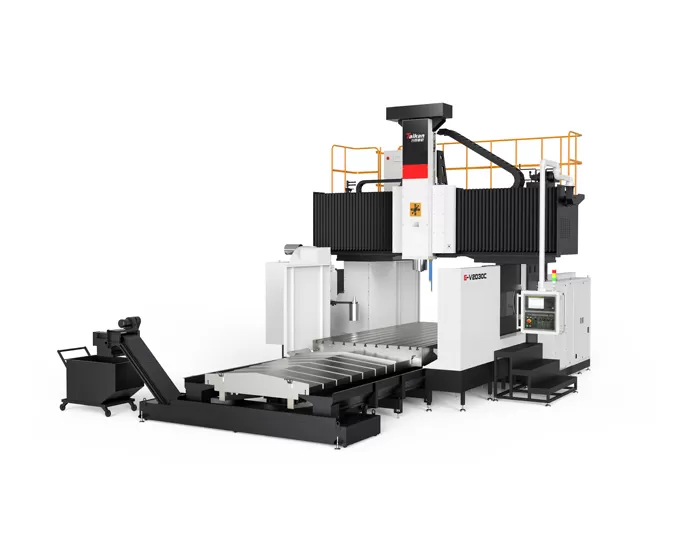

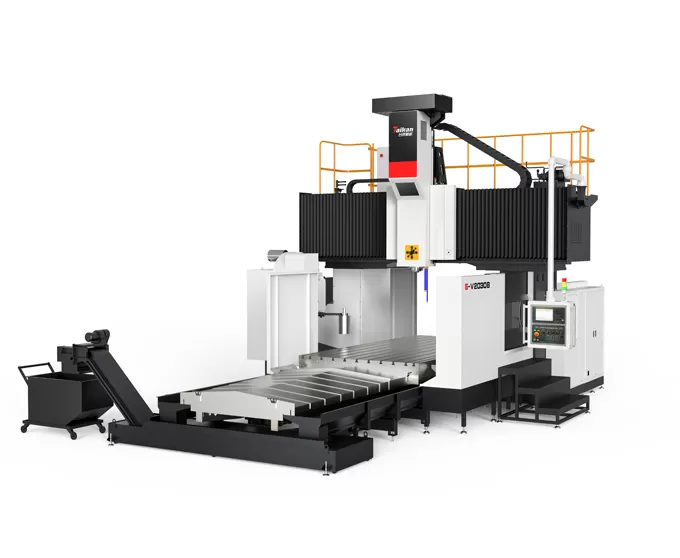

Name: HG-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center
Brand: Taikan Machine
Availability: InStock

Characteristic of HG-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

Machine Structure

The machine features a gantry frame fixed structure with a moving worktable.
High-Rigidity Beam: The beam adopts a rectangular large cross-section arch design. The height-to-width ratio is optimized through simulation analysis, significantly enhancing its bending and torsional resistance, ensuring precision stability.
Large Cross-Section Ram: The ram has a cross-sectional size of 420x420mm, supported by four linear guide rails in a semi-enclosed arrangement. This provides high-strength support with low friction resistance, ensuring zero creep at low speeds, minimal vibration, fast response, and excellent dynamic and static performance, low maintenance requirements, and long service life.
Multiple Support Table: The table is supported by multiple closely spaced slides, ensuring stable and reliable load-bearing performance with excellent precision retention.

Diverse Spindle Options

Feed System

Chip Removal and Coolant Tank

Application of HG-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

The machine series is mainly used for high-speed and high-precision machining of parts in industries such as automotive components, molds, construction machinery, valves, rail transit, energy, agricultural machinery, and coal mining machinery.

Specifications of HG-V2030 A/B/C/Z 3-Axis Linear Guides Gantry Machining Center

Item			Unit	HG-V2030B	HG-V2040B	HG-V2050B	HG-V2060B	HG-V2030C	HG-V2040C	HG-V2050C	HG-V2060C
Travel	X-axis travel		mm	3200	4200	5200	6200	3200	4200	5200	6200
	Y-axis travel		mm	2700				2700
	Z-axis travel		mm	1000(Opt. 1250)				1000(Opt. 1250)
	Distance from spindle end to table		mm	250～1250(Opt. 250～1500)				100～1100(Opt. 100～1350)
	Effective gantry width		mm	2480				2480
Table	Table size (L×W)		mm	2000*3000	2000*4000	2000*5000	2000*6000	2000*3000	2000*4000	2000*5000	2000*6000
	Max. load		kg	15000	19000	22000	25000	15000	19000	22000	25000
	T-slot (Width×Pitch×Qty)		mm	2820011(125 pitch between bilateral T-slot rows)				2820011(125 pitch between bilateral T-slot rows)
Spindle	Drive type		/	Gear drive(Opt. Belt drive)				Motorized spindle
	Max. spindle speed		r/min	6000				10000(Opt. 15000, 18000)
	Spindle power (Rated/Peak)		kW	22/35				26/45
	Torque output (Rated/Peak)		N.m	790/1258				305/623
	Ram section (Square ram)			420420(Opt. Z-Axis box ways 400400, 450*450)				420*420
	Spindle taper		/	BT50				BT50(Opt. BBT40, HSK-A63)
ATC (Opt.)	Number of tools		T	24(40)				24(40)
	Max. tool dia. (Full/Adjacent)		mm	φ110/φ200				φ110/φ200
	Max. tool length		mm	350				350
	Max. tool weight		kg	18				18
Speed	Feed rate range (Cutting)		m/min	10/10/10	8/8/8	8/8/8	6/6/6	10/10/10	8/8/8	8/8/8	6/6/6
	Rapid traverse speed (X/Y/Z-axis)		m/min	15/15/15	10/15/15	10/15/15	10/15/15	15/15/15	10/15/15	10/15/15	10/15/15
Accuracy	Positioning accuracy (Without/With scale)	X	mm	0.027/0.023	0.032/0.028	0.036/0.032	0.041/0.037	0.027/0.023	0.032/0.028	0.036/0.032	0.041/0.037
		Y	mm	0.024/0.021				0.024/0.021
		Z	mm	0.018/0.014				0.018/0.014
	Repeatability (Without/With scale)	X	mm	0.017/0.015	0.020/0.018	0.023/0.021	0.025/0.023	0.017/0.015	0.020/0.018	0.023/0.021	0.025/0.023
		Y	mm	0.014/0.013				0.014/0.013
		Z	mm	0.012/0.011				0.012/0.011
Others	Z-axis counterweight		/	Hydraulic + nitrogen balance				Hydraulic + nitrogen balance
	CNC system		/	FANUC 0I-MF PLUS (Opt. Siemens 828D)				FANUC 0I-MF PLUS (Opt. Siemens 828D)
	Air supply	Flow	L/min	300				300
		Pressure	MPa	0.6~0.8				0.6~0.8
	Total electrical capacity		kVA	60				60
	Coolant tank capacity		L	580				580
	Machine size	Length	mm	7766	10238	12384	14650	7766	10238	12384	14650
		Width	mm	6134				6134
		Height	mm	5200(5900 when Z axis is optional)				5200(5900 when Z axis is optional)
	Machine Enclosure		-	Semi-surrounding sheet metal (work area only)				Semi-surrounding sheet metal (work area only)

Notes:

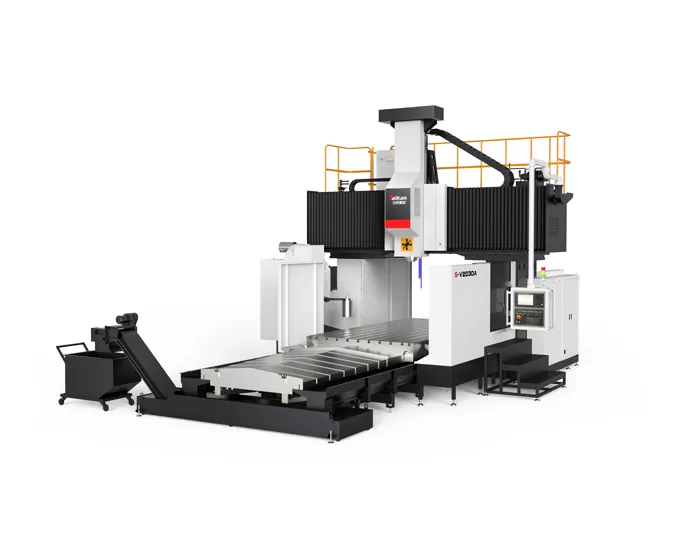

1. Models G-V2030A, G-V2040A, G-V2050A, G-V2060A – Optional 6000 RPM belt-driven spindle, with an output torque of 186/297 N·m.

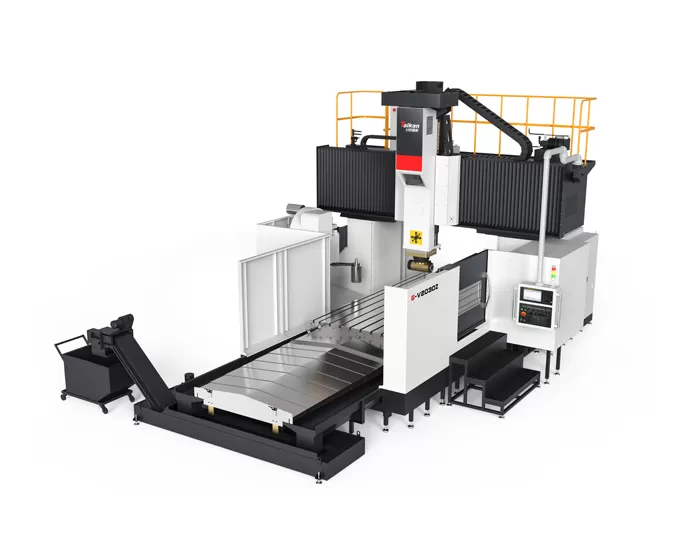

2. Models G-V2030Z, G-V2040Z, G-V2050Z, G-V2060Z – Optional automatic right-angle milling head, with a Y-axis travel of 3200mm.

3. Models G-R2030B, G-R2040B, G-R2050B, G-R2060B – Optional Z-axis square ram (Z = 1000 mm, machine height 5600 mm; Z = 1250 mm, machine height 6300 mm).

4. Models G-R2030Z, G-R2040Z, G-R2050Z, G-R2060Z – Optional Z-axis square ram + automatic right-angle milling head(Y-axis travel 3200 mm; Z = 1000 mm, machine height 5600 mm; Z = 1250 mm, machine height 6300 mm).

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
