Understanding the Key Components of a CNC Horizontal Lathe Machine

A CNC horizontal lathe machine is a cornerstone of modern manufacturing, capable of producing highly precise cylindrical parts with remarkable efficiency. As a leading China CNC machine manufacturer, Taikan designs and builds these machines with an emphasis on durability, accuracy, and versatility. To operate them effectively and maintain peak performance, it is essential to understand their core components and how they work together.


The Foundation of Stability


The bed of a CNC horizontal lathe machine serves as its structural backbone. Made from high-quality cast iron or similarly rigid materials, it supports the weight of all other components while resisting vibration and thermal deformation. The base not only provides stability but also houses the chip conveyor and coolant systems in many models. A solid bed ensures smooth, accurate movements and directly impacts machining quality.

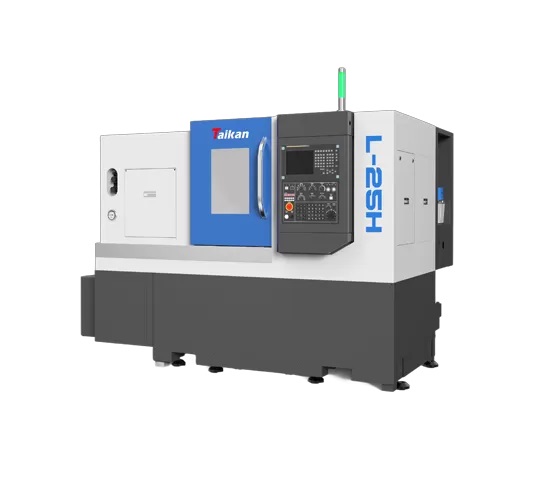

L-25H High-precision CNC Horizontal Lathe

The Headstock and Spindle Assembly


At the heart of the cutting process lies the headstock, which contains the spindle assembly. The spindle is responsible for holding and rotating the workpiece, and its precision is critical to producing accurate parts. Inside the headstock, high-grade bearings and drive systems enable consistent rotation at variable speeds. For heavy-duty operations, robust spindle motors deliver the torque needed to cut through challenging materials without compromising finish quality.

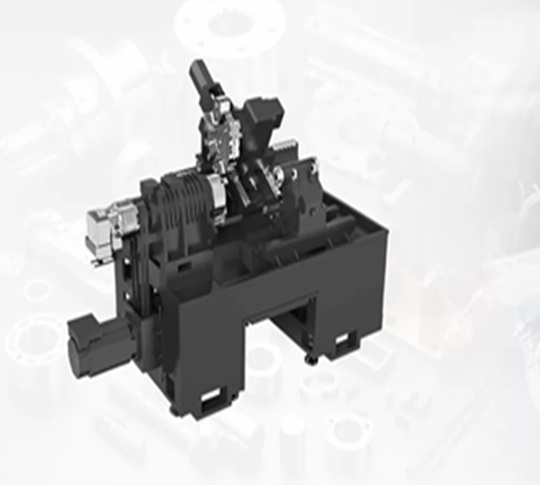

The headstock of high-speed cnc lathe


CNC Horizontal Lathe Machine Component Comparison


Different designs of horizontal lathes can vary in component construction and performance.


Component

Standard CNC Horizontal Lathe Machine

High-Performance CNC Horizontal Lathe Machine

Bed Material

Standard cast iron

Reinforced, thermally stabilized cast iron

Spindle Speed Range

Moderate range for general work

Extended range for precision and heavy cuts

Tool Turret

Basic 8-station turret

High-speed, servo-driven turret with more stations

Control System

Standard CNC control

Advanced multi-axis CNC with automation options

Coolant System

Basic pump and tank

High-pressure, programmable coolant delivery

This comparison highlights how variations in components can influence performance, making it important to select a model suited to production requirements.

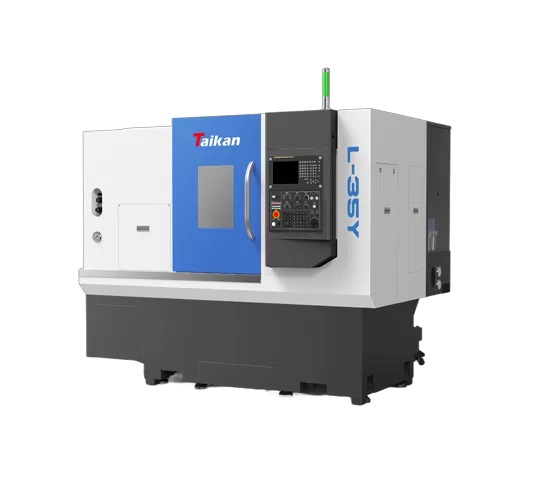

L-35Y High-precision CNC HorizontalMilling Lathe

The Carriage, Turret, and Tooling


The carriage system moves along the bed, carrying the turret that holds multiple cutting tools. In a CNC horizontal lathe machine, the turret can rotate quickly to switch tools automatically, reducing downtime and improving efficiency. Toolholders must be securely mounted and aligned to ensure dimensional accuracy. High-speed servo turrets in advanced models enable faster cycle times and greater flexibility for complex part geometries.

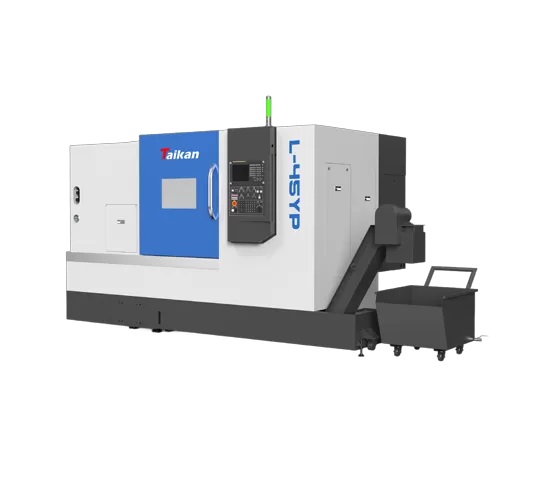

TaikanL 45YP High-precision CNC Horizontal Turning Milling Lathe

The CNC Control System and Supporting Mechanisms


The control system is the brain of the CNC lathe machine, interpreting programmed instructions to coordinate spindle rotation, tool movement, and feed rates. User-friendly interfaces and high processing speeds allow operators to set up jobs quickly while maintaining precision. Supporting systems—such as chip removal conveyors, lubrication pumps, and coolant delivery—work in the background to keep the machine running smoothly. Together, these elements transform raw material into precise finished components with minimal manual intervention.
