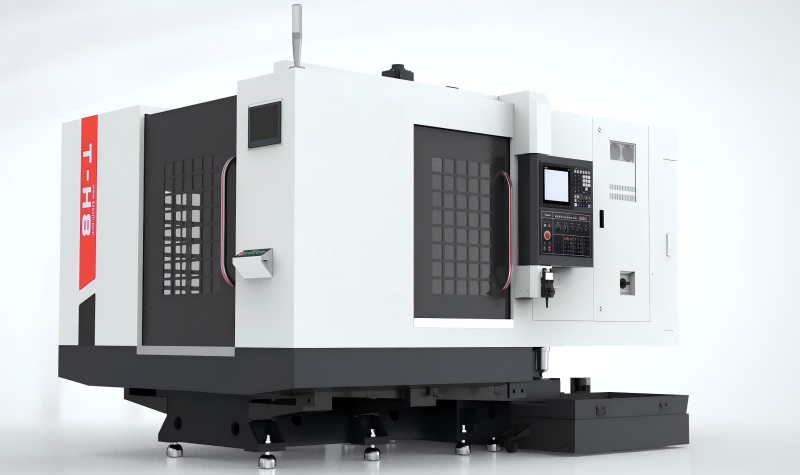

For Automotive Parts Manufacturers: Meet The Taikan TH8 Horizontal Machining Center

Electrification is changing the way automotive parts are made. If you machine electric drive housings, battery trays, or power electronics enclosures, you already know the challenges. These aluminum and cast-iron parts are not simple. They have complex shapes, multiple faces that all need machining, and dozens of holes with tight position tolerances. And you need to hit these targets while producing at high volumes, day after day. The Taikan T-H8 horizontal machining center, developed by taikan machine,  was designed exactly for this. It combines a rigid structure, a high-precision rotary table, and fast axis movements into one compact machine that installs quickly and handles demanding EV housing work without trouble.

Built to Handle the Demands of EV Housing Machining

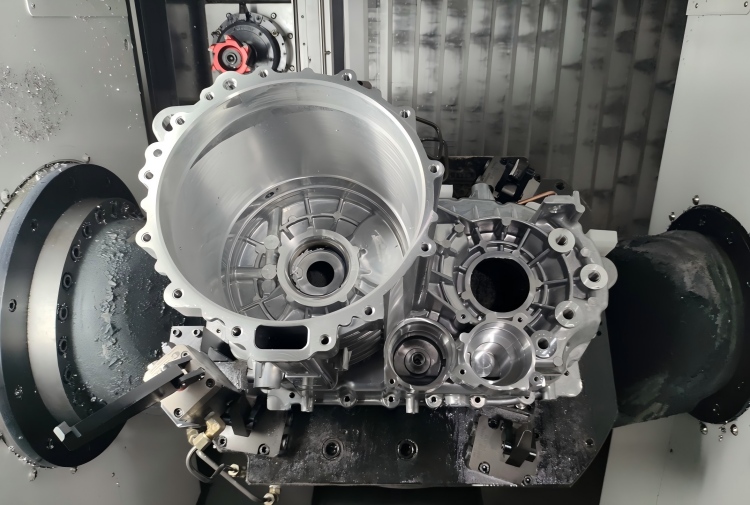

Take a look at components such as e-drive housings, inverter boxes, and structural battery trays. They all share one challenge: precise machining on several faces, where hole alignment and position tolerances directly affect gearbox noise, sealing, and assembly fit. If you move the part across multiple setups, you introduce stack-up errors and lose valuable machine time. The T-H8 changes that.

With its standard high-precision rotary table that indexes in steps as small as 0.001 degrees, you can machine multiple faces in a single clamping. Clamp the part once, and the T-H8 reaches all five sides, completing the bearing bores, dowel holes, o-ring grooves, and face milling in a single continuous cycle. The result is not just faster output, but better bore position accuracy and consistent parts across the whole batch. That is exactly what electric vehicle production demands when you scale from thousands to hundreds of thousands of units per year.

A Rigid Structure That Takes Heavy Cuts and Keeps Running

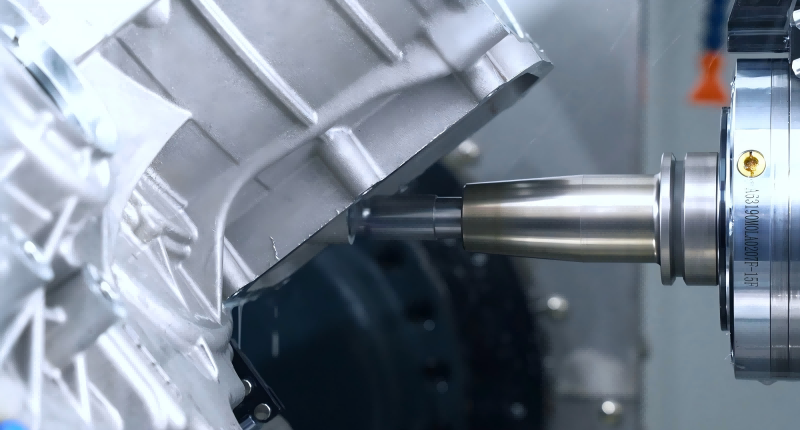

At the core of the T-H8 is a fixed-column cross slide design, with a heavy-duty base and a herringbone-shaped column. This is not a light machine borrowed from a general job shop and pushed into automotive work. The structure is short, stiff, and heavily reinforced, so it absorbs high cutting forces and quick direction changes without harming surface finish or dimensional stability. Whether you are roughing a large motor housing at high metal removal rates or finishing a precision seal bore, the T-H8 stays stable and dampened. That kind of structural integrity is what keeps high-volume EV production lines running reliably.

Speed Where It Counts

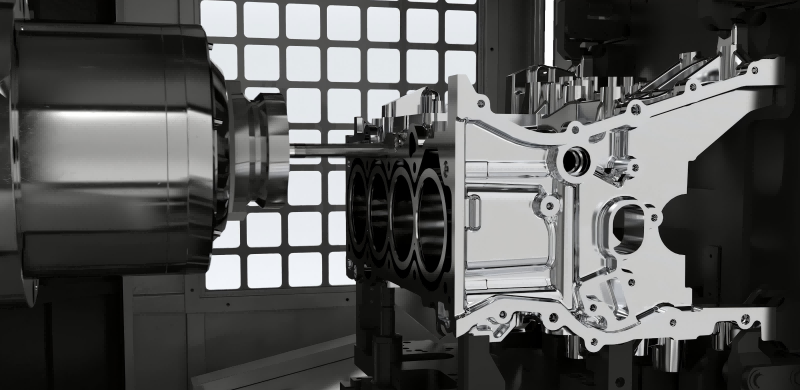

In automotive supply chains, cycle time is everything. The T-H8 delivers speed in the areas that matter most. All three linear axes move on P-class precision roller guideways, driven by C3-class precision ballscrews, giving you rapid traverse rates up to 48 meters per minute. That speed slashes non-cutting time. Tool changes, pallet indexing, and positioning moves happen with quick, responsive motion, so the spindle spends more time in the cut.

A standard 24-tool fixed magazine ensures that drills, reamers, taps, and milling cutters are always ready. If you need more capacity, you can choose a 32- or 40-tool magazine. That means fewer stops for tool replenishment during long, complex machining programs.

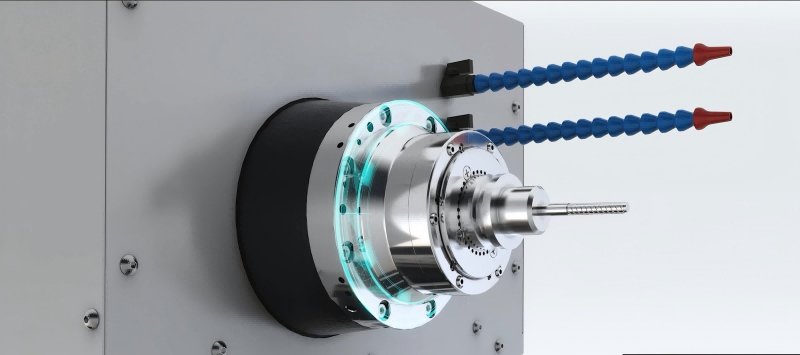

The spindle is a BT40 12,000 rpm direct-drive unit, chosen for a reason. It bridges the gap between high-speed aluminum machining and stable steel and cast-iron cutting. Need to pop thousands of M6 and M8 tapped holes in a die-cast aluminum gearbox? The 12k rpm speed gives you clean, burr-free results. When your part family includes steel bearing inserts or cast-iron differential housings, the spindle’s torque and the machine’s rigidity let you cut steadily without chatter. That versatility makes the T-H8 a single-platform solution for the mix of materials found in today’s electric vehicle designs.

Easy Installation, Fast Start-Up

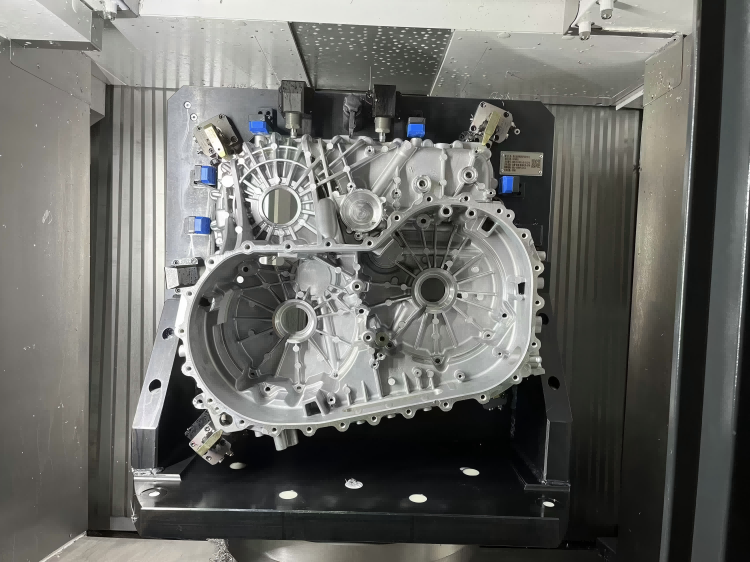

Some horizontal machining centers require deep foundation pits and weeks of civil work. That does not match the speed of modern manufacturing. The T-H8 is built for practical deployment. In most standard industrial facilities, you don’t need a special foundation — a regular concrete floor of sufficient thickness is all it takes. The machine comes as an integrated unit, and you can go from delivery to cutting chips in days, not months. If you need to add capacity quickly to meet a surge in EV demand, this low entry barrier reduces site preparation costs and shortens your time to production. The T-H8 respects your deadlines and your facility’s constraints.

FAQ

What types of parts does the Taikan T-H8 horizontal machining center handle best?

The T-H8 is purpose-built for new energy vehicle housing parts that need multi-face machining with tight positional tolerances. Typical applications include electric drive housings, electronic control enclosures, structural battery trays, and similar complex cast or billet automotive parts. Its high-speed, rigid design also works well for other precision automotive components like pump bodies, valve blocks, and gearbox cases.

How does the T-H8 improve machining accuracy on complex automotive housings?

The key is the standard high-precision rotary table with 0.001-degree indexing. By machining all faces in a single setup, the T-H8 removes the errors that happen when a part moves between fixtures. Bore position accuracy and overall geometric consistency improve noticeably. This is especially important for e-drive housings, where bearing alignment directly affects noise, vibration, and harshness (NVH).

What are the rapid traverse speeds, and how do they affect productivity?

The X, Y, and Z axes move at up to 48 meters per minute, driven by P-class roller guideways and C3 precision ballscrews. This fast response cuts down idle time during tool changes and positioning, directly lowering overall cycle time. In high-volume automotive production, these savings add up fast.

Can the T-H8 machine both aluminum and steel parts?

Yes. The 12,000 rpm BT40 direct-drive spindle is designed to handle high-speed aluminum machining for lightweight EV housings while still providing the torque and rigidity for stable steel and cast-iron cutting. You can run mixed materials within the same production cell on one machine.

Where can I get service and support for Taikan Machine equipment?

Taikan has a global service network with more than 200 support locations. As a publicly listed company committed to machine tools for the long term, we provide technical support, genuine parts, and application help worldwide. You are backed by a company built for continuity and reach.

Why choose Taikan over other horizontal machining center brands?

Taikan gives you proven performance and the reliability of a publicly listed company with over 20 years of machine tool experience. Our 2025 No.1 sales ranking in China’s metal cutting machine tool market reflects real trust. With five production bases, 785,300 square meters of manufacturing space, and over 200 service points globally, we deliver quality at scale and local support when you need it. And the T-H8 is built specifically for the EV machining realities you face every day among leading solutions in the china horizontal machining center category.
