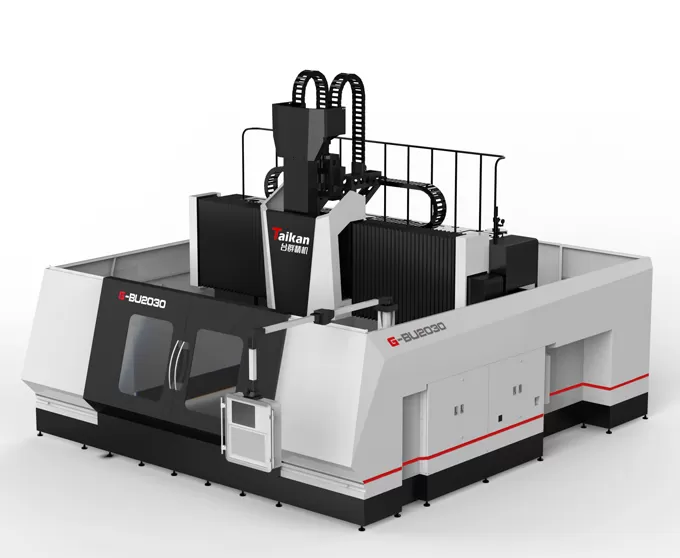

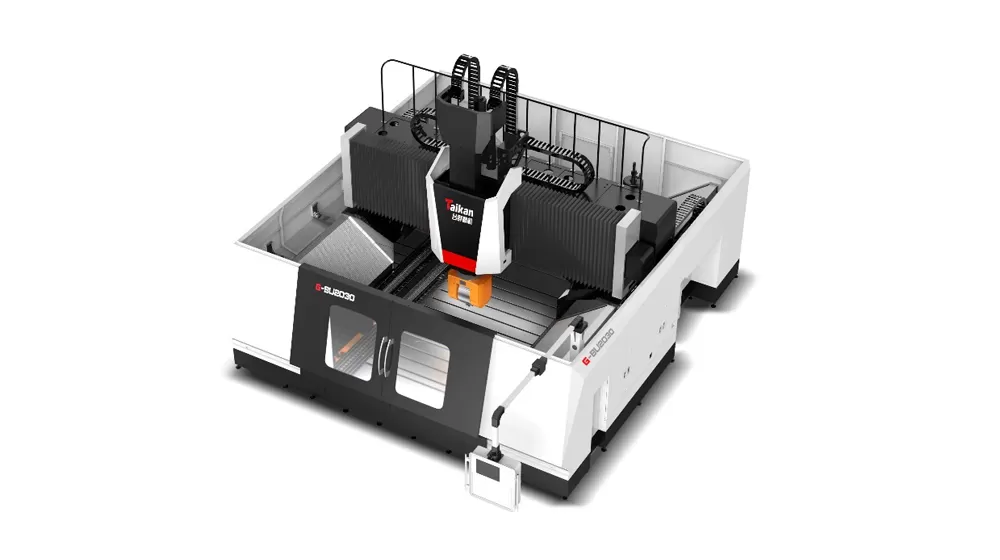

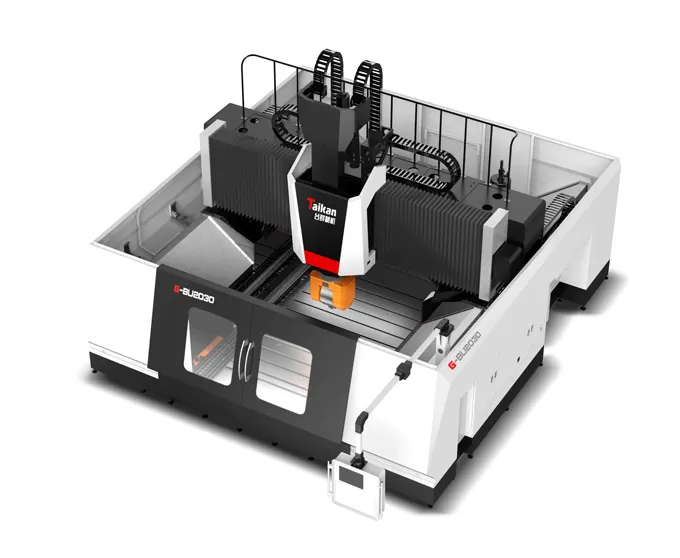

HG-BU2030 5-Axis Gantry Machining Center

Fixed Beam 5-Axis Simultaneous

Gantry Machining Center


Contact Taikan Now

Characteristic of G-BU2030 5-Axis Gantry Machining Center

Machine Structure

  • The machine features an overhead gantry frame structure with a fixed worktable.

  • Major components are made of high-strength cast iron.


Guideway

Ballscrews

Spindle Unit

Spindle Unit
Machine Structure
Guideway
Ballscrews
Spindle Unit
Machine Structure

Primarily used for machining complex parts, aluminum and its alloys, as well as difficult-to-machine materials. It is capable of high-precision and high-efficiency machining of complex spatial surfaces.


5 Axis Gantry Machining Center

Workpiece Example 1

5 Axis Gantry Type Machining Center

Workpiece Example 2

5 Axis Gantry CNC Machine

Workpiece Example 3

5 Axis Gantry Machining Center

Workpiece Example 1

5 Axis Gantry Type Machining Center

Workpiece Example 2

5 Axis Gantry CNC Machine

Workpiece Example 3

5 Axis Gantry Machining Center

Workpiece Example 1

5 Axis Gantry Type Machining Center

Workpiece Example 2

5 Axis Gantry CNC Machine

Workpiece Example 3

Specifications of HG-BU2030 5-Axis Gantry Machining Center

Item

Unit

HG-BU2030

Travel

Table travel (X-axis)

mm

3200

Saddle travel (Y-axis)

mm

2200

Ram travel (Z-axis)

mm

1000

Spindle nose to table distance

mm

100~1100

Effective gantry width

mm

3200

Table

Table size

mm

2000*3000

Max. load

kg/m2

5000

T-slot

mm

28

Spindle

Spindle power

KW

30

Max. speed

r/min

18000

Torque output

Nm

72/85

Ram section

mm

420×420

Spindle taper


HSK-A63

Speed

Feed rate range (Cutting)

mm/min

20/20/20

Rapid traverse speed (X/Y/Z-axis)

mm/min

24000/24000/24000

Accuracy

Positioning accuracy

With scale

mm

0.020/0.015/0.01

Without scale

mm

0.03/0.025/0.02

Repeatability

With scale

mm

0.013/0.011/0.009

Without scale

mm

0.018/0. 015/0.012

Others

Z-axis counterweight


Hydraulic + nitrogen balance

CNC system


SIEMENS ONE

Air supply

Flow

L/min

500

Pressure

MPa

0.45~0.8

Coolant tank capacity

L

140

Machine size(L×W×H)

mm

8500×6600×5200

Machine weight (approx.)

kg

35000


The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
