[Egypt MACTECH Show] T-V1270S 3-Axis Vertical Machining Center: Precision, Power, and Productivity Redefined

We are excited to feature the T-V1270S Linear Guideway Vertical Machining Center at the upcoming Egypt MACTECH exhibition. This advanced 3-axis VMC will be on display for hands-on evaluation, showcasing the engineering excellence and performance that have made our series a global choice. Get a firsthand look at the machine designed to elevate your production floor.

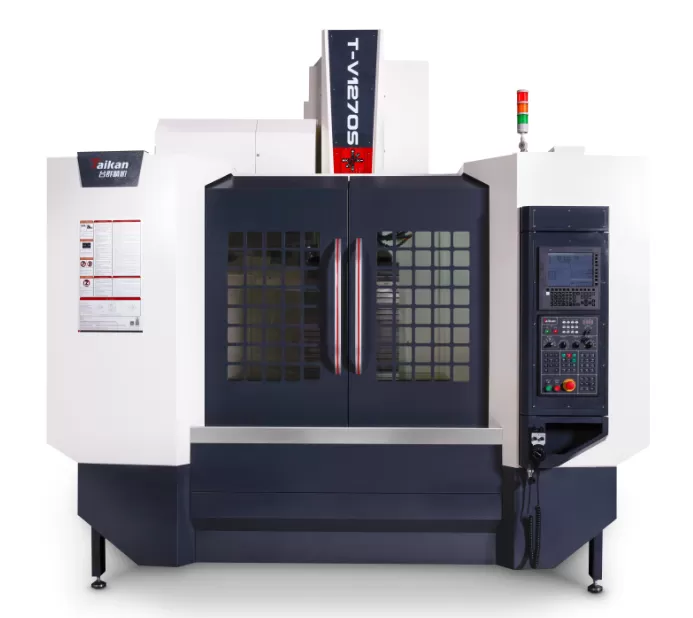

As China's leading 3-axis cnc machine manufacturers, we proudly present the T-V1270S Linear Guide Vertical Machining Center—an engineering masterpiece designed to elevate your production capabilities. With our full range of vertical machining centers achieving a cumulative sales volume of 20,000 units from 2021 to 2023, and a projected 50,000 units by 2025, the T-V1270S stands as a testament to the trust global customers place in our technology.

Excellent Performance: All-in-One Precision for Diverse Applications

The T-V1270S is a compact and powerful 3-axis vertical machining center that redefines efficiency. With a single setu, it seamlessly automates a full spectrum of machining processes—milling, drilling, boring, reaming, counterboring, and tapping. This versatility makes it the ideal solution for small to medium-batch production of complex parts, including small and medium-sized boxes, plates, disks, valves, housings, and molds.

Equipped with high-precision linear guides and ball screws, the T-V1270S delivers exceptional dynamic response, enabling high-speed machining with low-speed stick-slip-free motion. Its superior precision and stability have made it a staple in industries such as precision components, 5G products, hardware, automotive parts, and medical devices—where every micron matters.

Structural Excellence: Rigidity and Stability You Can Rely On

At the heart of the T-V1270S lies a robust structural design engineered for uncompromising performance. The machine features a fixed-column, cross-slide configuration, built on an extra-large stable base and a high-rigidity, wide-span herringbone column. This design ensures no vibration or deformation even during high-speed cutting, laying the foundation for consistent precision.

All key structural components are crafted from high-strength cast iron using premium resin sand molding. This material choice, combined with optimized structural design validated by finite element analysis, enhances the machine's overall performance by at least 20%. The result? A vmc machine that maintains stable accuracy even under prolonged, heavy-duty operation.

Key Components: Engineered for Durability and Efficiency

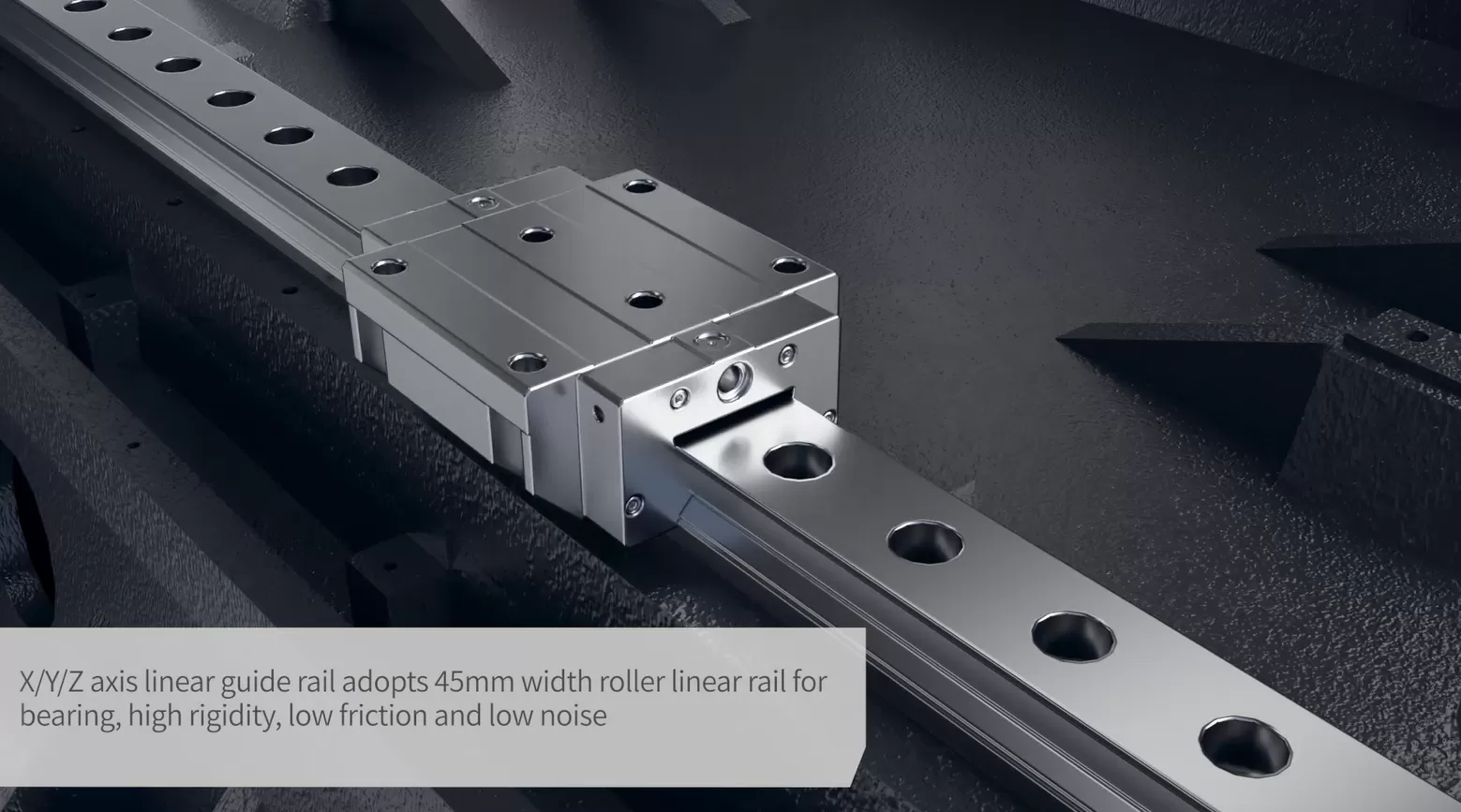

• Guide Rails & Ball Screws:

The machine's three axes utilize 45mm roller linear guides for load-bearing, offering exceptional rigidity, low friction, and minimal noise. Paired with C3-class ball screws featuring a pre-tensioning structure, thermal extension is effectively minimized. The screw bearings incorporate self-lubricating technology, significantly extending their service life and reducing maintenance costs.

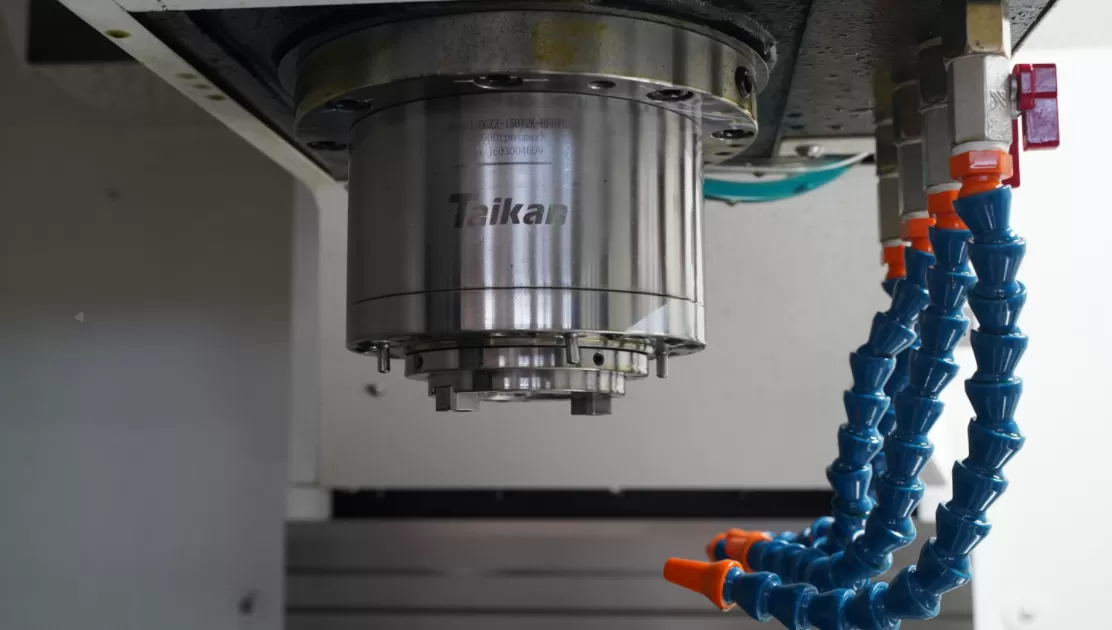

• Spindle

Powered by a high-speed spindle unit from Taikan, the T-V1270S features a BT40-12000r/min direct-drive spindle. The spindle's front end adopts a labyrinth design, complemented by an air curtain protection system that prevents cutting fluid from entering the spindle bearings—ensuring excellent heat dissipation, minimal thermal distortion, and long-term reliability.

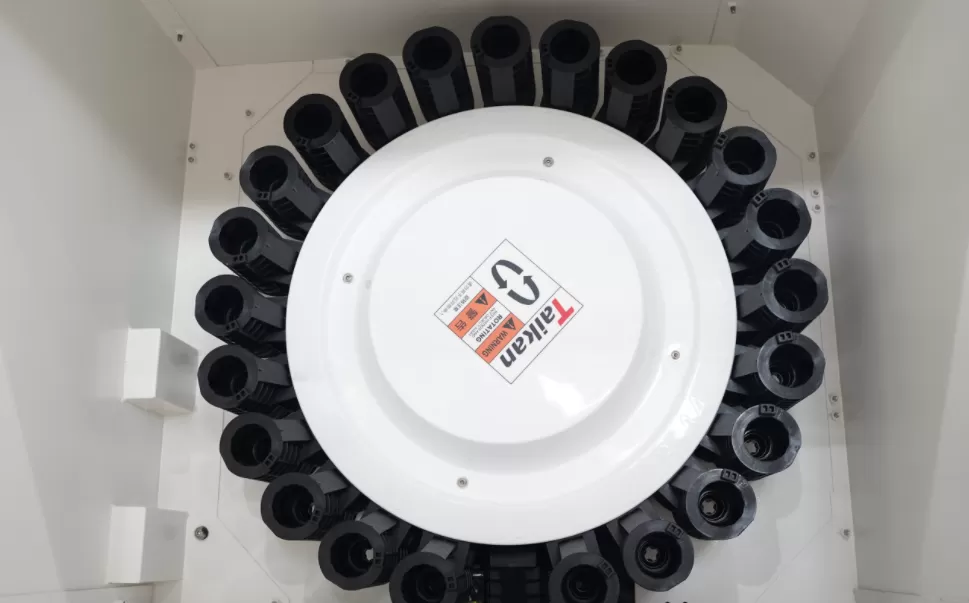

• Tool Magazine

Equipped with Taikan's 24-tool arm-type tool magazine, the T-V1270S delivers reliable performance and stable operation. Controlled by encoders and frequency converters, tool changes are quicker and more precise. The tool magazine can enter the tool change state in advance, drastically reducing non-productive time and boosting overall efficiency.

Key Specifications

• Worktable Size: 1300*650mm

• X-Axis Travel: 1200 mm

• Y-Axis Travel: 700mm

• Z-Axis Travel: 700 mm

• Spindle Speed: 12000 r/min (BT40)

• Tool Magazine Capacity: 24T

Your Next Step in Precision Manufacturing

The T-V1270S is more than a machine; it's a strategic investment in capability, reliability, and growth. It represents the optimal blend of robust construction, precision engineering, and smart features designed to maximize your shop floor output.

Explore how the T-V1270S 3-Axis Vertical Machining Center can become the cornerstone of your precision machining operations. Contact our team today!
