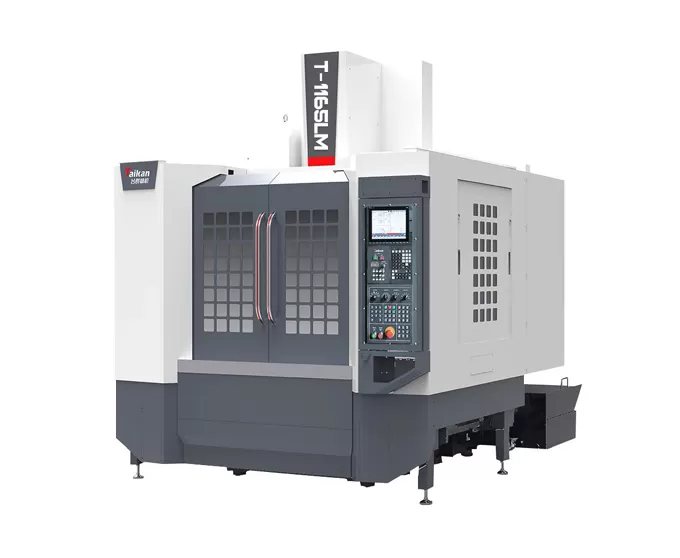

T-1165LM High-speed and High-rigidity Vertical Machining Center

Contact

Specifications of T-1165LM High-speed and High-rigidity Vertical Machining Center


Item

Unit

T-1165LM

Remarks

Travel

Table travel (X axis)

mm

1100


Saddle travel (Y axis)

mm

650


Headstock travel (Z axis)

mm

600


Distance from spindle nose to table surface

mm

150~750


Distance from spindle center to column guide surface

mm

695


Worktable

Table size

mm

1200*650


Max. load (even load-bearing)

kg

1000


T-slot (number of slots - slot width * spacing)

mm

5-18*100


Spindle

Motor power (rated/short time)

kW

45976


Motor torque (rated/short time)

N.m

52.5/118


Speed range

r/min

50-8000(belt)


Spindle diameter

mm

φ150


Spindle taper

/

BT40


Rivet specifications

/

P40T-I(MAS403)


Speed

Cutting feed speed range

mm/min

1-10000


X/Y/Z axis rapid traverse speed

m/min

30/30/20


Accuracy

Positioning accuracy (X/Y/Z)

mm

0.008/0.008/0.01

GB/T18400.4(Full travel)

Repeatability (X/Y/Z)

mm

0.005/0.005/0.008

Tool magazine

Tool capacity

pcs

24


Max. tool weight

kg

7


Max. tool length

mm

250


Max. tool diameter (full /adjacent empty)

mm

Φ75/Φ150


Others

Z-axis counterweight

/

/


CNC system

/

Mitsubishi M80VB


Air source

Flow

L/min

≥280(ANR)


Air pressure

MPa

0.6~0.8


Equipment capacity

KVA

25


Coolant tank capacity

L

300


Machine size

mm

2700×3560×3040

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

7500



The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
