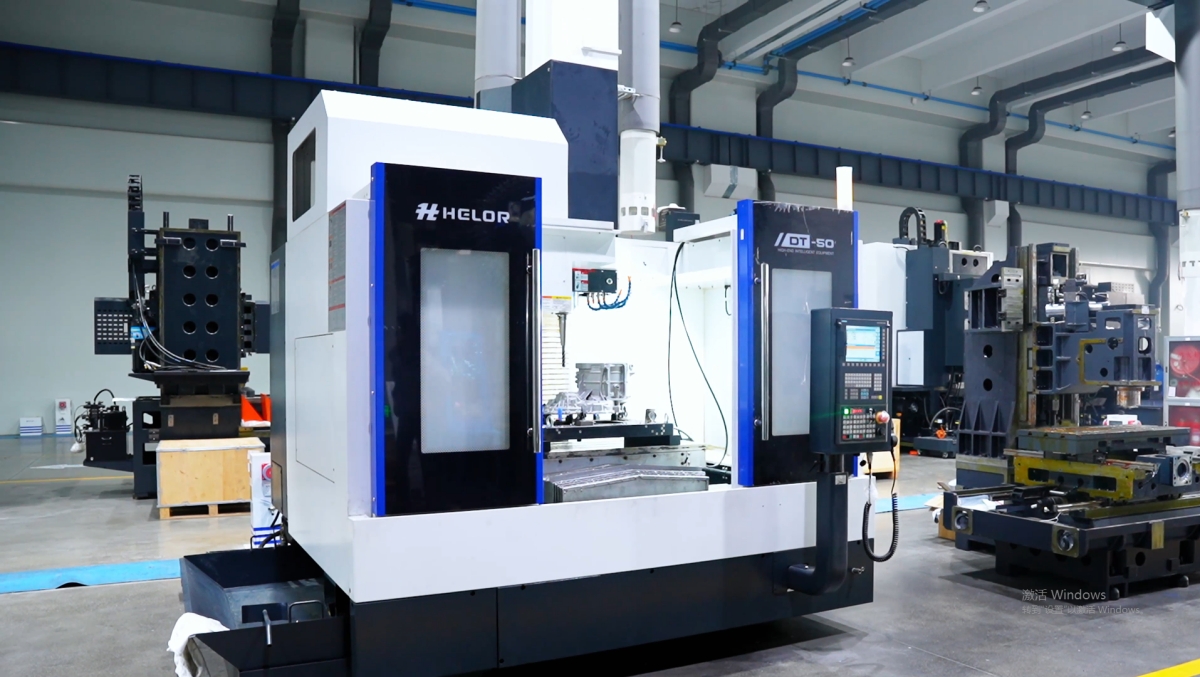

Taikan DT-50 Vertical Machining Center: Engineered for Precision and Dynamic Performance

In modern manufacturing, efficiency and accuracy must go hand in hand. The Taikan DT-50 Vertical Machining Center (VMC) is a highly versatile, medium-to-small format machine tool designed to handle multiple complex operations—including milling, drilling, boring, expanding, reaming, countersinking, and tapping—in a single setup. Equipped with high-precision linear guideways and ball screws, the DT-50 delivers exceptional dynamic response for high-speed cutting, eliminating low-speed crawling. It is a proven and reliable solution for processing medium- and small-box parts, plates, discs, valves, shells, and molds, making it highly applicable across the precision components, 5G electronics, hardware, automotive parts, and medical device industries.

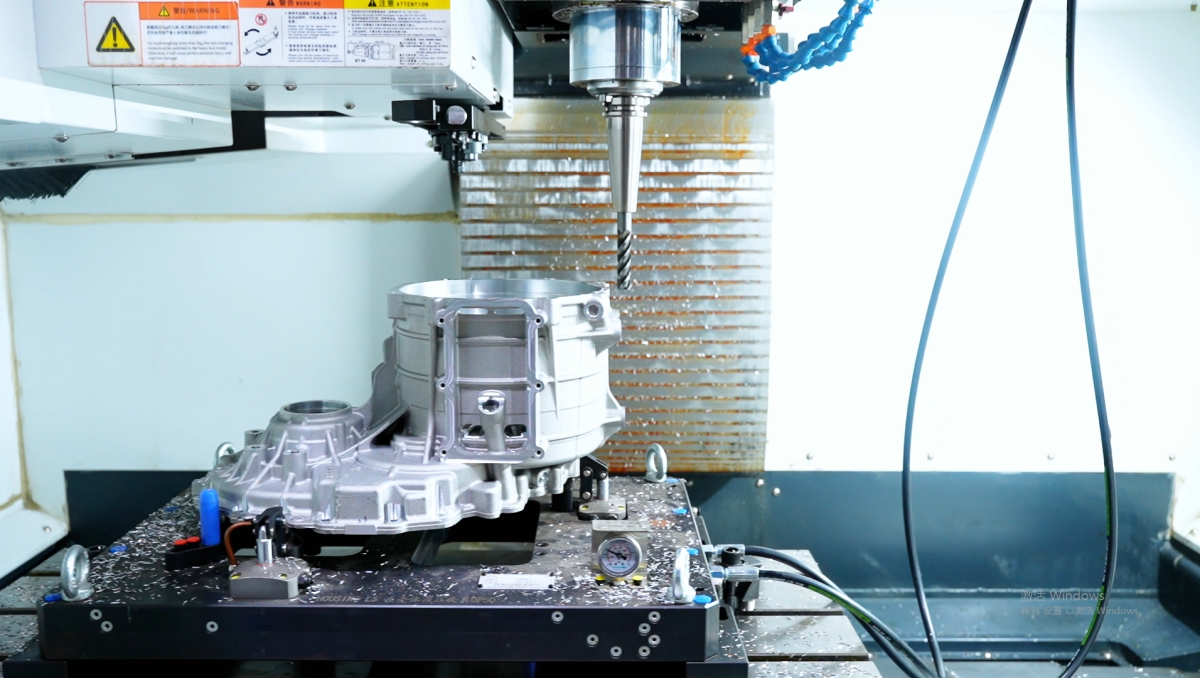

I. Maximum Structural Integrity

The foundation of any high-performance CNC machine is its rigidity. Traditional C-type machining centers often struggle with table overhang, which can compromise accuracy. The DT-50 solves this with an advanced inverted T-type bed structure. By utilizing a full-stroke support structure for the X-axis and Y-axis, it achieves optimal dynamic performance and cutting stability.

For manufacturers comparing equipment in the vertical machining center china market, this full-stroke support structure provides a practical benchmark for evaluating machine rigidity, axis support, and cutting stability.

• Double-Wall Construction: The wide-span, double-wall saddle and headstock structures provide exceptional load-bearing capacity and long-term cutting stability.

• Extra-Large Worktable: Designed to offer generous machining space, the table surface undergoes high-frequency quenching to enhance surface hardness and wear resistance significantly.

• Efficient Chip Evacuation: A dual-screw chip removal design integrated into the base enables convenient and rapid chip disposal, reducing operator intervention and maximizing spindle uptime.

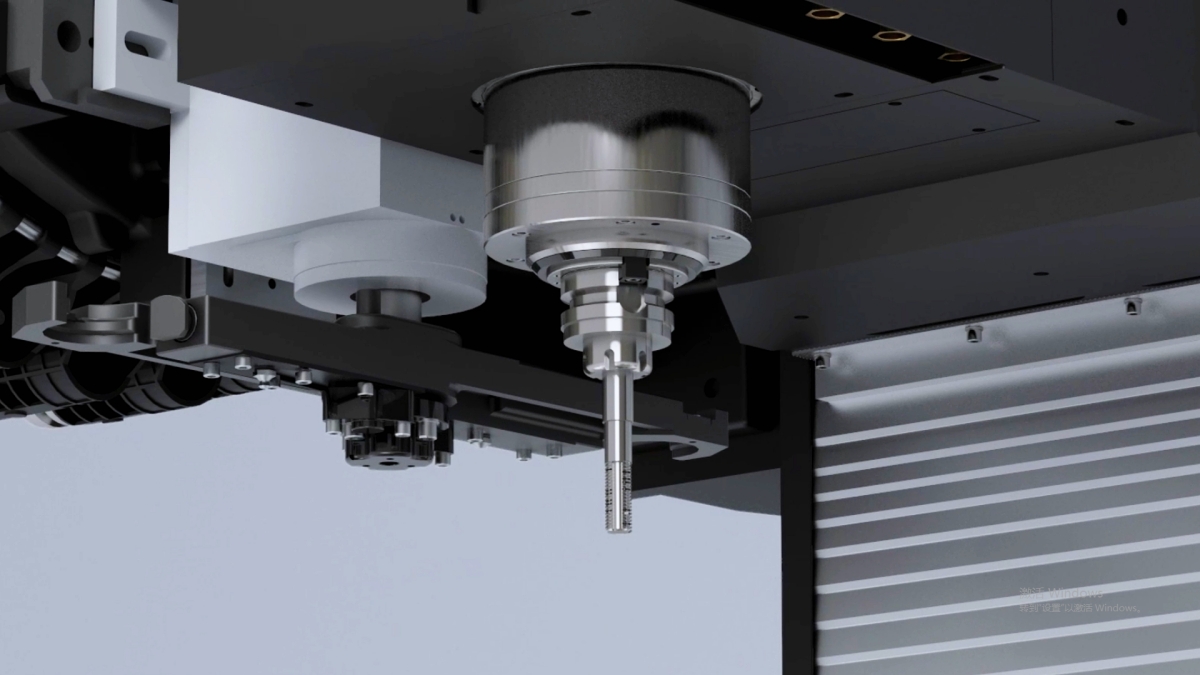

II. High-Speed BBT40 Direct-Drive Spindle

At the core of the DT-50 is a precision 12,000 rpm direct-drive spindle. To manage the heat generated during continuous high-speed operations, the spindle utilizes advanced ceramic bearings paired with an integrated cooling system, ensuring strict dimensional accuracy is maintained over long cycles. To protect these critical components, the spindle nose features a labyrinth seal design combined with an air curtain, completely preventing cutting fluid from infiltrating the bearings. To further elevate machining quality, the DT-50 utilizes a BBT40 dual-contact spindle system, achieving simultaneous contact on both the taper and the flange faces of the tool holder.

Technical Advantages of the BBT System:

• Improves overall machining surface quality and dimensional accuracy.

• Ensures highly stable Z-axis dimensional accuracy during high-speed rotation.

• Significantly extends tool life.

• Enhances the repeat positioning accuracy of the Automatic Tool Changer (ATC).

• Minimizes taper wear caused by vibration during heavy cutting operations.

• Improves roundness in precision boring applications.

III. Advanced Thermal Management and Motion Control

Sustained precision requires strict control over thermal deformation and friction. Taikan Machine has engineered the DT-50 with comprehensive physical cooling and premium motion control components.

• Hollow-Cooled Ball Screws: Large-diameter precision ball screws are equipped with a hollow cooling system and a pre-tensioned structure. By circulating a constant-temperature medium directly through the center of the ball screw, this technology rapidly dissipates heat, effectively reducing thermal deformation and extending the lifespan of the transmission system.

• Imported Roller Guideways: Standard imported roller guideways are deployed across the X, Y, and Z axes. These guideways provide stronger load capacity, low friction, and low vibration, delivering the high rigidity required for both heavy cutting and high-speed precision machining.

IV. Eco-Friendly and Efficient Lubrication

Aligning with global green manufacturing standards, the DT-50 transitions from traditional oil to an advanced grease lubrication system. Compared to lubricating oils of comparable viscosity, grease offers higher load capacity and superior damping and vibration absorption. It naturally forms a protective sealing layer that prevents the ingress of solid or fluid contaminants, making it highly reliable in humid or dusty workshop environments. Crucially, the unique structure of the grease thickener results in a much lower evaporation rate. This dramatically reduces overall lubricant consumption, minimizing environmental contamination while lowering operational costs.

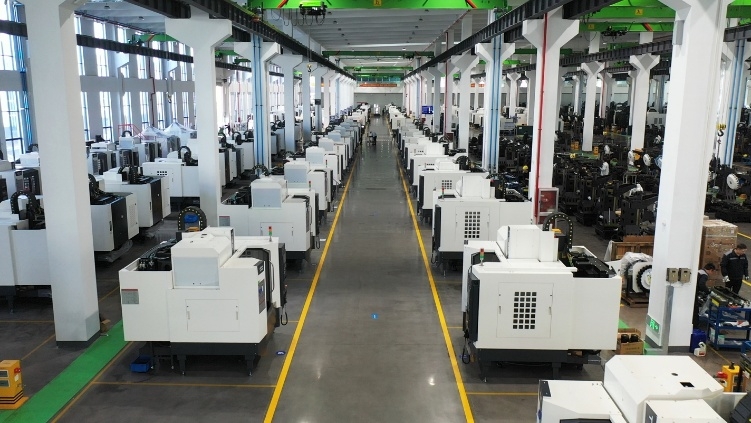

Taikan Machine is committed to delivering robust, precision-engineered CNC solutions that empower global manufacturers to optimize their production capabilities.
