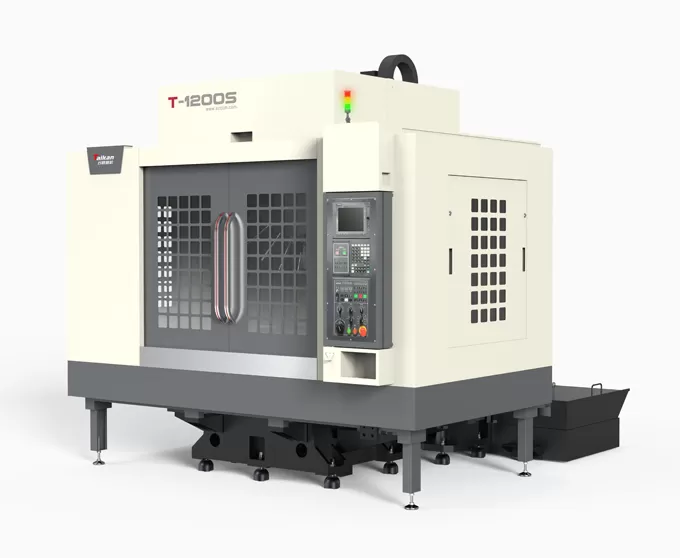

Name: T-1200S High-speed and High-efficiency Wheel hub Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Specifications of T-1200S High-speed and High-efficiency Wheel hub Machining Center

Item			Unit	T-1200S	Remarks
Travel	Table travel (X axis)		mm	1200
	Saddle travel (Y axis)		mm	550
	Headstock travel (Z axis)		mm	450
	Distance from spindle nose to table surface		mm	125~575
	Distance from spindle center to column guide surface		mm	632
Table	Table size		mm	1300*550
	Max. load		kg	500
	T-slot (number of slots - slot width * spacing)		mm	5-18*100
Spindle	Motor power (rated/short time)		kW	3.7/5.5
	Motor torque (rated/short time)		N.m	14.1/21
	Spindle motor speed		rpm	20-20000
	Spindle taper		/	BT30
Speed	Cutting feed speed range		mm/min	1-15000
Speed	X/Y/Z axis rapid traverse speed		m/min	36/36/36
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.01	GB/T 18400.4（Full travel）
Accuracy	Repeatability (X/Y/Z)		mm	0.006	GB/T 18400.4（Full travel）
Tool magazine	Tool storage capacity		pcs	21
	Max. tool weight		kg	3
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Ф60/Ф80
Other	CNC system			Mitsubishi M80VB
	Air source	Flow	L/min	≥200（ANR）
	Air source	Air pressure	MPa	0.6-0.8
	Equipment capacity		kVA	15
	Max. coolant tank capacity		L	330
	Machine size		mm	285033002850	Corresponding to XYZ axis
	Weight (approx.)		kg	5000

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
