How a 5 Axis Gantry Type Machining Center Elevates Complex Part Manufacturing

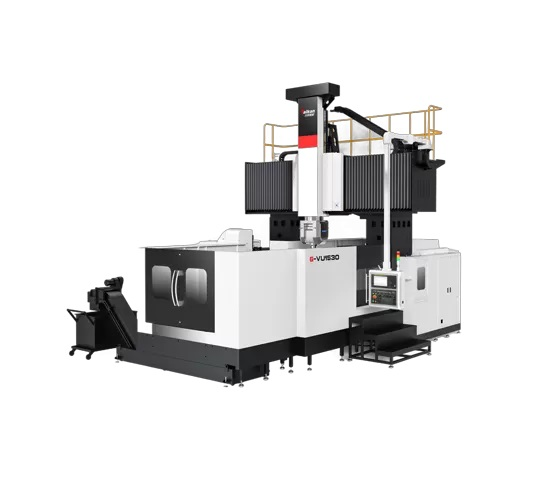

The role of 5 axis gantry type machining centers in modern manufacturing is undeniable. These machines, such as the G-VU series from Taikan CNC, are specifically designed to meet the demands of complex part fabrication with extreme precision. With their ability to perform multiple operations in a single setup, 5 axis gantry machining centers are crucial in industries that require high-precision components, including aerospace, automotive, and medical device manufacturing. This article will explore how these machines elevate the manufacturing process of intricate parts and provide solutions to modern engineering challenges.

The Key Benefits of Using a 5 Axis Gantry Type Machining Center in Complex Part Manufacturing

A 5 axis gantry type machining center, like Taikan CNC's G-VU series, offers several advantages that directly improve the fabrication of complex parts. One of the most important benefits is the ability to machine parts from multiple angles without needing to reposition the workpiece. This eliminates the risk of inaccuracies that can occur when the part is re-clamped for different operations. The G-VU series features an advanced gantry design, which enhances stability and reduces vibrations during high-speed machining. This makes it ideal for working with high-precision components that require tight tolerances. The precision achieved through a 5 axis gantry type machining center ensures a superior surface finish and dimensional accuracy, crucial for industries where even the smallest deviation can lead to part failure.

How 5 Axis Gantry Type Machining Centers Improve Efficiency and Productivity

In the world of complex part manufacturing, efficiency is just as important as precision. The G-VU series 5 axis gantry type machining center offers significant improvements in both. By utilizing five axes of motion, the machine can perform multiple tasks, such as drilling, milling, and turning, within a single setup. This drastically reduces setup times, as there is no need for manual repositioning or tool changes between operations. As a result, the time spent on each part is minimized, allowing manufacturers to complete more work in less time. Furthermore, the advanced CNC control system in the G-VU series ensures that the machine operates at optimal speeds, further enhancing productivity while maintaining the highest levels of accuracy.

Why a 5 Axis Gantry Type Machining Center is Ideal for Complex Geometries

Manufacturing complex geometries that require intricate machining operations is one of the most significant challenges in many industries. The G-VU series 5 axis gantry type machining center is designed specifically to tackle these challenges. The ability to access different angles simultaneously means that manufacturers can machine parts with intricate features, such as undercuts and complex contours, without needing to resort to multiple machines or setups. This capability is particularly valuable in sectors like aerospace, where components often feature complex geometries, and in medical device manufacturing, where precision is crucial. The versatility of the 5 axis gantry machining center makes it the go-to solution for companies seeking to improve the production of parts with difficult-to-reach areas and complex designs.

Comparing the 5 Axis Gantry Type Machining Center to Other Machining Technologies

When compared to traditional 3-axis machines or even multi-axis machining centers, the 5 axis gantry type machining center offers distinct advantages, especially in the realm of complex part manufacturing. Traditional 3-axis machining centers are limited in their ability to machine parts from multiple angles simultaneously, often requiring multiple setups, which increases the risk of misalignment and additional handling. On the other hand, the 5 axis gantry type machining center's ability to machine from various angles in a single setup not only increases accuracy but also saves valuable time in the manufacturing process. Below is a comparative table that highlights the differences between 3-axis, 5-axis, and 5-axis gantry type machining centers:

As shown in the table, the 5-axis gantry machining center, like the G-VU series from Taikan CNC, excels in both stability and the ability to handle complex geometries. Its gantry design provides enhanced rigidity, minimizing vibrations and ensuring that the precision of intricate parts is maintained throughout the machining process.

In conclusion, the 5 axis gantry type machining center plays a pivotal role in the advancement of complex part manufacturing. The G-VU series from Taikan CNC demonstrates how these machines enhance precision, reduce setup time, and increase overall productivity in industries that require high-accuracy components. As the demand for more intricate and precise parts continues to grow, 5 axis gantry machining centers will remain indispensable tools in the manufacturing process, offering solutions to complex geometries and improving the efficiency of the production process.

References

1. Advanced CNC Machining: Benefits and Technologies

2. The Importance of 5 Axis Machining in Precision Manufacturing

3. How 5-Axis Machining Is Revolutionizing Complex Component Production
