5-Axis Simultaneous Machining: Redefining Complex Part Production

In the relentless pursuit of manufacturing excellence, the ability to produce highly complex, precision components defines industry leaders. Traditional machining methods often reach their limits when faced with intricate geometries, leading to compromised accuracy, efficiency, and flexibility. Today, simultaneous 5-axis machining stands as a transformative force, fundamentally reshaping the production of sophisticated parts across aerospace, automotive, medical, and energy sectors. This technology is not merely an incremental improvement but a revolutionary leap, unlocking unprecedented levels of performance and capability.

The Core of Innovation: Mastering Spatial Trajectory Control

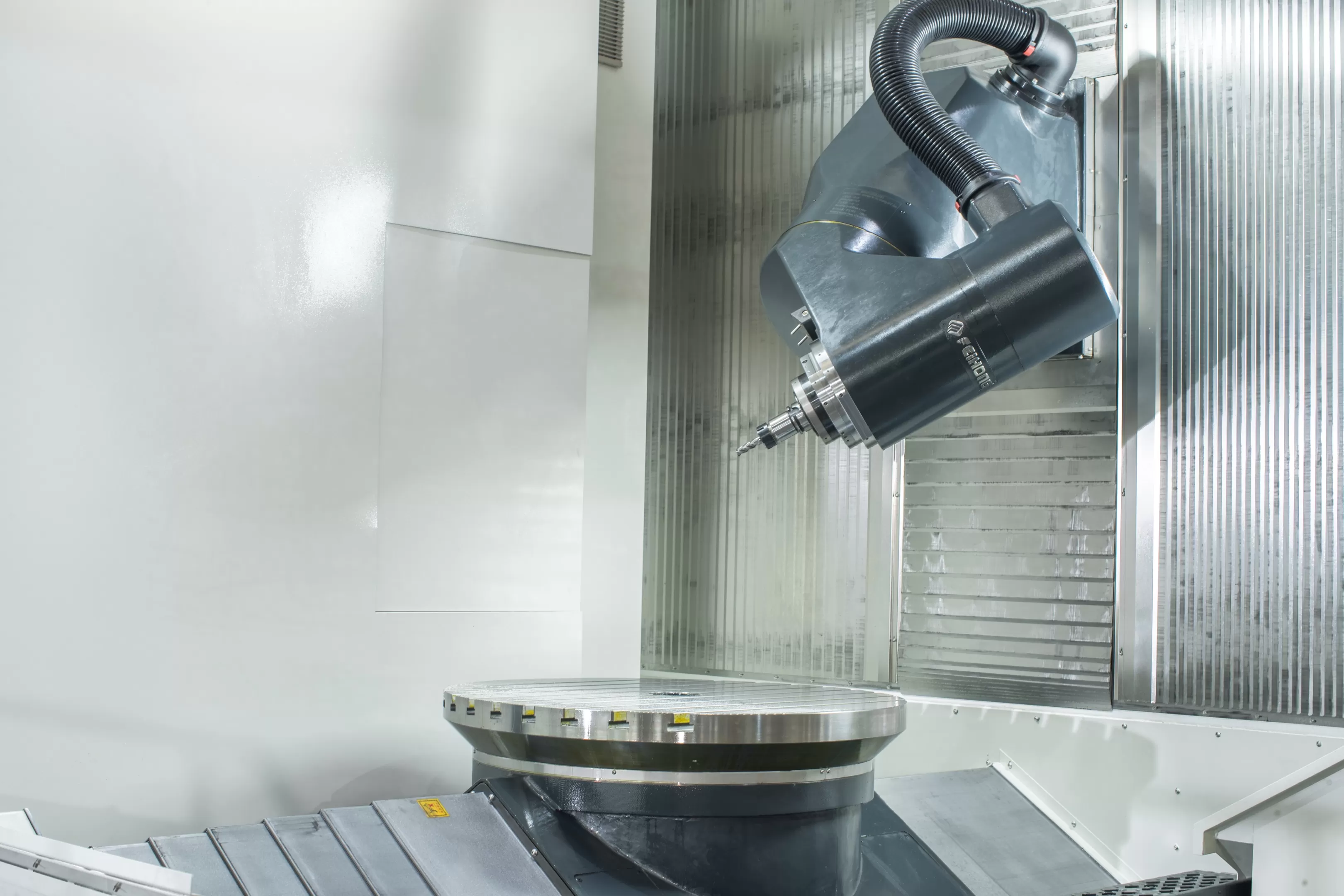

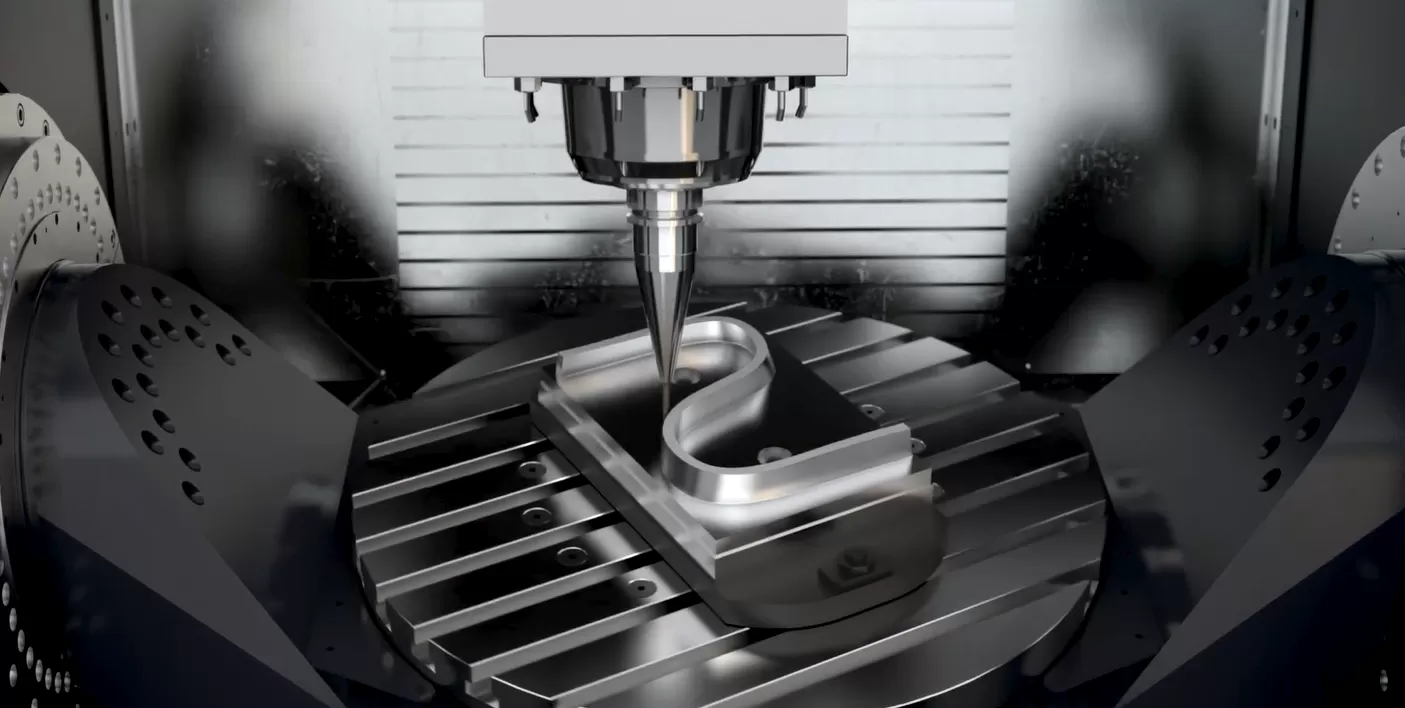

At its heart, a 5-axis CNC machining center transcends the linear limitations of conventional equipment. By seamlessly coordinating three linear axes (X, Y, Z) with two rotational axes (A and C), it achieves continuous, synchronized toolpath control within full five-sided machining capability. This enables the cutting tool to maintain the optimal orientation relative to the workpiece surface at all times.

The impact is profound. Consider the manufacturing of aero-engine turbine blades, where complex airfoils and precision tenons present formidable challenges. While 3-axis machines require multiple setups and produce visible surface seams, a true 5-axis CNC machine utilizes dynamic rotational tool center point(RTCP) control. This allows a ball-nose end mill to follow the most efficient path, consistently engaging the contoured surface at the perfect angle. The result is a surface finish refined to Ra 0.4μm, a 15% increase in aerodynamic efficiency, and a component lifespan extended by over 100%.

The Single-Setup Revolution: Unlocking Unrivaled Efficiency & Accuracy

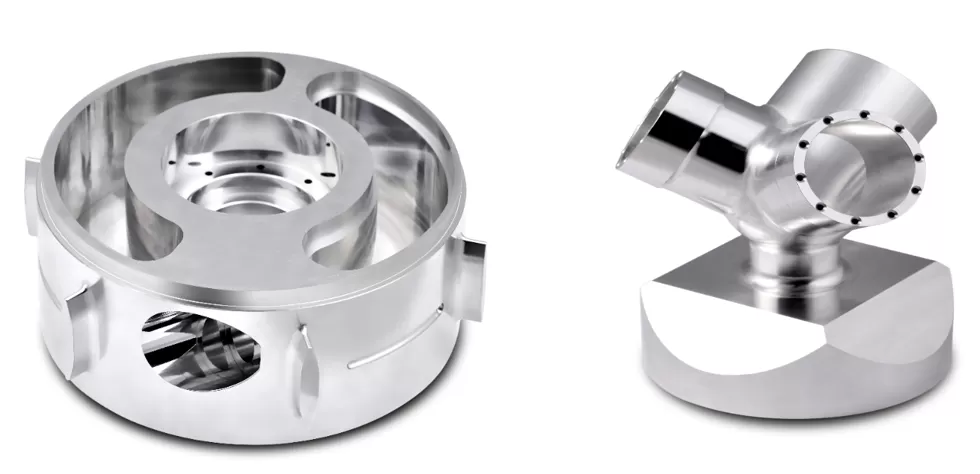

One of the most significant advantages of advanced 5-axis machining is the "Complete-in-One-Setup" paradigm. Complex parts that previously required numerous re-fixturings and manual rotations can now be machined from all necessary angles in a single clamping. This eradicates the cumulative errors inherent in multiple setups, dramatically boosting consistency and yield.

This capability is critical for deep-cavity work or parts with obstructed features. By strategically tilting the spindle or rotating the table, the tool gains access to challenging areas while avoiding collisions with the workpiece or fixture. For instance, in machining electric vehicle battery enclosures, this methodology enables the use of shorter, more rigid tools, leading to an 18% reduction in component weight, a 40% improvement in dynamic balance, and guaranteed process safety through the collision avoidance function.

Intelligent Compensation: A Leap Towards Micron-Level Precision

Modern 5-axis machining centers are equipped with sophisticated, intelligent systems that ensure consistent, supreme accuracy. Beyond raw mechanical power, these systems feature real-time adaptive control and compensation algorithms. These smart systems continuously monitor variables such as tool wear and thermal drift, automatically adjusting feed rates and spindle speeds to maintain cutting integrity.

In the precise machining of high-performance components like ceramic turbine blades, this smart technology reduces cutting forces by 30-40%. When integrated with auxiliary systems like ultrasonic-assisted machining, it significantly minimizes subsurface damage and micro-cracks, producing stronger, more reliable parts.

Agile Manufacturing: Empowering Flexibility for Modern Demands

The flexibility of 5-axis CNC machine technology is perfectly suited for today's era of high-mix, low-volume, and customized production. In the medical field, for example, it enables the direct machining of patient-specific implants from CT scan data. One manufacturer leveraging this capability for titanium alloy bone plates reported a 70% boost in efficiency for complex porous structures and a dramatic quality leap, with first-pass yield rates soaring from 82% to 98%.

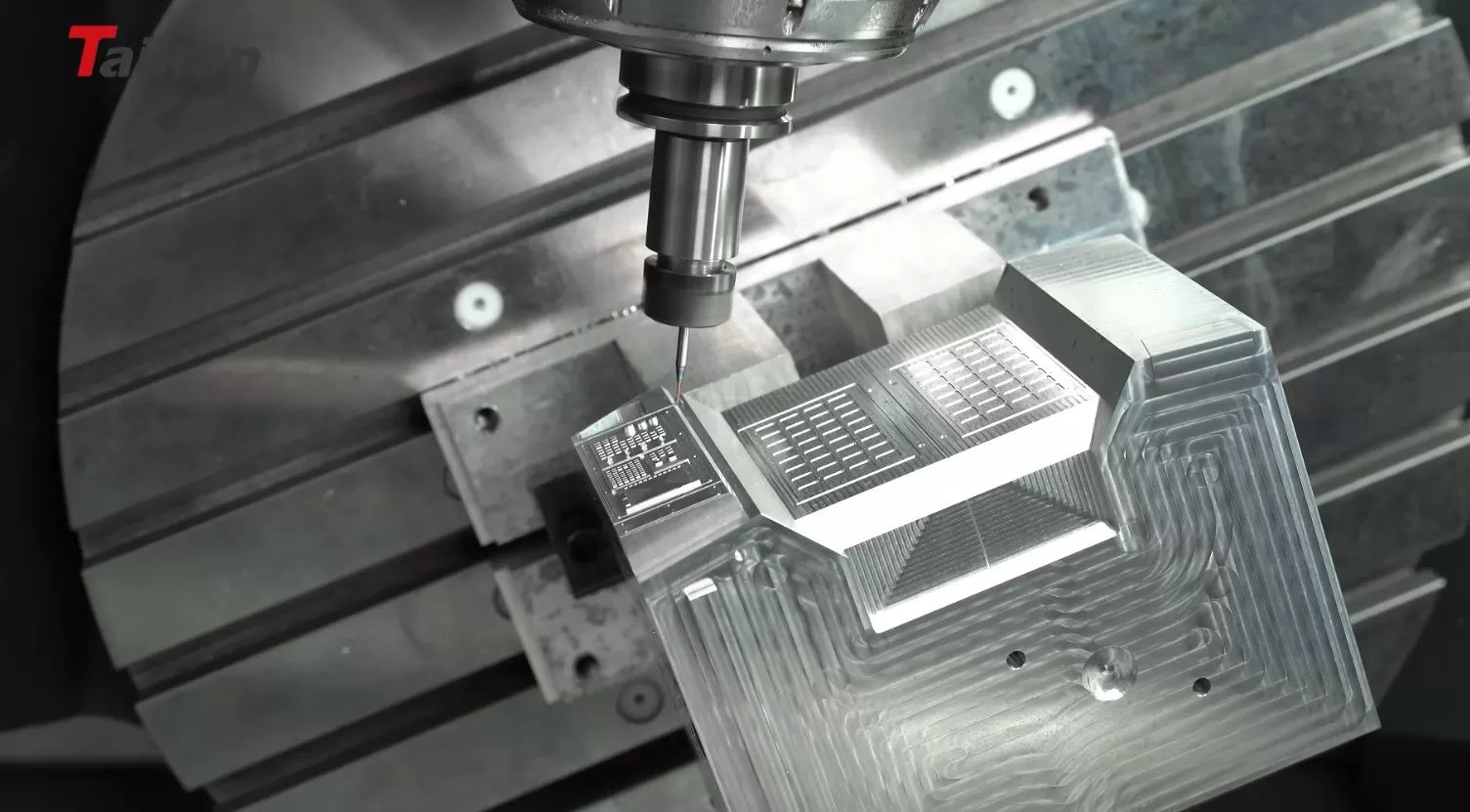

This agility is also transforming more voluminous industries. A leading automotive headlight mold manufacturer, after integrating a high-performance 5-axis machining center, compressed mold development cycles by 30% and reduced electrode wear by 60%. Coupled with automated pallet and tool changers, their systems achieve lights-out production. Dynamic error compensation holds intricate cavity dimensions within a tight tolerance of ±0.005mm, meeting the rapid iteration pace demanded by the electric vehicle revolution.

Strategic Impact: From Machine Tool to Systemic Value Creation

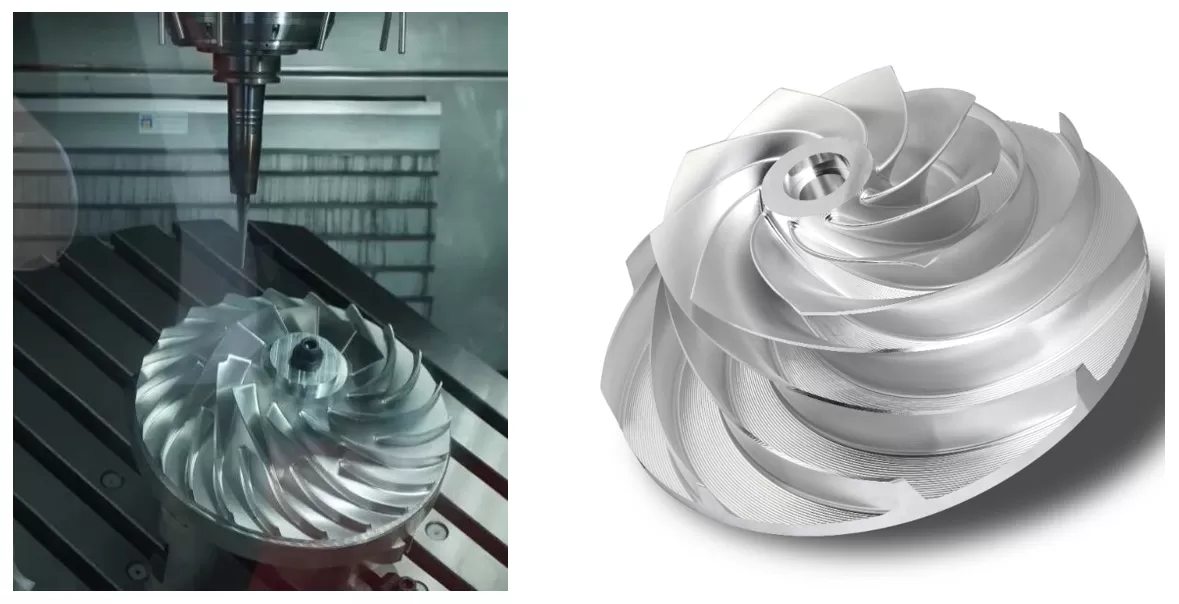

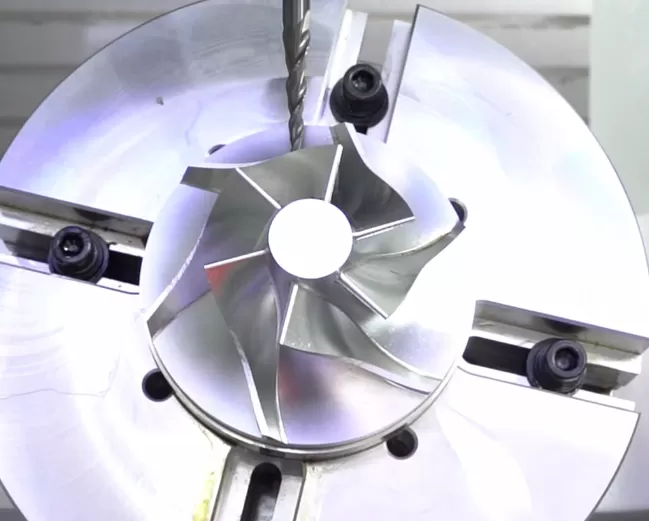

For a global 5 axis CNC machine manufacturer, the goal extends beyond delivering superior equipment. It is about enabling a systemic breakthrough in entire production workflows. In aerospace, the production of an integral impeller is transformed from a trial-and-error process into a deterministic, digitalized operation, supported by virtual simulation of twisted blade channels.

By integrating design, machining, and verification into a seamless digital thread, simultaneous 5-axis machining is propelling manufacturing from an experience-driven craft to a data-driven science. This technological evolution is actively reshaping global value chains and redefining the competitive landscape of high-end manufacturing.

Explore the Future of Precision Manufacturing

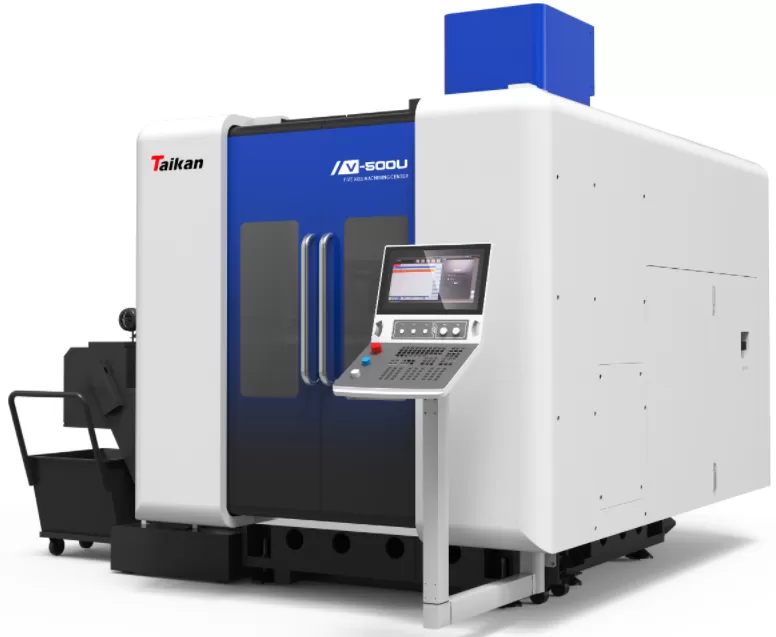

As a premier global 5 axis CNC machine manufacturer, we are committed to providing cutting-edge 5 axis machining centers that drive innovation and efficiency. Our portfolio of high-performance 5 axis CNC machines for sale is engineered to deliver the precision, flexibility, and reliability your most challenging projects demand.

Ready to transform your complex part production?

Contact us today to learn more about our 5-axis solutions or to discuss your specific application needs. Let's build the future, together.
