CNC Lathe vs CNC Mill: Key Differences in Machining

In the realm of precision manufacturing, Computer Numerical Control (CNC) technology has transformed how parts are produced, delivering exceptional accuracy, consistency, and efficiency. Among the wide range of CNC equipment, CNC lathes and CNC mills remain two of the most essential and widely used machine tools.

Whether you're sourcing equipment, optimizing production workflows, or evaluating machining solutions, understanding the fundamental differences between CNC turning and CNC milling is critical. The right choice can significantly impact production cost, machining efficiency, and final product quality.

In this article, we'll break down the key differences, typical applications, and practical selection criteria to help you choose the right machine for your specific needs.

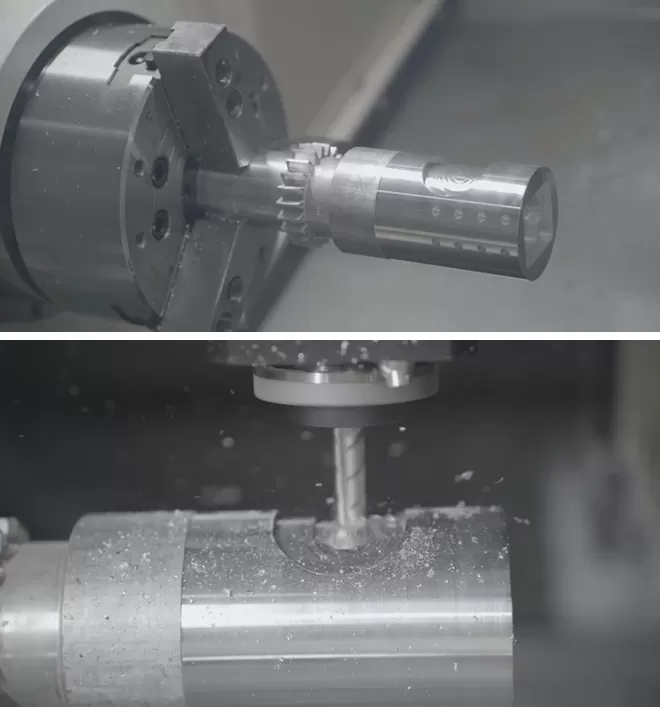

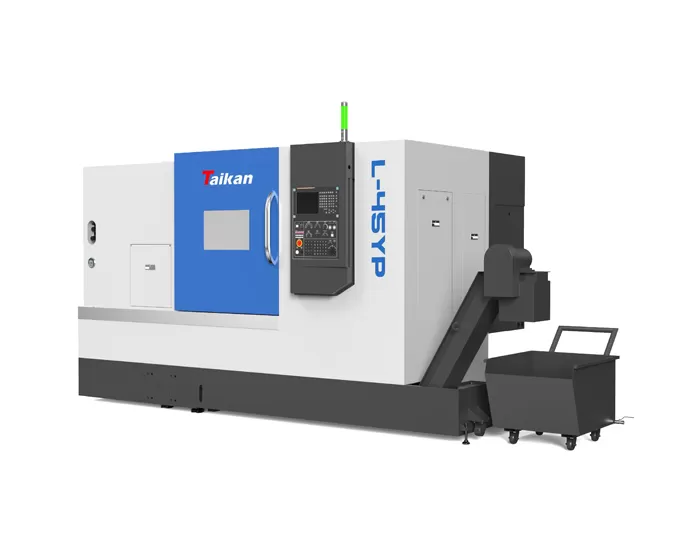

What Is a CNC Lathe Machine?

A CNC lathe, also known as a cnc turning center, is a precision machining tool that rotates the workpiece while a cutting tool moves along predefined paths to remove material. This process is highly efficient for producing cylindrical and symmetrical components with excellent accuracy and surface finish. In a CNC lathe, the workpiece is securely clamped in a chuck and spun at high speed. Meanwhile, the cutting tool, mounted on a turret, travels along the X and Z axes to shape the material into the desired form. CNC lathes are widely used for high-volume production due to their speed, consistency, and cost efficiency, making them ideal for manufacturing shafts, bushings, fasteners, and other round parts.

Key Functions of a CNC Lathe Machine

• The workpiece rotates at high speed

• The cutting tool moves along the X and Z axes

• CNC lathe machine is ideal for machining rotationally symmetrical parts

• Delivers high precision and smooth surface finishes

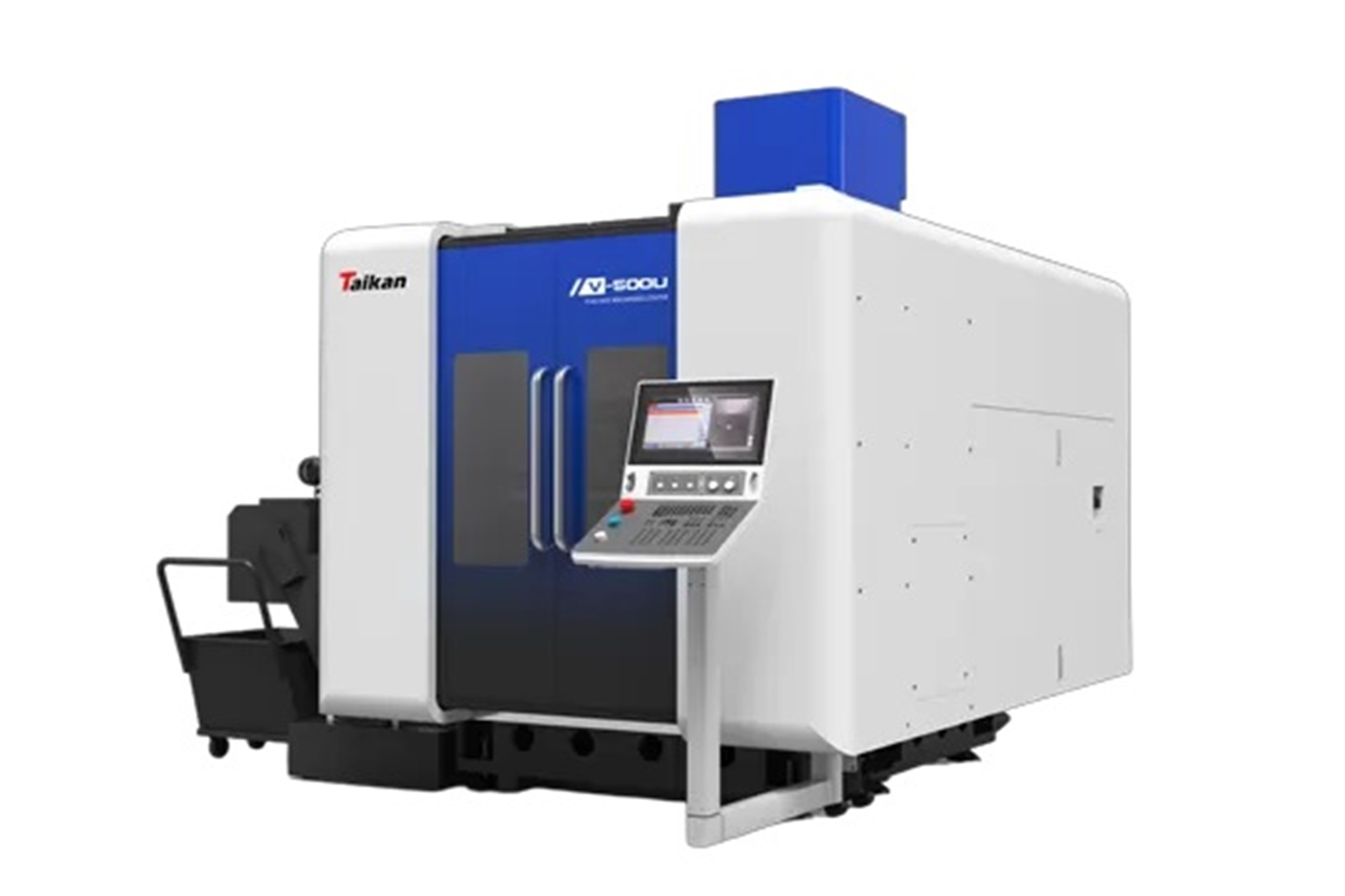

What is CNC Milling?

A CNC mill is a versatile machining center that uses rotating cutting tools to remove material from a stationary or movable workpiece. The fundamental principle is: Rotating tool, stationary workpiece. The workpiece is clamped to a movable table that shifts along multiple axes (usually X, Y, and Z), while the cutting tool spins rapidly to carve out complex shapes, flat surfaces, slots, and pockets. The workpiece is clamped to a movable table that shifts along multiple axes (usually X, Y, and Z), while the cutting tool spins rapidly to carve out complex shapes, flat surfaces, slots, and pockets.

Key Characteristics of CNC Milling

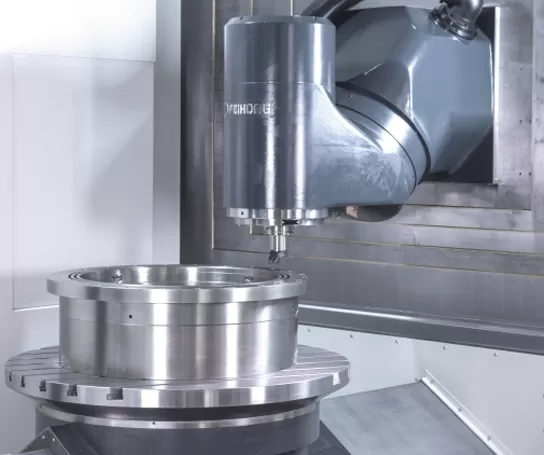

• Multi-axis machining: From 3-axis to advanced 5 axis cnc milling machine, allowing intricate 3D contours and undercuts.

• Tool types: Uses multi-point cutting tools such as end mills, face mills, and drills.

• Applications: The vertical cnc milling machine is ideal for prismatic, box-like parts or components with features on multiple faces.

Key Differences Between CNC Mills and Lathes

Choosing the Right CNC Machining Process

Selecting between a CNC lathe and a CNC mill depends on several critical factors:

1. Analyze Your Part Geometry: Cylindrical or symmetrical parts:

   Choose a CNC lathe for efficient and precise production.  Complex, flat, or multi-surfaced parts: Opt for a high-speed cnc milling machine. Hybrid parts: Consider a mill-turn center or multiple setups with both machines.


2. Consider Production Volume and Complexity

   High-volume production of simple round parts: CNC lathe machine offers speed and cost efficiency.  Low to medium volume with intricate features: CNC mill or mill-turn centers provide flexibility.

3. Material and Tolerance Requirements

   Both machines handle a wide range of materials, including aluminum, steel, brass, titanium, and plastics.  CNC mills are better for complex shapes requiring tight tolerances on multiple faces.  CNC lathes excel in achieving tight tolerances and superior surface finishes on cylindrical parts.


4. Budget and ROI

   CNC lathes generally have lower setup and tooling costs for cylindrical parts.

   CNC mills may require higher initial investment but reduce secondary operations for complex parts.

Why Choose Taikan for Your CNC Solutions?

As one of the leading CNC manufacturers in China, Taikan provides industry-leading CNC solutions tailored for the 3C, automotive, and medical industries.

• Precision Engineering: Our CNC mills offer high-speed spindle options for flawless finishes.

• Stability: Taikan machines are built with heavy-duty castings to minimize thermal deformation.

• Expert Support: We don't just sell machines; we provide comprehensive machining strategies to boost your production efficiency.

Ready to upgrade your production line? Contact our Engineering Team for a Consultation.
