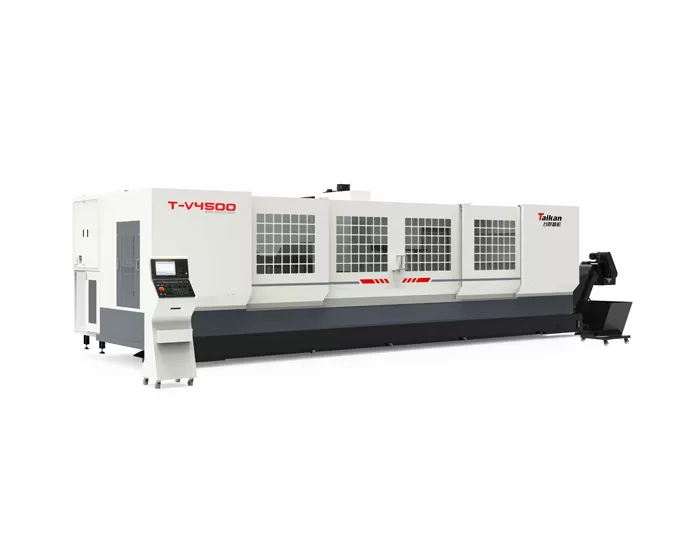

T-V4500 Moving Column Profile Machining Center

Travel

Table travel (X axis)

mm

4500

Saddle travel (Y axis)

mm

550

Headstock travel (Z axis)

mm

550

Distance from spindle nose to table

mm

150-700

Table

Table size

mm

4500*550

Max. load

Kg

800

T-slot (number-width*spacing)

mm

5-18*100

Spindle

Motor power (rated/short time)

kW

7.5/11

Motor torque (rated/short time)

N.m

35.8/95.5

Spindle speed

rpm

20-12000

Spindle diameter

mm

Ф150

Spindle taper

/

BT40

Speed

Cutting feed speed range

mm/min

1-10000

X/Y/Z axis rapid traverse speed

m/min

50/28/28

Accuracy

Positioning accuracy (X/Y/Z)

mm

0.08/0.01/0.01

GB/T 18400.4

Repeatability (X/Y/Z)

mm

0.05/0.008/0.008

(Full travel)

Tool magazine

Tool magazine capacity

T

24 (disc)

Max. tool weight

kg

7

Max. tool length

mm

250

Max. tool diameter (full /adjacent empty)

mm

Ф75/Ф150

Others

CNC system

/

Mitsubishi M80VB

Air source

Flow

L/min

≥280（ANR）

Air pressure

MPa

0.6-0.8

Equipment capacity

kVA

25

Coolant tank capacity

L

400

Machine size

mm

9300*3200*2800

Corresponding to X*Y*Z axis

Weight (approx.)

Kg

13000
