Taikan Machine 856 Series Vertical Machining Center Surpasses 40,000 Units

In the era of global intelligent manufacturing, the Taikan Machine 856 Series Vertical Machining Center stands out with its core advantages of "high configuration, high precision, and high reliability". It has become an indispensable CNC vertical machining center and a preferred "machining solution" for industries such as 5G communications, new energy vehicles, and precision medical equipment.

We are proud to announce that cumulative sales of the Taikan Machine 856 Series have surpassed 40,000 units! This milestone is a testament to the trust and support of 40,000 customers worldwide. From the very first unit to the 40,000th, every step forward has been a shared journey of confidence and proven capability.

01 High Sales Volume, Large User Base

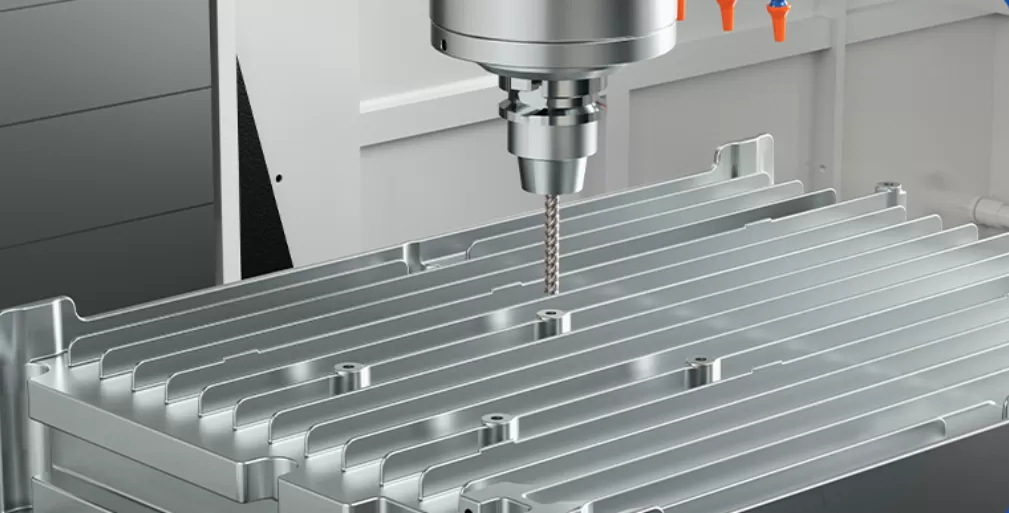

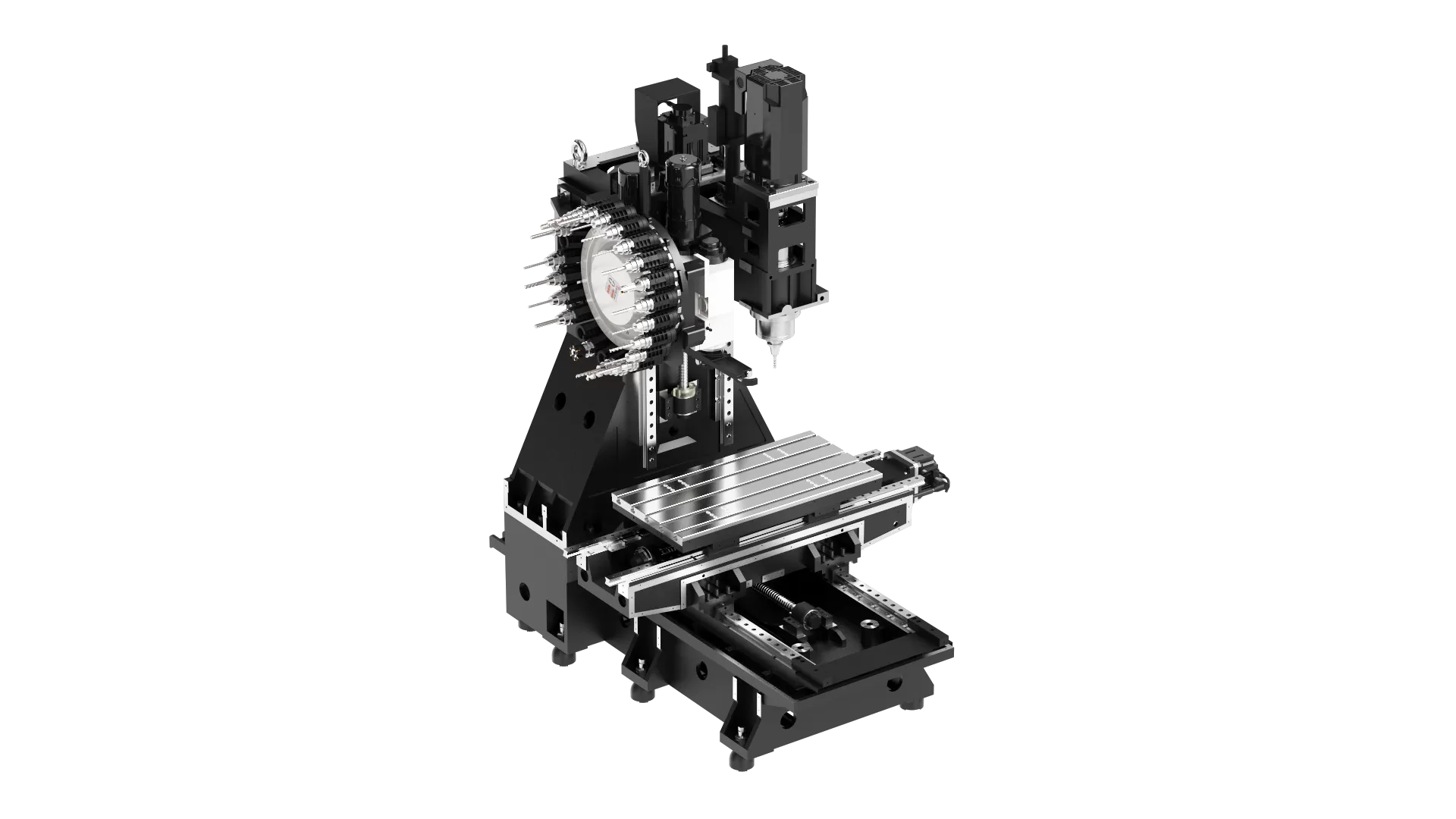

The 856 series vertical machining center has undergone five iterative upgrades and has earned the recognition of a broad customer base, now surpassing 40,000 units sold. This milestone reflects not only customers' financial investment but also the market's tacit acknowledgement of the 856 series as an industry benchmark. The T-V856S supports a wide range of applications—hardware, mold making, medical devices, new energy vehicles, humanoid robots, heat sink production, low-altitude aircraft components, and factory automation—demonstrating flexible adaptability to diverse production requirements.

02 High Efficiency & Superior Productivity

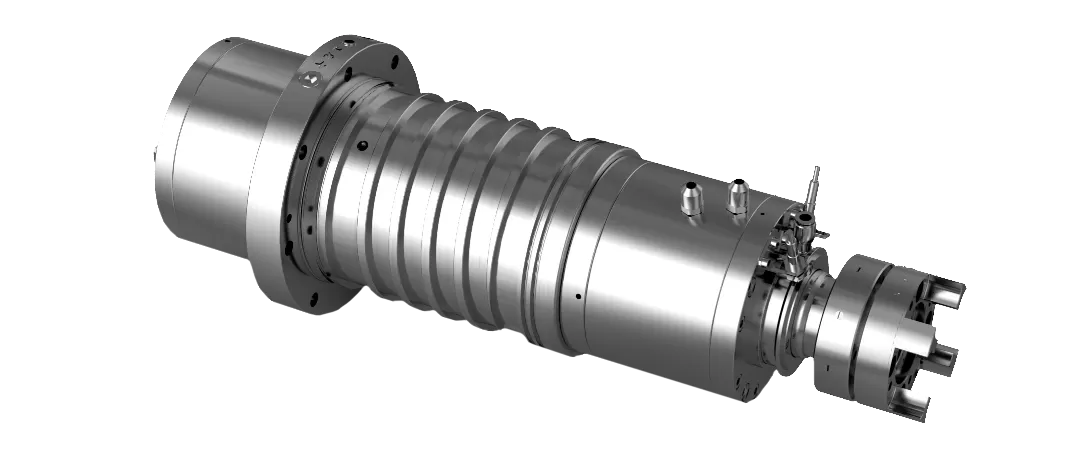

• Direct-Drive Spindle System: A perfect balance of speed and stability. The spindle features a direct-coupled BBT40-12000r/min high-speed long-nose design with a labyrinth seal and air curtain protection at the front end. It offers high transmission efficiency, rapid response, fast machining speeds, and long-term durability.

• Rapid Movement: With rapid traverse rates of 48/48/48 m/min on the X, Y, and Z axes, non-cutting time (idle travel, tool change movement, workpiece positioning) is significantly reduced. This enhances overall machining efficiency and is particularly suitable for multi-process, multi-station machining scenarios, boosting the machine's throughput.

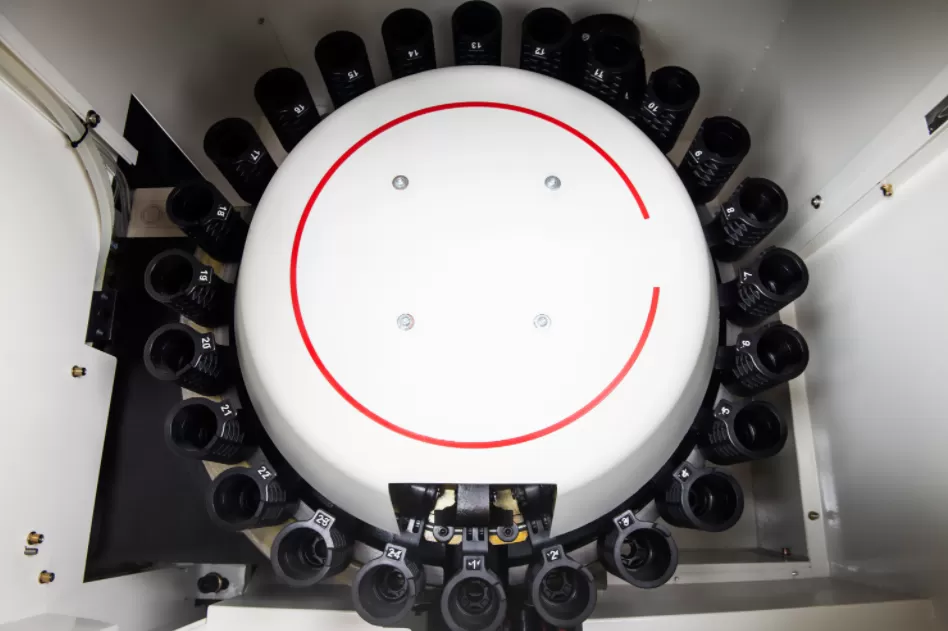

• Enhanced Tool Holding & Longevity: The standard BBT dual-contact spindle system ensures minimal axial runout through simultaneous cone and face contact, extending tool life by up to 30%. Equipped with a 24T arm-type ATC controlled by a frequency converter and angle encoder, the tool-to-tool change time is a swift 3.2s. The reinforced tool magazine structure stably handles tools weighing up to 7kg, minimizing vibration during high-speed exchanges and enhancing efficiency in complex, multi-operation workpiece machining.






03 Superior Design, Premium Components, Rigorous Quality Control

• Premium Bearings: All three axes utilize imported bearings from Japan's NSK or Germany's FAG, known for self-lubrication, high-speed limits, high load capacity, low noise, long service life, and easy maintenance.

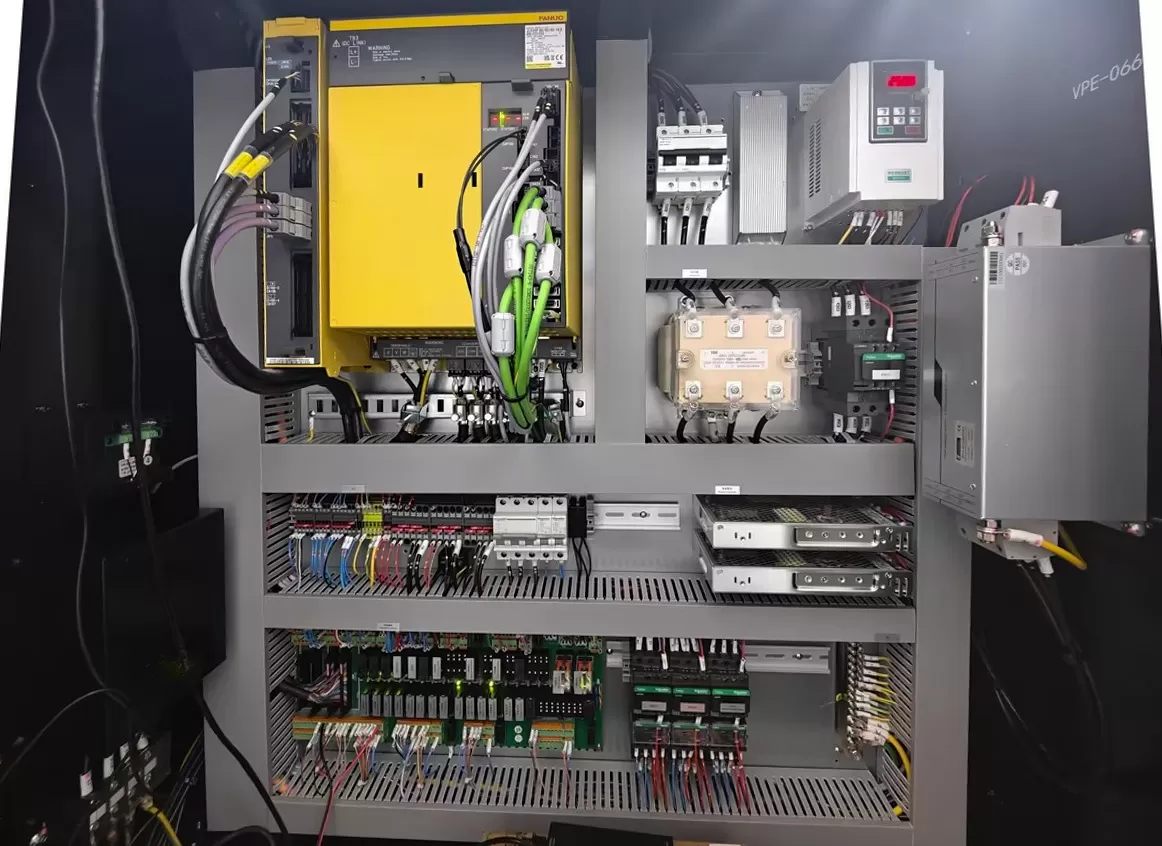

• Reliable Electrical Components: Key electrical components feature top-tier brands like France's Schneider and Japan's Fuji, offering double insulation, reliable isolation, high safety, and excellent resistance to humidity, heat, and vibration for extended longevity.

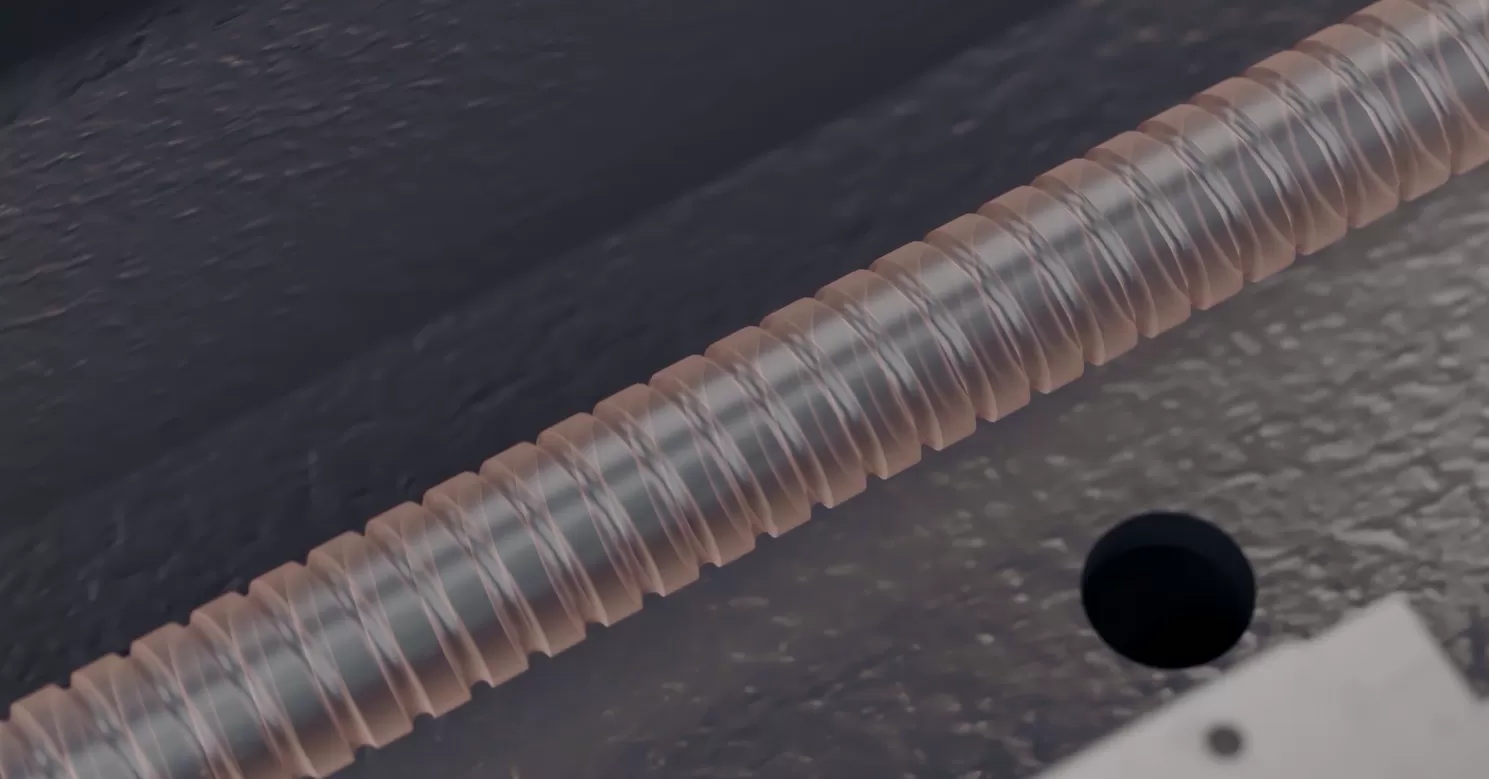

• Large-Diameter Screws & High-Precision Guides: The three axes employ large-diameter ø40mm C3-grade ball screws and P-grade precision linear guides from Taiwan's Hiwin or PMI, significantly improving machining accuracy and stability.




• Stable Pneumatic System: The complete pneumatic system uses components from Japan's SMC. A front-mounted independent air source water separator, combined with filter-regulator-lubricator units, provides 99% water removal, 5μm filtration, and 0.3μm oil mist separation, ensuring continuous, stable operation.

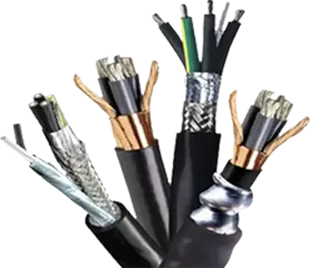

• Durable Cabling: Cable wiring utilizes high-flex German LAPP cables, resistant to millions of bends, and offering excellent abrasion resistance, tolerance to high/low temperatures, high strength, and long life.

04 High Value Retention & Controllable Costs

The exceptional configuration, durable parts, robust construction, simple maintenance, and extended operational life of the T-V856S not only ensure user peace of mind but also significantly prolong equipment refresh cycles, saving substantial long-term costs for customers. Supported by scaled production and a mature supply chain, we deliver superior configuration at a competitive price—or higher configuration at an equal price. Low failure rates further reduce operational costs, maximizing the comprehensive lifecycle value.

05 Solid Execution, Sustainable Reliability

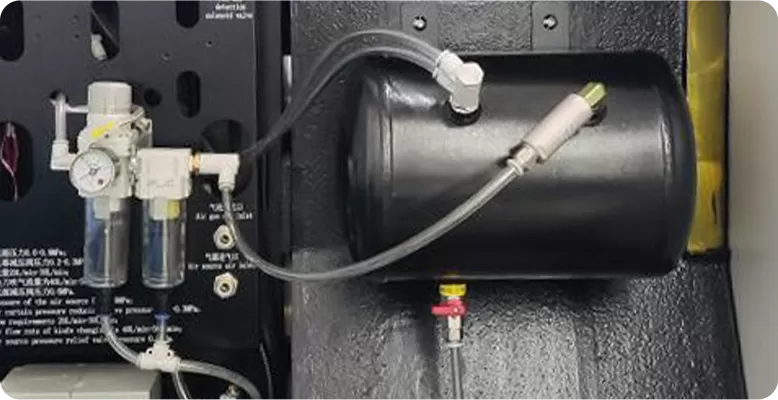

• An integrated air tank ensures stable pressure, preventing potential tool change issues or risks from unstable workshop air sources.

• A power line filter guarantees stable electrical current, reducing fluctuations that could cause malfunctions, overheating, or issues from power surges due to other equipment.

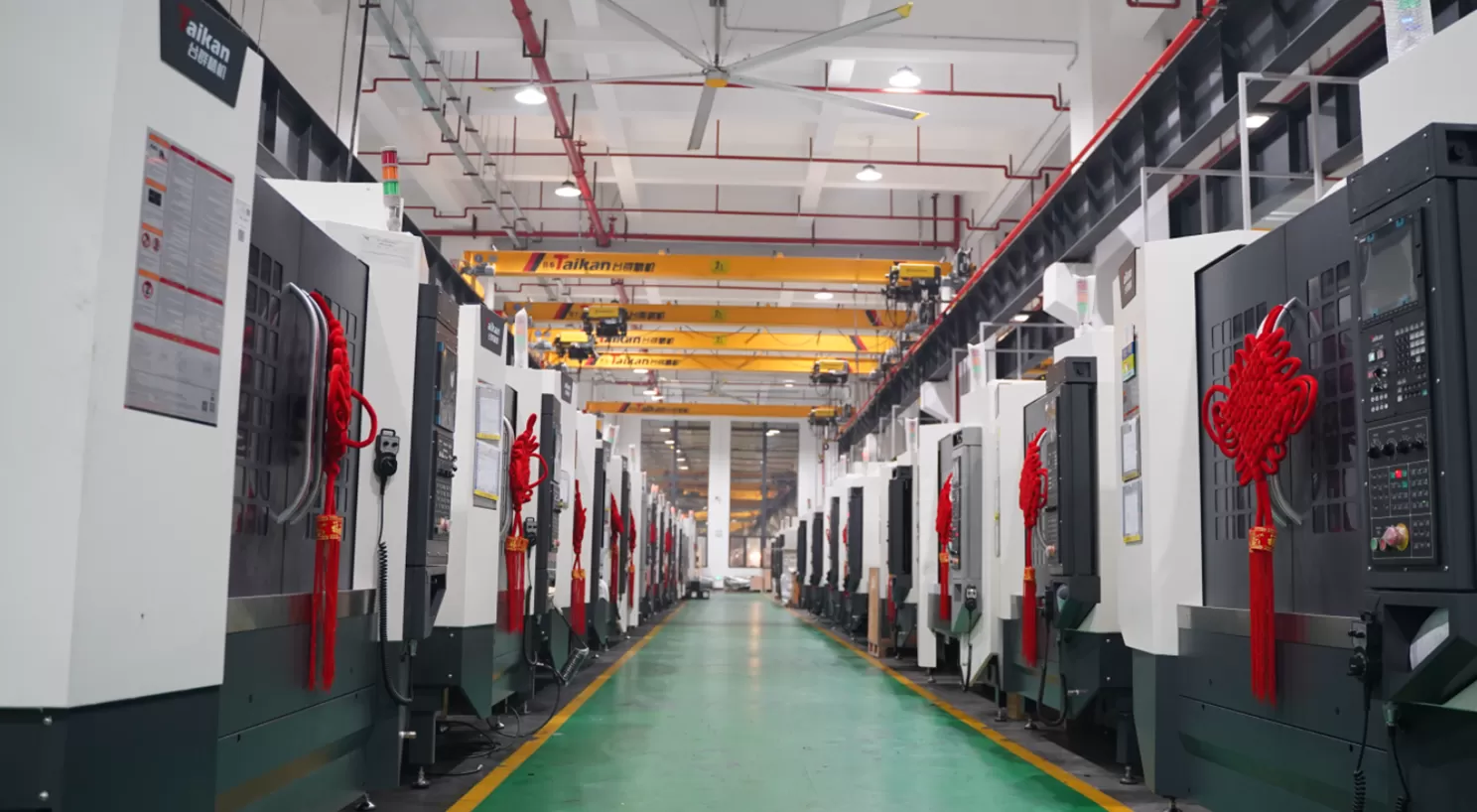

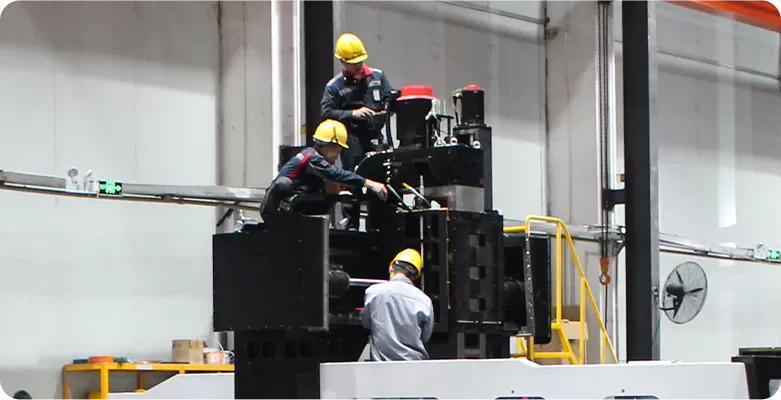

From comprehensive inspection of core components to strict adherence to standardized assembly processes and rigorous final quality control, every Taikan Machine 856 Series unit is built for exceptional stability and precision retention during long, continuous machining operations. Each machine is engineered to withstand the toughest market tests.

40,000 units is not an endpoint but a new beginning. Taikan Machine will continue to innovate and to honor the confidence of every customer and partner who chose the 856 series vertical machining center. Thank you for your support — together we will keep advancing precision manufacturing.
