Name: T-V1285W High-precision and High-efficiency Wheel hub Machining Center
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

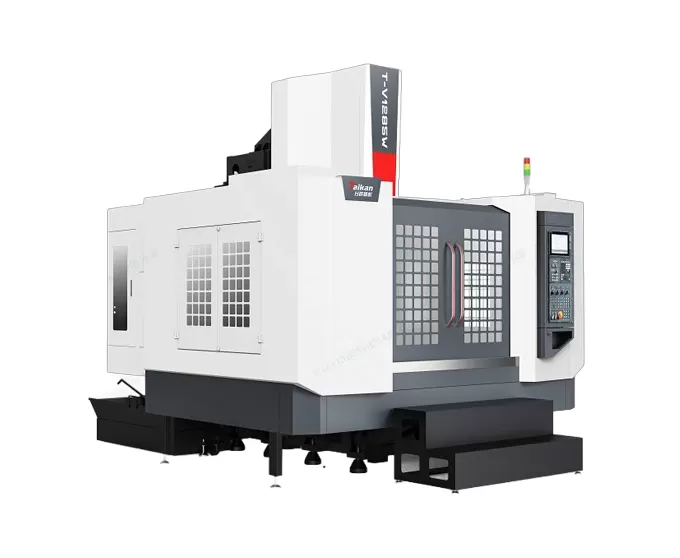

Characteristics of T-V1285W High-precision and High-efficiency Wheel hub Machining Center

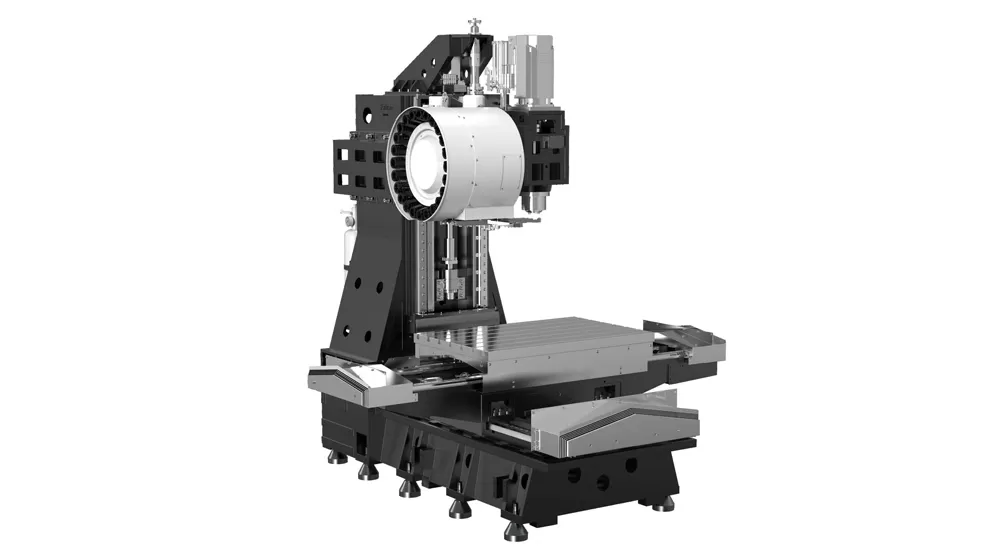

Machine Structure

Designed specifically for machining automobile wheel hubs up to 26 inches, with a wide stroke, fast processing speed, high rigidity, and precision.

Fixed column cross-slide structure, stable base, and large-span A-frame columns ensure no vibration or deformation during high-speed cutting.

Optimized Z-Axis

The Z-axis features nitrogen balancing and a six-block design, ensuring smooth high-speed movement and making it ideal for high-gloss surface machining.

Spindle

The machine features a high-speed spindle unit from Taikan, equipped with a BT40-12000 rpm direct connection head. The spindle front uses a labyrinth design with an air curtain protection, preventing cutting fluids from entering the spindle bearings.

Tool Magazine

The machine is equipped with a 24-pocket arm-type tool magazine from Taikan, known for its reliable quality and stable performance.

Application of T-V1285W High-precision and High-efficiency Wheel hub Machining Center

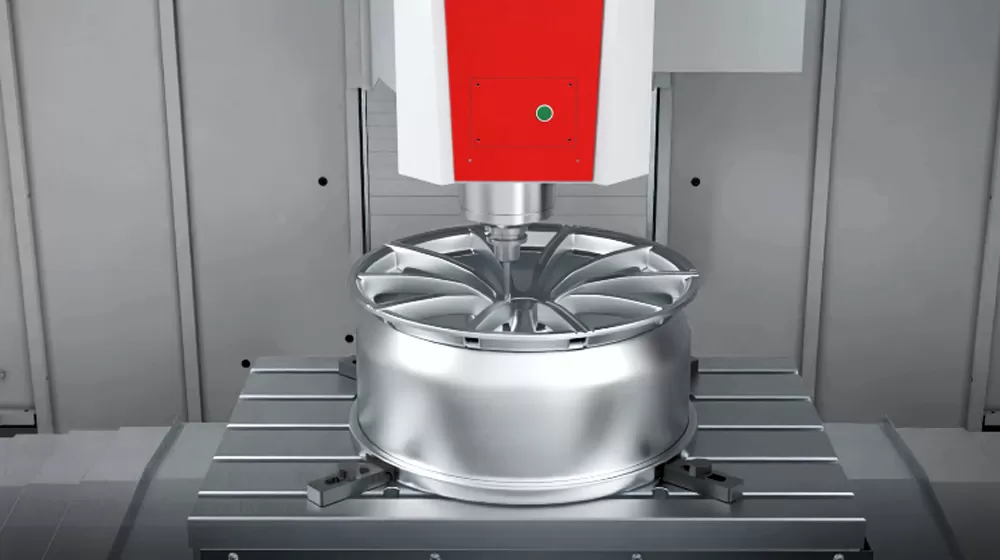

The workpiece can automatically and continuously perform multiple machining operations including milling, drilling, boring, reaming, counterboring, spot facing and tapping in a single setup. Featuring long Y-axis stroke design, this system is particularly suitable for processing square or circular workpieces, and has been widely applied in 26-inch new energy vehicle wheel hub manufacturing adopting casting/forging processes and semi-solid die forging technology.

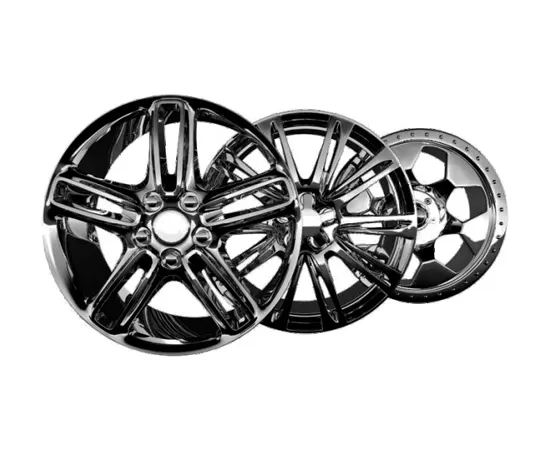

Workpiece Example 1

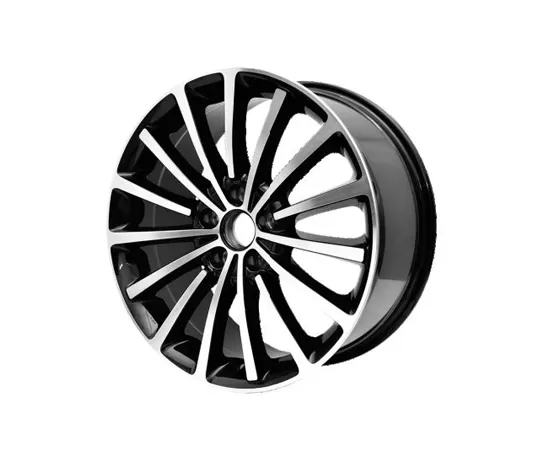

Workpiece Example 2

Specifications of T-V1285W

Item			Unit	T-V1285W	Remarks
Travel	Table travel (X axis)		mm	1200
	Saddle travel (Y axis)		mm	850
	Headstock travel (Z axis)		mm	700
	Distance from spindle nose to table surface		mm	80-780
	Distance from spindle center to column guide surface		mm	921
Worktable	Table size		mm	1300×850
	Max. load (even load-bearing)		kg	1000
	T-slot (number of slots - slot width * spacing)		mm	7-18×125
Spindle	Motor power (rated/short time)		kW	11/15
	Motor torque (rated/short time)		N.m	52.5/118
	Speed range		r/min	50~12000 (Directly coupled)
	Spindle diameter		mm	φ150
	Spindle taper		/	BT40
	Rivet specifications		/	P40T-I（MAS403）
Speed	Cutting feed speed range		mm/min	1-10000
Speed	X/Y/Z axis rapid traverse speed		m/min	24/24/16
Accuracy	Positioning accuracy (X/Y/Z)		mm	0.01	GB/T18400.4(Full travel)
Accuracy	Repeatability (X/Y/Z)		mm	0.007	GB/T18400.4(Full travel)
Tool magazine	Tool capacity		pcs	24
	Max. tool weight		kg	7
	Max. tool length		mm	250
	Max. tool diameter (full /adjacent empty)		mm	Φ75/Φ150
Others	CNC system		/	FANUC 0I-MF
	Air source	Flow	L/min	≥280(ANR)
	Air source	Air pressure	MPa	0.6~0.8
	Equipment capacity		KVA	40
	Coolant tank capacity		L	350
	Machine size		mm	3000×4080×3200	Corresponding to XYZ axis
	Weight (approx.)		Kg	9200

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
