50,000+ Sold Globally: The Ultimate Guide to Taikan Vertical Machining Centers

With an extensive lineup of Vertical Machining Centers designed for diverse industrial applications, selecting the ideal machine can be complex. The purpose of this guide is to help our global customers better understand the unique features of each Taikan series—enabling faster, more informed decision-making to optimize your production efficiency.

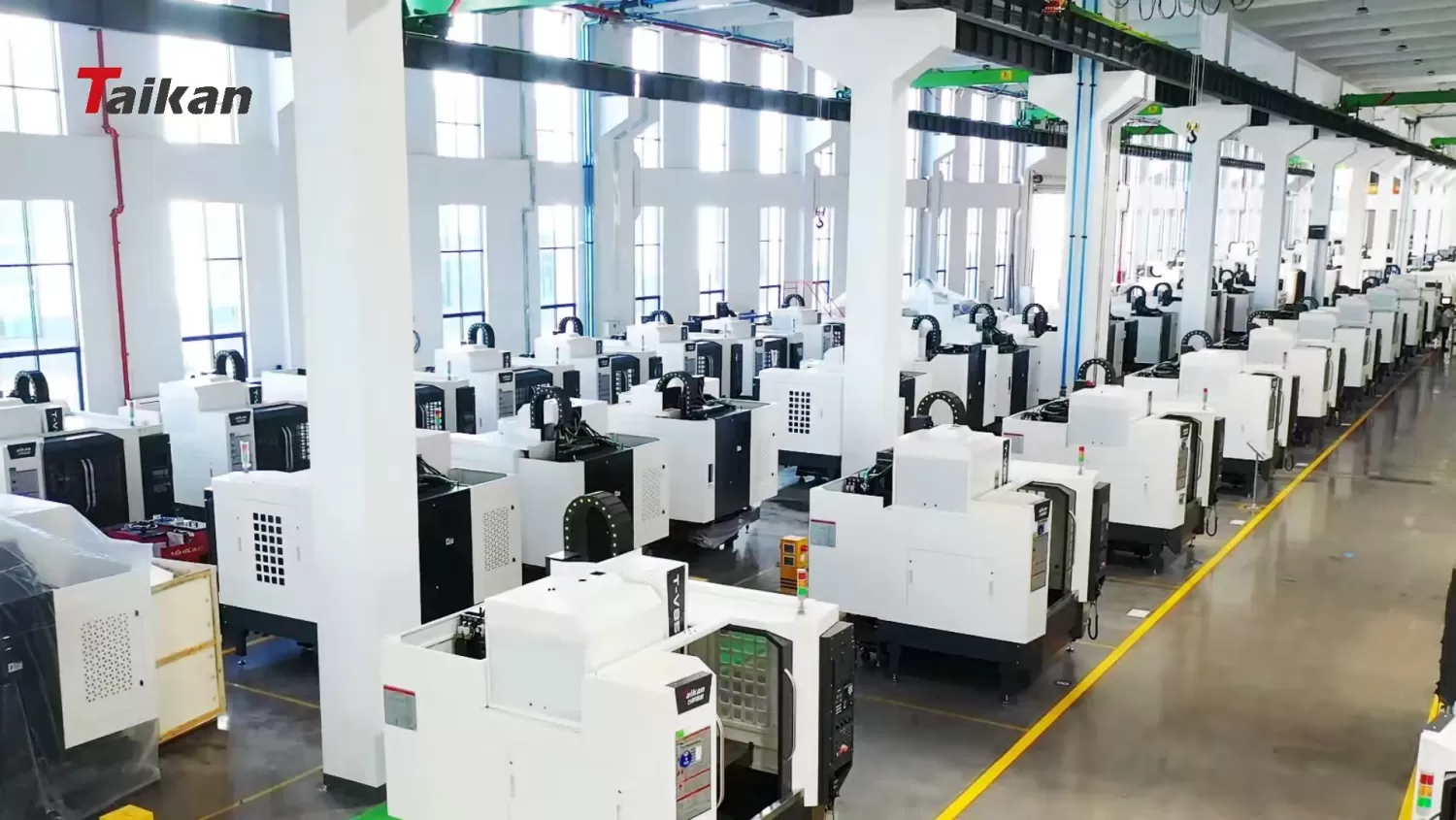

With over 50,000 units sold worldwide, Taikan Machine’s Vertical Machining Center (VMC) lineup represents the pinnacle of precision, speed, and reliability. From high-volume automotive parts to heavy-duty mold making, our diverse series are engineered to help your production line run more efficiently.

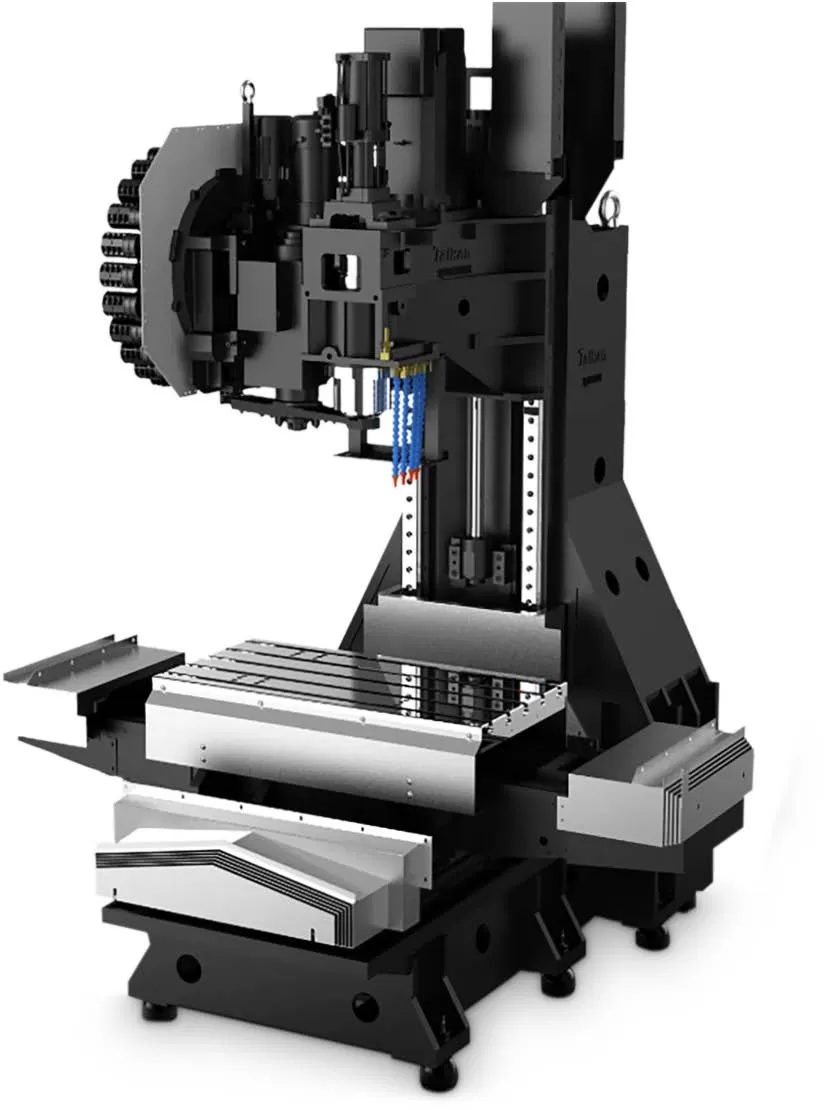

S Series: Three Linear Guide Rails for High-Speed Efficiency

A Classic Masterpiece: Engineered for high-speed, high-efficiency mass production.

All three axes of the S Series feature a linear guideway design. The S Series is Taikan's core solution for high-efficiency mass production. Engineered to balance rigidity with extreme velocity, this series is the preferred choice for processing aluminum, copper, and steel components where cycle time is critical.

• High Dynamics: Most models feature ball linear guide rails on all three axes, significantly reducing friction for faster acceleration/deceleration and superior durability in complex, high-speed tool paths.

• Rapid Performance: With rapid traverse rates reaching up to 48 m/min, non-cutting time is minimized, maximizing overall throughput.

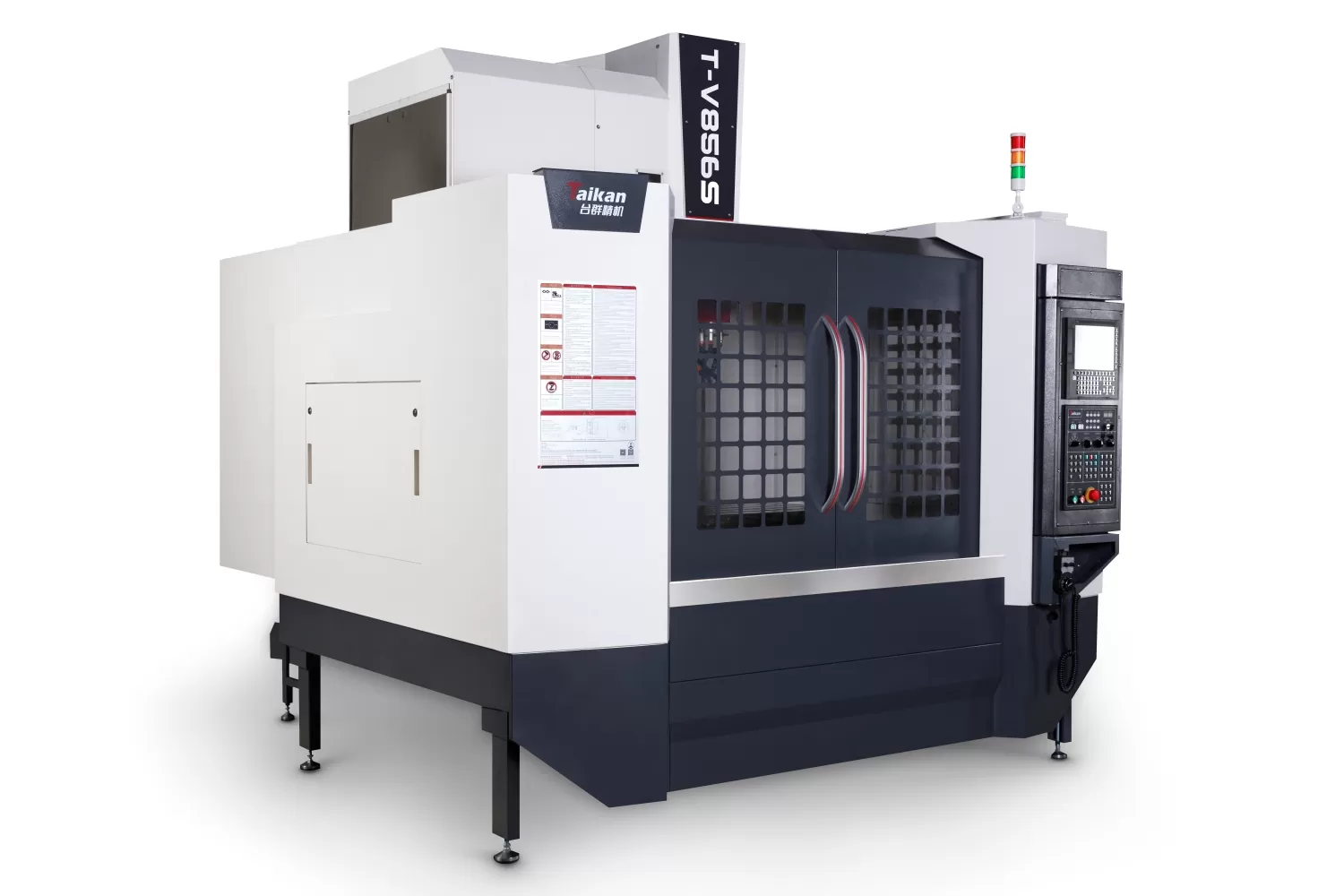

• Market Proven: The star model, T-V856S, has surpassed 40,000 units in global sales, becoming a benchmark in automotive and lightweight structural component manufacturing.

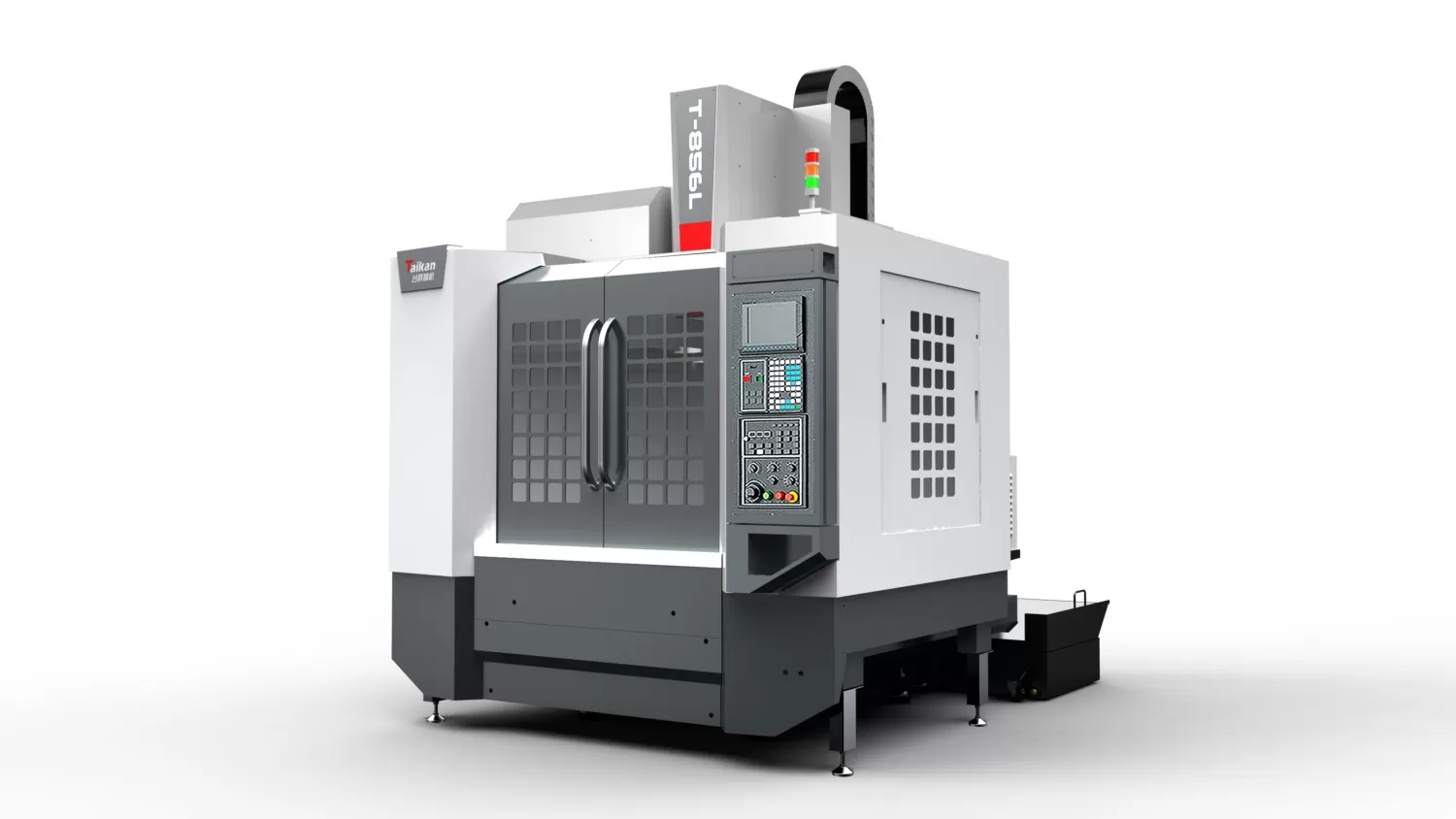

L Series — Two Linear and One Box Way Design

“The Outstanding Masterpiece: High Precision and Hybrid Stability”

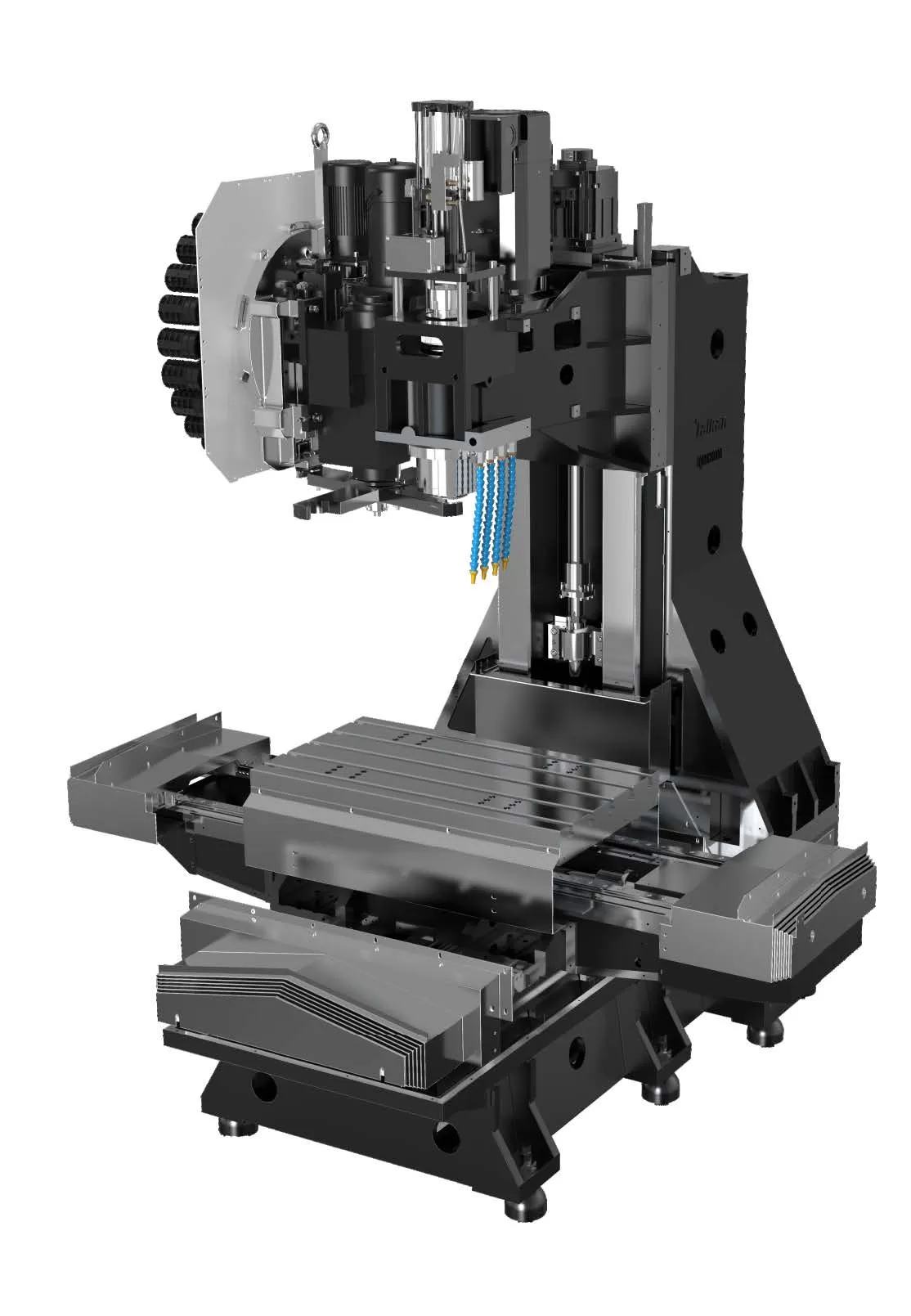

The L Series features a unique "Two Linear and One Box Way" design, offering the perfect synergy of speed and damping capacity. By utilizing linear guides on the X/Y axes and a robust box way on the Z-axis, this series excels in heavy-duty cutting and deep-cavity machining.

• Vibration Resistance: The Z-axis box way provides the necessary bending strength and damping for stable, heavy-load drilling and milling.

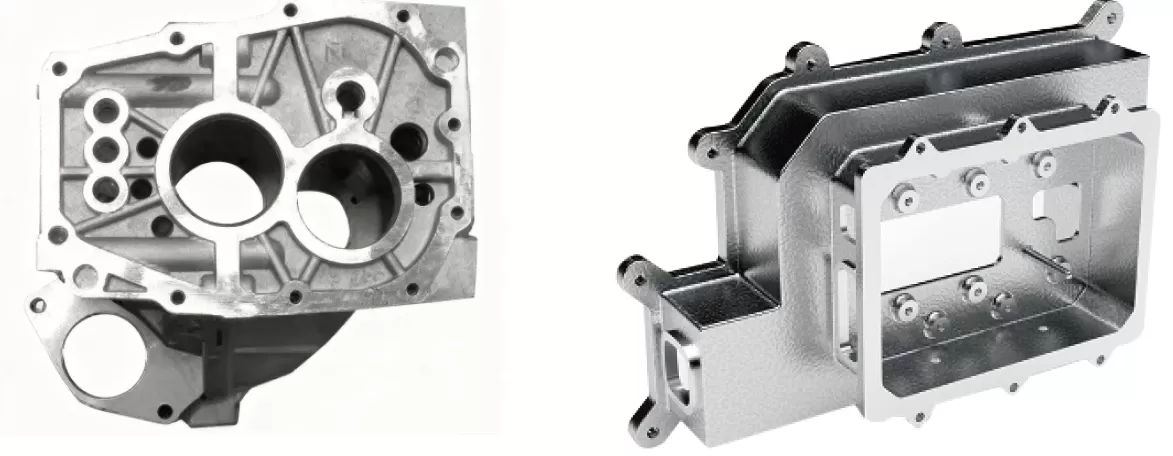

• High Torque: The T-1060L, equipped with an 8000 rpm belt-drive spindle, delivers up to 95.5 Nm of torque, making it ideal for engine blocks, gearboxes, and die-cast molds.

• Flexible Manufacturing: Supporting 4th-axis integration and automatic tool setters, the L Series serves as a bridge from standalone operation to fully automated production lines.

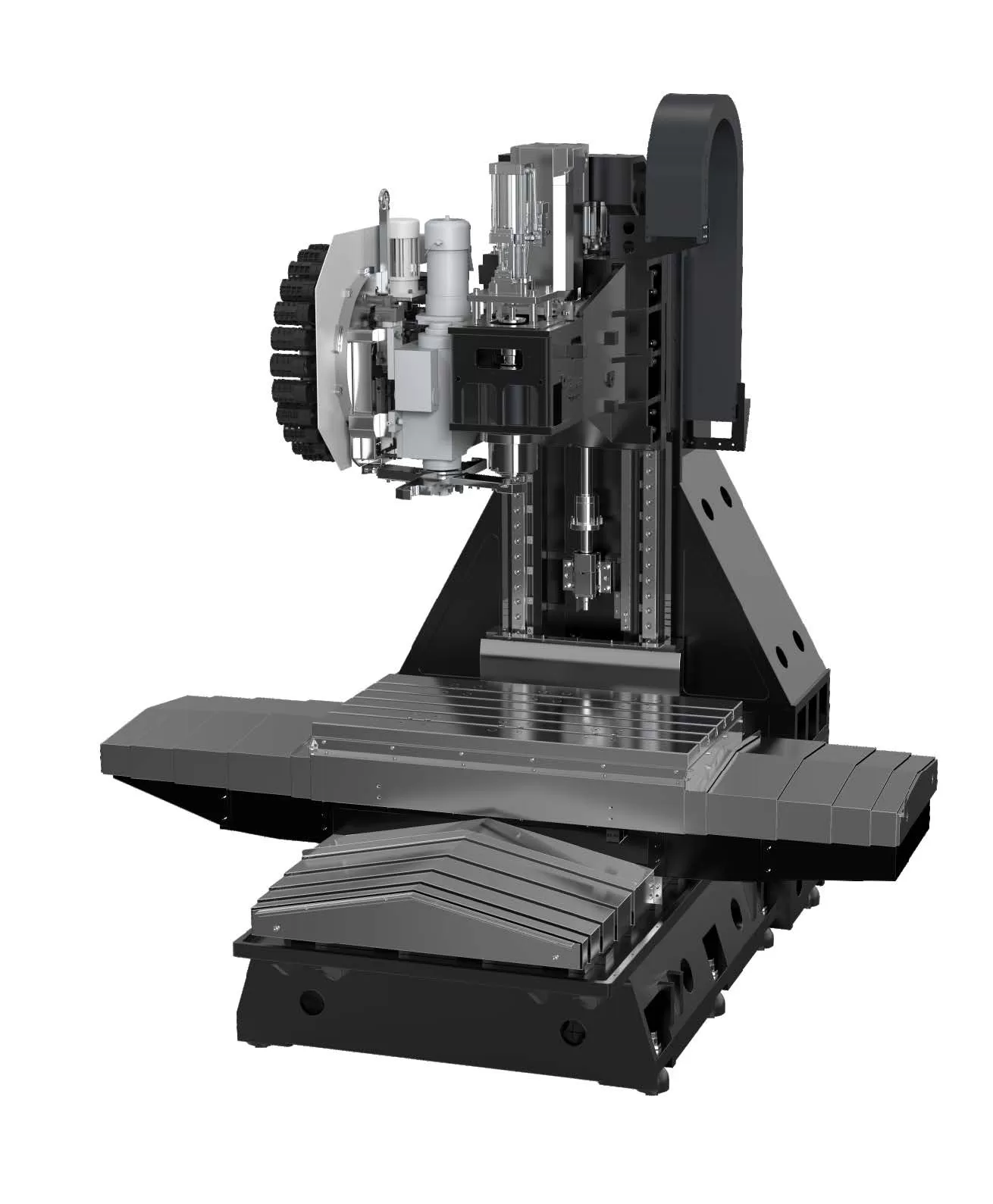

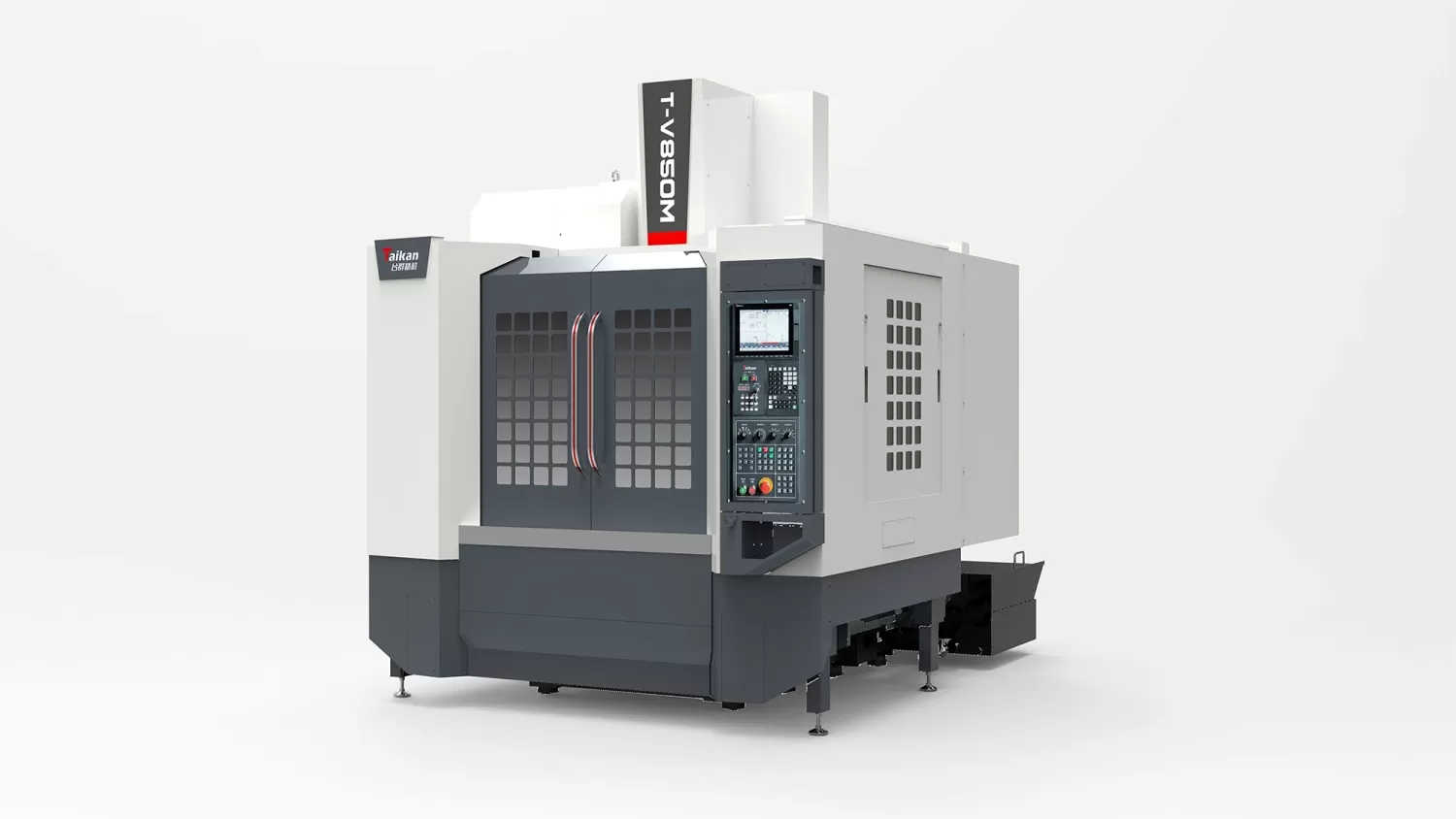

M Series: Built for Heavy-Duty Rigidity

“The Masterpiece for Heavy-Duty Cutting: Unmatched Structural Integrity”

For industries requiring extreme material removal rates in hardened steel or cast iron, the M Series is the definitive heavy-duty solution.

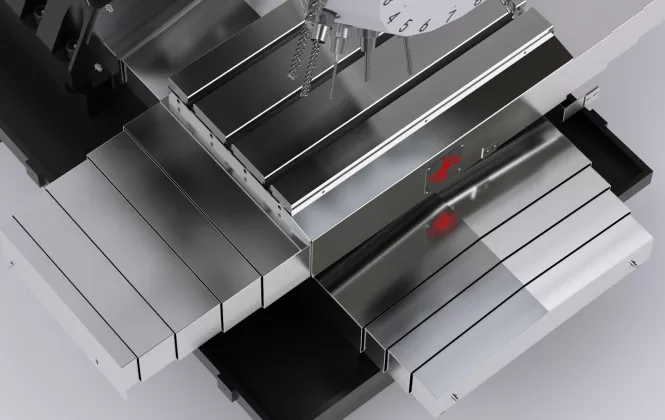

• Massive Construction: Featuring a fixed-column design and an extra-wide base with a large-span Y-axis, the M Series eliminates vibration even during high-load operations.

• Robust Guiding: Equipped with No. 45 roller linear guides and six sliders on the Z-axis, it offers immense load-bearing capacity.

• Powerful Spindle: The T-V850M comes standard with a BT40-8000 rpm belt spindle delivering a formidable 118 Nm of torque, ensuring exceptional surface finishes on high-strength alloys.

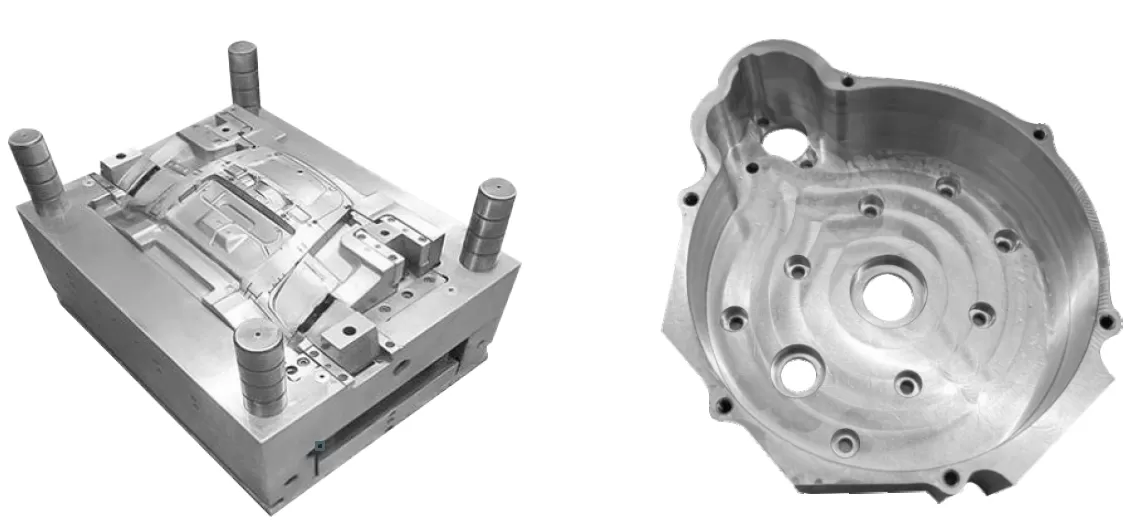

• Thermal Stability: Large-diameter C3-grade pre-tensioned ballscrews ensure high thermal stability and precision over long production runs.

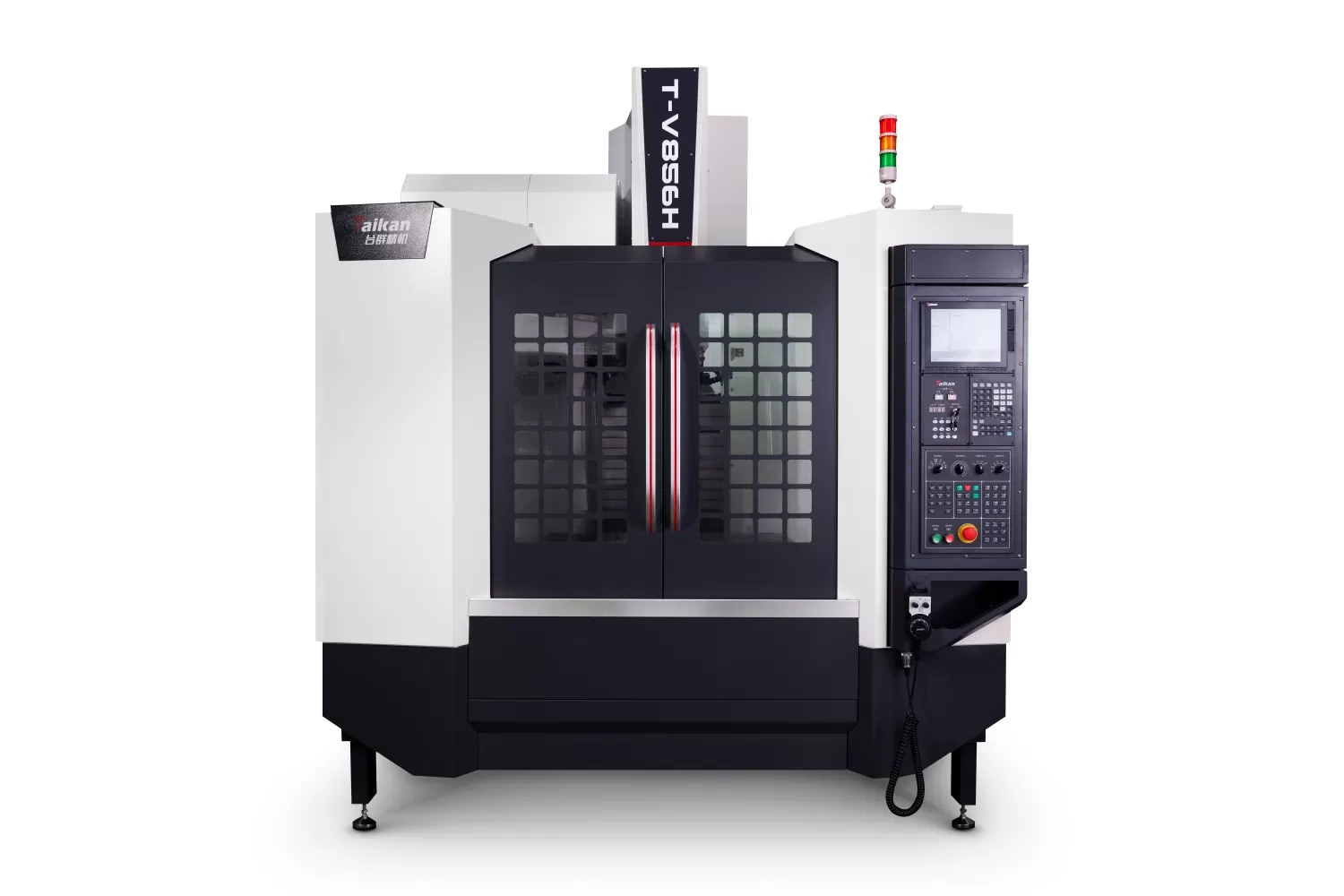

H Series Advanced Edition with Three Linear Guide Rails

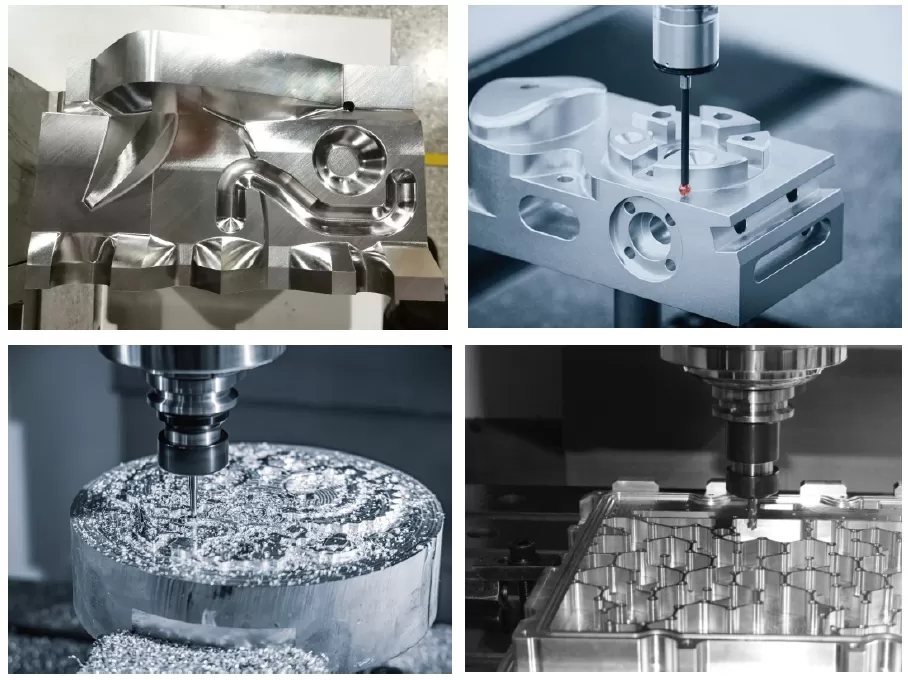

“Exquisite Craftsmanship: Thermal Control and High-Accuracy Machining”

The H Series is designed for high-precision environments where thermal displacement is the enemy of quality.

• Advanced Thermal Management: The core advantage of the H Series is its ballscrew cooling system. Utilizing C3-grade hollow ballscrews with a pre-tensioned structure, it effectively eliminates thermal expansion, ensuring consistent repetitive positioning accuracy.

• High-Power Spindles: Powered by high-torque motor spindles, the T-V1165H provides the muscle needed for deep-hole drilling and heavy-load machining while maintaining delicate precision.

• Stability Redefined: This series is the ultimate testament to Taikan’s craftsmanship, ideal for complex parts that require long hours of continuous, high-accuracy processing.

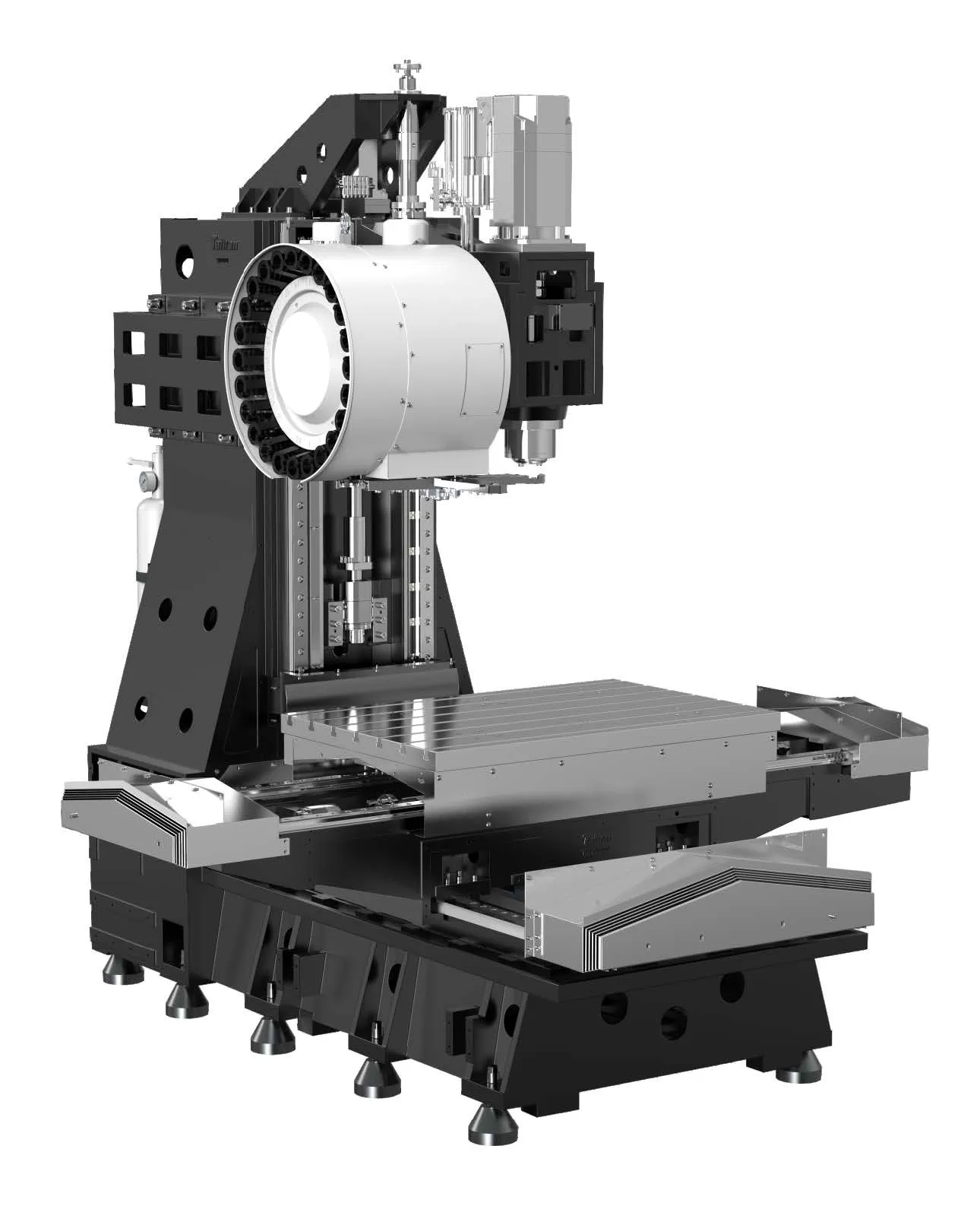

W Series: Specialized Wheel Hub Machining

"A Specialized Masterpiece: High-speed precision for the automotive wheel industry."

The W Series is a purpose-built solution for the global automotive wheel industry, where aesthetic finish and structural integrity are paramount.

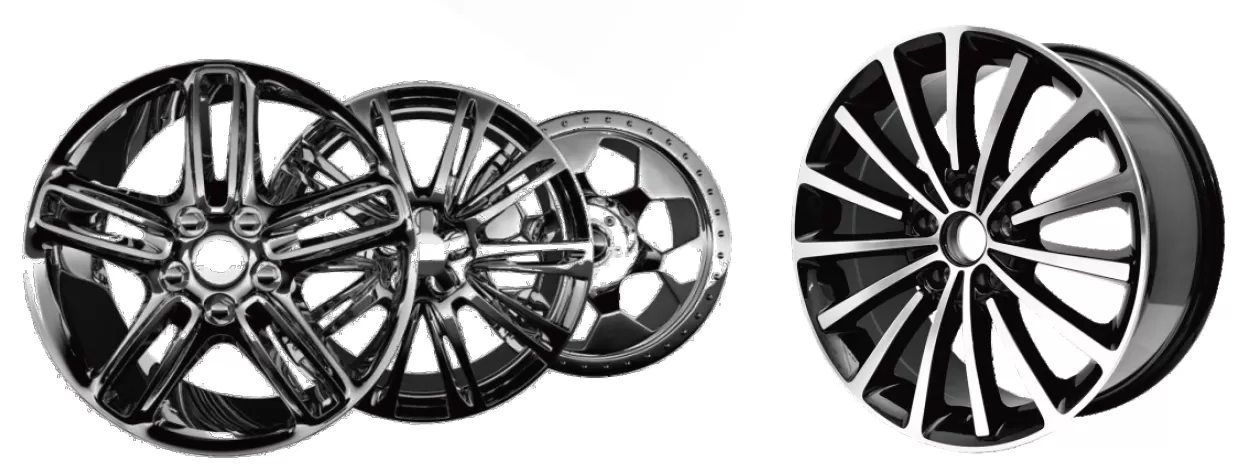

• Optimized Envelope: Designed with an extended Y-axis travel to accommodate wheel hubs ranging from 18 to 20 inches, including custom oversized dimensions.

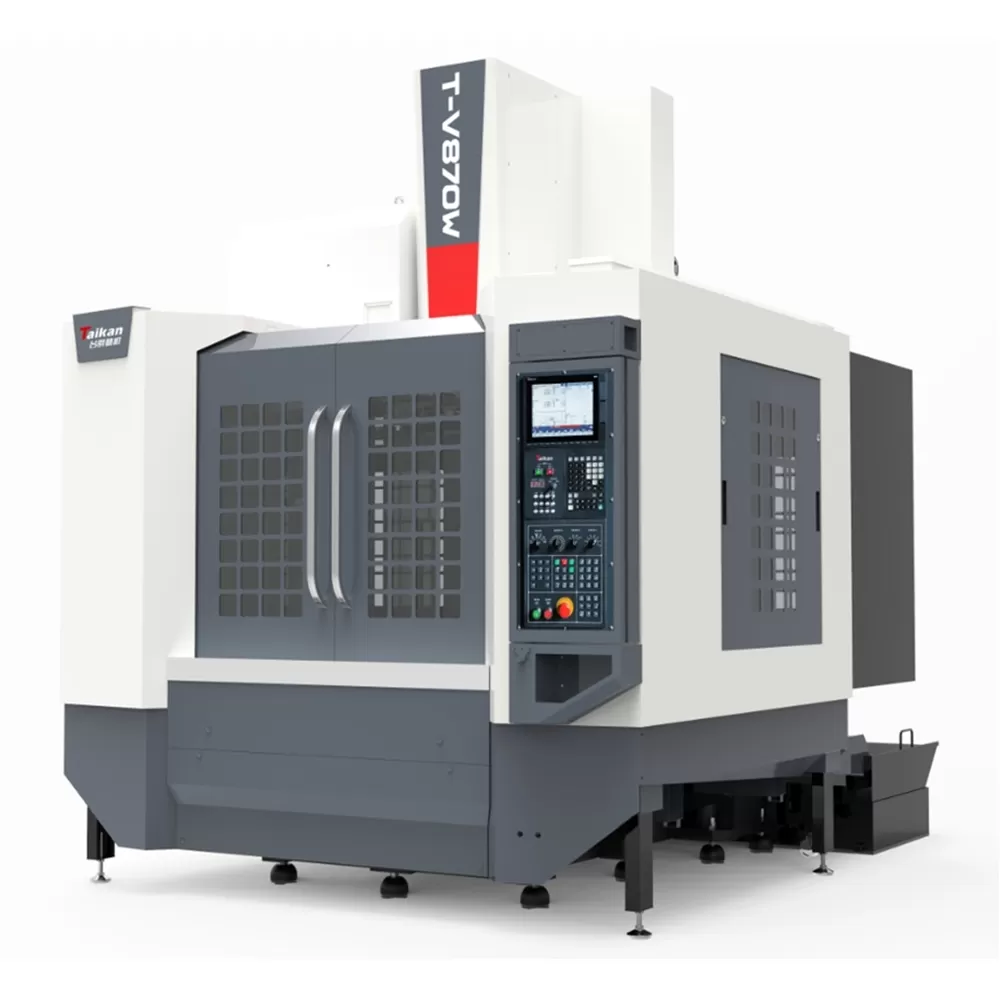

• Superior Surface Finish: The T-V870W features a 12,000 rpm high-speed direct-drive spindle, which minimizes tool wear and ensures a flawless, mirror-like texture on the hub surface.

• Specialized Excellence: By optimizing the cutting parameters for wheel geometry, the W series significantly increases the yield rate and lowers production costs.

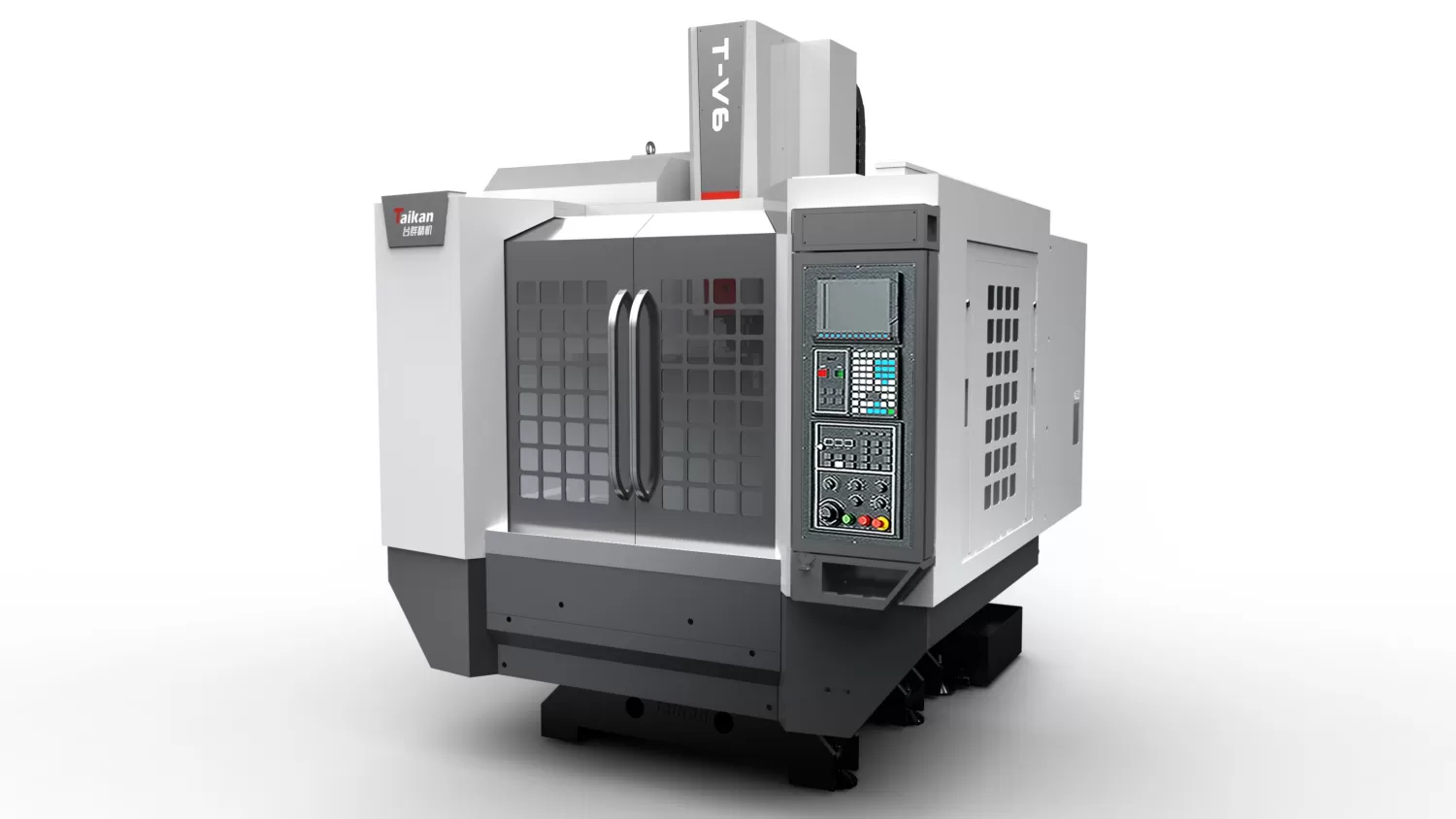

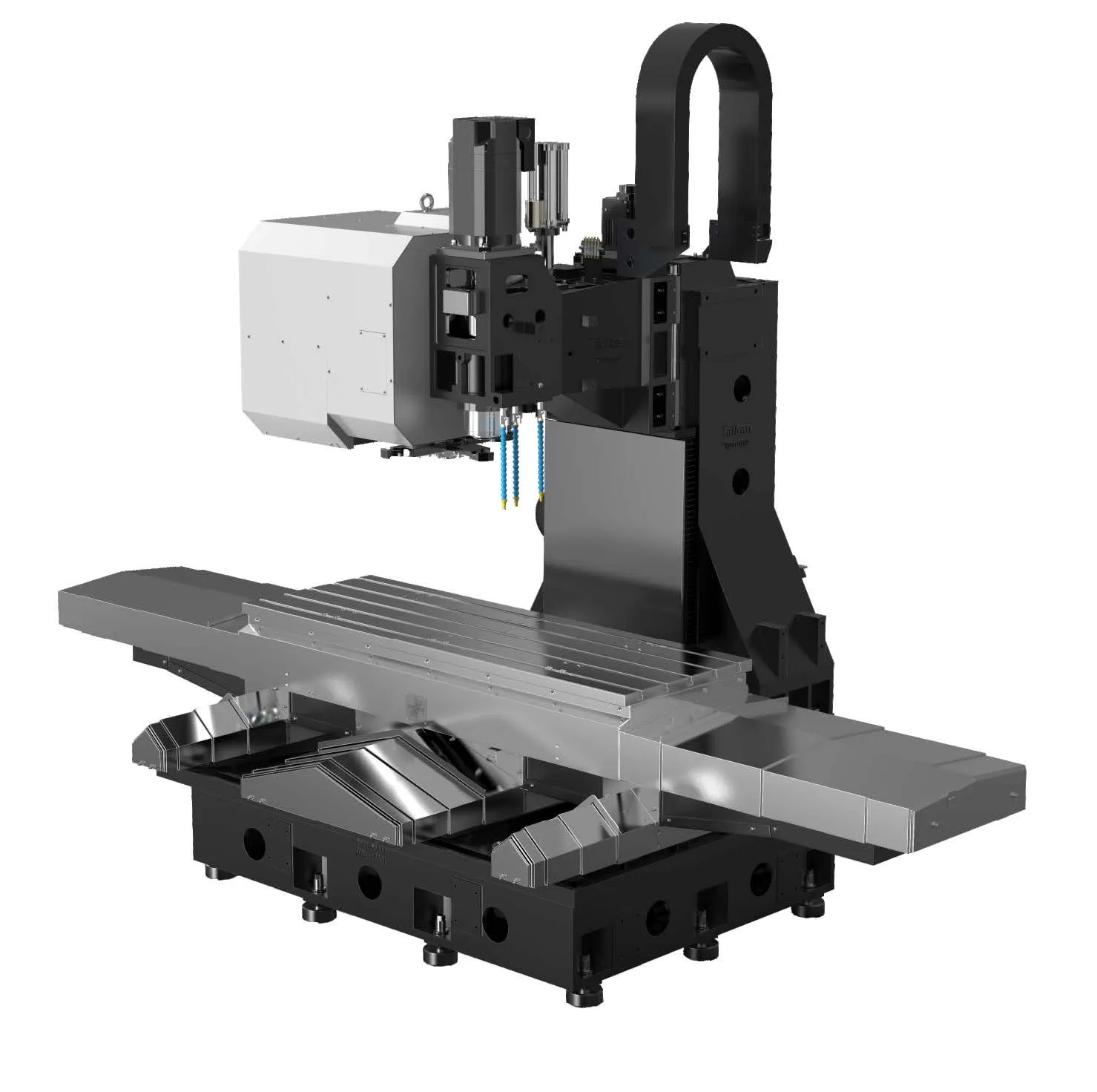

T-V Series: Light Cutting Profile Machining

"A Masterpiece of Agility: Specialized for lightweight, high-speed profile cutting."

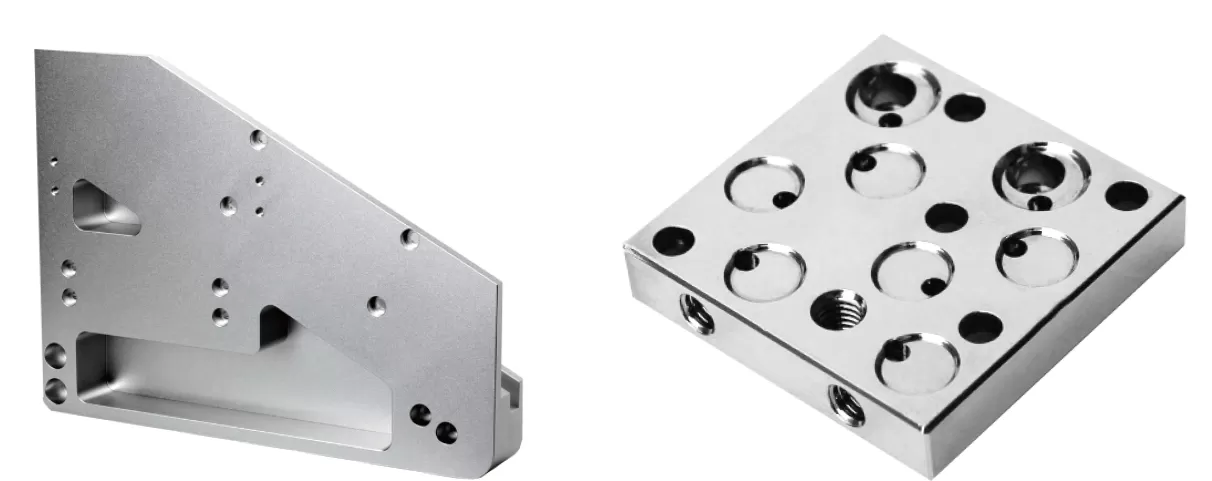

Designed for lightweight components and long-profile frames, the T-V Series is optimized for high-speed aluminum extrusion processing.

• Agile Performance: With the T-V16 as a flagship, this series offers X-axis travel ranging from 600mm to 2000mm. Its rapid traverse speeds (up to 36 m/min on Y/Z) ensure "fast, accurate, and ruthless" drilling, tapping, and milling.

• Direct-Drive Precision: Standard BT40 12,000 rpm direct-drive spindles provide the high response speeds necessary for panels, plates, and frame-style components.

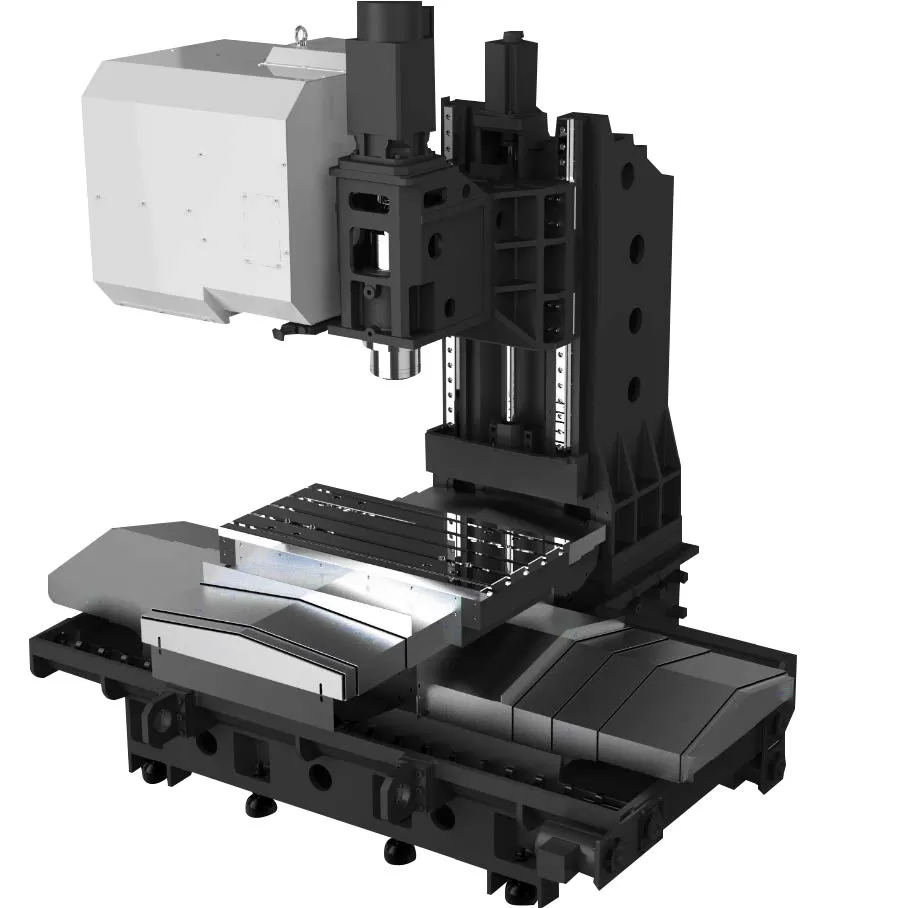

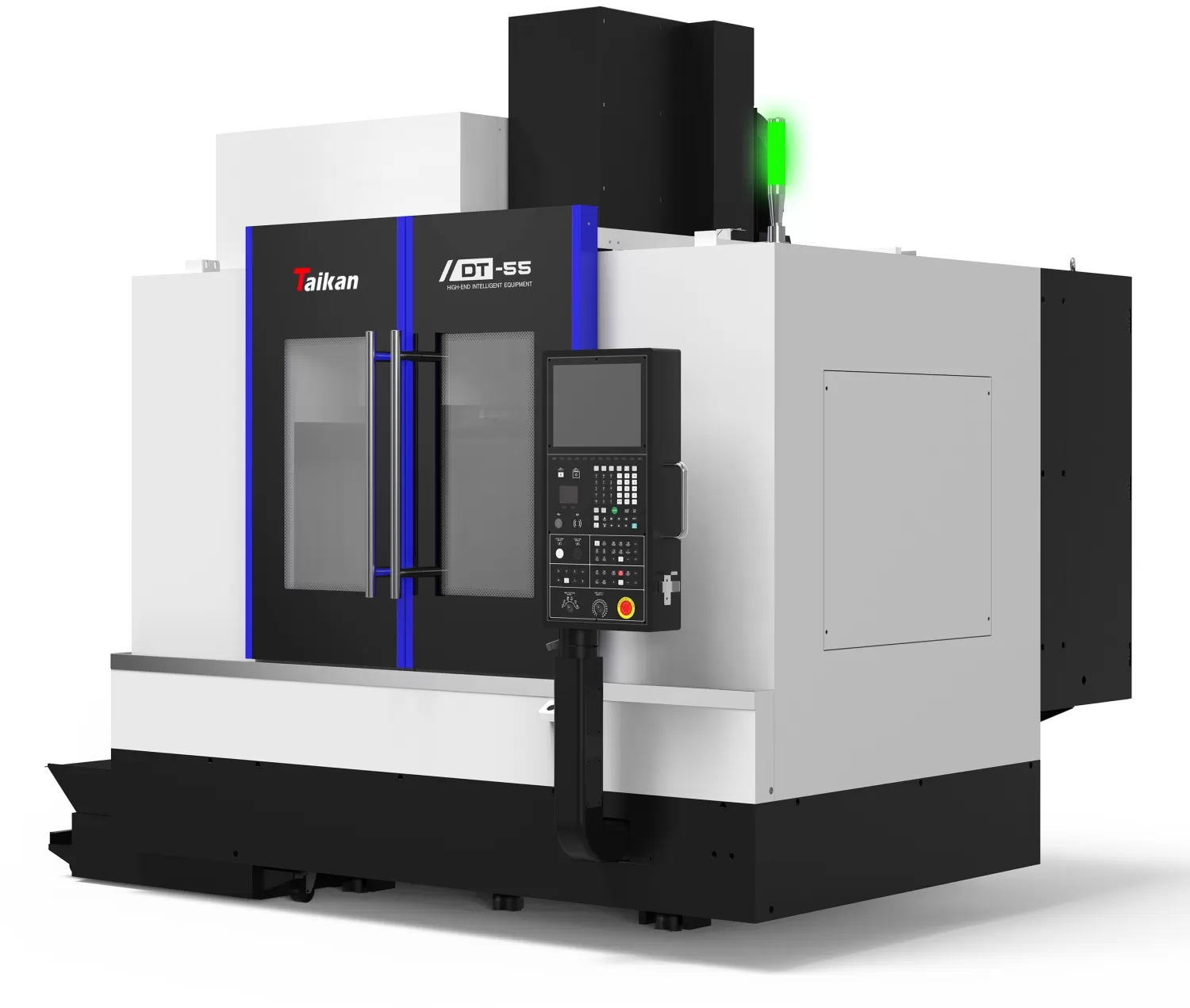

DT Series | The High-End Precision Pinnacle

"A Masterpiece of Dynamic Performance: The premium choice for high-end stability."

The DT Series represents Taikan's high-end engineering, designed for users who require the ultimate in structural balance and ultra-fast tool changes.

• T-Type Bed Structure: Unlike traditional C-type designs, the DT Series utilizes a T-type bed structure. The table and sliding block are supported throughout the entire stroke, eliminating overhang issues and achieving the best dynamic performance and cutting stability.

• Lightning-Fast Tool Changes: Controlled by a high-performance servo motor, the tool-to-tool (T-T) exchange time—including clamp/unclamp—is as fast as 1.2 seconds, ensuring maximum uptime.

• Advanced Accuracy: Standardized with premium NSK imported ballscrews and an integrated hollow ballscrew cooling system, the series minimizes thermal deformation for superior machining consistency.

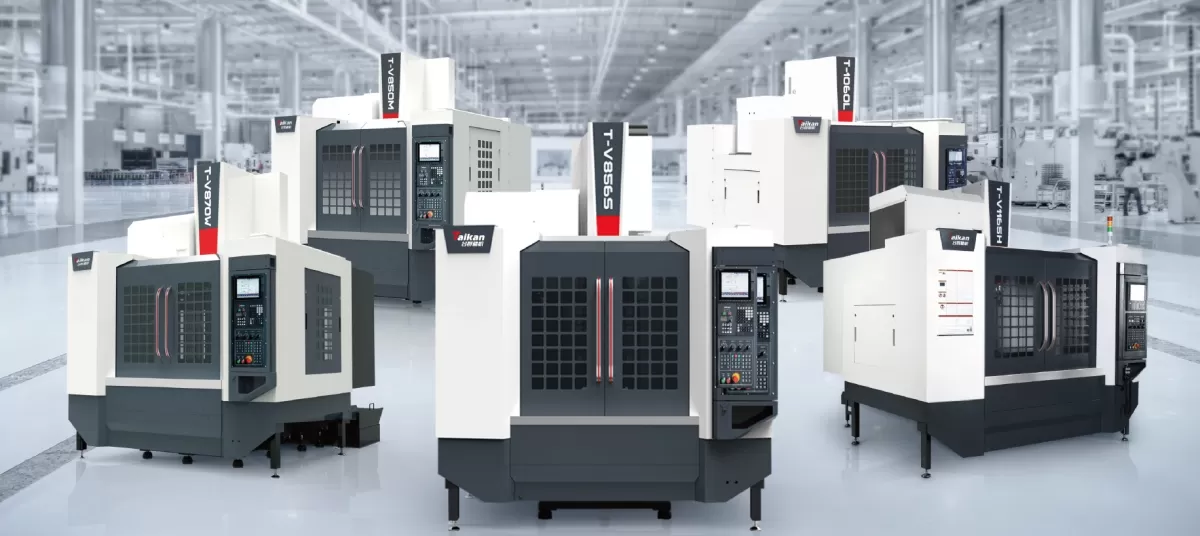

Backed by a publicly listed corporation with a mature global CNC service network, Taikan Machine's vertical machining center portfolio has surpassed 50,000 units sold worldwide — a testament to their reliability and performance. Whether your facility specializes in high-speed aluminum throughput, demanding steel- and iron-heavy cuts, niche wheel finishing, or ultra-fast, high-precision production, there is a Taikan VMC series engineered for your application.

If you would like to obtain the product catalog for our vertical machining center series, please click the link to download it.

Contact us to identify the model that best aligns with your production strategy!
