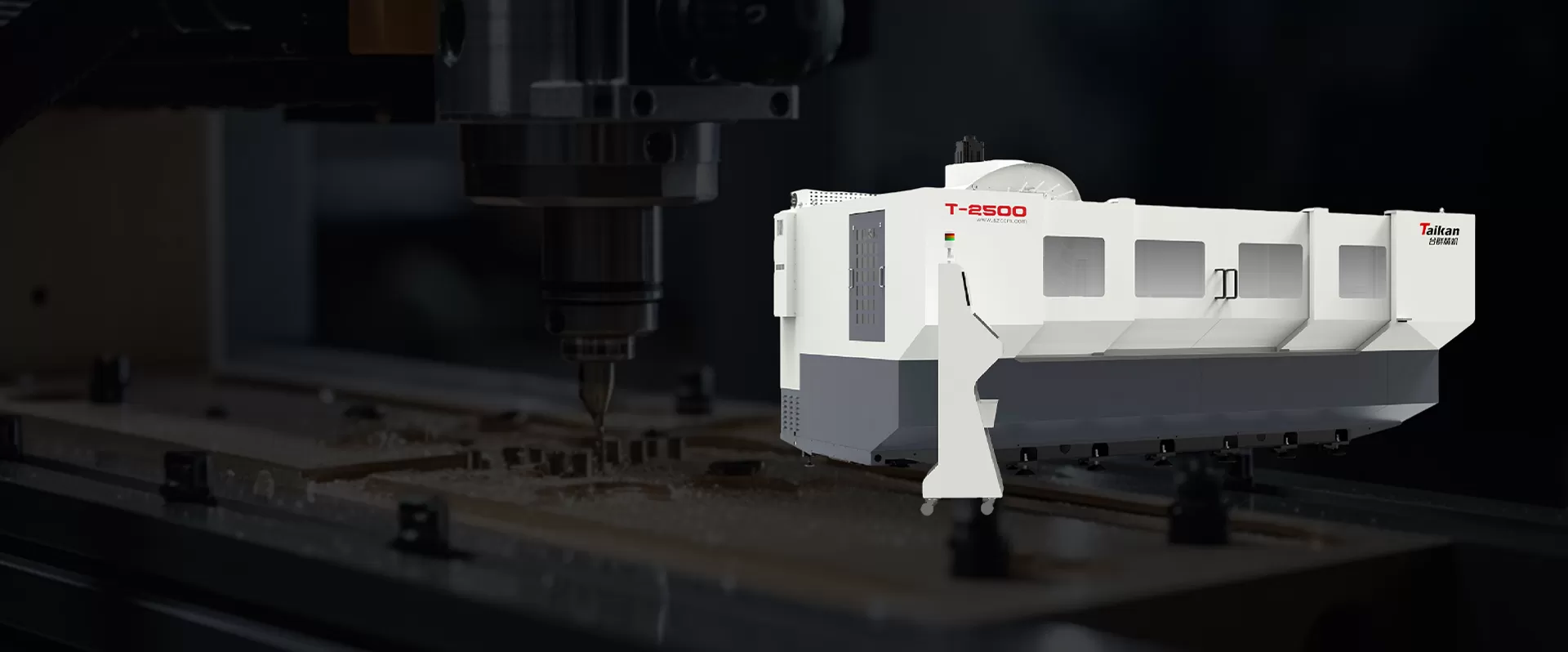

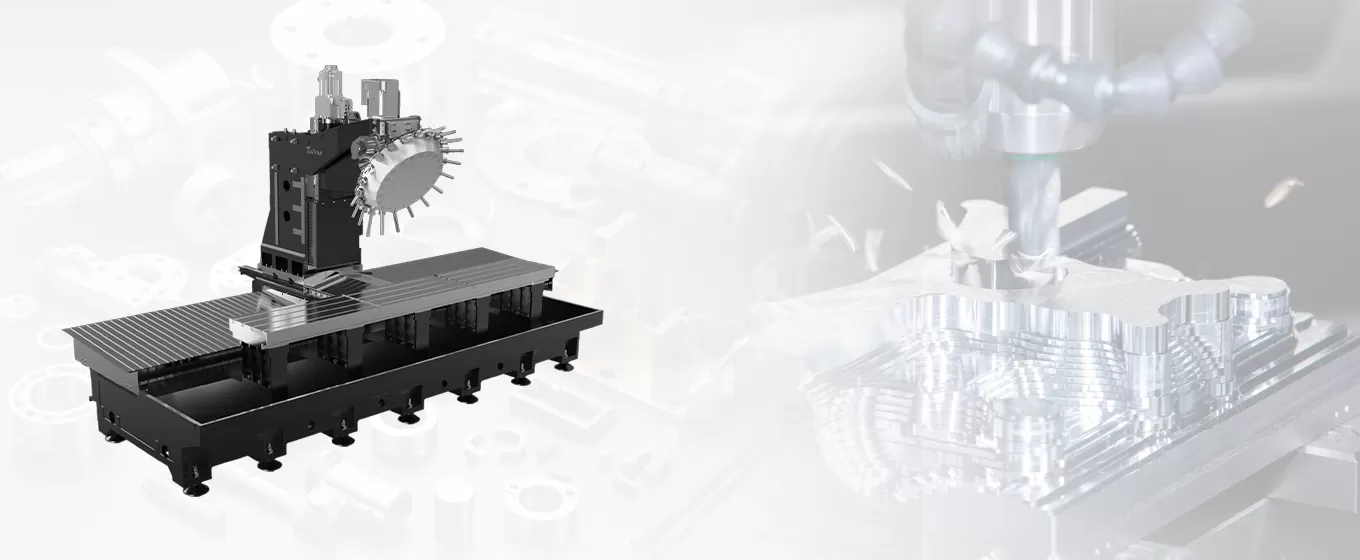

T Series Moving Column Type & BT30 (Tilt-Disc Tool Magazine)

T Series Moving Column Type & BT30 (Tilt-Disc Tool Magazine)

Moving Column

BT30 (Tilt-disc Tool Magazine)


Contact Now!

Types of T Series Moving Column Type & BT30 (Tilt-Disc Tool Magazine)

Advantages of T Series Moving Column Type & BT30 (Tilt-Disc Tool Magazine)

Advantages of T Series Moving Column Type & BT30 (Tilt-Disc Tool Magazine)

T Series


Item

Unit

T-2500

T-4500

T-6500

Table size

mm

2500×400

4500×400

6500×400

X/Y/Z axis travel

mm

2500/400/350

4500/400/350

6500/400/350

Max. spindle speed

r/min

12,000

12,000

12,000

Tool holder specifications

/

BT30

BT30

BT30

Tool capacity

PCS

21

21

21

X/Y/Z axis rapid traverse speed

m/min

50/30/36

50/30/36

50/30/36
