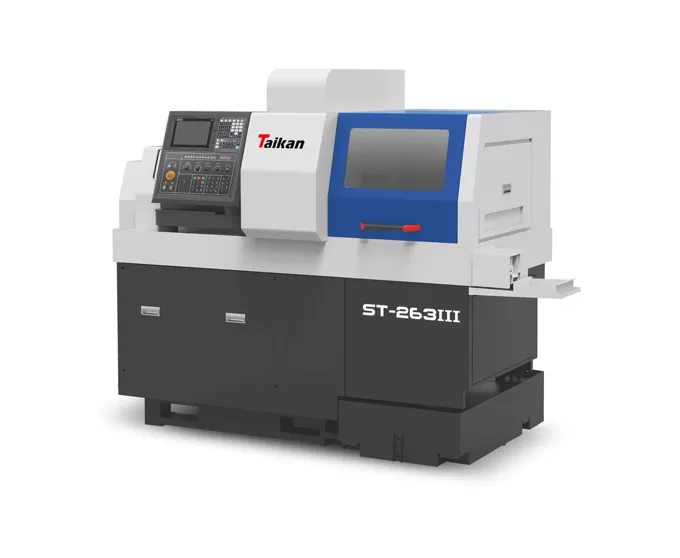

Name: ST-263Ⅲ High-precision CNC Swiss-Type Lathe
Brand: GUANGDONG CREATE CENTURY INTELLIGENT EQUIPMENT GROUP CO., LTD.
Availability: InStock

Characteristic of ST-263Ⅲ High-precision CNC Slitting Lathe

Single Spindle, Single System
3 Linear Feed Axes, 32m/min Rapid Traverse Speed
Standard Equipment Includes 5 Driven Tool Holders
Spindle Without Side Milling Driven Tool Option

Built-in motorized spindle

Interchangeable with and without guide sleeve

Application of ST-263Ⅲ High-precision CNC Slitting Lathe

Workpiece Example 1

Workpiece Example 2

Workpiece Example 3

Single Spindle Automatic Lathe Traub Machine

Workpiece Example 4

Workpiece Example 5

Specifications of ST-263Ⅲ High-precision CNC Slitting Lathe

Item	ST-263Ⅲ
Max. Swing Diameter	Ø26 mm
Max. Machining Length	240 mm
Frontal Drilling Capacity	Max. Ø10 mm
Frontal Threading Capacity	Max. M8
Spindle Bore Diameter	28 mm
Control System	Syntec 22TB CNC System
Spindle Speed	Max. 8,000 rpm
Side Milling Drilling Capacity	Max. Ø10 mm
Side Milling Tapping Capacity	Max. M8 (Copper)
Side Milling Speed	Max. 5,000 rpm

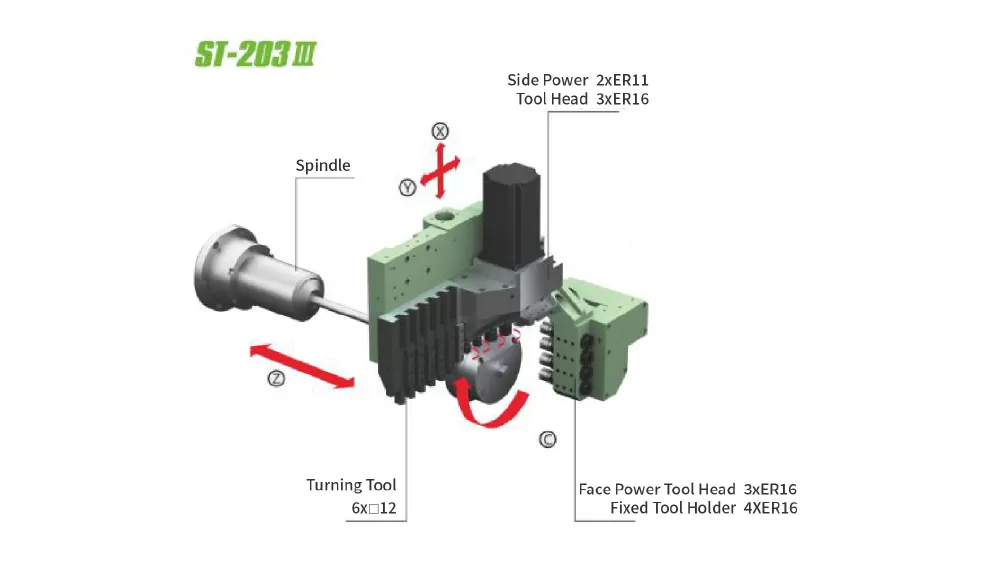

Turning Tool Stations	5×□12 +1×□16 mm
Side Milling Power Units	2×ER11 + 3×ER16(incl. 2 quick-change units)
Face Power Units	Fixed 4×ER16 + Rotary 3×ER16(quick-change type)
Rapid Traverse Rate	X:15/Y:24/Z:18 m/min
Spindle Motor Power	3.7/5.5 kW
Side Milling Motor Power	1.0 kW
Face Milling Motor Power	0.4 kW
Feed Motor Power	X/Y/Z: 1.0 kW each
Total Power Consumption	8 kW
Machine Weight	1,800 kg

The information on this page is for reference only. Specifications and details may change due to product upgrades or improvements. For more information, please contact us.
